Top Sight Glass and Liquid Level Switches for Industrial Monitoring
Selecting the appropriate liquid level monitoring device requires balancing material compatibility with specific pressure and mounting requirements. Whether you are maintaining an air compressor, managing a hydraulic tank, or overseeing a gearbox, the choice between a passive sight glass and an active electrical level switch is critical. These components are engineered for distinct environments, ranging from high-clarity borosilicate glass for visual fluid inspection to brass-stemmed switches designed for precise electrical signaling. Understanding the configuration, such as NPT sizing and pressure ratings, ensures integration with your existing workshop or industrial infrastructure. This guide evaluates five distinct options based on their material construction, operational specifications, and user-reported satisfaction levels to help you identify the hardware suited for your fluid management needs.
When integrating level sensing equipment into your plumbing or electrical systems, prioritize hardware that aligns with your system's pressure and mounting standards. Passive sight glasses are ideal for direct visual confirmation of oil or fluid levels, while electrical float switches provide automated signaling capabilities for system integration. Proper selection depends on the specific NPT connection size, material durability, and the required power handling capacity of the switch. By reviewing the technical specifications and ratings of these components, you can better match the hardware to the operational demands of your gearboxes, tanks, or hydraulic systems without over-specifying or compromising on essential build materials.
1. 3/4'' NPT Stainless Steel Oil Sight Glass with Float Ball, Air compressor Oil Sight Glass, Male Hex Head Heavy Duty Level Gauge for Air Compressor/Gearbox/Hydraulic Tanks | 304 Stainless Steel, High Clarity Borosilicate
This heavy-duty gauge is constructed from 304 stainless steel and features a high-clarity borosilicate sight glass. Designed for air compressors, gearboxes, and hydraulic tanks, it incorporates a float ball for internal monitoring. The unit utilizes a 3/4-inch NPT male hex head connection, facilitating straightforward installation in standard ports. Its design emphasizes durability and clear visibility, making it a reliable choice for monitoring fluid levels in industrial machinery where visual confirmation is required. The material selection of 304 stainless steel suggests a focus on corrosion resistance for long-term use in demanding environments.
Best for: Compressor and hydraulic tank fluid monitoring
Check on AmazonHighlights
- 304 stainless steel body
- Clear borosilicate glass
- 3/4-inch NPT connection
- Includes internal float ball
Keep in mind
- Limited to visual inspection only
- Size may be too large for compact applications

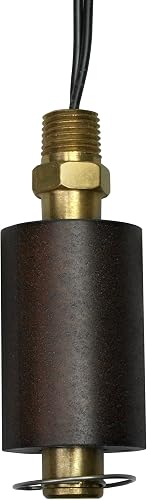

2. Madison M4300 Brass Full Size Liquid Level Switch with Stem, 60 VA SPST, 1/4" NPT Male, 150 psig Pressure
The Madison M4300 is a full-size liquid level switch featuring a brass construction and a stem-based design. It is rated for 60 VA SPST operation and is built to withstand pressures up to 150 psig. The unit utilizes a 1/4-inch NPT male connection, making it suitable for applications requiring a compact yet robust electrical interface for liquid level control. Its brass build provides a reliable housing for internal switching components. This switch is well-suited for systems that need a durable, pressure-rated interface for automated level monitoring or safety shut-off protocols.
Best for: Pressure-rated liquid level automation
Check on AmazonHighlights
- 150 psig pressure rating
- 60 VA SPST switching
- Durable brass construction
- 1/4-inch NPT male thread
Keep in mind
- Requires electrical wiring knowledge
- Smaller NPT size may not fit all ports
3. DEVMO MINI Indicator Vertical Water Level Sensor Stainless Steel 45mm Float Switch
This mini indicator from DEVMO is a vertical water level sensor designed for compact spaces. It features a stainless steel construction and utilizes a 45mm float switch mechanism. The design is intended for precise, small-scale level detection, providing a vertical footprint that is efficient for installations with restricted clearance. Because it is categorized as a mini sensor, it is best suited for light-duty or specialized small-reservoir monitoring tasks. The inclusion of stainless steel suggests a consideration for longevity in water-based environments, though users should ensure the switch's electrical load capacity matches their specific control circuit requirements.
Best for: Small-scale vertical water level detection
Check on AmazonHighlights
- Compact 45mm vertical design
- Stainless steel build
- Float switch operation
- Space-efficient footprint
Keep in mind
- May not be suitable for high-pressure systems
- Smaller scale limits heavy-duty industrial use
4. Johnson Level & Tool 80-5556 Hand Held Sight Level, Orange, 1 Level
The Johnson Level & Tool 80-5556 is a hand-held sight level designed for manual leveling tasks rather than fluid monitoring. This orange, single-level tool is intended for field use where quick, portable reference is needed. Unlike the other liquid-based sensors in this category, this tool focuses on physical orientation and alignment. Its high-visibility orange color assists in locating the tool in busy workshop environments. This is a manual tool for contractors or DIYers who need to verify levels of surfaces or components during installation, rather than monitoring the contents of a tank or reservoir.
Best for: Manual leveling and surface alignment
Check on AmazonHighlights
- Portable hand-held design
- High-visibility orange color
- Single level indicator
- Simple manual operation
Keep in mind
- Not for tank or fluid monitoring
- Requires manual observation
5. GLASSTENDER 01000550 Liquid Level Switch
The GLASSTENDER 01000550 is a liquid level switch intended for specific equipment applications. As an electrical component, it serves the purpose of triggering a response based on internal fluid levels. Given its low user rating, potential buyers should carefully verify the compatibility and technical specifications required for their specific system before purchase. The design is specialized for liquid sensing, though the manufacturer documentation should be consulted to ensure it meets the pressure and chemical resistance requirements of the intended environment. It is aimed at users performing maintenance or repairs on compatible liquid-handling equipment.
Best for: Replacement in compatible liquid-handling systems
Check on AmazonHighlights
- Dedicated liquid level switch
- Designed for specific equipment
- Electrical sensing capability
- Compact form factor
Keep in mind
- Low user feedback rating
- Compatibility verification is essential
How to choose
Material Composition
When selecting a sight glass or level switch, material durability is paramount. The 3/4'' NPT Stainless Steel Oil Sight Glass utilizes 304 stainless steel and high-clarity borosilicate glass, making it suitable for demanding environments like air compressors, gearboxes, or hydraulic tanks. Conversely, the Madison M4300 features a brass construction designed for specific pressure ratings. Evaluate your medium—whether oil, water, or industrial chemicals—to ensure the housing material resists corrosion. Stainless steel options generally offer superior longevity in harsh mechanical applications, while brass is a common choice for liquid level switches operating within specific pressure parameters.
Mounting and Connection
Connection types dictate compatibility with your existing plumbing or equipment. The 3/4'' NPT Stainless Steel Oil Sight Glass requires a 3/4-inch National Pipe Taper thread, while the Madison M4300 uses a smaller 1/4'' NPT male connection. Always match the NPT size to your tank or vessel port to prevent leaks. Some sensors, such as the DEVMO MINI Indicator, are designed as vertical water level sensors, which may require specific mounting configurations compared to standard hex head sight glasses. Ensure your equipment can accommodate the physical footprint and thread specification of the chosen switch or gauge.
Switching Capacity and Pressure
For electrical level monitoring, the switching capacity is a critical technical specification. The Madison M4300 is rated at 60 VA SPST and is designed to handle up to 150 psig pressure. This makes it a specialized tool for systems requiring active monitoring of liquid levels under pressure. In contrast, passive sight glasses like the 3/4'' NPT Stainless Steel model rely on visual inspection rather than electrical signaling. If your project requires an automated response to fluid levels, prioritize switches with clearly defined VA (volt-ampere) ratings and pressure tolerances that align with your system’s operational output.
Visual Monitoring Needs
Distinguish between active switches and manual indicators. The Johnson Level & Tool 80-5556 is a hand-held sight level intended for manual leveling tasks rather than permanent installation in a tank. If your goal is to monitor fluid levels continuously, opt for permanent sight glasses like the 3/4'' NPT Stainless Steel unit, which features a float ball for visual confirmation. For applications where a human is not present to read a gauge, an electronic level switch like the DEVMO MINI Indicator provides the necessary automated data. Select based on whether you need a portable tool or a permanent tank sensor.
Product Ratings and Reliability
User ratings offer insight into market reception and perceived reliability. The 3/4'' NPT Stainless Steel Oil Sight Glass holds a 4.5-star rating, reflecting positive feedback regarding its heavy-duty design and clarity. Both the Madison M4300 and the DEVMO MINI Indicator maintain 4.4-star ratings, suggesting consistent performance in their respective roles as liquid level switches and water sensors. Conversely, products like the GLASSTENDER 01000550, with a 1.0-star rating, indicate potential issues that warrant closer scrutiny of the specifications. Always cross-reference the manufacturer’s data with user ratings to ensure the component meets the quality standards required for your specific plumbing or electrical installation.
Frequently asked questions
What is the difference between a sight glass and a level switch?
A sight glass, such as the 3/4'' NPT Stainless Steel Oil Sight Glass, is primarily a visual tool used to see the fluid level inside a tank or gearbox. A level switch, like the Madison M4300 or DEVMO MINI Indicator, is an electrical component that detects liquid levels and sends a signal—typically to a pump or alarm—when the fluid reaches a specific threshold. Choose based on whether you need to observe the level manually or trigger an automated response.
Can I use the Madison M4300 switch for oil applications?
The Madison M4300 is described as a brass full-size liquid level switch with a 150 psig pressure rating. While it is designed for liquid level monitoring, you must confirm that the brass construction and the specific seals used in the switch are chemically compatible with the type of oil in your system. Always consult the technical specifications to ensure the switch material will not degrade when exposed to the specific viscosity or chemical makeup of your oil.
Is the Johnson Level & Tool 80-5556 used for tank levels?
No, the Johnson Level & Tool 80-5556 is a hand-held sight level, not a tank-mounted level sensor. It is intended for manual leveling applications rather than monitoring the contents of a hydraulic tank, gearbox, or water vessel. If you are looking for a device to monitor fluid inside an enclosed container, you should look for purpose-built sight glasses or float switches that are designed for permanent installation into a port on the side or top of a tank.
Does the 3/4'' NPT Stainless Steel Oil Sight Glass require electricity?
No, the 3/4'' NPT Stainless Steel Oil Sight Glass is a passive mechanical device. It uses a float ball for visual indication, allowing you to see the fluid level through the high-clarity borosilicate glass window. It does not contain electrical contacts or sensors, meaning it does not require wiring or power to operate. This makes it an ideal solution for applications where you only need a manual, reliable way to check fluid levels in tanks or gearboxes.
What does the 60 VA SPST rating mean for the Madison M4300?
The 60 VA (volt-ampere) rating indicates the maximum electrical load the switch can handle, while SPST stands for Single Pole Single Throw. This means the switch operates as a simple on-off mechanism to complete or break a circuit when the float reaches the designated level. This specification is crucial for ensuring the switch is compatible with the voltage and current of your control system, preventing damage to the switch from exceeding its electrical capacity.
Bottom line
For those seeking a robust, high-visibility solution for mechanical tanks, the 3/4'' NPT Stainless Steel Oil Sight Glass stands out as the strongest choice. With a 4.5-star rating, it balances durability through its 304 stainless steel construction with the high-clarity viewing required for accurate oil and hydraulic fluid monitoring. It excels in heavy-duty environments where passive, reliable visual confirmation is preferred over complex electrical integration. While it lacks the automated switching capabilities of the Madison M4300, its simplicity and build quality make it a dependable asset for gearboxes and compressors, provided the 3/4-inch NPT mounting port aligns with your existing equipment design. It is a reliable, straightforward tool for essential maintenance and fluid observation.
Deciding between these tools depends entirely on your need for automation versus observation. If your objective is a simple, visual check of fluid levels, prioritize the 3/4'' NPT Stainless Steel Oil Sight Glass for its material longevity and clear visibility. If you need to trigger an electronic system or alarm based on liquid levels, select the Madison M4300 for its 150 psig rating or the DEVMO MINI Indicator for its compact vertical sensor design. Always verify the NPT thread size and pressure specifications against your tank requirements before purchase to ensure a secure, leak-free installation that meets your specific operational needs.
