Top Armored and Industrial Sight Glasses: A Professional Selection Guide
Selecting the right sight glass is essential for maintaining visibility in pressurized systems and fluid lines. Whether you are monitoring oil levels in an air compressor or observing flow rates in industrial piping, the material composition and mounting type dictate performance. Stainless steel options provide enhanced durability in harsh environments, while polycarbonate designs offer high-impact resistance for specific applications. Proper selection requires matching the NPT sizing, connection type, and material compatibility to your existing infrastructure. This guide evaluates five distinct sight glass options based on their construction and intended use, helping you identify the component that aligns with your specific technical requirements for workshop or industrial maintenance.
When integrating a new sight glass into your equipment, consider the pressure rating and the nature of the fluid being monitored. Stainless steel components are frequently chosen for their corrosion resistance, while specialized flange or sweat-style sight glasses offer specific mounting solutions for complex plumbing or HVAC setups. Compact designs are ideal for tight spaces where visibility is constrained, whereas rectangular flange models provide a broader viewing area for internal inspections. By reviewing the technical specifications of these varied sight glasses, you can ensure a secure fit and clear monitoring capability for your machinery, reducing the risk of equipment failure due to undetected fluid or oil level inconsistencies.
1. Boltigen Air Compressor Sight Glass, 1/2'' NPT Stainless Steel Oil Sight Glass with Float Ball, Tank Oil Level Sight Window Indicator, Clear Liquid Sight Plug, Perfect Replacement for Air Compressor
This 1/2-inch NPT stainless steel sight glass serves as a direct replacement for air compressor oil indicators. It features an integrated float ball, which assists in clearly identifying fluid levels within the tank. Constructed from stainless steel, this component is designed for durability in environments where standard plastic or low-grade metal plugs might fail. The inclusion of a clear sight window allows for quick visual inspections of oil clarity and volume, making it a functional choice for routine compressor maintenance. With a solid 4.6-star rating, it is a well-received solution for technicians looking to upgrade or repair their air compressor monitoring systems without compatibility issues.
Best for: Air compressor oil level monitoring
Check on AmazonHighlights
- 1/2-inch NPT standard sizing
- Durable stainless steel construction
- Includes integrated float ball
- High 4.6-star customer rating
Keep in mind
- Limited to 1/2-inch NPT connections
- May not be suitable for high-temperature chemical applications

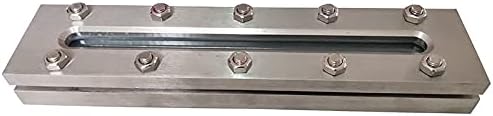

2. SS304 Stainless Steel/Thickened Carbon Steel Flange Sight Glass Window Viewer Rectangle Sight Glass Double-clip Type - (Color: 366x80, Size: Carbon Steel)
This rectangular flange sight glass provides a wide viewing window, measuring 366x80mm. It is constructed from thickened carbon steel, offering a robust frame for monitoring internal processes. The double-clip design facilitates secure mounting, making it suitable for applications that require a larger inspection area than a standard circular plug can provide. Because it uses carbon steel, it provides a rigid structure that may be beneficial for heavy-duty industrial tanks or machinery housings. While specific pressure ratings are not provided, the thickened construction suggests a focus on structural integrity and visibility in demanding mechanical environments where a clear, unobstructed view of the internal operation is necessary.
Best for: Large-scale industrial visual inspection
Check on AmazonHighlights
- Large 366x80mm rectangular viewing area
- Thickened carbon steel frame
- Double-clip mounting system
- Designed for heavy-duty machinery housings
Keep in mind
- Carbon steel may require rust prevention
- Large footprint limits installation options

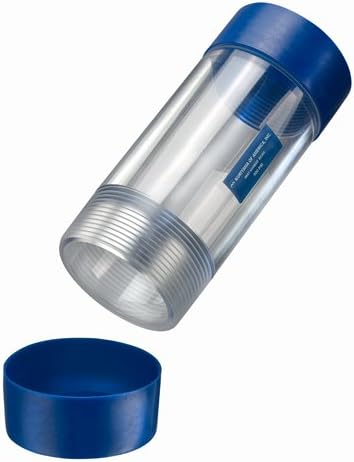

3. Kuriyama SG300 Sight Glass, Tough Poycarbonate, 3"
The Kuriyama SG300 is a 3-inch sight glass manufactured from tough polycarbonate. Designed for durability, this model is built to withstand impacts that might shatter glass alternatives, providing a safer viewing solution for various fluid transfer applications. It maintains a 4.3-star rating, reflecting its reliability in field use. Polycarbonate is favored in situations where mechanical shock is a concern, as it offers a combination of clarity and resilience. This unit is intended for integration into systems where operators need to confirm flow or fluid presence without the fragility associated with traditional glass materials. It is a practical choice for those prioritizing impact resistance and ease of installation in fluid monitoring lines.
Best for: High-impact fluid monitoring
Check on AmazonHighlights
- 3-inch diameter viewing surface
- Resilient polycarbonate construction
- High-impact resistance
- 4.3-star user satisfaction rating
Keep in mind
- Polycarbonate may cloud over time with certain chemicals
- Not suitable for high-temperature steam applications
4. Quality Sight Glass 1/4 X 1/4 Sweat (5 Pieces)
This set includes five 1/4-inch by 1/4-inch sweat sight glasses, designed primarily for HVAC and refrigeration applications. These units are intended to be soldered directly into copper piping, providing a permanent and reliable way to monitor refrigerant flow or moisture levels within a system. By offering a bundle of five, this product is well-suited for professionals performing multiple installations or system repairs. The sweat-style connection ensures a leak-proof seal once properly brazed into the line. These components are essential for diagnosing system performance, allowing technicians to verify that the refrigerant is circulating correctly and free of significant contaminants or bubbles that could indicate a leak or low charge.
Best for: HVAC and refrigeration system diagnostics
Check on AmazonHighlights
- Convenient 5-piece bundle
- Standard 1/4-inch sweat connection
- Ideal for copper line integration
- Essential for refrigerant flow monitoring
Keep in mind
- Requires professional soldering skills
- Permanent installation limits field replacement
5. Dixon 4" Compact Sight Glass/Buna (200ENOSSS)
The Dixon 200ENOSSS is a 4-inch compact sight glass designed for efficient flow monitoring in space-constrained systems. It utilizes Buna seals, which are known for their resistance to petroleum-based oils and fuels, making this sight glass a strong candidate for fluid handling equipment. The compact design allows for installation in tight mechanical assemblies where larger sight glasses would be impractical. By providing a clear view of the fluid path, it helps operators monitor for aeration or flow consistency. Its construction focuses on a balance between visibility and a low profile, ensuring it integrates neatly into existing plumbing or hydraulic layouts without compromising the integrity of the line.
Best for: Compact hydraulic and oil flow monitoring
Check on AmazonHighlights
- 4-inch diameter compact profile
- Buna seal material compatibility
- Designed for tight mechanical spaces
- Optimized for petroleum fluid visibility
Keep in mind
- Buna seals have temperature limitations
- Compact size may restrict viewing angle
How to choose
Material Construction
When selecting an armored sight glass, material composition dictates durability and chemical compatibility. Options range from stainless steel and thickened carbon steel to tough polycarbonate. Stainless steel provides excellent corrosion resistance for harsh industrial environments, while carbon steel offers high structural integrity for heavy-duty applications. Polycarbonate variants, such as the Kuriyama SG300, prioritize impact resistance and clarity. Evaluate your specific system requirements, including pressure loads and fluid types, to ensure the chosen material can withstand the operational environment without degradation. Always match the housing material to the existing piping or tank infrastructure to prevent galvanic corrosion and ensure a secure, long-lasting fit for your sight glass installation.
Mounting and Connection Types
Sight glasses utilize various connection methods to integrate into existing systems. Common configurations include NPT threaded connections, sweat fittings, and flange mounts. The Boltigen air compressor sight glass features a 1/2-inch NPT connection, facilitating a straightforward replacement for standard compressor tanks. Conversely, the Quality Sight Glass uses a 1/4-inch by 1/4-inch sweat connection, ideal for specific plumbing or refrigeration lines. For larger industrial setups, double-clip flange sight glasses like the carbon steel rectangle model allow for secure, high-visibility monitoring. Verify your system's connection size and type—whether threaded, flanged, or soldered—to avoid compatibility issues during the installation process and ensure a leak-proof seal.
Visibility and Monitoring Features
The primary function of a sight glass is to provide clear visual confirmation of liquid levels or flow status. Some models incorporate specialized features to enhance readability. For example, the Boltigen model includes a float ball, which assists in tracking oil levels within an air compressor tank. Shape also influences visibility; while round plugs are standard for small reservoirs, rectangular flange units provide a wider viewing window for monitoring flow in larger piping systems. Assess whether you need a simple level indicator or a window viewer to observe fluid movement. Clear visibility is essential for routine maintenance, preventing equipment damage by allowing operators to quickly verify system status.
Size and Dimensional Compatibility
Selecting the correct dimensions is critical for a flush, secure installation. Sight glasses are available in various standardized sizes, ranging from compact 3-inch or 4-inch units to specific rectangle dimensions like 366x80mm. It is vital to measure the existing aperture or port size before purchasing to ensure the replacement component fits perfectly. Mismatched sizing can lead to structural failures, leaks, or the inability to install the component entirely. Check the product specifications for NPT thread measurements or flange dimensions to guarantee that the sight glass will seat correctly within your compressor, tank, or fluid line, maintaining the integrity and safety of the entire assembly.
Industrial Application Suitability
Different sight glasses are engineered for specific industrial niches. Compact models like the Dixon 4-inch sight glass with Buna seals are often utilized in specialized fluid transfer systems where space is at a premium. Air compressor maintenance requires specific components like the Boltigen sight glass, which includes features tailored for oil level monitoring. Meanwhile, sweat-fit sight glasses are typically found in refrigeration or HVAC applications. Before purchasing, confirm the intended environment for the sight glass. Using a component designed for general plumbing in a high-pressure compressor system, or vice versa, may lead to performance failures. Prioritize products explicitly categorized for your specific equipment type for optimal results.
Frequently asked questions
What is the benefit of a float ball in an air compressor sight glass?
A float ball, featured in the Boltigen air compressor sight glass, is designed to enhance the visibility of liquid levels. By floating on the surface of the oil within the tank, the ball provides a clear, high-contrast indicator that allows operators to quickly and accurately assess the oil level at a glance. This feature is particularly useful in environments where the oil might be clear or difficult to distinguish against the tank interior, ensuring timely maintenance.
Can I use a sweat-fit sight glass in a high-pressure pneumatic system?
Sweat-fit sight glasses, such as the Quality Sight Glass 1/4 x 1/4 model, are typically engineered for specific plumbing or refrigeration applications where soldering is the standard installation method. High-pressure pneumatic systems generally require threaded or flanged connections to withstand significant mechanical stress and pressure fluctuations. Always verify the pressure rating and connection type of your specific sight glass against the requirements of your pneumatic system to ensure safety and prevent potential component failure during operation.
How do I choose between polycarbonate and stainless steel sight glasses?
The choice depends on your environmental requirements. Polycarbonate, found in the Kuriyama SG300, is known for being a tough, impact-resistant material that offers excellent clarity for monitoring flow. Stainless steel provides superior resistance to corrosion and high-temperature environments, making it ideal for harsh industrial settings. If your application involves exposure to corrosive chemicals or extreme heat, stainless steel is generally the safer, more durable option. If impact resistance and transparency are your primary concerns, polycarbonate is a strong choice.
What does a double-clip flange type sight glass offer?
A double-clip flange sight glass, such as the carbon steel rectangle model, is designed for robust mounting in systems that require a wider viewing area. The double-clip design provides a secure mechanical attachment to the flange, ensuring that the window remains stable under operational conditions. These units are typically larger than threaded plugs, making them suitable for monitoring fluid flow in industrial piping where clear, panoramic visibility of the internal process is necessary for effective system oversight.
Are these sight glasses universal for all tank types?
No, sight glasses are not universal. They are manufactured with specific connection types, such as NPT threads, sweat fittings, or flanges, and vary in size and material compatibility. A sight glass designed for an air compressor tank, like the Boltigen 1/2-inch NPT model, will not fit into a system requiring a 1/4-inch sweat fitting or a rectangular flange mount. You must match the connection type, size, and material ratings of the sight glass to your specific equipment's specifications.
Bottom line
For users seeking a reliable solution for air compressor maintenance, the Boltigen Air Compressor Sight Glass stands out as the strongest fit. Its 1/2-inch NPT stainless steel construction provides a balance of durability and chemical resistance, while the integrated float ball significantly improves visibility for oil level monitoring. With a 4.6 out of 5-star rating, it is a well-regarded choice for those needing a precise, easy-to-install replacement part. Its design is explicitly tailored for compressor tanks, ensuring that the connection and functionality align perfectly with standard workshop equipment requirements, making it a dependable choice for those prioritizing ease of use and long-term performance in their pneumatic systems.
Deciding on the right sight glass starts with identifying your system's connection type—threaded, flanged, or sweat—and measuring the existing port size accurately. If you are working with air compressors, prioritize units like the Boltigen that include specialized monitoring features such as float balls. For general fluid flow monitoring in industrial piping, consider the robust construction of stainless or carbon steel flange models. Always prioritize components that match the specific pressure and material requirements of your environment. By focusing on connection compatibility and the intended application, you can select a sight glass that offers the clarity and structural integrity needed for safe, efficient workshop operations.
