Top Boiler Water Pressure and Temperature Gauges for Home and Commercial Use
Monitoring the pressure and temperature of a boiler system is essential for maintaining operational efficiency and safety. Choosing the correct gauge depends heavily on your specific installation requirements, such as connection type, mounting orientation, and the range of measurements needed. Whether you are performing routine maintenance on residential potable water lines or managing a commercial heating system, selecting a tool with accurate calibration is vital. This guide evaluates several available boiler water gauges, focusing on their distinct technical specifications, connection sizes, and design features to help you identify the appropriate equipment for your workshop or home maintenance needs without unnecessary complexity.
When selecting a gauge, verify the compatibility of the thread size, such as the common 1/2-inch or 1/4-inch NPT connections, against your existing plumbing setup. Specialized tools like tridicators provide dual-function monitoring for both pressure and temperature, simplifying the oversight of hydronic systems. Other devices, such as hose-thread pressure testers, serve as portable diagnostic tools for verifying water system integrity. Each product listed offers unique material compositions, ranging from stainless steel cases to bronze internals, ensuring durability under varying environmental conditions. Review these options to determine which hardware aligns with your system's pressure ratings and thermal requirements for reliable, long-term monitoring.
1. SENCTRL 0-200 Psi Lead-Free Water Pressure Gauge Test with Lazy Hand | 2.5" Dial Size, 3/4" Female Garden Hose Thread, Stainless Steel Case, IP67 Waterproof, for Home Potable Water, House Tube
This lead-free pressure gauge is designed for testing home potable water systems. It features a 2.5-inch dial and a 3/4-inch female garden hose thread, allowing for quick connection to standard outdoor spigots or interior hose bibs. The unit includes a lazy hand, which marks the maximum pressure reached during a test, aiding in the identification of pressure spikes. Built with a stainless steel case, the tool carries an IP67 waterproof rating, suggesting high resistance to moisture exposure. It provides a measurement range of 0-200 PSI, making it a versatile diagnostic tool for homeowners looking to verify household water pressure stability or troubleshoot plumbing irregularities.
Best for: Homeowners diagnosing potable water pressure
Check on AmazonHighlights
- 0-200 PSI measurement range
- Includes lazy hand indicator
- IP67 waterproof stainless steel case
- Standard 3/4-inch garden hose connection
Keep in mind
- Limited to hose-thread applications
- Not designed for permanent boiler installation
2. MEASUREMAN Thermo-Manometer Gauge, 75 PSI, 320°F, 1/2 Inch NPT, Boiler | Dual-scale gauge measures 0-75 PSI, 0-170 ft H2O and 70-320°F, with a 1/2-inch NPT brass connection and check valve
This thermo-manometer is engineered for boiler systems, offering a dual-scale display that measures pressure up to 75 PSI and 170 feet of head, alongside a temperature range of 70-320°F. The unit utilizes a 1/2-inch NPT brass connection and includes an integrated check valve, which is a critical component for boiler maintenance as it allows for gauge replacement without draining the entire system. With a perfect rating, this device serves as a robust solution for monitoring both thermal and pressure dynamics in hydronic heating setups. The combination of brass fittings and a comprehensive measurement range makes it a suitable replacement or upgrade for standard boiler monitoring equipment.
Best for: Boiler systems requiring integrated check valves
Check on AmazonHighlights
- Dual-scale pressure and temperature
- 1/2-inch NPT brass connection
- Includes integrated check valve
- High 320°F temperature capacity
Keep in mind
- Restricted to 1/2-inch NPT plumbing
- Requires system depressurization during installation

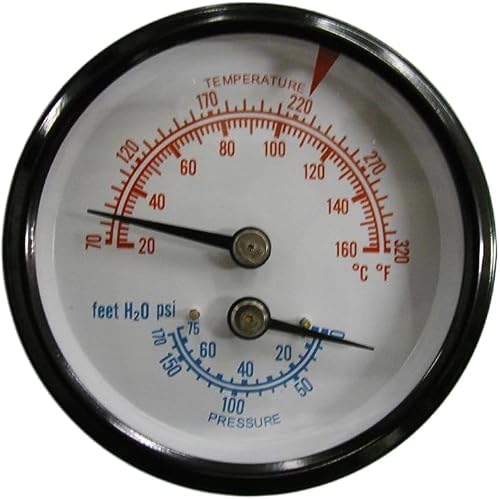

3. Replacement Boiler Temperature Pressure Gauge 60-320 4CFC6 Be Compatible Tridicator Boiler Gauge Temperature
This replacement boiler gauge is designed to be compatible with Tridicator models, specifically matching the 60-320 specification. It functions as a direct swap for existing temperature and pressure monitoring hardware in compatible systems. Given its specific identification as a replacement part, it is intended for users who need to restore accurate readings to a system already configured for this gauge type. The unit focuses on the critical 60-320 temperature range, providing a straightforward monitoring solution for maintenance personnel or homeowners performing system repairs. Its design reflects a focus on functional compatibility, ensuring that users with existing boiler setups can easily maintain their current monitoring standards.
Best for: Replacing existing compatible Tridicator gauges
Check on AmazonHighlights
- 60-320 temperature scale
- Direct replacement design
- High 5.0-star user rating
- Compatible with Tridicator systems
Keep in mind
- May require specific system match
- Limited technical data provided
4. Boiler Water Thermometer & Pressure Gauge 1/4" NPT Short Shank for Accurate Monitoring
This boiler water thermometer and pressure gauge utilizes a 1/4-inch NPT short shank connection, making it suitable for applications where space is at a premium. The compact design allows for accurate monitoring of boiler systems, providing both pressure and temperature readings in a single housing. As a specialized diagnostic tool, it is designed for direct installation into standard 1/4-inch NPT ports found on many boiler manifolds. The short shank construction facilitates a flush or low-profile fit, which is beneficial for retrofitting systems located in tight utility closets or crowded mechanical spaces. This unit is intended for those seeking a precise and unobtrusive method for tracking boiler performance metrics.
Best for: Tightly spaced boiler plumbing installations
Check on AmazonHighlights
- Compact 1/4-inch NPT short shank
- Combined temperature and pressure
- Designed for accurate monitoring
- Low-profile installation
Keep in mind
- May be difficult to read in dark areas
- Short shank may not fit all ports
5. Commercial Tridicator Boiler Gauge Kit,Black Steel Case, Bronze Internals, Plastic Lens w/Red Indicator,2.5" Dial, 0-75 PSI (ft H₂O) & 70-320°F, 1/4" NPT Back Mount and Rotatable Case
The commercial Tridicator boiler gauge kit is designed for durability, featuring a black steel case and bronze internals. It offers a 2.5-inch dial with a red indicator to assist in tracking pressure and temperature thresholds. The device measures 0-75 PSI and 70-320°F, utilizing a 1/4-inch NPT back mount that allows for a rotatable case, providing flexibility in installation orientation. Because the case is rotatable, users can adjust the display to face the most convenient direction for reading, regardless of the mounting port's position. This kit is suitable for commercial or heavy-duty residential applications where a reliable, adjustable monitoring solution is required for boiler system oversight.
Best for: Systems requiring adjustable orientation
Check on AmazonHighlights
- Rotatable case for visibility
- Bronze internals for durability
- 0-75 PSI and 70-320°F range
- 1/4-inch NPT back mount
Keep in mind
- Black steel case may be prone to rust
- Plastic lens may scratch over time
How to choose
Connection Type and Size
Boiler gauges utilize specific threading for compatibility with existing piping. The MEASUREMAN Thermo-Manometer features a 1/2-inch NPT brass connection, which is standard for many boiler systems. In contrast, the Commercial Tridicator Boiler Gauge Kit and the Boiler Water Thermometer & Pressure Gauge utilize a 1/4-inch NPT connection. Always verify your boiler’s port size before purchase to ensure a secure fit. The SENCTRL pressure gauge uses a 3/4-inch female garden hose thread, making it better suited for testing potable water lines rather than permanent boiler installation. Selecting the correct connection size prevents leaks and avoids the need for additional adapters during your installation process.
Dual-Scale Measurement
Effective boiler monitoring requires tracking both pressure and temperature simultaneously. Many specialized tridicator gauges, such as the MEASUREMAN Thermo-Manometer and the Commercial Tridicator Boiler Gauge Kit, provide dual-scale readings. These units typically measure pressure up to 75 PSI and temperatures ranging from 70 to 320°F. Some models also include ft H2O measurements for added precision. If you are replacing a worn-out component, look for these tridicator designs, as they are specifically engineered to replace standard boiler gauges. This dual-functionality provides a comprehensive overview of your system's health, ensuring both pressure and thermal levels remain within the manufacturer’s safe operating parameters.
Material and Build Quality
Durability is a critical factor for hardware exposed to high heat and moisture. The Commercial Tridicator Boiler Gauge Kit features a black steel case with bronze internals, which are designed for the rigors of boiler systems. The SENCTRL model utilizes a stainless steel case with an IP67 waterproof rating, making it highly resistant to environmental moisture. When selecting a gauge, consider the lens material, such as the plastic lens found on the Commercial Tridicator kit. Materials like brass and stainless steel offer greater resistance to corrosion over time, which is essential for maintaining accurate readings in a boiler environment where steam and heat are constant.
Dial and Indicator Features
The readability of your gauge depends on the dial design and additional indicators. The Commercial Tridicator Boiler Gauge Kit includes a rotatable case and a red indicator, which helps track pressure or temperature changes at a glance. The SENCTRL 0-200 PSI gauge includes a 'lazy hand,' a feature useful for identifying the maximum pressure reached during a test cycle. For standard boiler maintenance, a clear, high-contrast dial is essential. Ensure the gauge you select offers a scale that matches the operating pressures of your specific boiler model. Clear markings prevent misinterpretation of data, which is vital when monitoring critical pressure and temperature thresholds in heating systems.
Application Specificity
Not all pressure gauges are built for boiler applications. The SENCTRL 0-200 PSI gauge is labeled for home potable water and house tube testing, using a garden hose connection rather than the NPT threads required for boilers. Conversely, the Replacement Boiler Temperature Pressure Gauge (60-320 4CFC6) and the Boiler Water Thermometer & Pressure Gauge (1/4-inch NPT) are specifically designed as direct replacements for boiler tridicators. Always match the gauge's intended use to your equipment. Using a general-purpose water pressure tester on a boiler system may result in incorrect readings or incompatibility with your plumbing setup, so prioritize parts explicitly categorized for boiler use.
Frequently asked questions
Can I use a garden hose pressure gauge on my boiler?
No, it is not recommended. The SENCTRL gauge is designed with a 3/4-inch female garden hose thread for potable water testing. Boiler systems typically require NPT threaded connections, such as the 1/4-inch or 1/2-inch NPT fittings found on the MEASUREMAN or the Commercial Tridicator Boiler Gauge Kit. Using the wrong connection type will likely result in leaks and an inability to properly mount the gauge to your boiler’s manifold or piping system.
What is a tridicator gauge?
A tridicator gauge is a specialized instrument used on boilers that displays multiple readings on a single dial. Typically, these gauges measure both water pressure and temperature simultaneously. For example, the MEASUREMAN Thermo-Manometer and the Commercial Tridicator Boiler Gauge Kit provide pressure readings up to 75 PSI and temperature readings from 70 to 320°F. This allows for convenient, all-in-one monitoring of the essential thermal and pressure variables within a hydronic heating system.
How do I know if I need a 1/4-inch or 1/2-inch NPT connection?
You must check the existing port on your boiler or the specifications of the gauge you are replacing. The Boiler Water Thermometer & Pressure Gauge and the Commercial Tridicator Boiler Gauge Kit use a 1/4-inch NPT connection, while the MEASUREMAN Thermo-Manometer uses a 1/2-inch NPT brass connection. Consult your boiler’s manual or measure the diameter of the existing pipe fitting to ensure the new gauge will thread correctly into the system without requiring adapters.
What does the red indicator on a boiler gauge do?
The red indicator, often found on models like the Commercial Tridicator Boiler Gauge Kit, serves as a visual reference point. It can be used to mark a target operating pressure or temperature, allowing you to quickly see if the system is currently performing within its intended range. This manual marker helps users identify fluctuations in the boiler's pressure or temperature more easily during routine visual inspections, providing a quick check of the system's current status.
Is the stainless steel case necessary for a boiler gauge?
While not strictly required, stainless steel cases, like the one on the SENCTRL model, offer excellent durability and resistance to corrosion, particularly in environments with high humidity or exposure to water. For boiler gauges, materials like bronze internals and steel or brass housings are preferred for their ability to withstand the heat and pressure inherent in boiler operations. Choosing a gauge with robust construction materials ensures a longer service life and better protection for the sensitive internal components.
Bottom line
The Commercial Tridicator Boiler Gauge Kit and the MEASUREMAN Thermo-Manometer represent the strongest options for dedicated boiler maintenance. The Commercial Tridicator stands out for its rotatable case and red indicator, which aid in monitoring, while its bronze internals and black steel case offer the durability required for heating systems. The MEASUREMAN model provides professional-grade reliability with its 1/2-inch NPT brass connection and integrated check valve, making it a robust choice for systems requiring a larger fitting. Both provide the necessary dual-scale tracking for pressure and temperature, ensuring that boiler operators have the precise data needed to maintain safe performance levels. These specialized tools are superior for permanent boiler installations compared to general-purpose water pressure gauges.
Deciding between these gauges depends primarily on the connection size and the specific mounting requirements of your boiler. If your system requires a 1/2-inch NPT fitting, the MEASUREMAN gauge is the logical choice. If your setup uses a 1/4-inch NPT fitting, the Commercial Tridicator Boiler Gauge Kit or the Boiler Water Thermometer & Pressure Gauge are appropriate. Always confirm the NPT size of your current port before ordering to avoid fitment issues. Prioritize tridicator-style gauges for boilers, as they are specifically engineered to provide the combined temperature and pressure data essential for safe operation, whereas standard pressure gauges lack the necessary thermal monitoring capabilities.
