Top CDI Torque Tools and Ignition Modules Comparison
When selecting equipment from the CDI brand, it is essential to distinguish between precision torque measurement tools and automotive ignition components. CDI is widely recognized in the industrial sector for manufacturing high-quality torque wrenches and calibration systems designed for mechanical accuracy. Conversely, the market also features ignition modules labeled with the CDI abbreviation, which stands for Capacitor Discharge Ignition. These electrical components are specific to engine performance and ignition timing for motorcycles and ATVs. Whether you are outfitting a professional workshop with torque-limiting hardware or performing maintenance on a powersports vehicle, identifying the correct part number and function is critical to ensuring your tool or module meets the specific requirements of your mechanical application.
Our selection highlights the diversity of products currently available under the CDI designation. We examine the 2503MFRPH click-style torque wrench, a staple for heavy-duty fastening, alongside the 2800-1 motorized torque testing system for rigorous calibration needs. Additionally, we look at ignition boxes for the Yamaha Virago, Hyosung GT250, and Honda Fourtrax. These items serve vastly different purposes, ranging from precision manual torque application to electronic spark control. By reviewing the specific drive sizes, torque ranges, and compatibility requirements for these units, you can better align your purchase with your current shop needs or maintenance project while avoiding confusion between industrial tools and engine electronics.
1. CDI 2503MFRPH Comfort Grip Dual Scale Micrometer Adjustable Click Style Torque Wrench - 1/2-Inch Drive - 30 to 250 ft. lb. Torque Range
The 2503MFRPH is a professional-grade, click-style torque wrench featuring a 1/2-inch drive. This tool is designed for precision applications, offering a dual-scale measurement capability that spans a torque range of 30 to 250 foot-pounds. It is engineered with a comfort grip handle to assist with user control during high-torque tightening tasks. As a micrometer-adjustable device, it allows mechanics and technicians to set specific torque values accurately, providing a tactile and audible click when the target torque is reached. This model is well-suited for automotive and industrial environments where consistent fastener tension is required to meet torque specifications. With a solid 4.6-star rating, it stands as a primary choice for users needing reliable torque management in a robust, daily-use hand tool format.
Best for: Automotive and industrial mechanical fastening
Check on AmazonHighlights
- 1/2-inch drive size
- 30 to 250 ft. lb. range
- Dual-scale adjustment
- Comfort grip handle
Keep in mind
- May be heavy for lighter tasks
- Requires periodic recalibration
2. Accessories Y-m-h Virago xv250 cdi para Y-M-H Virago XV250 88-99 3LS-82305-00 Y-m-h Virago 250 DC12V 8PIN 250 XV 250 8 PIN TCI Unit 12V
This ignition unit is designed as a replacement part for Yamaha Virago XV250 motorcycles produced between 1988 and 1999. It functions as a Capacitor Discharge Ignition (CDI) or TCI unit, utilizing an 8-pin connector to manage the 12V electrical system required for engine spark. The component is identified by the part number 3LS-82305-00, which is critical for verifying compatibility with specific Virago 250 models. Unlike torque tools, this electronic module is dedicated strictly to ignition timing and performance consistency for the specified motorcycle engines. Users should verify their existing wiring harness pins and motorcycle production year to ensure this unit matches the electrical requirements of their specific bike, as incorrect installation of ignition modules can lead to failure in starting or engine performance issues.
Best for: 1988-1999 Yamaha Virago XV250 owners
Check on AmazonHighlights
- 8-pin electrical connection
- 12V DC operation
- Direct replacement design
- Specific to XV250 models
Keep in mind
- Limited to specific model years
- Requires electrical system verification
3. GT250 GT250R CDI Module GV250 Ignition CDI for gt250r CDI Box 32900HM815 Mirage250 CDI motos acessórios e pe?as
The GT250 CDI module is an ignition box designed for the GV250 and GT250R motorcycles, specifically utilizing the 32900HM815 part number. This unit serves as the heart of the ignition system for the Mirage 250 series, regulating the spark timing necessary for optimal engine combustion. As an electrical component, its primary function is to replace faulty or aging CDI boxes that may cause intermittent engine performance or failure to spark. The module is categorized as a motorcycle accessory, and users should ensure their vehicle’s ignition system is compatible with the 32900HM815 specification before installation. Because this is an electronic control unit, it requires careful handling during the replacement process to ensure all connections are secure and that the underlying electrical fault has been properly diagnosed.
Best for: Hyosung GT250 and Mirage 250 ignition repair
Check on AmazonHighlights
- Compatible with GV250/GT250R
- Replaces 32900HM815 unit
- Regulates ignition spark
- Essential for engine timing
Keep in mind
- Not a universal fit
- Requires diagnostic verification

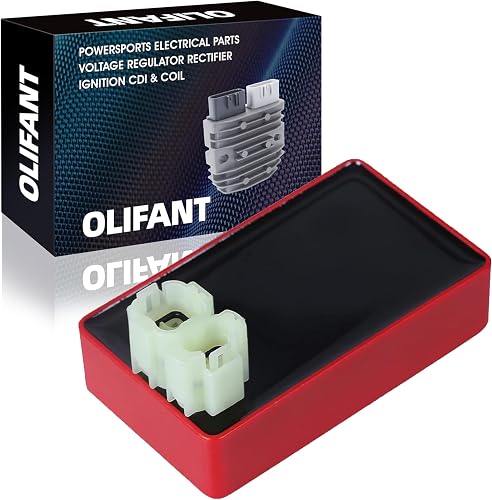

4. Ignition CDI Box For Honda Fourtrax 300 1994-1997 TRX300 TRX300FW 2x4 4x4
This ignition CDI box is engineered specifically for Honda Fourtrax 300 models, including the TRX300 and TRX300FW, covering the production years from 1994 to 1997. It is compatible with both 2x4 and 4x4 drivetrain configurations. As an essential ignition component, it is designed to restore or maintain the spark timing for these specific ATV engines. With a 4.4-star rating, it is a frequently utilized replacement part for off-road enthusiasts maintaining older Honda utility vehicles. When replacing an ignition module on a Fourtrax, it is important to confirm that the existing wiring harness is in good condition to prevent premature failure of the new unit. This module provides a direct fit for the specified years, simplifying the replacement process for those performing standard electrical maintenance on their Honda ATV.
Best for: 1994-1997 Honda Fourtrax 300 maintenance
Check on AmazonHighlights
- Fits TRX300 and TRX300FW
- Supports 2x4 and 4x4 models
- Direct replacement part
- Covers 1994-1997 range
Keep in mind
- Only for specific Honda years
- Wiring conditions affect longevity
5. CDI 2800-1 Torque Multitest Motorized System (SET OF 1 EA)
The CDI 2800-1 is a motorized torque multitest system designed for industrial-level calibration and verification. Unlike manual click-style wrenches, this system is a stationary unit used to test the accuracy of torque tools, ensuring they remain within specified tolerances. It is sold as a set containing one unit and is intended for workshop or laboratory environments where high-precision measurement is mandatory. This system provides a controlled environment for checking the performance of various torque-applying devices, making it an essential piece of equipment for facilities that must adhere to strict quality control standards. Its motorized operation allows for standardized testing procedures, reducing the variability often associated with manual calibration checks. It is a specialized tool for professional maintenance teams responsible for the accuracy of a large fleet of torque wrenches.
Best for: Industrial torque tool calibration
Check on AmazonHighlights
- Motorized testing system
- High-precision calibration
- Stationary workshop unit
- Ensures tool accuracy
Keep in mind
- Requires professional setup
- High investment for small shops
How to choose
Torque Application vs. Ignition Components
When searching for CDI products, it is vital to distinguish between mechanical torque tools and electronic ignition modules. The CDI 2503MFRPH is a precision 1/2-inch drive micrometer adjustable torque wrench designed for mechanical fastening. In contrast, the other listed items, such as the CDI Box for Honda Fourtrax or the GT250 CDI Module, are electronic ignition components for powersports vehicles. Ensure your project requires mechanical torque measurement before selecting a wrench, as these product categories serve entirely different functional purposes in a workshop or garage environment.
Drive Size Considerations
For mechanical torque tasks, the drive size determines the compatibility with your existing socket set. The CDI 2503MFRPH features a 1/2-inch drive, which is standard for higher torque applications ranging from 30 to 250 ft. lb. Always verify the drive size of your sockets before purchasing a torque wrench to ensure a secure fit. If you are working on smaller fasteners, a 1/2-inch drive may be excessive, while for heavy-duty automotive or industrial work, it provides the necessary leverage and structural integrity required for high-torque settings.
Torque Range Requirements
The CDI 2503MFRPH offers a specific dual-scale torque range of 30 to 250 ft. lb. When selecting a torque wrench, match the tool's range to the specific requirements of your hardware. Using a wrench at the extreme low or high end of its scale can sometimes lead to decreased precision. This model uses a click-style mechanism, which provides a tactile and audible signal when the set torque is reached. Ensure your project specifications fall within this defined range to maintain consistent fastening quality across all your professional or DIY applications.
Compatibility for Electronic Modules
If your search for CDI components pertains to motorcycle or ATV repair, such as the GT250 CDI Module or the Honda Fourtrax Ignition CDI Box, compatibility is determined by the specific make, model, and year of the vehicle. These electronic parts are not universal. You must verify the part number, such as 3LS-82305-00 or 32900HM815, against your vehicle's service manual. Incorrect ignition units can fail to sync with your engine's timing or electrical system, potentially leading to ignition failure or damage to the vehicle's electrical harness.
System Testing and Calibration
For high-volume workshops, the CDI 2800-1 Torque Multitest Motorized System represents a specialized category of equipment designed for verifying torque tool performance. Unlike a hand-operated torque wrench, this system is an industrial testing apparatus. If you are maintaining a fleet of tools, motorized testing systems provide the consistency required to ensure all mechanical torque wrenches remain within their factory specifications. Assess whether your workshop requires a handheld tool for daily use or a dedicated testing system to maintain the calibration accuracy of your existing inventory of torque-limiting instruments.
Frequently asked questions
Is the CDI 2503MFRPH a tool for engine ignition systems?
No, the CDI 2503MFRPH is a mechanical 1/2-inch drive click-style torque wrench. It is designed for measuring and applying specific torque values to fasteners, not for electrical ignition. Products labeled as 'CDI' in the context of motorcycle parts, such as the ignition box for the Honda Fourtrax or the Virago XV250 unit, are electronic modules used to control engine timing and spark delivery, which are entirely different from mechanical torque tools.
What does the 30 to 250 ft. lb. range mean for the 2503MFRPH?
This range indicates the minimum and maximum torque force the wrench can accurately measure and apply. The 2503MFRPH is built for heavy-duty applications requiring between 30 and 250 foot-pounds of torque. When using this wrench, you must adjust the micrometer handle to your desired setting within this specific range. Always refer to your equipment’s technical manual to ensure the required torque for your specific bolt or nut falls within these defined operational limits.
Can I use the CDI ignition module on any motorcycle?
No, electronic CDI modules are highly specific to engine types and electrical systems. For example, the GT250 CDI module is designed for the GV250 and GT250R, while the Fourtrax CDI box is specific to 1994-1997 Honda TRX300 models. Attempting to install an ignition module on a vehicle for which it was not manufactured will likely result in a non-starting engine or severe electrical damage. Always check your specific model number before purchasing.
What is the purpose of a Torque Multitest System?
A system like the CDI 2800-1 is designed for testing and calibrating torque tools rather than for tightening fasteners. These systems are used in professional settings to ensure that handheld torque wrenches, like the 2503MFRPH, are still providing accurate readings. If you are operating a shop where precise torque application is critical for safety and compliance, a multitest system allows you to verify the performance of your tools without relying on external calibration services.
What does 'dual scale' mean on the CDI torque wrench?
A dual-scale torque wrench, such as the 2503MFRPH, is equipped with markings for two different units of measurement, typically foot-pounds (ft. lb.) and Newton-meters (Nm). This allows the user to work with hardware specifications provided in either imperial or metric standards without needing to perform manual unit conversions. Always ensure you are reading the correct scale designated on the handle before applying force to a fastener to prevent over-tightening or under-tightening the hardware.
Bottom line
The CDI 2503MFRPH stands out as the most reliable choice for users seeking professional-grade mechanical torque control. With a 1/2-inch drive and a robust 30 to 250 ft. lb. range, it is well-suited for heavy-duty automotive and industrial mechanical fastening. Its click-style design offers clear tactile feedback, which is essential for accuracy in high-stakes environments. While the other listed CDI products serve the powersports market as electronic ignition components, the 2503MFRPH is the premier choice for technicians who prioritize precision mechanical torque. It remains a consistent performer for those needing to adhere to specific torque requirements during assembly or maintenance, distinguishing itself from electronic modules through its dedicated mechanical utility and clear, adjustable interface.
Deciding which product to purchase depends entirely on whether your project is mechanical or electrical. If your goal is to tighten bolts to a specific tension, the CDI 2503MFRPH is your primary tool. If you are experiencing engine ignition issues on a vehicle like a Honda TRX300 or a Virago XV250, you must bypass the torque tools and focus exclusively on the electronic CDI ignition modules compatible with your specific make and model year. Never attempt to use a mechanical torque wrench for electrical repairs, and always verify part numbers when ordering electronic ignition components to ensure compatibility with your vehicle's wiring harness and engine timing requirements.
