Top Chemical Tank Sight Glasses and Level Gauges for Industrial Monitoring
Monitoring fluid levels and flow in industrial vessels requires equipment built for specific chemical compatibility and pressure environments. Choosing the correct sight glass involves matching the material properties of the tube or housing to the substance being stored, whether it is petroleum-based, a sanitary food-grade liquid, or high-temperature boiler water. Options range from simple borosilicate glass tubes for standard wall mounting to robust 304 or 316 stainless steel weld-on and threaded assemblies. Each configuration offers distinct advantages in installation method, pressure tolerance, and visibility. Understanding the operational requirements of your tank—such as temperature limits and chemical exposure—is essential for selecting a sight glass that ensures safe and accurate monitoring during your daily processing tasks.
Selecting appropriate hardware depends on the specific connection type and material integrity required for your system. While some designs utilize transparent polyamide resin for compatibility with solvents and diesel, others prioritize high-temperature resistance through borosilicate glass or long-term corrosion resistance using stainless steel. Whether you are replacing a component on a boiler or retrofitting a sanitary processing tank, the products below provide diverse solutions for visual level and flow verification. By aligning these technical specifications with your existing vessel setup, you can maintain clear visibility into internal processes while adhering to necessary material standards for your specific fluid handling applications.
1. Zight Borosilicate Glass Standard Wall Transparent Level Gauge Tube. High-Temperature, Chemical-Resistant Sight Glass Tube for Boilers, Tanks, Process Vessels - 6 pack (0.625, 5/8, Inches, 24, Inches)
This 6-pack of standard wall sight glass tubes is constructed from borosilicate glass, a material often utilized for its chemical resistance and high-temperature tolerance. Each tube measures 0.625 inches (5/8 inch) in diameter and 24 inches in length. Designed as a transparent level gauge, this product serves as a replacement or installation component for boilers, storage tanks, and various process vessels. The inclusion of multiple units allows for bulk installation or maintenance inventory. Because these are glass components, they provide clear transparency for monitoring liquid contents within pressurized or heated systems. The standard wall thickness is intended for consistent performance across standard industrial applications where borosilicate's physical properties are required to withstand harsh operating conditions or chemical exposure.
Best for: Boiler and tank maintenance requiring multiple glass replacements.
Check on AmazonHighlights
- Borosilicate glass construction
- High-temperature resistance
- Chemical-resistant properties
- 6-pack bulk quantity
Keep in mind
- Fragile glass material may be prone to breakage during installation
- Requires compatible mounting hardware not included in this set
2. Lenz T-LLG-5 Fluid Level Gauge & Thermometer, 6.1" Tall, 1/2-13 UNC Thread | Nitrile Seal, 212 F Max Temp, 44 Max PSI, Transparent Polymide Resin, Petroleum-based Fluids, Gasoline, Diesel, Solvents
The Lenz T-LLG-5 is a fluid level gauge designed for monitoring petroleum-based fluids, including gasoline, diesel, and various solvents. Standing 6.1 inches tall, it features a transparent polyamide resin body and nitrile seals to manage fluid containment. It is rated for a maximum temperature of 212°F and a maximum pressure of 44 PSI. The unit incorporates a built-in thermometer, providing dual-functionality for users needing to track both volume and temperature in a single assembly. With a 1/2-13 UNC thread, this gauge is engineered for specific mechanical mounting requirements. The 4.6 out of 5-star rating suggests it is a recognized solution for secondary tanks or smaller hydraulic reservoirs where space is limited and fluid chemistry is compatible with its resin and seal materials.
Best for: Monitoring diesel, gasoline, or solvent levels in smaller reservoirs.
Check on AmazonHighlights
- Integrated thermometer feature
- Compatible with petroleum-based fluids
- Transparent polyamide resin body
- Includes nitrile seals
Keep in mind
- Limited to 44 PSI maximum pressure
- Polyamide resin may not be suitable for all aggressive industrial chemicals
3. Sanitary Weld-On Sight Glass Tower with Diopter for Tank Pipe Monitoring | Clear magnified view of liquid level & flow. 304 stainless steel, weld-on design for sanitary processing.(25mm)
This sanitary weld-on sight glass tower is designed for permanent integration into tank piping systems. It features a diopter for a magnified view of liquid levels and internal flow. The construction utilizes 304 stainless steel, which is standard for sanitary processing environments where hygiene and corrosion resistance are critical. Measuring 25mm, this tower is built for direct welding to the vessel, creating a secure, integrated monitoring point. The design focuses on providing a clear, magnified visual indicator, which can be helpful in systems where liquid movement or level changes are subtle. By using a weld-on design, it eliminates potential leak paths often associated with threaded connections, making it a robust choice for permanent infrastructure in food, beverage, or pharmaceutical processing lines.
Best for: Permanent sanitary processing installations.
Check on AmazonHighlights
- 304 stainless steel construction
- Magnified diopter view
- Sanitary weld-on design
- Clear liquid flow monitoring
Keep in mind
- Requires professional welding for installation
- Permanent design makes removal or replacement more labor-intensive

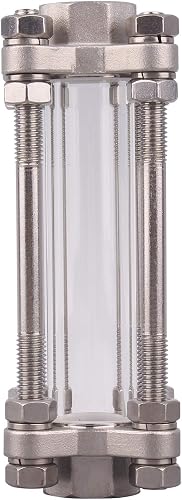

4. DERNORD in-Line Sight Glass with Female Thread,Flow Sanitary Straight Sight Glass SUS316 1/2" NPT Female
The DERNORD in-line sight glass offers a straightforward method for monitoring flow through a piping system. It is manufactured from 316 stainless steel, a material favored for its superior corrosion resistance compared to lower-grade alternatives. This model features a 1/2-inch NPT female thread, allowing for easy integration into existing threaded pipe configurations. With a 4.7 out of 5-star rating, it is a well-regarded component for sanitary flow monitoring. The in-line design allows operators to visually confirm the presence and movement of fluids without interrupting the process. It is suitable for a variety of industrial applications where threaded connections are preferred for maintenance or modular assembly, providing a durable, stainless steel solution for visual process control.
Best for: Threaded in-line flow monitoring in sanitary environments.
Check on AmazonHighlights
- 316 stainless steel construction
- 1/2-inch NPT female threads
- In-line flow visualization
- Sanitary-grade material
Keep in mind
- Threaded connections may require sealant to prevent leaks
- Sight glass portion remains a potential point of impact damage
5. Rheem AP12617-3 Sight Glass
The Rheem AP12617-3 is a specific replacement sight glass component. With a 4.4 out of 5-star rating, it is designed for use with compatible Rheem equipment. While the product record is concise, this part is intended to allow for the visual inspection of internal components or flame status within heating appliances. As an original equipment replacement, it is engineered to meet the specific fitment and heat-resistance requirements of the manufacturer's systems. This component is essential for routine maintenance where the original glass may have become clouded, cracked, or damaged due to heat cycles. Users should verify compatibility with their specific unit model to ensure the correct diameter and sealing characteristics are maintained for safe operation.
Best for: Replacement of damaged sight glass on Rheem appliances.
Check on AmazonHighlights
- Original equipment replacement
- Designed for specific appliance compatibility
- Maintains visibility for flame inspection
- High user satisfaction rating
Keep in mind
- Limited to specific manufacturer equipment
- Lack of detailed material specifications in the product record
How to choose
Material Compatibility
Select materials based on your specific fluid requirements. The Zight Borosilicate Glass offers high-temperature and chemical resistance, making it suitable for boilers and process vessels. Conversely, the Lenz T-LLG-5 uses transparent polyamide resin designed specifically for petroleum-based fluids, gasoline, diesel, and various solvents. For sanitary environments, the DERNORD in-line sight glass utilizes SUS316 stainless steel, while the Sanitary Weld-On Sight Glass Tower features 304 stainless steel. Always verify that the glass or resin composition matches the chemical profile of your tank contents to prevent degradation, leaks, or structural failure in your monitoring system.
Installation Method
Your tank configuration dictates the necessary installation hardware. Weld-on options, such as the Sanitary Weld-On Sight Glass Tower, provide a permanent, integrated solution for sanitary processing environments. If your system requires threaded connections, the DERNORD in-line sight glass offers a 1/2-inch NPT female thread, while the Lenz T-LLG-5 utilizes a 1/2-13 UNC thread for mounting. Ensure your vessel has the corresponding port size or the capacity for welding before purchase. Threaded units allow for easier replacement or maintenance compared to welded towers, which require professional fabrication skills to install safely and effectively onto existing piping or tank walls.
Pressure and Temperature Ratings
Operating environment limits are critical for safety and longevity. The Lenz T-LLG-5 is explicitly rated for a maximum temperature of 212 degrees Fahrenheit and a maximum pressure of 44 PSI. When selecting components for high-heat applications like boilers, borosilicate glass tubes like the Zight series are preferred due to their high-temperature resistance. Always consult the manufacturer specifications for the specific pressure and thermal thresholds of your equipment. Exceeding these limits can result in catastrophic failure of the sight glass, leading to fluid loss or dangerous exposure, particularly when dealing with pressurized tanks or high-temperature industrial steam systems.
Visibility and Monitoring
The primary purpose of a sight glass is clear liquid level monitoring. Options like the Sanitary Weld-On Sight Glass Tower provide a magnified view of liquid levels and flow, which is beneficial for precise observation. Tube-style gauges, such as the Zight Borosilicate Glass, offer a standard wall transparent view across a 24-inch length, ideal for monitoring taller tanks. The Lenz T-LLG-5 includes an integrated thermometer, combining fluid level monitoring with temperature tracking in a compact 6.1-inch form factor. Choose the level of visibility and additional diagnostic features that best align with your operational monitoring requirements and tank size.
Application Specificity
Identify whether you need a generic replacement or a specialized unit. The Rheem AP12617-3 sight glass serves as a specific replacement part, whereas the DERNORD in-line sight glass is a versatile component for sanitary straight-flow monitoring. Industrial tanks requiring chemical resistance may benefit from the Zight borosilicate tubes, while sanitary processing lines benefit from the stainless steel construction of the DERNORD or weld-on tower options. Assess whether your project requires a standard replacement component or a custom-fit industrial gauge to ensure proper integration with your existing plumbing, tank architecture, and fluid types.
Frequently asked questions
Which sight glass is best for monitoring diesel or gasoline?
The Lenz T-LLG-5 Fluid Level Gauge is specifically designed for petroleum-based fluids, including gasoline and diesel. It is constructed with a transparent polyamide resin and features a nitrile seal to ensure compatibility with these fuels. It also includes an integrated thermometer and is rated for temperatures up to 212 degrees Fahrenheit with a 44 PSI maximum pressure limit, making it a reliable choice for fuel storage monitoring where chemical resistance to hydrocarbons is required.
Can I use the Zight Borosilicate Glass for high-temperature boilers?
Yes, the Zight Borosilicate Glass standard wall tubes are designed for use in high-temperature environments, including boilers, process vessels, and tanks. Borosilicate glass is known for its resistance to thermal shock and chemical exposure. These tubes come in a 6-pack with a 24-inch length and 0.625-inch diameter, providing a transparent level gauge solution for industrial applications where standard glass might fail under high-heat conditions. Ensure the tube dimensions are compatible with your existing boiler sight glass hardware before installation.
What is the benefit of a sanitary weld-on sight glass?
A sanitary weld-on sight glass tower is designed for permanent installation in environments requiring strict hygiene, such as food or pharmaceutical processing. By welding the unit directly to the tank or pipe, you minimize crevices where contaminants could accumulate. The Sanitary Weld-On Sight Glass Tower features 304 stainless steel construction and provides a magnified view of the liquid level and flow. This design ensures a robust, leak-resistant monitoring point that adheres to sanitary processing standards.
Does the DERNORD in-line sight glass require special fittings?
The DERNORD in-line sight glass is equipped with a 1/2-inch NPT female thread, which is a standard industrial fitting size. This design allows it to be easily threaded onto existing 1/2-inch NPT male pipe connections. It is constructed from SUS316 stainless steel, offering high durability and corrosion resistance for flow monitoring. Because it uses standard threading, it is generally easier to integrate into existing piping systems than weld-on models, which require specialized fabrication equipment to install correctly.
Are there sight glasses that include temperature monitoring?
Yes, the Lenz T-LLG-5 Fluid Level Gauge includes an integrated thermometer. This allows users to monitor both the fluid level and the temperature of the contents simultaneously within a single 6.1-inch tall unit. This combination is particularly useful for tanks containing fluids where temperature regulation is critical, such as diesel or specialized solvents. It is rated for temperatures up to 212 degrees Fahrenheit and uses a nitrile seal for secure performance within its specified pressure and temperature limits.
Bottom line
When selecting the strongest fit for chemical tank monitoring, the choice depends on your specific fluid and pressure requirements. The Zight Borosilicate Glass is the superior choice for high-temperature boilers and industrial vessels due to its robust thermal resistance. For petroleum-based applications, the Lenz T-LLG-5 is the most effective solution, offering the added benefit of an integrated thermometer and solvent-resistant nitrile seals. For sanitary environments, the DERNORD SUS316 in-line sight glass provides reliable flow monitoring with standard NPT threading, whereas the Sanitary Weld-On Tower is the best fit for permanent, high-hygiene setups. Each product addresses distinct industrial needs, prioritizing either chemical compatibility, temperature range, or ease of installation for specific tank monitoring tasks.
Deciding on the right sight glass requires matching your tank's operational parameters to the product's specifications. First, confirm your fluid type to ensure the seal and body materials—such as nitrile, polyamide, or stainless steel—will not degrade. Next, verify your pressure and temperature limits against the product's maximum ratings to prevent failure. Consider your installation constraints; choose threaded units for easy maintenance or weld-on units for permanent sanitary integration. Finally, assess if you need additional features like integrated thermometers or magnification. By aligning these technical requirements with the product's defined capabilities, you can confidently select the sight glass that ensures safe and accurate liquid level monitoring for your specific industrial application.
