5 Best Dial Level Indicators for Precision Workshop Measurement Tasks
Selecting the right dial indicator is essential for machinists and hobbyists requiring precise measurement for lathe work, CNC alignment, or table saw calibration. These tools translate linear motion into rotational movement, allowing for accurate reading of minute deviations. Whether you are setting up a 3D printer or ensuring the trueness of a mechanical part, the resolution and range of the gauge determine its suitability for your specific application. Our selection includes versatile units that pair with magnetic bases and standalone indicators built for high-resolution measurement tasks, helping you maintain tight tolerances in your workshop environment.
When comparing these tools, consider whether you require a complete kit with an articulated arm or a standalone gauge for an existing fixture. Features like stainless steel construction and standard mounting points impact how these indicators integrate with your current equipment. While some models offer specialized magnetic bases with significant pull force for heavy-duty stabilization, others focus on high-precision graduation and consistent reading increments. This guide breaks down the specifications of five popular models to help you identify the right tool for your machining or alignment projects.
1. HDLNKAK Dial Indicator 0-1'' with Magnetic Base Includes Flex Arm (White) | Dial Indicator Tools Set for Alignment, 0.001" Accuracy with Magnetic Base 176lbs (80kg) Max Pull for 3D Printer, Lathe, CNC
This kit provides a comprehensive solution for alignment tasks, combining a 0-1 inch dial indicator with a magnetic base featuring a 176lb (80kg) maximum pull capacity. The inclusion of a flexible arm makes this set particularly useful for users who need to reach awkward angles on CNC machines, lathes, or 3D printers. With a 0.001-inch accuracy rating, this tool is intended for users who need both a gauge and the mounting hardware to secure it in place immediately upon arrival. The white-faced indicator is designed for high visibility in varied workshop lighting conditions.
Best for: Users needing a complete alignment setup with magnetic mounting.
Check on AmazonHighlights
- Includes a flexible arm for versatile positioning
- Magnetic base offers 176lb max pull
- 0-1 inch measurement range
- 0.001-inch accuracy
Keep in mind
- Total weight may be cumbersome for some setups
- Flex arm stability may vary under heavy vibration
2. Pro Series by HHIP 4400-0001 Dial Indicator, .001" Graduation, 0-100 Reading, 0-1"
The Pro Series by HHIP is a dedicated 0-1 inch dial indicator designed for those who prioritize established measurement standards. It features a 0.001-inch graduation and a 0-100 reading scale, which is a common configuration for traditional machining tasks. This unit is built to provide reliable feedback during inspection or alignment processes. Given its high rating, it is a frequent choice for workshop environments where consistent, legible readings are necessary for maintaining part specifications across repeat operations on a lathe or milling machine.
Best for: Machinists requiring a standard, high-rated 0-100 scale gauge.
Check on AmazonHighlights
- Standard 0.001-inch graduation
- Clear 0-100 reading scale
- 0-1 inch total measurement range
- High user satisfaction rating
Keep in mind
- Sold as a standalone gauge without mounting hardware
- May require specific adapters for certain magnetic bases

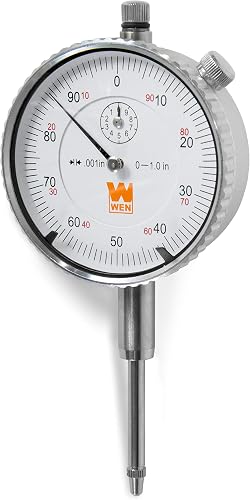

3. WEN 10703 1 in. Precision Dial Indicator with .001 in. Resolution
WEN's 10703 precision dial indicator focuses on accuracy and ease of use for general shop applications. With a 0.001-inch resolution and a 1-inch measuring range, it is suited for checking runout on tools or ensuring the flatness of surfaces. This model is engineered to be a straightforward, reliable instrument for those who already possess the necessary stands or holders. Its design prioritizes the clarity of the dial face, ensuring that users can quickly interpret measurement data during time-sensitive alignment or diagnostic work in a home or professional shop.
Best for: General workshop diagnostic and alignment tasks.
Check on AmazonHighlights
- 1-inch measurement capacity
- 0.001-inch resolution
- Compact and precise design
- Consistent performance for shop use
Keep in mind
- Does not include magnetic base or stand
- Basic feature set may lack advanced adjustment capabilities
4. Fowler 52-520-110-0, Adg Dial Indicator With 0-1" Measuring Range
The Fowler 52-520-110-0 is an ADG-style dial indicator known for its reliability in professional settings. Providing a 0-1 inch measuring range, this tool is designed for technicians who require a dependable, high-quality gauge for measuring tolerances. Its construction is focused on maintaining accuracy throughout the full range of motion, making it an appropriate choice for critical inspections. Because it carries a strong rating, it is often favored for its longevity and consistent performance when paired with high-quality surface gauges or magnetic stands commonly found in machine shops.
Best for: Professional-grade tolerance inspections.
Check on AmazonHighlights
- 0-1 inch measuring range
- Reliable ADG-style design
- High-quality construction
- Proven performance in professional shops
Keep in mind
- Higher price point than entry-level options
- Standalone unit requires separate mounting accessories

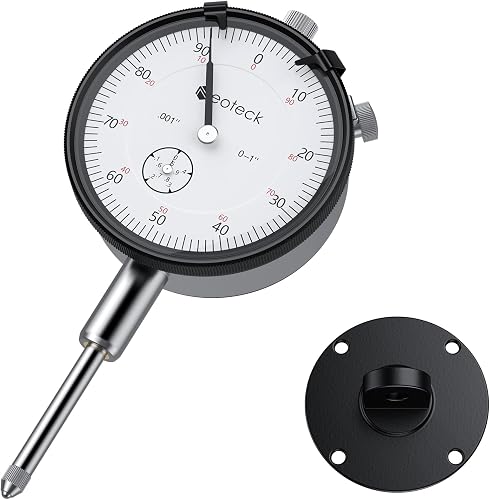

5. Neoteck 1" Range 0.001" Precision Dial Indicator,Hardened Stainless Steel | Dial Indicator Gauge with 6.5mm Detachable Rear Cover,Compatible with Magnetic Base,for CNC,Lathe,Workshop,Table Saw -Silver
This Neoteck dial indicator is constructed from hardened stainless steel, offering durability for demanding workshop environments. It features a 1-inch range and 0.001-inch precision, suitable for CNC and lathe applications. A notable feature is the detachable 6.5mm rear cover, which allows for versatile mounting options on various magnetic bases or jigs. This gauge is designed to be compatible with standard workshop equipment, providing a robust option for users who need a gauge capable of withstanding the rigors of frequent use while maintaining accurate measurement feedback.
Best for: Workshop use requiring durable, stainless steel construction.
Check on AmazonHighlights
- Hardened stainless steel body
- Detachable 6.5mm rear cover for mounting
- 1-inch range with 0.001-inch precision
- Compatible with standard magnetic bases
Keep in mind
- Mounting compatibility may require adjustment for specific arms
- Rear cover removal might affect dust resistance
How to choose
Measuring Range and Resolution
When selecting a dial indicator, prioritize the measuring range and resolution to match your workshop requirements. All listed models, including the WEN 10703 and the Neoteck precision gauge, provide a standard 0-1 inch measuring range. For high-precision tasks such as calibrating a CNC machine or lathe, look for a 0.001-inch graduation or resolution. This level of granularity ensures you can accurately detect minute deviations in alignment or surface flatness. Ensure the dial reading format, such as the 0-100 reading found on the HHIP 4400-0001, aligns with your preferred method of interpreting measurements during your specific alignment or diagnostic projects.
Mounting and Base Compatibility
Stability is essential for accurate measurements. Some kits, like the HDLNKAK Dial Indicator set, come as a complete package including a magnetic base with a flexible arm. This 176lb max pull magnetic base is designed for immediate use on metal surfaces like lathes or 3D printers. If you already own a magnetic base, you might consider standalone units like the Fowler 52-520-110-0 or the Neoteck indicator. Always verify the mounting style, such as the Neoteck’s detachable rear cover, to ensure the gauge is compatible with your existing workshop stands or articulated arm hardware before finalizing your purchase.
Build Quality and Durability
The construction material of your dial indicator influences its longevity in a shop environment. The Neoteck model features a hardened stainless steel construction, which provides robust durability for daily use in CNC, lathe, or table saw applications. While all listed indicators aim for precision, selecting a model with high-quality internal components and a durable exterior housing helps maintain consistent accuracy over time. Reviewing the overall user rating can also provide insight into the reliability of the tool, with the HHIP Pro Series currently holding a 4.8 out of 5-star rating among users.
Application-Specific Features
Identify the primary application for your dial level indicator to narrow down the best tool. If you require a tool for general workshop alignment, a standalone gauge like the WEN 10703 offers a straightforward 1-inch precision measurement. Conversely, if you are working with complex setups like 3D printers or specific machine tools, an all-in-one set like the HDLNKAK, which bundles the indicator with a flexible arm and magnetic base, may provide better value and utility. Matching the tool’s specific design features to your intended machinery ensures you have the necessary mechanical support to achieve the required level of calibration.
User Ratings and Reliability
Customer feedback provides a helpful indicator of product consistency. Models like the HHIP 4400-0001 lead the selection with a 4.8 out of 5-star rating, suggesting high user satisfaction regarding its performance and accuracy. The WEN 10703 and Fowler 52-520-110-0 follow closely with 4.6 ratings, indicating solid performance in diverse shop environments. When comparing these tools, weigh the importance of brand reputation against specific feature requirements. A higher rating often correlates with a reliable, consistent experience, but ensure the tool’s specifications, such as the 0.001-inch resolution, meet the technical demands of your specific measuring tasks.
Frequently asked questions
What does a 0.001-inch resolution mean for my measurements?
A resolution of 0.001 inches indicates the smallest unit of measurement the dial indicator can display. Tools like the Neoteck and WEN 10703 utilize this fine graduation to ensure high precision when performing tasks such as checking the runout on a lathe or aligning machine components. This level of detail is essential for professional or hobbyist work where even slight deviations can impact the final quality of your machined parts or 3D prints.
Do I need a magnetic base for my dial indicator?
A magnetic base is highly recommended for stability. While standalone units like the Fowler 52-520-110-0 are excellent precision tools, they require a way to be fixed in place. Sets like the HDLNKAK include a magnetic base with a flexible arm, providing the necessary support to hold the indicator steady against metal surfaces. If you do not already possess a compatible stand or arm, purchasing a set that includes one is a practical way to ensure you can use your tool immediately.
Can I use these indicators on a table saw?
Yes, many of these indicators are suitable for table saw alignment. The Neoteck 1-inch range indicator, for example, is specifically noted for use in workshop settings, including table saws. By mounting the indicator to a base, you can measure the alignment of the saw blade relative to the miter slot. Ensure your chosen indicator has the correct mounting style to fit your specific table saw jig or base to achieve accurate results when checking for blade squareness.
What is the difference between the various 0-1 inch dial indicators?
While all the listed indicators share a 0-1 inch range and 0.001-inch resolution, the primary differences lie in the build materials, included accessories, and design specifics. For instance, the HDLNKAK comes as a full kit with a magnetic base and flex arm, whereas the Fowler 52-520-110-0 is a standalone gauge. Differences in construction, such as the hardened stainless steel used in the Neoteck model, may also influence the durability and long-term performance of the tool in your specific shop environment.
How do I interpret the 0-100 reading on the HHIP dial indicator?
A 0-100 dial reading indicates that the needle completes one full rotation for every 0.1 inches of travel, with each individual mark representing 0.001 inches. This is a standard format for many precision dial indicators, including the HHIP 4400-0001. This layout allows for quick visual tracking of alignment changes. When you move the spindle, the needle rotates to show the exact deviation, making it easy to identify and correct errors during the setup of lathes or other precision workshop machinery.
Bottom line
For those seeking a versatile, high-performance solution, the HDLNKAK Dial Indicator set stands out as the most comprehensive choice. By including both the 0.001-inch resolution indicator and a 176lb max pull magnetic base with a flexible arm, it provides everything needed for immediate setup on lathes, CNC machines, or 3D printers. Its utility is matched by the highly-rated HHIP 4400-0001, which earns its strong reputation through a reliable 0-100 reading format. Users prioritizing raw precision and specialized construction will also appreciate the Neoteck’s hardened stainless steel build. Ultimately, the HDLNKAK offers the best balance of essential components and precision, making it a robust, all-in-one investment for any workshop looking to improve alignment and diagnostic accuracy.
Deciding which dial level indicator to purchase depends primarily on your existing workshop setup. If you currently lack a mounting solution, prioritize kits like the HDLNKAK that bundle the indicator with a magnetic base and flexible arm to avoid additional purchases. If you already own a reliable base or stand, focus your budget on high-precision standalone units like the Fowler 52-520-110-0 or the Neoteck. Always verify that the graduation and reading style, such as the 0-100 scale on the HHIP model, align with your workflow preferences. By matching these specific hardware requirements to your project needs, you ensure a more efficient and accurate calibration process.
