Top Tank Sight Glass and Level Gauge Options for Industrial Hydraulic Systems
Selecting the right sight glass or level gauge is essential for monitoring fluid levels in hydraulic tanks and industrial reservoirs. Choosing the appropriate hardware depends heavily on your specific mounting requirements, environmental temperature ranges, and the chemical compatibility of your stored fluids. This guide examines several available options, ranging from integrated temperature-display gauges to durable stainless steel sight glasses designed for precise viewing. Whether you are maintaining existing equipment or outfitting a new industrial setup, understanding the mounting centers, construction materials, and rated temperature thresholds of these components will help you select the most suitable solution for your workshop or facility fluid management needs.
When evaluating these tools, focus on the mounting center measurements and maximum temperature ratings provided by the manufacturers. Some units offer dual-functionality by tracking both volume and temperature, while others prioritize material durability through stainless steel construction. Replacement parts are also available for specific existing gauge assemblies to ensure system integrity without a full replacement. Carefully compare these features against your tank specifications to ensure a secure fit and accurate, readable fluid monitoring. By identifying the correct gauge type for your application, you can maintain better visibility over your hydraulic systems and prevent potential operational downtime caused by unforeseen fluid level fluctuations.
1. Lenz T-550-5 Hydraulic Tank Level Gauge with Temperature Display - 5-Inch Mounting - Dual Function Fluid Level Indicator and Thermometer, 200°F Max, Industrial Grade Polyamide Construction | 5" Mounting Centers, Max 212
The Lenz T-550-5 is an industrial-grade hydraulic tank level gauge that features a 5-inch mounting center. Constructed from polyamide, this unit serves a dual purpose by providing both a fluid level indicator and a thermometer. It is designed to withstand temperatures up to 200°F, with a listed maximum capacity of 212°F. This gauge is intended for applications where monitoring both the volume and the thermal state of the hydraulic fluid is necessary for safe operation. The inclusion of the temperature display allows users to observe thermal changes directly on the tank housing, which can be a vital indicator of system performance during heavy-duty operations. Its construction focuses on durability in industrial environments, making it a robust choice for standard hydraulic reservoirs requiring consistent, integrated monitoring.
Best for: Hydraulic systems needing integrated temperature and volume monitoring.
Check on AmazonHighlights
- 5-inch mounting centers
- Dual-function level and temperature display
- Industrial-grade polyamide construction
- Rated for temperatures up to 212°F
Keep in mind
- Limited to specific 5-inch mounting configurations
- Polyamide construction may be less chemically resistant than stainless steel in extreme environments
2. GOTOTOP Sight Glass for Hydraulic Tank Buyers Oil Level Gauge Oil Level Gauge, Transparent Intuitive Display, Oil Liquid for Hydraulic System, Applicable Temp 80° Screw Installation (LS-3)
The GOTOTOP sight glass is designed specifically for hydraulic tank oil level monitoring. This unit features a transparent display that allows for intuitive, quick visual checks of fluid levels within the system. It utilizes a screw-in installation method, which facilitates a straightforward attachment to compatible tanks. The component is rated for an applicable temperature of 80°C, making it suitable for standard hydraulic applications that operate within this thermal range. By providing a clear window into the reservoir, it minimizes the guesswork involved in manual oil level checks. Its design is focused on simplicity and ease of use, ensuring that technicians can verify fluid status at a glance without complex diagnostic procedures. This gauge is a functional choice for basic oil level oversight.
Best for: Standard hydraulic tanks requiring quick, intuitive oil level inspection.
Check on AmazonHighlights
- Transparent, intuitive viewing display
- Simplified screw-in installation
- Designed for hydraulic system oil monitoring
- Applicable up to 80°C
Keep in mind
- Lacks integrated thermometer functionality
- Maximum temperature rating is lower than industrial polyamide alternatives

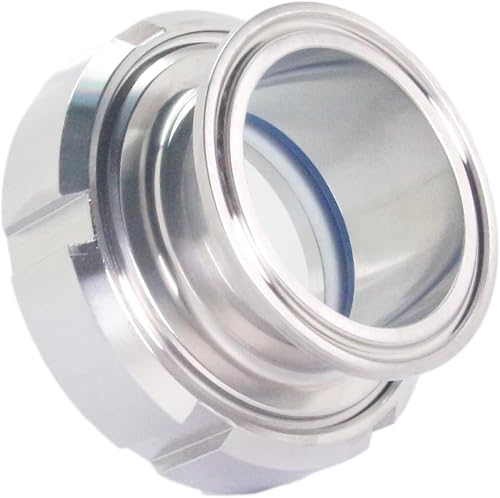

3. SS304 Clamp Union Sight Glass Stainless Steel Round Tank View with clamp Connection 1.5" 2" Tank (Clamp Flange 64mm)
Constructed from SS304 stainless steel, this clamp union sight glass provides a durable solution for viewing tank contents. It is designed with a 1.5-inch or 2-inch clamp connection, featuring a 64mm clamp flange. This configuration is intended for systems that utilize sanitary or industrial clamp fittings rather than traditional threaded mounts. The stainless steel body offers high material integrity, suitable for environments where corrosion resistance or structural durability is a priority. Because it is a round tank view sight glass, it provides a direct line of sight into the vessel. This component is well-suited for industrial tanks that require a robust viewing port that can be easily cleaned or serviced due to the clamp connection design, offering a permanent, high-quality observation point for fluid management.
Best for: Tanks requiring durable stainless steel viewing ports with clamp connections.
Check on AmazonHighlights
- Durable SS304 stainless steel construction
- Compatible with 1.5-inch and 2-inch clamp systems
- 64mm clamp flange diameter
- Designed for direct round tank viewing
Keep in mind
- Requires specific clamp-style mounting hardware
- Does not provide numerical level or temperature readings
4. 10159 Replacement Gauge Vial & Gasket Scully Gauge Crystal Level Sight Plastic
The 10159 replacement gauge vial and gasket set is designed specifically as a service component for Scully Gauge systems. This kit includes the crystal-clear level sight plastic vial and the necessary gasket to ensure a proper seal during installation. It is an ideal solution for technicians who need to restore the readability of an existing Scully gauge without replacing the entire housing or assembly. Given its 5.0-star rating, it suggests that users have found it to be an effective and precise fit for the intended Scully equipment. This replacement part maintains the integrity of the original system, ensuring that the fluid level remains visible and protected from contaminants. It is a focused maintenance item intended to extend the functional life of existing level monitoring hardware.
Best for: Maintenance and repair of existing Scully Gauge systems.
Check on AmazonHighlights
- Includes replacement vial and gasket
- Engineered for Scully Gauge compatibility
- Crystal-clear plastic for high visibility
- Restores original gauge functionality
Keep in mind
- Only compatible with specific Scully Gauge models
- Does not function as a standalone monitoring device
5. Gauge, Level/Temp, 5 in
This 5-inch level and temperature gauge is a standard replacement or installation component for industrial tanks. It measures 5 inches in length and is engineered to monitor both fluid levels and internal temperatures simultaneously. While it serves a similar purpose to other integrated gauges, it is a basic model designed for common hydraulic maintenance needs. It provides a clear visual reference for fluid height, allowing for consistent monitoring of reservoir levels. By integrating a thermometer, it helps users keep track of the thermal state of the liquid, which is critical for preventing overheating in hydraulic circuits. This gauge is intended for workshop environments where standard maintenance and periodic fluid level checks are part of the regular equipment upkeep schedule.
Best for: Standard reservoir monitoring with integrated thermal tracking.
Check on AmazonHighlights
- 5-inch total length
- Integrated level and temperature display
- Suitable for general hydraulic tank usage
- Provides consistent fluid height visibility
Keep in mind
- Lower user rating compared to other specialized gauges
- Lacks specific technical material certifications in the provided details
How to choose
Temperature Monitoring
When selecting a sight glass for a fluid system, consider whether you need integrated thermal tracking. The Lenz T-550-5 offers a dual-function design that combines fluid level indication with a built-in thermometer. This is particularly useful for industrial hydraulic systems where monitoring operating temperatures alongside fluid volume is critical to prevent overheating. Ensure the gauge you choose is rated for the maximum temperature expected in your specific environment, as some models like the Lenz are rated for up to 200°F or 212°F, while others, such as the GOTOTOP LS-3, are limited to 80°C.
Mounting Configuration
Installation requirements vary significantly between sight glass models. Standard hydraulic tank gauges often utilize specific mounting centers, such as the 5-inch mounting centers found on the Lenz T-550-5 and the 5-inch gauge level/temp unit. Conversely, specialized components like the SS304 Clamp Union Sight Glass use a 1.5-inch or 2-inch clamp connection with a 64mm clamp flange. Before purchasing, verify your tank's connection points to ensure compatibility with either screw-in mounting styles or clamp-style flanges, as mismatched mounting hardware will prevent a secure, leak-free installation on your fluid reservoir.
Material Durability
The construction material dictates the longevity of your sight glass under industrial conditions. The Lenz T-550-5 utilizes industrial-grade polyamide, which is designed for durability in hydraulic applications. For environments requiring higher chemical or corrosion resistance, the SS304 Clamp Union Sight Glass offers stainless steel construction, providing a robust frame for the glass view port. If you are replacing a component on a standard fuel or oil gauge system, plastic options like the 10159 replacement vial are available for specific maintenance needs. Always match the material's chemical compatibility to the specific fluid stored in your tank to avoid degradation.
Display Clarity
The primary function of a sight glass is to provide a clear, intuitive view of fluid levels. The GOTOTOP LS-3 is explicitly marketed for its transparent, intuitive display, which helps operators quickly assess liquid levels in hydraulic systems. When evaluating options, look for indicators that provide high contrast or clear markings. While some gauges are simple vials like the 10159 replacement, others integrate complex thermometer scales. A clear, unobstructed view is essential for safety and efficiency, ensuring that fluid levels remain within the designated operating range without requiring complex diagnostic tools or manual dipstick measurements.
Maintenance and Replacement
Ongoing maintenance often requires replacing individual parts rather than the entire assembly. For existing setups, purchasing specific replacement components like the 10159 replacement gauge vial and gasket can extend the life of your current hardware. This is a cost-effective strategy for standardizing equipment. However, when a system is severely degraded, upgrading to a complete assembly, such as the Lenz T-550-5 or the stainless steel clamp union sight glass, may be necessary. Always check if a product includes the necessary gaskets or mounting seals, as these components are vital for maintaining a pressure-tight seal and preventing fluid leaks.
Frequently asked questions
What is the difference between a screw-in gauge and a clamp-style sight glass?
Screw-in gauges, such as the GOTOTOP LS-3, are designed for direct installation into threaded ports on a tank, making them ideal for standard hydraulic oil systems. In contrast, clamp-style sight glasses like the SS304 model utilize a clamp connection, typically featuring a 64mm flange. These are often used in industrial or sanitary tank applications where a robust, secure mechanical connection is required rather than a simple threaded entry point.
Can I use a hydraulic sight glass for diesel fuel tanks?
While many sight glasses are labeled for hydraulic systems, such as the Lenz T-550-5 or the GOTOTOP LS-3, compatibility depends on the material's chemical resistance to diesel. Stainless steel options like the SS304 clamp union sight glass are generally more versatile. Always ensure the gauge material, gaskets, and seals are compatible with diesel fuel chemistry to prevent degradation, leaks, or failure of the sight glass display over time.
Do all sight glasses include a thermometer?
No, not all sight glasses feature integrated thermometers. Models like the Lenz T-550-5 are specifically designed as dual-function indicators that include a built-in thermometer. Other products, such as the 10159 replacement gauge vial or the SS304 clamp union sight glass, focus strictly on providing a visual reference for fluid levels. If your application requires temperature monitoring for heat regulation, prioritize models that explicitly list a thermometer or temperature display in their specifications.
How do I choose the right size for a replacement gauge?
To choose the correct replacement, measure the mounting centers of your existing gauge. For instance, the Lenz T-550-5 and the 5-inch level/temp gauge both utilize 5-inch mounting centers. If your system uses a clamp connection, identify the diameter of the flange, such as the 64mm clamp flange on the SS304 model. Matching these specific dimensions is critical to ensuring the new gauge fits your tank's existing ports without requiring modification.
Are plastic sight glasses durable enough for industrial use?
Industrial-grade polyamide, used in products like the Lenz T-550-5, is engineered to withstand the rigors of hydraulic systems and varying temperatures. While plastic components like the 10159 replacement vial are suitable for specific gauge assemblies, they are intended for their designated operational limits. If your environment involves high physical impact or extreme chemical exposure, you may prefer stainless steel alternatives like the SS304 clamp union sight glass for increased structural integrity.
Bottom line
For those seeking a comprehensive solution, the Lenz T-550-5 Hydraulic Tank Level Gauge stands out as the strongest fit for general industrial applications. Its dual-function design, which combines a 5-inch mounting configuration with an integrated thermometer, provides essential data for maintaining optimal fluid conditions. The use of industrial-grade polyamide construction offers a balance of durability and functionality, rated for temperatures up to 200°F. While other options like the SS304 clamp union sight glass offer superior material robustness with stainless steel, the Lenz unit remains the most versatile choice for standard hydraulic systems where monitoring both volume and temperature is a prerequisite for system safety and operational efficiency.
Deciding on the right sight glass requires balancing your system's mounting style against your monitoring needs. If your tank uses threaded ports, select a screw-in gauge like the Lenz T-550-5 or the GOTOTOP LS-3. For tanks requiring heavy-duty, sanitary, or high-pressure connections, the SS304 clamp union sight glass is the superior choice. Always verify your mounting center distance or flange size before purchase to ensure a precise fit. Finally, consider if your application necessitates a thermometer for thermal tracking; if so, prioritize the Lenz T-550-5 over simpler sight glass vials to ensure you have the necessary diagnostic data for your fluid reservoir.
