Top Differential Pressure Gauges for HVAC and Industrial Monitoring
Selecting the right differential pressure gauge is essential for maintaining HVAC systems, monitoring clean room filtration, and testing gas lines. Whether you require the precision of a mechanical pointer or the versatility of a digital display, matching the gauge to your specific pressure range and fluid compatibility is the first step toward accurate readings. Professionals often choose between traditional analog dials for high-visibility monitoring and digital manometers for flexible unit conversion and data capture. This guide organizes several industry-standard options based on their technical specifications, helping you identify which tool aligns with your project requirements, from in-line liquid monitoring to high-velocity airflow calculations.
When evaluating these tools, consider the connection type and the environment where the gauge will reside. Some models are purpose-built for industrial filter monitoring, while others offer portable digital functionality for field HVAC technicians. Understanding these distinctions ensures you select a device that provides reliable performance without unnecessary complexity. By reviewing the specific dial sizes, measurement ranges, and compatibility features listed below, you can streamline your selection process and choose equipment designed to handle your specific pressure monitoring tasks effectively.

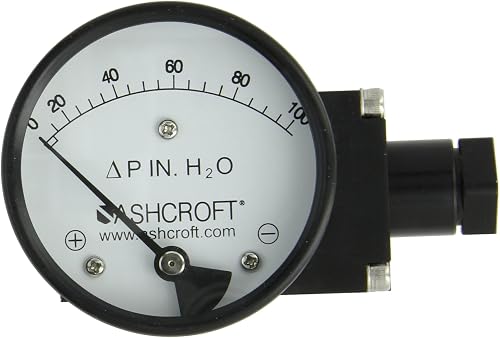

1. Ashcroft Type 1132 Stainless Steel Differential Pressure Gauge, Aluminum Body, Compatible with Air and Non-Corrosive Liquids, Includes Instructions, 3-1/2" Dial Size, 1/4" NPTF In-line Connection, 0-100" H2O Range
The Ashcroft Type 1132 is a mechanical differential pressure gauge featuring a robust 3-1/2" dial and a durable aluminum body. It is designed to handle a pressure range of 0-100" H2O, making it a suitable choice for monitoring systems that utilize air or non-corrosive liquids. The unit utilizes a 1/4" NPTF in-line connection, which is a standard configuration for many industrial plumbing and HVAC setups. Because it is a mechanical device, it provides a consistent, real-time visual reference for pressure differences without the need for batteries or electronic calibration. The inclusion of installation instructions assists in the integration process for technicians tasked with system maintenance or new assembly projects.
Best for: Industrial liquid or air pressure monitoring
Check on AmazonHighlights
- 0-100" H2O measurement range
- Durable aluminum body construction
- Clear 3-1/2" dial display
- Includes installation instructions
Keep in mind
- Limited to non-corrosive media only
- Lacks digital data logging capabilities
2. Manometer, Professional Air Pressure Meter, Dual-Port HVAC | Digital Manometer, Gas Pressure Tester, 12 Selectable Units Differential Pressure Gauge, (Included Battery)
This digital manometer serves as a professional-grade tool for HVAC technicians and gas pressure testing. It distinguishes itself by offering 12 selectable measurement units, providing high versatility for international or specific industry standards. The dual-port design allows for simultaneous differential pressure checks, which is essential for diagnosing airflow or system pressure drops. As a digital instrument, it provides precise readings on a screen, and it comes with the necessary battery included for immediate operation. Its compact, portable nature makes it well-suited for field service work where technicians must switch between different diagnostic tasks rapidly. The 4.4-star rating reflects its utility as a reliable digital solution for modern HVAC maintenance.
Best for: HVAC technicians needing multiple unit conversions
Check on AmazonHighlights
- Digital display with 12 selectable units
- Dual-port input for differential readings
- Battery included for immediate use
- Portable design for field diagnostics
Keep in mind
- Requires battery power for operation
- May lack the longevity of analog gauges in harsh environments
3. Differential Pressure Gauge for HVAC Systems – Industrial Clean Room Filter Monitoring Pressure Gauge with Dual Scale Pointer
Engineered for HVAC systems and clean room environments, this differential pressure gauge specializes in filter monitoring. The device features a dual-scale pointer, allowing users to track pressure changes visually with high clarity. Maintaining a 5.0-star rating, this gauge is built for industrial settings where monitoring the health of a filtration system is critical to prevent system failure. By providing a clear indication of when filters are clogged or performing sub-optimally, it helps maintain air quality and system efficiency. Its focused design makes it a straightforward choice for facility managers and maintenance teams who prefer a simple, reliable analog interface over complex digital electronics for permanent installation.
Best for: Clean room and HVAC filter performance monitoring
Check on AmazonHighlights
- Specialized for filter status monitoring
- Easy-to-read dual-scale pointer
- Robust industrial-grade construction
- Highly rated for reliability
Keep in mind
- Analog design lacks digital output
- Fixed application range may limit versatility
4. Dwyer® Magnehelic® Differential Pressure Gage, 2010AV, Dual Scale 0 to 10" w.c. & 2000 to 12500 FPM
The Dwyer Magnehelic 2010AV is a recognized standard in the industry for measuring both differential pressure and air velocity. It features a dual-scale display that reads from 0 to 10" w.c. and 2000 to 12500 FPM. This dual functionality is particularly useful for engineers and technicians who need to assess both the pressure drop across a system and the resulting airflow. With a perfect 5.0-star rating, this gauge is widely valued for its accuracy and ease of use in ventilation and HVAC balancing. Its mechanical design ensures it remains operational in a variety of conditions, providing a steady and dependable visual readout for critical system testing and balancing tasks.
Best for: HVAC system balancing and airflow velocity testing
Check on AmazonHighlights
- Dual-scale for pressure and velocity
- 0 to 10" w.c. pressure range
- 2000 to 12500 FPM velocity range
- Industry-trusted Magnehelic design
Keep in mind
- Requires manual calibration for specific applications
- Higher cost compared to basic manometers
5. U-Shaped Pressure Manometer Differential Gauge Gas Manometer Gauge Function
This U-shaped pressure manometer is a fundamental tool for gas pressure measurement. Its design relies on the physics of fluid displacement to provide an accurate reading of differential pressure. This type of gauge is frequently used for basic system checks where a non-electronic, visual verification is required. Its simple construction makes it highly reliable, as there are no electronic components to fail or calibrate. It is a practical addition to a toolkit for professionals who need an inexpensive and straightforward way to verify gas pressures in a workshop or laboratory setting. The u-shaped tube allows for a clear, direct observation of pressure differences without the need for complex internal mechanisms.
Best for: Basic gas pressure verification
Check on AmazonHighlights
- Simple, reliable U-tube design
- No electronic components or batteries
- Provides direct visual pressure readings
- Effective for basic gas line testing
Keep in mind
- Requires careful manual reading
- Less convenient for high-pressure industrial monitoring
How to choose
Analog vs. Digital Displays
Differential pressure gauges are available in both mechanical and digital formats. Mechanical gauges, such as the Ashcroft Type 1132 or the Dwyer Magnehelic, utilize physical dials to provide immediate, battery-free readings, often ideal for permanent installation on HVAC or filter systems. Digital manometers offer modern convenience with selectable units and electronic readouts, which can simplify data collection in field testing environments. When choosing, consider if your application requires the constant, passive monitoring of a dial-based industrial gauge or the versatility of a digital meter that can toggle between different pressure units for varied professional HVAC diagnostic tasks.
Pressure Range and Measurement Units
Always verify the pressure range and the specific measurement units of the gauge to ensure compatibility with your system. Some models are calibrated for specific ranges, such as the 0-100" H2O range found on the Ashcroft Type 1132 or the 0-10" w.c. range on the Dwyer Magnehelic. Digital manometers often feature multiple selectable units, providing greater flexibility across diverse projects. Before purchase, confirm that the gauge's scale accurately covers the minimum and maximum pressure levels expected in your specific industrial or HVAC application to avoid measurement errors or potential damage to the instrument.
Compatibility with Media Types
Differential pressure gauges are designed for specific media, and using them improperly can lead to failure. The Ashcroft Type 1132 is specified for use with air and non-corrosive liquids, making it a versatile choice for fluid-based systems. Conversely, many digital manometers are primarily intended for gas pressure testing. Review the manufacturer’s documentation to ensure the internal components and seals are rated for the media you intend to measure. Whether you are monitoring air quality in clean rooms or checking fluid levels in pipes, selecting a gauge compatible with your specific media is vital for long-term operational safety.
Installation and Connection Types
Consider the mounting requirements and physical connection points of the gauge. The Ashcroft Type 1132 features a 1/4" NPTF in-line connection, which is a standard configuration for many industrial setups. Other models may be designed for surface mounting or specific HVAC system integration. Assess your existing infrastructure to determine if you need a gauge that fits an in-line pipe connection or one that mounts to a panel or wall. Proper connection type is essential for a secure, leak-free installation, ensuring that the differential pressure reading is accurately captured without compromising the integrity of the pressure lines.
Environmental Applications
Different gauges serve distinct environments, ranging from industrial clean room filter monitoring to general HVAC diagnostic testing. Models designed for clean rooms require high precision and clear, dual-scale pointers for quick status checks. Field service professionals often prefer portable digital manometers that include batteries and multiple unit options. Evaluate whether your requirement is for a fixed-location monitor, like a dedicated filter gauge, or a handheld diagnostic tool. Matching the gauge type to the environment—whether it is a stationary industrial facility or a dynamic HVAC service call—will significantly improve your efficiency and the reliability of your pressure data.
Frequently asked questions
What is the primary difference between the Ashcroft Type 1132 and a digital manometer?
The Ashcroft Type 1132 is a mechanical stainless steel gauge with a 3-1/2" dial, designed for permanent, battery-free monitoring of air and non-corrosive liquids. In contrast, digital manometers like the professional air pressure meter typically run on batteries and offer digital displays with multiple selectable units. While the Ashcroft is built for fixed industrial monitoring, the digital model is generally better suited for HVAC field technicians needing portable, multi-unit measurement capabilities.
Can I use the Dwyer Magnehelic gauge for both airflow and pressure measurement?
Yes, the Dwyer Magnehelic 2010AV is specifically engineered to handle dual-scale readings. It provides pressure measurements in inches of water column (0 to 10" w.c.) and velocity measurements in feet per minute (2000 to 12500 FPM). This dual functionality makes it a specialized tool for HVAC professionals who need to monitor both the static pressure within a system and the resulting airflow velocity to ensure optimal ventilation performance.
Are all differential pressure gauges suitable for liquid measurements?
No, compatibility depends on the specific design of the gauge. For example, the Ashcroft Type 1132 is explicitly noted as compatible with air and non-corrosive liquids, utilizing a stainless steel construction for durability. However, many digital manometers and U-shaped manometers are intended strictly for gas or air pressure testing. Always check the product specifications to confirm the wetted parts can handle your specific liquid or gas without risk of corrosion or internal damage.
What does a dual-scale pointer offer in an HVAC filter monitoring gauge?
A dual-scale pointer allows users to read pressure levels against two different measurement standards simultaneously. This feature is particularly useful in industrial clean room or HVAC filter monitoring, where technicians may need to verify pressure status against specific operational thresholds. By providing two scales on a single dial, the gauge simplifies the diagnostic process, allowing for faster and more accurate assessments of filter health without requiring conversion calculations or the use of multiple measuring instruments.
Do I need special tools to install a gauge like the Ashcroft Type 1132?
The Ashcroft Type 1132 features a standard 1/4" NPTF in-line connection, which is a common industrial fitting. While the gauge comes with instructions for setup, the installation process requires basic plumbing or mechanical skills to ensure a secure, leak-proof connection to your pressure lines. Ensure your system interface matches this thread size and type, and follow the provided instructions carefully to ensure the gauge is correctly integrated into your air or non-corrosive liquid system.
Bottom line
For users prioritizing industrial-grade durability and fixed-point monitoring, the Ashcroft Type 1132 and the Dwyer Magnehelic 2010AV stand out as the strongest choices. The Ashcroft excels in systems involving non-corrosive liquids and air, offering a robust stainless steel build and a clear 3-1/2" dial. For HVAC-specific ventilation tasks, the Dwyer Magnehelic is superior due to its dual-scale capability that monitors both pressure in inches of water column and airflow velocity. Both gauges provide the reliability required for permanent, high-precision industrial environments. These analog tools are ideal for professionals who require consistent, passive monitoring without the maintenance or downtime associated with battery-operated digital electronics in demanding, long-term industrial settings.
Deciding on the right gauge depends entirely on your portability needs and the environment of use. Choose a digital manometer if your work involves frequent field diagnostics across varied HVAC systems, as these provide the flexibility of multiple units and portable operation. Conversely, opt for a stationary dial gauge like the Ashcroft or Dwyer models if you are managing a fixed system, such as a clean room or a permanent filter bank, where reliability and immediate visual status are paramount. Always verify that your chosen gauge matches the specific media—gas, air, or liquid—and the pressure range of your system to ensure safe and accurate operation.
