Top Fuel Gauge Options for 0-90 Ohm Systems and Custom Displays
Selecting the correct fuel gauge depends heavily on the resistance range of your existing sending unit. Whether you require a standard 2-inch gauge or a multifunction instrument to save dash space, understanding your system's ohm compatibility is critical for an accurate reading. Common industry standards include the 0-90 ohm range, which is widely utilized across various marine and automotive applications. This guide examines several options, ranging from individual fuel level displays to integrated units that monitor multiple engine parameters simultaneously. By analyzing the specifications and compatibility requirements of these devices, you can ensure your instrumentation provides reliable feedback during operation, whether you are managing a marine vessel, an RV, or a specialized truck setup.
Beyond standard gauges, some installations require signal conversion to bridge the gap between mismatched senders and displays. If your setup uses an unconventional resistance range, a dedicated converter can act as an interface to maintain system functionality. When upgrading your dashboard, consider whether you prefer a classic aesthetic, such as the Euro or Coral styles, or a more modern unit with customizable backlighting and waterproof ratings. This comparison outlines key features for five distinct products, helping you identify which gauge or accessory aligns with your specific dashboard layout, resistance requirements, and aesthetic preferences. Always verify your sender's ohm output before finalizing your purchase to ensure seamless integration into your vehicle's electrical system.
1. 0-90 ohm Fuel Gauge 2-1/16", IP67 Waterproof, 8-Color Backlight, White | 0-90/10-180/240-33/0-190/240-30 ohm for Boats, Trucks, RVs, Cars, ATV, Motorcycles, Silver Bezel, White Dial
This versatile 2-1/16-inch gauge is designed for broad compatibility, supporting multiple resistance ranges including 0-90, 10-180, 240-33, 0-190, and 240-30 ohms. This flexibility makes it a practical choice for users who may have varying sender types across different vehicles like boats, trucks, RVs, or ATVs. The unit features an IP67 waterproof rating, which is essential for marine environments where moisture exposure is common. It includes an 8-color backlight, allowing for customization to match existing dashboard lighting. The construction features a silver bezel and a white dial, providing a clean, modern aesthetic. Given its wide range of supported ohms, it serves as a multi-purpose solution for those who require a single gauge that can adapt to different tank sending units without needing extra hardware.
Best for: Users needing flexibility across multiple ohm ranges and marine-grade waterproofing.
Check on AmazonHighlights
- Supports five distinct ohm resistance ranges
- IP67 waterproof construction for durability
- 8-color selectable backlight
- Standard 2-1/16-inch mounting size
Keep in mind
- May require manual configuration for specific ohm settings
- The white dial aesthetic may not match all vintage dashboard styles
2. Faria 33751 Chesapeake Stainless Steel Multifunction Fuel Level/Oil PSI (80 PSI)/Water Temp (100-250°F)/Voltmeter (10-16 VDC) - 4", Black
The Faria 33751 Chesapeake is a multifunction instrument designed to conserve limited dashboard space by combining four gauges into one 4-inch display. It monitors fuel level, oil pressure up to 80 PSI, water temperature between 100-250°F, and voltage between 10-16 VDC. This unit features a black dial, making it a suitable choice for dashboards that utilize dark-faced instrumentation. Because it is a multifunction gauge, it is well-suited for boaters or vehicle owners who need to track multiple critical engine parameters without installing four separate gauges. The stainless steel construction is designed for the marine environment, offering a cohesive look for Chesapeake-style instrument panels. It is an efficient solution for simplifying a complex monitoring system while maintaining necessary engine data visibility.
Best for: Consolidating multiple engine monitoring functions into a single 4-inch space.
Check on AmazonHighlights
- Combines fuel, oil PSI, water temp, and voltage
- Stainless steel bezel construction
- Black dial for high-contrast visibility
- Suitable for marine-grade installations
Keep in mind
- Large 4-inch footprint requires significant mounting area
- If one function fails, the entire unit may require service
3. ELING Ohm Signal Invertor Fuel Gauge Convertor Acts as Interface Between Level Tank Sender & Gauge for All Level Gauge and Sensor
The ELING Ohm Signal Invertor is a specialized accessory designed to act as an interface between a fuel tank sender and a gauge. Its primary purpose is to allow compatibility between mismatched hardware by converting signals. This is particularly useful for users who find their existing gauge and sender do not share the same resistance range. By installing this convertor, you can potentially avoid replacing a functional gauge or sender simply due to electrical incompatibility. It is marketed as compatible with all level gauges and sensors, serving as a universal bridge for fuel level monitoring systems. This device is an essential troubleshooting tool for custom setups or older vehicle restorations where original parts may no longer be available in the correct ohm range.
Best for: Bridging compatibility gaps between incompatible fuel senders and gauges.
Check on AmazonHighlights
- Acts as a signal interface for fuel levels
- Designed for broad compatibility with level sensors
- Essential for custom or legacy vehicle repairs
- Compact design for easier behind-dash installation
Keep in mind
- Adds an extra point of failure to the electrical circuit
- Requires correct wiring knowledge for proper signal inversion

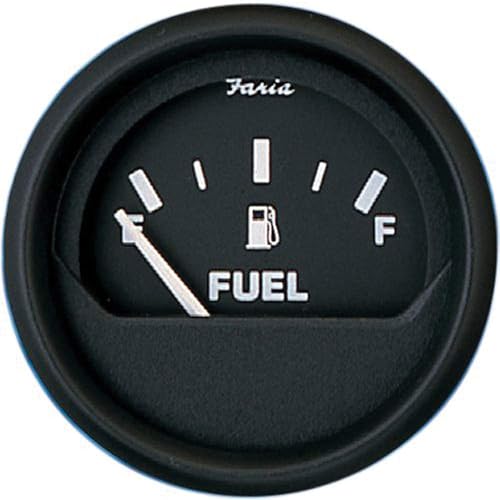

4. Faria Beede Instruments Faria Beede Faria 12801 Euro Fuel Level Gauge (E-1/2-F) - 2", Black
The Faria Beede 12801 Euro fuel level gauge is a 2-inch instrument designed for a clean, minimalist look. It displays levels from empty (E) to full (F) and is finished with a black dial, fitting the Euro-style aesthetic often found in professional marine or automotive dashboards. This unit is specifically calibrated for fuel level monitoring, providing a dedicated gauge for those who prefer individual displays over multifunction units. Its 2-inch size allows for standard mounting in most panels, making it an easy replacement for worn-out or inaccurate factory gauges. As a dedicated fuel instrument, it focuses on providing clear, direct feedback to the operator. It is a straightforward option for users who prioritize reliability and a classic, professional appearance in their dashboard instrumentation.
Best for: Replacement of standard 2-inch fuel gauges with a Euro-style design.
Check on AmazonHighlights
- Classic E-1/2-F readout layout
- Standard 2-inch diameter for easy mounting
- Professional black dial design
- Dedicated fuel level monitoring focus
Keep in mind
- Limited to fuel level monitoring only
- Does not include additional customizable backlighting features
5. Faria 13001 Coral Fuel Gauge (3003.346), 2"
The Faria 13001 Coral fuel gauge is a 2-inch instrument specifically designed to provide consistent fuel level monitoring. It features the distinctive Coral styling, which offers a unique aesthetic compared to standard black or white gauges. This gauge is built for users who want to maintain the specific design language of the Coral series in their boat or vehicle. Like other 2-inch gauges, it is designed for straightforward installation into standard dashboard cutouts. By focusing solely on fuel levels, it provides an uncomplicated reading experience that is easy to interpret at a glance. For those who are already utilizing other Coral-series instruments, this gauge serves as a direct, matching addition to a cohesive dashboard setup, ensuring uniform visual design across the entire control panel.
Best for: Matching existing Coral-series instrumentation on a dashboard.
Check on AmazonHighlights
- Distinctive Coral series styling
- Standard 2-inch mounting diameter
- Clear fuel level display
- Simple, dedicated functionality
Keep in mind
- Must be matched to existing Coral series to look uniform
- Lacks the versatility of multi-range or multifunction units
How to choose
Ohm Compatibility
When selecting a fuel gauge, matching the ohm range to your existing fuel sending unit is critical for accurate readings. The 0-90 ohm standard is common, but some systems require 240-33 or 10-180 ohm ranges. The universal 0-90 ohm gauge listed offers multiple signal settings, providing flexibility for various vehicle types, including boats and RVs. If your gauge and sender do not match, an ohm signal invertor or convertor can act as an interface to ensure compatibility. Always verify your current sender's specifications before installation to avoid incorrect fuel level reporting, which can lead to operational issues during use.
Gauge Size and Form Factor
Fuel gauges typically come in standard 2-inch or 2-1/16-inch diameters, fitting most marine and automotive dash cutouts. Faria Beede models like the 13001 Coral and 12801 Euro gauges are designed for these compact spaces. If your dashboard has limited room, a multifunction gauge, such as the 4-inch Chesapeake model, may be a better choice. This single unit replaces four separate gauges by integrating fuel level, oil pressure, water temperature, and voltmeter readings. Measure your available mounting space accurately to ensure the gauge bezel sits flush and provides a clean, professional finish on your control panel.
Display and Aesthetic Options
The visual design of a gauge should complement your vehicle’s existing instrument cluster. Faria offers distinct aesthetics, such as the Euro series with a sleek black finish or the Coral series. For those seeking modern customization, the 0-90 ohm gauge features an 8-color backlight, allowing you to match the display to your dashboard lighting. Consider the dial color and bezel finish, such as white dials with silver bezels or black-on-black designs, to ensure readability in various lighting conditions. Clear, high-contrast markings on the gauge face, such as the E-1/2-F indicator, are essential for quick and easy fuel level monitoring.
Environmental Durability
Marine and outdoor environments require instruments that can withstand moisture and vibrations. The 0-90 ohm gauge is rated IP67 waterproof, making it a robust choice for boats, ATVs, and motorcycles exposed to the elements. Faria instruments are built for specialized vehicle applications, but it is important to check the specific environmental ratings for each model. If you are installing a gauge in an open-cockpit vessel or a vehicle prone to water exposure, prioritize models with high ingress protection ratings to prevent fogging or internal circuit damage over time, ensuring long-term reliability for your fuel system monitoring.
Multifunction vs. Dedicated Gauges
Deciding between a dedicated fuel gauge and a multifunction unit depends on your dashboard configuration. A dedicated 2-inch gauge, like the Faria Beede 12801, is ideal for simple setups where you only need to monitor fuel levels. Conversely, the Faria 33751 Chesapeake is a multifunction device that saves significant panel space by grouping four critical engine parameters into one 4-inch gauge. This is particularly useful for smaller consoles or tight dash layouts. When choosing, weigh the benefit of having a consolidated display against the potential loss of individual gauge visibility or the complexity of wiring a single multifunction unit versus dedicated instruments.
Frequently asked questions
Does the 0-90 ohm fuel gauge work with all fuel senders?
The 0-90 ohm gauge listed is compatible with multiple resistance ranges, including 0-90, 10-180, 240-33, 0-190, and 240-30 ohms. This versatility makes it suitable for a wide variety of tanks. However, if your specific sender does not match one of these supported ranges, you may need an ELING ohm signal convertor to act as an interface. Always confirm your sender's ohm output specifications before installation to ensure the gauge displays fuel levels accurately.
Can I use the Faria Chesapeake multifunction gauge in any boat?
The Faria 33751 Chesapeake is a 4-inch multifunction gauge designed to monitor fuel level, oil PSI, water temperature, and voltage. It is intended for systems compatible with its specific measurement ranges, such as 10-16 VDC for the voltmeter and 100-250°F for water temperature. Before installation, ensure your engine's sensors are compatible with these specific ranges. It provides a comprehensive solution for dashboards where space is limited, consolidating four essential engine parameters into one singular, stainless steel bezel instrument.
What is the purpose of an ohm signal convertor?
An ohm signal convertor, such as the ELING model, acts as an interface between your fuel tank sender and the fuel gauge. It is particularly useful if your gauge and sender operate on different resistance ranges, which would otherwise result in incorrect readings. By converting the signal, it allows for proper communication between incompatible components, ensuring your fuel level is reported accurately on the gauge face regardless of the original sender's specific ohm signal output.
How do I know if a 2-inch gauge fits my dashboard?
Most fuel gauges, including the Faria 12801 and 13001 models, are designed with a standard 2-inch diameter. You should measure the existing hole in your dashboard or console to confirm it accommodates this size. If you are cutting a new hole, ensure the mounting surface is flat and has enough depth behind it to clear the gauge housing and wiring connections. Always check the manufacturer's specifications for the exact mounting diameter required for the specific gauge model you choose.
Are these gauges suitable for outdoor use on an ATV?
Yes, specific models like the 0-90 ohm fuel gauge with an IP67 waterproof rating are designed for environments such as ATVs, motorcycles, and boats. The IP67 rating indicates the unit is protected against water ingress, which is vital for vehicles exposed to rain, mud, or washdowns. When selecting a gauge for an outdoor vehicle, always prioritize models that explicitly state waterproof or environmental protection ratings to ensure the internal electronics remain functional and protected from moisture and debris over time.
Bottom line
For shoppers seeking a modern, versatile solution, the 0-90 ohm Fuel Gauge (B0GVDH4TJD) stands out as the most adaptable choice. Its support for five different ohm ranges, combined with an IP67 waterproof rating and 8-color backlight, makes it highly functional for diverse vehicles ranging from boats to motorcycles. If your project requires space efficiency, the Faria 33751 Chesapeake multifunction gauge is the superior fit, as it consolidates four critical engine monitoring functions into a single 4-inch stainless steel unit. For those committed to the classic Faria aesthetic, the 12801 Euro and 13001 Coral gauges provide reliable, dedicated fuel level monitoring that integrates seamlessly into traditional dash layouts with a trusted, proven design.
When deciding between these options, prioritize your specific technical requirements. If you have an existing sender with a non-standard ohm range, the 0-90 ohm gauge or an ELING signal convertor are necessary to ensure accuracy. If dashboard real estate is your primary constraint, opt for the Faria multifunction gauge to reduce clutter. Conversely, if you prefer a dedicated, simple instrument that matches an existing gauge series, select from the Faria 2-inch models. Always verify your current dashboard cutout size and sensor compatibility before finalizing your purchase to ensure a straightforward installation process that meets your vehicle’s specific operational needs.
