Top High Pressure Gauge Glass and Industrial Pressure Monitoring Solutions

Affiliate disclosure: ToolzAdvisor may earn a commission from qualifying Amazon purchases. It does not change your price or our editorial criteria.

Selecting the right pressure monitoring equipment requires matching specific material requirements and mounting configurations to your industrial application. Whether you are managing boiler liquid levels or monitoring line pressure, the distinction between tubular sight glass, flat gauge glass, and dial-based pressure indicators is critical for operational safety and visibility. Tubular options, such as red line or borosilicate glass, are designed for direct level sensing, while flat gauge glass offers high-pressure transparency for specialized sight ports. Conversely, mechanical pressure gauges provide immediate numeric feedback for air, water, or oil systems. This guide evaluates five distinct gauge products currently available to help you identify the technical specifications best suited for your workshop or industrial environment.

When integrating these components, consider the pressure rating, material composition, and interface size. Stainless steel liquid-filled gauges are often preferred for their vibration dampening and durability, while specialized glass types like Schott Maxos or borosilicate offer clear visibility under demanding conditions. Always ensure that the NPT sizing or physical dimensions of the glass align precisely with your existing housing or port configurations to maintain a secure seal. By reviewing the specific design of each gauge—from shatterproof dials to industrial-grade sight tubes—you can better assess which tool provides the necessary clarity and performance for your specific high-pressure monitoring requirements.

How this guide was prepared: We compared the supplied product information, feature sets, ratings, and likely use cases. This is an editorial comparison and not a claim of hands-on or laboratory testing.
Best Overall
MEANLIN MEASURE 0~200Psi Stainless Steel 1/8" NPT 1.5" FACE DIAL, Glycerin Filled Pressure Gauge, Liquid Filled, Water Oil Air, Lower Mount, with 1/4" NPT and 3/8" NPT Hex Bushing

1. MEANLIN MEASURE 0~200Psi Stainless Steel 1/8" NPT 1.5" FACE DIAL, Glycerin Filled Pressure Gauge, Liquid Filled, Water Oil Air, Lower Mount, with 1/4" NPT and 3/8" NPT Hex Bushing

★ 4.4 out of 5 stars

This MEANLIN MEASURE gauge features a 1.5-inch face dial capable of reading pressures between 0 and 200 PSI. Designed for versatility, this unit is glycerin-filled to assist with pressure stabilization and is suitable for use with water, oil, or air systems. The assembly includes a lower mount configuration, making it compatible with various existing setups. To accommodate different plumbing needs, the package comes with both 1/4-inch NPT and 3/8-inch NPT hex bushings, allowing for flexible installation. The construction utilizes stainless steel for the housing, which is a standard choice for durability in fluid-handling environments. With a 4.4-star rating, this gauge provides a compact solution for technicians needing to monitor line pressure in systems where space is at a premium and a standard 1/8-inch NPT connection is required.

Best for: General purpose air, water, and oil pressure monitoring in tight spaces.

Check on Amazon

Highlights

  • 0-200 PSI measurement range
  • Glycerin-filled for stability
  • Includes 1/4" and 3/8" NPT bushings
  • Stainless steel housing construction

Keep in mind

  • Small 1.5-inch face may be harder to read from a distance
  • Limited to 200 PSI maximum capacity
Best Value
Redline High Pressure Gauge Glass 3/4" OD | Red Line Tubular Gauge Glass Wall Thickness 7/64" | Liquid Level Boiler Sight Glass (24" Inches)

2. Redline High Pressure Gauge Glass 3/4" OD | Red Line Tubular Gauge Glass Wall Thickness 7/64" | Liquid Level Boiler Sight Glass (24" Inches)

The Redline tubular gauge glass is designed for liquid level monitoring in boiler applications. It features a 3/4-inch outside diameter and a wall thickness of 7/64-inch, providing a clear visual indication of internal levels. The inclusion of a red line is a classic design feature intended to enhance visibility when viewing liquid levels through the tube. Measuring 24 inches in length, this glass is intended for systems where a substantial sight window is necessary for accurate level tracking. As an industrial boiler component, it emphasizes visibility and standardized sizing for replacement or new sight glass installations. Users should verify that their existing boiler sight glass hardware is compatible with a 3/4-inch OD tube before installation, as proper seating is essential for maintaining a seal under pressure.

Best for: Boiler liquid level visibility and maintenance.

Check on Amazon

Highlights

  • 24-inch length for extended visibility
  • 3/4" outside diameter
  • 7/64" wall thickness
  • Red line design for improved clarity

Keep in mind

  • Requires specific 3/4" mounting hardware
  • Glass material may be susceptible to breakage if handled incorrectly
Best Heavy Duty
906C58X1012 High Pressure Gauge Glass 5/8 x 10-1/2 in | Borosilicate Glass, Clear Visibility, Gauge Tube, Industrial Use

3. 906C58X1012 High Pressure Gauge Glass 5/8 x 10-1/2 in | Borosilicate Glass, Clear Visibility, Gauge Tube, Industrial Use

This 906C58X1012 gauge tube is constructed from borosilicate glass, a material recognized in industrial settings for its clarity and resistance to thermal shock. The tube measures 5/8-inch by 10-1/2 inches, making it a specific size for designated industrial sight glass ports. Designed for clear visibility, this component allows operators to monitor fluids within high-pressure systems effectively. Borosilicate glass is frequently selected for its ability to maintain transparency even when exposed to fluctuating temperature conditions common in industrial equipment. Because this is a precise replacement part, it is vital to confirm that the 5/8-inch diameter and 10-1/2-inch length are the exact requirements for your specific boiler or pressure vessel sight glass assembly to ensure a secure, leak-free fit.

Best for: Industrial boiler or fluid vessel sight glass replacement.

Check on Amazon

Highlights

  • Durable borosilicate glass construction
  • 5/8" diameter
  • 10-1/2" length
  • High-clarity visual monitoring

Keep in mind

  • Non-standard dimensions may not fit all sight ports
  • Glass components require careful installation to prevent cracking
Best Ergonomic

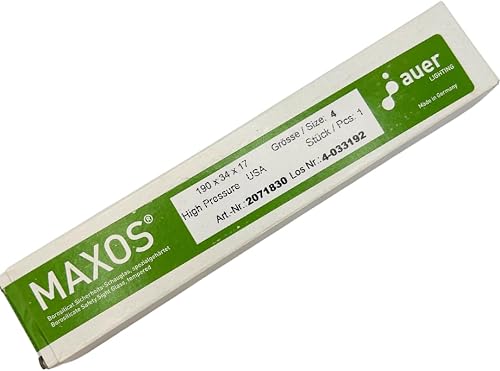

High Pressure Transparent Flat Gauge Glass | Schott Maxos Type-A High Pressure Gage Glass (#4 (190mm x 34mm x 17mm))

4. High Pressure Transparent Flat Gauge Glass | Schott Maxos Type-A High Pressure Gage Glass (#4 (190mm x 34mm x 17mm))

The Schott Maxos Type-A high-pressure gage glass is a transparent flat glass designed for demanding industrial applications. Measuring 190mm x 34mm x 17mm, this #4 size unit is engineered for systems requiring a flat viewing window rather than a tubular sight glass. Schott Maxos glass is widely known for its ability to withstand significant pressure environments, providing a clear and reliable sight port for monitoring internal processes. This flat glass configuration is typically integrated into specialized high-pressure vessels or sight ports where structural integrity and visibility under pressure are paramount. When installing this glass, it is essential to ensure that the housing gasket and clamping mechanisms are compatible with these specific dimensions to maintain a proper pressure seal and prevent glass-to-metal contact.

Best for: High-pressure vessel sight ports requiring flat glass.

Check on Amazon

Highlights

  • Schott Maxos Type-A quality
  • Flat transparent design
  • Specifically sized at 190mm x 34mm x 17mm
  • Engineered for high-pressure durability

Keep in mind

  • Requires compatible flat glass housing
  • Dimensions are rigid and not adjustable
Best for Pros

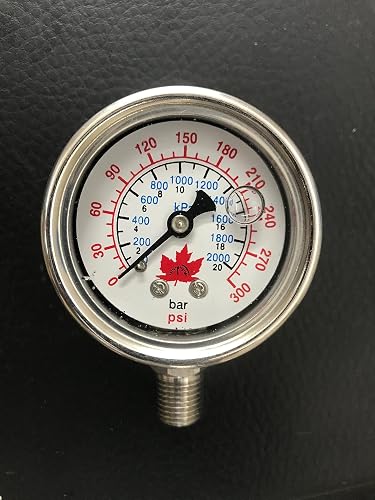

Canadagauge CRS2.0-300-LF-SS-GF 0-300psi 2" dial GF all SS shatterproof glass

5. Canadagauge CRS2.0-300-LF-SS-GF 0-300psi 2" dial GF all SS shatterproof glass

The Canadagauge CRS2.0-300-LF-SS-GF is a 2-inch dial pressure gauge with a measurement range of 0 to 300 PSI. It features an all-stainless steel construction, which provides corrosion resistance for various industrial environments. The gauge is glycerin-filled to reduce the effects of vibration, ensuring the needle remains steady for accurate readings. A notable feature of this model is the inclusion of shatterproof glass, which enhances safety should the gauge face be impacted. This unit is designed for durability and visibility, providing a reliable way to monitor system pressure in demanding setups. Its 2-inch dial size offers a balance between readability and compact form factor, making it suitable for a wide range of mounting locations where a 300 PSI limit is sufficient for the application.

Best for: Vibration-heavy environments requiring a 300 PSI monitoring limit.

Check on Amazon

Highlights

  • 0-300 PSI pressure range
  • All-stainless steel construction
  • Glycerin-filled for needle stability
  • Shatterproof glass face

Keep in mind

  • Limited to 300 PSI systems
  • Glycerin fill may leak if the seal is compromised
Buying guide

How to choose

Pressure Range Requirements

When selecting a high-pressure gauge, the primary consideration is matching the device's rated capacity to your system's operating pressure. Options like the MEANLIN MEASURE gauge offer a 0-200 PSI range, while the Canadagauge CRS2.0-300-LF-SS-GF model extends this capacity up to 300 PSI. Always ensure the gauge dial or tube is rated for the maximum pressure levels of your specific water, oil, or air application to prevent equipment failure. Operating outside these specified ranges can lead to inaccurate readings or safety hazards, so verify the manufacturer's maximum PSI limit against your requirements before finalizing your selection for industrial or boiler use.

Glass Material and Clarity

Visibility is critical for monitoring liquid levels in boiler sight glasses. Borosilicate glass, as found in the 906C58X1012 gauge tube, is specifically chosen for its industrial durability and clear visibility properties. For flat gauge applications, materials like the Schott Maxos Type-A glass provide a robust, transparent solution for high-pressure environments. When dealing with tubular sight glasses, such as the Redline 3/4" OD glass, the material composition must withstand the rigors of high-pressure boiler environments while maintaining transparency. Always prioritize glass types explicitly labeled for high-pressure tolerance to ensure the component can handle the internal stress associated with your specific industrial equipment setup.

Mounting and Connection Specifications

Proper integration into existing plumbing requires attention to connection sizes and mounting orientations. The MEANLIN MEASURE gauge includes a 1/8" NPT lower mount but provides additional versatility through included 1/4" NPT and 3/8" NPT hex bushings. Conversely, sight glasses require precise sizing for their housings, such as the 5/8" x 10-1/2" dimensions for the 906C58X1012 or the 190mm x 34mm x 17mm dimensions for the Schott Maxos Type-A flat glass. Confirm the NPT thread size for dial gauges or the outer diameter and length for tubular glasses to ensure a secure, leak-free fit within your system’s existing hardware configuration.

Liquid-Filled vs. Standard Dials

Glycerin-filled gauges are specifically engineered to dampen vibrations and pulsations, which helps protect the internal mechanism and provides a steadier needle reading. The MEANLIN MEASURE 1.5" dial and the Canadagauge 2" dial both utilize glycerin filling to improve performance in environments where pressure fluctuations are common. This liquid filling also aids in lubricating internal components, potentially extending the service life of the gauge. If your installation is subject to mechanical vibration or rapid pressure changes, a glycerin-filled unit is generally the preferred choice over a dry gauge to ensure longevity and consistent, readable pressure data during continuous operation.

Construction Durability

The longevity of a gauge is largely determined by its housing and internal construction materials. Stainless steel housings are standard for gauges intended for harsh environments, as seen in the MEANLIN MEASURE and Canadagauge models. These units often feature shatterproof glass faces to enhance safety in the event of a gauge failure. For sight glasses, the wall thickness is a vital safety indicator, such as the 7/64" thickness on the Redline tubular glass. When evaluating durability, look for all-stainless steel construction and high-grade glass specifications to ensure the equipment can withstand the corrosive or high-pressure conditions typical of industrial water, oil, or air systems.

Common questions

Frequently asked questions

What is the purpose of glycerin filling in a pressure gauge?

Glycerin filling is used in gauges like the MEANLIN MEASURE and Canadagauge models to dampen the effects of mechanical vibration and system pulsations. By filling the gauge case with liquid, the needle movement is stabilized, which prevents premature wear on the internal mechanism. This feature makes the gauge easier to read in environments with high vibration and helps protect the internal components from damage, ultimately extending the operational lifespan of the device in industrial applications.

How do I choose between a tubular and a flat gauge glass?

The choice depends on your existing sight glass housing. Tubular glasses, like the Redline 3/4" OD or the 906C58X1012, are designed for cylindrical boiler sight glass assemblies. Flat gauge glasses, such as the Schott Maxos Type-A, are intended for specific flat-faced gauge assemblies. You must consult your equipment manual or measure your current housing to determine if your system requires a tubular or a flat glass configuration, as they are not interchangeable.

Are the included bushings in the MEANLIN MEASURE kit necessary?

The included 1/4" NPT and 3/8" NPT hex bushings are provided to increase the installation flexibility of the 1/8" NPT gauge. If your existing piping or port does not match the 1/8" NPT thread of the gauge itself, these bushings allow you to adapt the gauge to common industrial connection sizes. They are highly useful if you are replacing an existing gauge and need to accommodate different thread sizes without purchasing additional separate adapters.

What does the 'shatterproof glass' feature offer?

Shatterproof glass, found in models like the Canadagauge CRS2.0-300-LF-SS-GF, is designed to enhance operator safety. In the event of an internal gauge failure or excessive over-pressurization that breaches the glass face, the shatterproof material minimizes the risk of sharp glass shards being propelled outward. This is a critical safety consideration for high-pressure systems where the gauge is located near areas where operators or maintenance personnel frequently work, providing an extra layer of protection during potential equipment malfunctions.

Can I use these gauges for both oil and water applications?

Yes, many of the listed dial gauges, such as the MEANLIN MEASURE 0~200Psi unit, are explicitly rated for water, oil, and air. These gauges are constructed with materials compatible with these common media types. However, always verify the chemical compatibility of the gauge materials with your specific fluid if you are using specialized oils or chemicals. Ensure the pressure range of the gauge exceeds your system's maximum operating pressure to maintain safe and accurate monitoring.

Verdict

Bottom line

For users needing a robust pressure monitoring solution for air, water, or oil systems, the Canadagauge CRS2.0-300-LF-SS-GF stands out as a top performer. With its 300 PSI capacity, 2-inch dial, and all-stainless steel construction, it offers superior pressure range and durability compared to smaller 1.5-inch alternatives. The inclusion of shatterproof glass specifically addresses safety requirements in high-pressure environments, while the glycerin filling ensures that needle readings remain stable even when exposed to system vibrations. For those requiring the highest pressure threshold and a larger, more legible face, this model provides the most comprehensive feature set for professional industrial use, balancing build quality with necessary safety-oriented design choices for demanding, high-pressure applications.

When deciding between these products, first categorize your needs as either pressure monitoring or liquid level observation. If you need to monitor system pressure, choose between the 200 PSI MEANLIN MEASURE gauge or the 300 PSI Canadagauge based on your specific PSI requirements. If you are replacing a boiler sight glass, prioritize the physical dimensions—such as the 5/8" x 10-1/2" spec for the 906C58X1012 or the specific length of the Redline glass—to ensure a correct mechanical fit. Always match the glass type (flat vs. tubular) to your existing housing to avoid compatibility issues, as these components are specific to their respective sight glass hardware designs.
