Top Hydraulic Tank Sight Glass Gauges for Workshop and Industrial Systems
Maintaining proper fluid levels is essential for the longevity of hydraulic systems, air compressors, and storage tanks. A reliable sight glass provides a clear visual window to monitor oil or fuel levels, preventing damage caused by running equipment dry or overfilling. When selecting an indicator, consider the mounting style, thread size, and compatibility with specific fluids like diesel, petroleum, or solvents. Whether you require a high-durability stainless steel unit for industrial applications or a simple aluminum replacement for standard compressor maintenance, choosing the correct material and seal type ensures a leak-free operation and easy readability in demanding workshop environments.
Selecting the right gauge depends on your specific tank interface and environmental conditions. Options range from standard NPT-threaded metal fittings to specialized tri-clamp assemblies for high-clearance applications. Some models integrate thermometers to track thermal fluctuations, while others prioritize material resilience using borosilicate glass or transparent polyamide resin. Always verify the thread specifications and operating pressure limits before installation to ensure compatibility with your system requirements. This overview examines five distinct sight glass solutions available on the market, focusing on material composition, mounting configurations, and user feedback to help you make an informed decision for your equipment maintenance needs.
1. 1/2'' NPT Male Threaded Stainless Steel Sight Glass Oil Liquid Level Gauge Oil Indicator Window Hydraulic Tank Sight Glass for Pump Air Compressor Fittings (1/2'' NPT Male 1 Pcs) | Borosilicate Tempered Glass, NBR O-Ring
This 1/2-inch NPT male threaded gauge is designed for hydraulic tanks, pumps, and air compressors. It features a robust stainless steel construction paired with a borosilicate tempered glass window, which is intended to provide clear visibility for monitoring liquid levels. The inclusion of an NBR O-ring is meant to facilitate a secure seal during installation. This unit is suited for those replacing existing fittings on standard compressor setups or hydraulic reservoirs where 1/2-inch NPT threads are required. With a 4.5-star rating, it focuses on providing a durable, metal-bodied solution for standard workshop equipment maintenance, offering a balance between industrial-grade materials and common sizing for immediate replacement needs.
Best for: Standard air compressor and hydraulic pump maintenance.
Check on AmazonHighlights
- 1/2-inch NPT male threading
- Stainless steel construction
- Borosilicate tempered glass window
- Includes NBR O-ring
Keep in mind
- May not fit non-NPT threaded ports
- Limited to 1/2-inch thread size only
2. Lenz T-LLG-5 Fluid Level Gauge & Thermometer, 6.1" Tall, 1/2-13 UNC Thread | Nitrile Seal, 212 F Max Temp, 44 Max PSI, Transparent Polymide Resin, Petroleum-based Fluids, Gasoline, Diesel, Solvents
The Lenz T-LLG-5 is a specialized fluid level gauge that incorporates a thermometer for dual-function monitoring. It stands 6.1 inches tall and utilizes 1/2-13 UNC threads for mounting. Constructed from transparent polyamide resin and equipped with a nitrile seal, this unit is rated for a maximum pressure of 44 PSI and temperatures up to 212°F. Its compatibility list includes petroleum-based fluids, gasoline, diesel, and various solvents, making it a versatile choice for complex industrial tanks. The design emphasizes both fluid level tracking and thermal management, providing a comprehensive diagnostic tool for systems where temperature regulation is as critical as maintaining proper reservoir volume.
Best for: Industrial reservoirs requiring temperature and level tracking.
Check on AmazonHighlights
- Built-in thermometer functionality
- Rated up to 212°F
- Compatible with diverse fluids
- Transparent polyamide resin body
Keep in mind
- 44 PSI pressure limitation
- Specific 1/2-13 UNC thread requirement

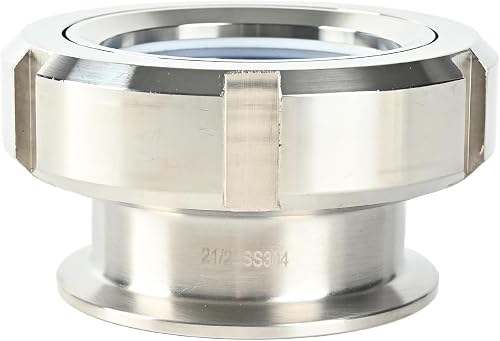

3. SS304 Tri Clamp Sight Glass 2.5" Union Type with Blue Silicon Gasket,Clamp Stailess Steel Tank View Glass
Designed for specific sanitary or high-performance tank setups, this SS304 tri-clamp sight glass features a 2.5-inch union design. It is built from stainless steel and comes with a blue silicon gasket to ensure a tight connection. Unlike threaded models, this assembly is intended for clamp-style mounting, which is common in environments where quick access or sanitary conditions are prioritized. Its focus on SS304 material suggests a focus on corrosion resistance and structural integrity. This unit is well-suited for users needing a view glass for specialized tanks that utilize tri-clamp infrastructure rather than traditional NPT threading, earning high marks for its specialized design and material quality.
Best for: Sanitary or specialized tank view ports.
Check on AmazonHighlights
- SS304 stainless steel construction
- 2.5-inch union tri-clamp design
- Includes blue silicon gasket
- High 4.7-star user rating
Keep in mind
- Requires tri-clamp mounting interface
- Not for standard threaded compressor ports
4. Rheem AP12617-3 Sight Glass
The Rheem AP12617-3 is a specific replacement sight glass designed for use with Rheem equipment. As a manufacturer-designated part, it provides a straightforward solution for those maintaining existing Rheem systems. While the product details are focused specifically on its role as a component replacement, it serves as a reliable option for technicians or homeowners looking to restore the visibility of their fluid levels without searching for universal aftermarket alternatives. Its 4.4-star rating reflects its utility as a direct-fit part. By sticking to the original equipment design, it ensures compatibility with the intended housing, reducing the guesswork often associated with sourcing generic hydraulic or level indicators for branded hardware.
Best for: Direct replacement on Rheem equipment.
Check on AmazonHighlights
- OEM-specific component
- Direct-fit compatibility
- Consistent with Rheem standards
- Reliable maintenance replacement
Keep in mind
- Limited application outside Rheem systems
- Lacks generic universal sizing
5. 5 Pcs Oil Sight Glass, 1/4 1/2 3/4 3/8 1'' Male Threaded Aluminum Alloy Sight Glass Oil Liquid Level Gauge Oil Indicator Window Hydraulic Tank Sight Glass for Replacement Air Compressor Fittings
This kit includes five aluminum alloy oil sight glasses, offering a variety of sizes including 1/4, 1/2, 3/4, 3/8, and 1-inch male threads. This comprehensive set is designed for versatile replacement needs across various air compressor models and hydraulic tanks. The aluminum construction provides a lightweight alternative to steel, while the inclusion of multiple sizes makes this a practical inventory item for workshops that service multiple types of machinery. With a 4.9-star rating, it is highly regarded for its convenience and broad compatibility. It is an ideal choice for technicians who need a variety of thread diameters on hand to address different equipment maintenance requirements immediately.
Best for: Workshops needing multiple thread sizes for various repairs.
Check on AmazonHighlights
- 5-piece set with varied sizes
- Includes 1/4" to 1" male threads
- Durable aluminum alloy body
- High user satisfaction rating
Keep in mind
- Aluminum may be less durable than stainless steel
- May contain sizes not needed for single-unit users
How to choose
Material Construction
Hydraulic tank sight glasses are manufactured from various materials suited for specific environments. Options include stainless steel, such as the SS304 used in tri-clamp models, and aluminum alloy for general compressor fittings. For clarity and temperature resistance, manufacturers utilize borosilicate tempered glass or transparent polyamide resin. When selecting a sight glass, ensure the material is compatible with your tank's contents, whether that involves petroleum-based fluids, diesel, solvents, or gasoline. Robust materials like stainless steel offer high durability, while aluminum provides a lightweight alternative for standard replacement needs in air compressor systems or hydraulic reservoirs.
Thread Type and Size
Proper installation depends on matching the thread specifications of your tank port. Common configurations include 1/2-inch NPT male threads, which are standard for many hydraulic tank and compressor applications. Other options, such as the 1/2-13 UNC thread, cater to specific fluid level gauge designs. Before purchasing, verify the thread size on your existing equipment to ensure a secure, leak-free fit. Product listings often provide a range of sizes, such as 1/4, 3/8, 3/4, and 1-inch options, making it essential to measure your port accurately to avoid compatibility issues during installation.
Sealing and Gaskets
The seal is critical for preventing fluid leaks and maintaining pressure integrity. Sight glasses utilize different sealing materials, such as NBR (Nitrile) O-rings, blue silicon gaskets, or nitrile seals. These components are designed to withstand specific chemical exposures and temperature ranges. For instance, models intended for petroleum-based fluids or solvents rely on seals that resist degradation. Always check the gasket material to ensure it is rated for the specific type of fluid housed in your tank. A high-quality seal ensures longevity and reliability, protecting your hydraulic system from external contaminants and preventing costly fluid loss.
Pressure and Temperature Ratings
Operating conditions dictate the necessary specifications for your sight glass. Some gauges are rated for specific maximum pressures, such as 44 PSI, and temperature limits, like 212 degrees Fahrenheit. These ratings are particularly important for gauges that incorporate integrated thermometers or are used in high-demand hydraulic environments. Exceeding these limits can compromise the transparency of the lens or the integrity of the housing. Carefully review the technical documentation or product specifications provided by the manufacturer to ensure the sight glass is rated to handle the operational environment of your pump, compressor, or hydraulic reservoir.
Form Factor and Mounting
Sight glasses come in various physical configurations, ranging from simple threaded plugs to union-type assemblies. A 2.5-inch union-type sight glass provides a broader view for monitoring fluid levels, while threaded oil indicators are compact and ideal for direct mounting into small ports. Consider the space availability around your tank when choosing between a low-profile threaded gauge or a larger, specialized fluid level gauge. Some units are designed as direct replacements for specific equipment, such as the Rheem AP12617-3, while others are sold in multipacks to provide versatility for different maintenance projects or workshop inventory needs.
Frequently asked questions
Which material is best for petroleum-based fluids?
For petroleum-based fluids, gasoline, diesel, and various solvents, look for sight glasses constructed with nitrile seals or gaskets. These materials are engineered to maintain integrity when exposed to chemical substances. For instance, the Lenz T-LLG-5 is specifically designed for use with these types of fluids, ensuring the seal does not degrade over time. Always verify the manufacturer's compatibility list before installation to ensure the materials used in the sight glass housing and seals align with your specific fluid requirements.
Can I use a 1/2-inch NPT sight glass on any tank?
A 1/2-inch NPT sight glass is designed to fit ports with matching 1/2-inch National Pipe Taper threads. While this is a common size for many hydraulic tanks and air compressors, you must confirm your tank's port size before purchase. Using a sight glass on an incompatible thread size will result in improper sealing, leaks, or damage to the tank threads. Always check the specific thread specification of your existing port to guarantee a secure, leak-free connection.
What is the benefit of a tri-clamp sight glass?
A tri-clamp sight glass, such as the SS304 2.5-inch union type, offers a distinct mounting method compared to traditional threaded gauges. This design is often utilized for its ease of installation and removal, allowing for quick inspection or cleaning of the glass window. The use of a blue silicon gasket provides a reliable seal within the clamp assembly. These units are typically favored in applications where a larger viewing area is required and where the convenience of a union connection is preferred.
Are there sight glasses that also monitor temperature?
Yes, some specialized fluid level gauges, such as the Lenz T-LLG-5, include an integrated thermometer. This feature allows you to monitor both the fluid level and the operational temperature of the tank simultaneously. These gauges are highly useful in hydraulic systems where temperature regulation is critical for performance and safety. When selecting a gauge with temperature monitoring, ensure that both the pressure and temperature ratings meet or exceed the requirements of your specific hydraulic or compressor system.
How do I choose between a single unit and a multipack?
Choosing between a single unit and a multipack depends on your maintenance needs. A multipack, such as the 5-piece aluminum alloy set, is an excellent choice for a workshop or maintenance facility that services various air compressors with different port sizes. A single unit is ideal for specific repairs or when you know the exact size and type required for one machine. Evaluate your current inventory and the range of equipment you maintain to decide if the versatility of a multipack offers better value.
Bottom line
When selecting the best sight glass, the SS304 Tri Clamp model stands out for those requiring a larger, 2.5-inch viewing window and the convenience of a union-type assembly. For general-purpose hydraulic and compressor needs, the 1/2-inch NPT stainless steel sight glass with borosilicate glass and NBR O-rings offers a robust balance of durability and chemical resistance. If your priority is versatility across various port sizes, the 5-piece aluminum alloy set provides an economical solution for diverse replacement tasks. For specialized applications where fluid temperature monitoring is essential, the Lenz T-LLG-5 remains the strongest choice, as it provides both level indication and temperature data within a single, reliable unit designed for harsh fluid environments.
Deciding on the right sight glass requires a focus on three primary factors: thread compatibility, fluid compatibility, and operating conditions. First, confirm your tank's port size and thread type to ensure a proper fit. Second, assess the fluid type—such as diesel, gasoline, or hydraulic oil—to select a glass and gasket material that will resist degradation. Finally, check the pressure and temperature ratings of the unit against your equipment's specifications. If you are performing a single repair, a precise-fit threaded gauge is usually sufficient. However, if you are stocking a workshop, a multi-size set provides the best utility for handling a variety of compressor and hydraulic maintenance projects.
