Top Fuel Level Gauges and Sending Units: Selecting the Right Monitor for Your Vehicle
Monitoring fuel levels accurately is essential for the reliable operation of boats, RVs, and commercial equipment. Whether you are retrofitting a classic dashboard or replacing a faulty sensor in a heavy-duty truck, selecting the correct hardware requires matching the gauge to your fuel tank's specific OHM signal range. Universal gauges offer broad compatibility with multiple signal types, while application-specific sending units are engineered to fit precise tank depths and mounting configurations. From illuminated analog displays that enhance cabin aesthetics to direct-replacement mechanical senders, understanding your system requirements ensures a seamless installation and consistent performance across various gas and diesel fuel delivery setups.
When upgrading your monitoring equipment, prioritize compatibility with your existing electrical system and fuel type. Some gauge kits include comprehensive wiring and multi-color display options, while others focus on direct mechanical replacements for specific machinery like Cub Cadet or Isuzu platforms. Always verify the ohm resistance range supported by your fuel sender before installation to prevent inaccurate readings. By focusing on the technical specifications—such as mounting diameter, signal compatibility, and intended equipment usage—you can effectively manage fuel reserves and avoid the risks associated with unexpected depletion in marine, automotive, or industrial environments.
1. Boat Fuel Gauge Marine Fuel Gauge 5 Signals Adjustable All Black | Automotive Replacement Fuel Gauge for Boat RV Yacht Car Truck Motorcycle, 240-33ohm 0-190ohm 240-30ohm 0-180ohm 10-180ohm
This marine-grade fuel gauge features an all-black design suitable for boats, RVs, yachts, and automotive applications. It is designed for versatility, supporting multiple signal ranges including 240-33ohm, 0-190ohm, 240-30ohm, 0-180ohm, and 10-180ohm. This wide signal compatibility makes it a flexible choice for users who need to match an existing sender without replacing the entire fuel system. Its construction is tailored for harsh environments, providing a reliable visual reference for fuel levels across various vehicle types, from motorcycles to heavy trucks. The unit is rated 4.5 out of 5 stars, indicating strong user satisfaction for its intended role as an automotive replacement part.
Best for: Mixed-fleet owners needing universal signal compatibility.
Check on AmazonHighlights
- Supports five distinct OHM signal ranges
- Durable all-black marine-grade construction
- Universal fit for diverse vehicle types
- High 4.5-star user rating
Keep in mind
- Installation may require manual signal calibration
- May not fit tight dashboard spaces without modification
2. Tinted 7 Color Adjustable Fuel Level Gauge, 2-1/16" 52mm | Includes Wiring, Multi-Color Analog Display, Black Dial, Smoked Lens, Select Various OHM Ranges, For Gas & Diesel
This 2-1/16-inch (52mm) fuel level gauge offers a customizable aesthetic with a tinted, smoked lens and a 7-color multi-color analog display. Designed for both gas and diesel engines, the kit comes complete with the necessary wiring for installation. It allows users to select various OHM ranges, providing flexibility to match diverse fuel sending units already installed in the vehicle. The black dial and bezel design provide a clean, modern look for aftermarket gauge pods. With a 4.5-star rating, this unit is recognized for its combination of visual customization and functional reliability in monitoring fuel reserves.
Best for: Users looking for aesthetic customization and easy reading.
Check on AmazonHighlights
- Includes 7-color LED display options
- Standard 52mm gauge diameter
- Compatible with both gas and diesel fuels
- Includes necessary wiring for setup
Keep in mind
- Smoked lens may reduce visibility in bright sunlight
- Requires dedicated space for a 2-1/16 inch gauge

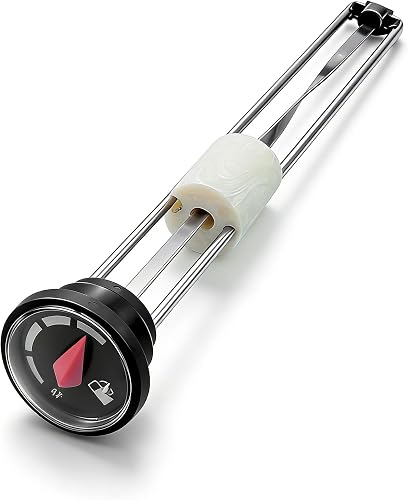

3. 12" Gas Fuel Tank Gauge Meter Fit for Cub Cadet Ferris Snapper Pro | Fuel Level Sender with Grommet Fit for IS500Z IS2000Z F200Xt S150X S200X Replace 5022917 5101378YP
This 12-inch fuel tank gauge and sending unit is a specialized replacement part designed specifically for Cub Cadet, Ferris, and Snapper Pro equipment. It fits models such as the IS500Z, IS2000Z, and various F and S series mowers, replacing parts 5022917 and 5101378YP. The package includes a grommet for a secure, leak-resistant seal on the fuel tank. Because this is an application-specific component, it eliminates the guesswork associated with universal parts when maintaining professional landscaping machinery. While it holds a 3.8-star rating, it remains a primary choice for users needing a direct fit for compatible commercial mower fuel systems.
Best for: Commercial landscaping equipment maintenance.
Check on AmazonHighlights
- Direct fit for specific Cub Cadet and Ferris models
- Includes essential mounting grommet
- Replaces OEM part numbers 5022917 and 5101378YP
- Designed for 12-inch deep fuel tanks
Keep in mind
- Limited to specific mower brands
- Lower user rating compared to universal gauges
4. EV² Fuel Pressure 0-60 - R17077 Full Kit, Black Face, Red Pointer, Green Backlight, Black Bezel, Black Hub, Gauge Only
The EV² fuel pressure gauge is a specialized instrument designed to monitor fuel pressure between 0-60 PSI. This kit features a black face, red pointer, and green backlight, providing high-contrast readability. The assembly includes a black bezel and hub, adhering to a minimalist, professional aesthetic suitable for performance vehicle dashboards. As a dedicated pressure gauge, it serves a different function than a standard fuel level indicator, focusing on the health of the fuel delivery system rather than the volume remaining in the tank. It is supplied as a full kit, which typically assists in a more straightforward installation process for those monitoring high-performance fuel lines.
Best for: Performance monitoring of fuel system pressure.
Check on AmazonHighlights
- Monitors 0-60 PSI fuel pressure range
- High-contrast red pointer and green backlight
- Complete kit with black bezel and hub
- Professional grade design
Keep in mind
- Does not measure fuel volume levels
- No provided user rating information
5. Fuel Tank Level Sending Unit for Isuzu 1998-2004 | Compatible with Isuzu NPR NQR 4HE1 4.8L 4HK1 5.2L 1998-2004
This fuel tank level sending unit is engineered specifically for Isuzu commercial trucks, including the NPR, NQR, and models equipped with 4HE1 4.8L or 4HK1 5.2L engines manufactured between 1998 and 2004. This component is essential for restoring accurate fuel level reporting to the dashboard when the original sensor fails due to wear or corrosion. Because it is built to factory specifications for these specific Isuzu platforms, it ensures proper electrical resistance and mechanical fitment without the need for custom wiring or fabrication. It serves as a dedicated solution for fleet managers and owners performing routine maintenance on aging Isuzu medium-duty diesel trucks.
Best for: Replacing faulty senders on 1998-2004 Isuzu NPR/NQR trucks.
Check on AmazonHighlights
- Direct fit for Isuzu 4HE1 and 4HK1 engine platforms
- Compatible with 1998-2004 model years
- Engineered for specific truck fuel tank geometry
- Restores factory-accurate fuel readings
Keep in mind
- Vehicle-specific fitment only
- No performance ratings provided
How to choose
Signal Compatibility
When selecting a fuel level gauge, the most critical factor is ensuring the device matches the ohm range of your existing fuel level sender. Products like the Boat Fuel Gauge offer multi-signal adjustability, supporting common ranges such as 240-33ohm, 0-190ohm, and 10-180ohm. Mismatched signals will lead to inaccurate readings, potentially leaving you stranded without fuel. Before purchasing, verify the specific ohm range dictated by your vehicle's sending unit. Some aftermarket gauges provide dip switches or menu settings to toggle between these standards, making them highly versatile for various automotive, marine, and industrial applications where proprietary equipment might otherwise require a brand-specific replacement part for compatibility.
Display and Visibility
Visibility is paramount for monitoring fuel levels at a glance. Look for gauges that feature high-contrast designs, such as the EV² Fuel Pressure gauge with its black face and red pointer, or the Tinted 7 Color Adjustable Fuel Level Gauge. Smoked lenses or specific backlight colors, like green, can reduce glare during night driving or in bright, reflective marine environments. Consider whether you prefer a traditional analog needle display, which provides intuitive movement, or specialized digital integration. Ensure the bezel size, typically 2-1/16" or 52mm for standard dashboards, fits your existing mounting hole to avoid costly modifications or the need for additional mounting pods.
Application Specificity
Fuel gauges are often engineered for specific environments, ranging from marine and RV use to heavy-duty commercial equipment. For instance, the 12" Gas Fuel Tank Gauge Meter is designed specifically for power equipment like Cub Cadet, Ferris, and Snapper Pro mowers, including specific replacements for part numbers like 5022917. Conversely, the Fuel Tank Level Sending Unit for Isuzu NPR and NQR trucks is purpose-built for specific engine types like the 4HE1 and 4HK1. Avoid using general-purpose automotive gauges for specialized machinery unless the manufacturer confirms the resistance and mounting depth are perfectly aligned with your machine's unique fuel tank configuration.
Power and Wiring Requirements
Installation requirements vary significantly depending on the gauge's complexity. Basic mechanical fuel gauges may require no power, while electronic displays, such as the Tinted 7 Color Adjustable model, include dedicated wiring kits for backlighting and signal processing. When upgrading your dashboard, assess the available space behind the panel for wire routing and connections. Ensure your electrical system can support the gauge's voltage requirements, especially if you are integrating it into a complex marine or truck electrical harness. Properly securing all electrical connections is essential to prevent signal interference or erratic needle movement caused by vibration during operation in rugged or marine settings.
Durability and Environmental Protection
Environmental factors such as moisture, vibration, and extreme temperature fluctuations dictate the necessary build quality for your fuel gauge. Marine-rated gauges are constructed to withstand the corrosive nature of saltwater and high humidity, often featuring sealed housings or specialized lenses. Automotive gauges used in off-road or commercial truck applications must handle high-vibration environments without losing calibration. Check the product specifications for details on bezel material and lens protection. While some gauges are intended for enclosed, climate-controlled dashboards, those rated for marine or heavy-duty use offer increased resistance to the elements, ensuring long-term reliability and accurate fuel monitoring in harsh outdoor work conditions.
Frequently asked questions
How do I ensure my fuel gauge is compatible with my sender?
To ensure compatibility, you must match the ohm range of your gauge to the resistance range of your fuel tank sender. Many universal gauges, such as the Boat Fuel Gauge, support multiple ranges like 240-33ohm or 0-190ohm. Always consult your vehicle or equipment manual to identify the factory-specified ohm range before purchasing a replacement gauge. If the ranges do not match, the gauge will provide incorrect fuel level readings.
Can I use an automotive fuel gauge on a commercial mower?
It is generally not recommended unless the gauge is specifically designed for that equipment. Products like the 12" Gas Fuel Tank Gauge Meter are engineered for specific mower brands like Cub Cadet and Ferris. These are calibrated for the physical dimensions and sender output of those specific fuel tanks. Using an automotive-style gauge may result in improper fitment, inaccurate readings, or failure to mount correctly in the existing tank housing.
What does the 2-1/16" size refer to in these gauges?
The 2-1/16" measurement refers to the standard diameter of the gauge housing, which is equivalent to 52mm. This is the industry-standard size for most automotive and marine dashboard mounting holes. If you are replacing an existing gauge, measuring your current dashboard cutout is essential. If your opening is smaller or larger than 52mm, you may need to purchase an adapter plate or modify the mounting surface to ensure a secure fit.
Why would I choose a gauge with adjustable signal ranges?
Choosing a gauge with adjustable signal ranges provides flexibility if you are unsure of your sender's exact specifications or if you are working on a custom project. These gauges allow you to toggle through common resistance standards, such as 0-190ohm or 240-30ohm, via switches or settings. This eliminates the need to buy multiple gauges if the initial setup does not match, making it an ideal choice for mechanics or DIYers working on various vehicles.
Are these gauges suitable for both gas and diesel engines?
Many aftermarket fuel gauges, such as the Tinted 7 Color Adjustable Fuel Level Gauge, are designed to work with both gas and diesel applications. However, it is vital to verify that the specific fuel level sending unit installed in your tank is compatible with your fuel type and the gauge's ohm range. Always check the product description to confirm that the gauge is rated for the environment and fuel type specific to your vehicle.
Bottom line
For those seeking a versatile solution, the Boat Fuel Gauge Marine Fuel Gauge is the strongest fit due to its multi-signal adjustability. Supporting a wide array of resistance ranges including 240-33ohm, 0-190ohm, and 240-30ohm, it offers high compatibility for various automotive, marine, and yacht applications. Its all-black aesthetic provides a clean, professional look for dashboards, while the 4.5-star rating suggests consistent user satisfaction. When precision and adaptability are required, this model eliminates the guesswork often associated with matching proprietary sending units. It is an excellent choice for users looking to consolidate their inventory or replace an aging gauge with a modern, high-visibility unit that fits standard 52mm openings across diverse vehicle types.
Deciding on the right gauge requires prioritizing your specific equipment needs over generic features. If you are servicing specialized machinery like a Cub Cadet or Isuzu truck, look for model-specific components, such as the 12" Gas Fuel Tank Gauge Meter or the Isuzu-compatible sending unit, which guarantee a correct mechanical fit. For custom dashboards or multi-vehicle workshops, prioritize adjustable-signal gauges to ensure versatility. Always confirm the physical mounting dimensions and the electrical ohm range before purchase. By matching these technical requirements to your vehicle's specific sending unit, you ensure accurate fuel monitoring and avoid the frustration of incompatible hardware, ultimately saving time and preventing potential operational issues in the field.
