Top Dial Indicators for Precision Measurement and Alignment Tasks
Selecting the right dial indicator is essential for machinists and hobbyists requiring high-accuracy measurements in workshop environments. These tools translate linear motion into rotational movement, allowing for precise readings of surface flatness, alignment, and part tolerances. When comparing options, professionals often look for specific graduation increments, measuring ranges, and mounting configurations that suit their existing machinery. Whether you are performing routine maintenance on a lathe, checking runout on a spindle, or verifying the accuracy of a custom jig, the internal mechanics and contact point design determine the reliability of your data. This guide analyzes five popular indicators to help you identify which features align with your specific workshop requirements and precision standards.
The market features a variety of designs ranging from standard plunger-style indicators to versatile test indicators with reversible measuring directions. While some models prioritize a wide measuring range for general-purpose tasks, others emphasize extreme accuracy for fine-tolerance work. Factors such as stem design, bearing construction, and included accessories like magnetic bases can significantly impact usability. Understanding the technical specifications—such as graduation, total range, and material construction—is crucial before integrating a new tool into your workflow. By evaluating these distinct hardware options, you can choose a gauge that provides the necessary resolution and build quality for your specific measurement applications.
1. Mitutoyo 2776A Dial Indicator DG with 0-1" Measuring Range, 0.0005" Graduation, Stem-Bush Design for Longer Clamping Range, High Dust Resistance, Rigid Bearing Plate for Reduced Tracing Error | 0.0005" Graduation
This Mitutoyo model features a 0 to 1-inch measuring range with 0.0005-inch graduations, making it a precise choice for applications requiring fine resolution. The unit is engineered with a stem-bush design intended to provide a longer clamping range, which may assist in various mounting configurations. It incorporates a rigid bearing plate designed to reduce tracing error, which can contribute to more consistent readings during repetitive use. Additionally, the construction emphasizes high dust resistance, a beneficial feature for environments where debris might otherwise interfere with internal components. With a 4.6-star rating, this indicator is built for users who prioritize reliability and build quality in their measurement tools. The combination of its specific graduation and rigid internal design supports detailed inspection tasks in demanding settings.
Best for: High-precision measurement tasks requiring fine 0.0005-inch resolution.
Check on AmazonHighlights
- 0.0005-inch graduation
- 0 to 1-inch range
- Rigid bearing plate design
- Enhanced dust resistance
Keep in mind
- Requires specific mounting hardware
- May be overkill for general, less precise work
2. Mitutoyo 513-404-10T DIAL TI, Full, STD .8 mm, 3 μm Accuracy, 0.01 mm, Yellow | Full set, 20.9 mm contact point length, +/-0.008 mm accuracy, carbide-tipped contact point, reversible measuring direction
This test indicator from Mitutoyo is designed for tight-tolerance work, offering a 0.01 mm graduation and an accuracy of +/- 0.008 mm. It features a carbide-tipped contact point, which is often selected for its durability and wear resistance in contact-based measurement. The tool offers a reversible measuring direction, allowing for greater versatility when probing different surfaces or angles. With a 0.8 mm range and a contact point length of 20.9 mm, it is optimized for small-scale alignment or inspection where space may be limited. The yellow dial face is intended to provide clear visibility for the operator. Given its specialized construction, this indicator is suitable for those needing to verify precise runout or alignment in compact or intricate machine setups.
Best for: Compact, high-precision alignment and runout checks.
Check on AmazonHighlights
- 0.01 mm graduation
- Reversible measuring direction
- Durable carbide-tipped contact point
- High-visibility yellow face
Keep in mind
- Limited 0.8 mm measuring range
- Metric-only graduation might require conversion for some users
3. Qnkaa Dial Indicator with Magnetic Base Holder 0-1" Dial Gauge 0.001" | Fine Adjustable Long Arm , Magnetic Dial Indicator，Professional Dial Gauge 0.001"
This Qnkaa kit offers a comprehensive measurement solution by pairing a 0 to 1-inch dial indicator with a magnetic base holder. The indicator provides a 0.001-inch resolution, which is standard for many general-purpose workshop alignment and inspection tasks. The included magnetic base features a fine-adjustable long arm, designed to provide stability and ease of positioning when the indicator is fixed to a metallic surface. This combination is marketed toward users who need a complete setup for checking machine tool accuracy or verifying part dimensions. The 4.4-star rating reflects its utility as an all-in-one package for professionals or hobbyists who do not yet possess a dedicated mounting system. Its design focuses on convenience and versatility for various shop-floor applications.
Best for: Users needing a complete setup including the mounting base.
Check on AmazonHighlights
- Includes magnetic base
- 0.001-inch resolution
- Fine-adjustable long arm
- 0 to 1-inch range
Keep in mind
- May lack the longevity of premium industrial brands
- Magnetic base quality is dependent on surface contact

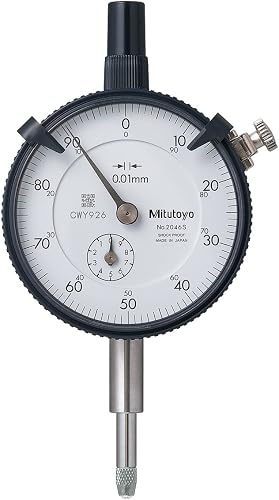

4. Mitutoyo 2046S, 0.01mm X 10mm Dial Indicator, 0-100, Lug Back, Series 2, 8mm Stem | Lug Back, Series 2, 8mm Stem
The Mitutoyo 2046S is a series 2 dial indicator featuring a 0.01 mm graduation and a 10 mm range. It utilizes a standard lug back design for mounting, which is a common configuration for various stands and brackets. The unit includes an 8 mm stem, making it compatible with many standard industry holders. Its 0-100 dial reading format is a classic layout used for straightforward measurement tracking. With a focus on durability and standardized dimensions, this model is frequently used in environments where reliable, repetitive measurements are necessary. The 4.4-star rating suggests it remains a staple for those who rely on established, traditional dial indicator designs for their daily machine shop operations and quality control checks.
Best for: Standard machine shop applications requiring reliable metric readings.
Check on AmazonHighlights
- 0.01 mm graduation
- 10 mm measuring range
- Standard lug back mounting
- 8 mm stem diameter
Keep in mind
- Metric graduation limits utility for imperial-only workflows
- Lug back mount may require specific adapters
5. WEN 10703 1 in. Precision Dial Indicator with .001 in. Resolution
The WEN 10703 is a precision dial indicator offering a 1-inch range and a 0.001-inch resolution. This tool is designed for general-purpose workshop use, such as checking runout on machine tools or verifying the flatness of workpieces. It serves as a straightforward option for those who need to perform basic measurements without the complexity of higher-end, specialized gauges. Its 4.6-star rating indicates that users find it effective for their standard alignment and tolerance needs. The design is focused on providing an accessible entry point for consistent measurements. While it lacks the additional mounting hardware of some kits, its standard construction ensures it can be integrated into most existing indicator stands, providing a functional solution for everyday shop maintenance and part verification.
Best for: General-purpose workshop measurement and machine alignment.
Check on AmazonHighlights
- 0.001-inch resolution
- 1-inch measuring range
- High user rating for consistency
- Standardized design for easy mounting
Keep in mind
- Does not include a magnetic base or stand
- May not meet the extreme accuracy requirements of specialized labs
How to choose
Measuring Range and Resolution
The measuring range defines the total distance a tool can track, while resolution determines the smallest unit of measurement displayed. Options like the Mitutoyo 2776A offer a 0-1 inch range with 0.0005 inch graduation for high-precision tasks. Conversely, the WEN 10703 and Qnkaa models provide a 0.001 inch resolution. If you are performing metric measurements, the Mitutoyo 2046S covers a 10mm range with 0.01mm resolution. Matching these specifications to your project requirements ensures accuracy, whether you are checking surface flatness or verifying part tolerances in a professional workshop environment. Always verify whether your task necessitates imperial or metric increments before finalizing your selection.
Contact Point and Tip Material
The contact point is the component that interfaces directly with the workpiece. The Mitutoyo 513-404-10T features a carbide-tipped contact point, which provides enhanced durability against wear compared to standard materials. The length of the contact point, such as the 20.9 mm length found on the 513-404-10T, impacts how the tool reaches recessed or angled surfaces. When selecting a dial indicator, consider the geometry of your typical workpieces. A tool with a reversible measuring direction, like the 513-404-10T, adds versatility for different orientations, while standard stems like the 8mm size on the Mitutoyo 2046S allow for compatibility with various mounting hardware and stands.
Mounting and Base Compatibility
Effective use of a dial indicator often requires a stable mounting system. The Qnkaa Dial Indicator includes a magnetic base holder with a fine adjustable long arm, which assists in positioning the gauge accurately against a workpiece. Other models, such as the Mitutoyo 2046S, feature a lug back design, which is specifically intended for mounting onto fixtures or brackets. When choosing your indicator, assess your existing workshop equipment. If you do not have a dedicated stand, a kit that bundles the gauge with a magnetic base can provide immediate utility, whereas standalone indicators are ideal if you are replacing a component on an existing setup.
Durability and Build Quality
Workshop environments often expose tools to dust, debris, and physical impact. The Mitutoyo 2776A is noted for high dust resistance and includes a rigid bearing plate designed to reduce tracing errors during operation. These design features contribute to the longevity of the tool and the consistency of its readings over time. When comparing models, look for indicators that highlight robust construction, as these are better suited for repetitive high-volume work. While budget-friendly options like the WEN 10703 offer precision for general applications, professional-grade indicators often incorporate specialized bearing plates and stem-bush designs that improve clamping stability and overall mechanical reliability.
Accuracy and Graduation Standards
Accuracy is the most critical factor for professional measurement tools. The Mitutoyo 513-404-10T specifies an accuracy of 3 μm with a tolerance of +/-0.008 mm, making it suitable for high-precision inspection. Graduation refers to the scale markings on the dial face; for example, the Mitutoyo 2776A provides 0.0005 inch graduation, which offers finer detail than the 0.001 inch resolution found on the Qnkaa or WEN models. Higher graduation settings allow for more granular inspection of deviations. Always review the graduation and accuracy ratings provided by the manufacturer to ensure the tool meets the strict tolerances required by your specific machining or quality control processes.
Frequently asked questions
What is the difference between a dial indicator and a dial test indicator?
A dial indicator, such as the Mitutoyo 2776A or WEN 10703, typically measures linear displacement using a plunger mechanism. In contrast, a dial test indicator, like the Mitutoyo 513-404-10T, uses a swinging lever contact point to measure small variations in surface height or alignment. Test indicators are generally more effective for checking flatness, run-out, or parallelism, while plunger-style indicators are better suited for measuring depth or total travel distance within a specific range.
Do all dial indicators come with a magnetic base?
No, not all models include a magnetic base. The Qnkaa Dial Indicator is specifically sold as a set including a magnetic base holder with a fine adjustment arm. Other models, such as the Mitutoyo 2046S or the Mitutoyo 2776A, are provided as individual gauge units. If you choose an indicator that does not include a base, you will need to ensure you have compatible mounting hardware, such as a lug back or an 8mm stem-compatible stand, to use the tool effectively.
How do I choose between 0.001 inch and 0.0005 inch graduation?
The choice depends on the tolerance requirements of your project. If you are performing general workshop tasks or checking basic alignment, a 0.001 inch graduation, found on the WEN 10703 or Qnkaa models, is often sufficient. However, if your work involves high-precision machining where deviations must be caught at a finer scale, the 0.0005 inch graduation offered by the Mitutoyo 2776A provides the necessary sensitivity to detect smaller errors and ensure higher accuracy in your final results.
What does the 'lug back' feature indicate on the Mitutoyo 2046S?
A lug back is a mounting configuration located on the rear of the dial indicator housing. It features a hole that allows the user to attach the gauge to a mounting bracket, fixture, or specialized stand. This is a standard mounting method for indicators that do not rely solely on the stem for support. It is particularly useful when you need to secure the dial gauge firmly in a fixed position to perform repeated measurements on a production line or within a stationary machine setup.
Are carbide-tipped contact points necessary?
Carbide-tipped contact points, such as the one featured on the Mitutoyo 513-404-10T, offer superior resistance to wear and abrasion compared to standard steel tips. They are highly recommended for applications where the gauge will frequently contact rough or abrasive surfaces, as they maintain their shape and accuracy over a longer lifespan. If your measurement tasks involve frequent contact with hardened metals or materials that cause rapid wear on standard tips, a carbide-tipped indicator is a practical investment for long-term reliability.
Bottom line
For users prioritizing high-precision and long-term durability, the Mitutoyo 2776A stands out as the strongest fit. Its 0.0005 inch graduation and rigid bearing plate design minimize tracing errors, making it highly effective for demanding inspection tasks. When combined with its high dust resistance and professional-grade stem-bush design, it offers a robust solution for environments where accuracy is paramount. While the Qnkaa model provides excellent value by including a magnetic base and fine adjustment arm for immediate setup, the Mitutoyo 2776A remains the superior choice for professionals seeking refined measurement capabilities. It provides the consistency required for critical quality control, ensuring that every measurement meets the exact standards expected in precision machining and engineering applications.
Deciding between these dial indicators depends primarily on your existing setup and specific precision needs. If you require a complete, ready-to-use system, the Qnkaa Dial Indicator with its included magnetic base is the most convenient option. However, if you are looking to upgrade an existing workshop assembly, choose based on your required resolution and mounting preference. Select the Mitutoyo 513-404-10T for lever-style testing and run-out checks, or the Mitutoyo 2046S for standard 0.01mm metric measurements. Always verify the stem size and mounting style to ensure compatibility with your current stands or brackets before purchasing, ensuring the tool integrates seamlessly into your existing workflow for maximum efficiency and ease of use.
