Top Wika Industrial Pressure Gauges for Workshop and System Monitoring
Selecting the correct pressure gauge is essential for maintaining accuracy and safety in industrial or workshop fluid systems. Wika offers a diverse range of instrumentation designed to handle varying pressure scales and environmental conditions. Whether you require a liquid-filled unit for vibration damping or a stainless steel model for chemical compatibility, understanding the technical specifications is the first step toward a successful installation. From compact 1.5-inch dials for tight spaces to larger 4-inch test gauges, these instruments provide the precise measurements necessary for monitoring hydraulic, pneumatic, or vacuum systems. This guide breaks down the key features of several Wika models to help you identify the best tool for your specific application requirements.
When comparing these gauges, focus on the pressure range, connection type, and materials. A 2.5-inch gauge with a bottom mount may be ideal for standard panels, while test gauges offer specialized capabilities for vacuum measurement. Consider whether your environment requires liquid-filled construction to protect internal components from pulsation or if a standard dry gauge suffices. By matching the NPT connection size and pressure rating to your existing equipment, you ensure a secure, reliable fit. Always cross-reference your system's output requirements with the gauge's range to maintain the specified accuracy levels and avoid over-pressurization risks.
1. 9692105 Industrial Pressure Gauge, Liquid/Refillable, Copper Alloy Wetted Parts, 2-1/2" Dial, 0-3000 psi (bar) Range, +/- 2/1/2% Accuracy, 1/4" Male NPT Connection, Bottom Mount
This 2.5-inch industrial gauge is designed for high-pressure applications, offering a range of 0 to 3000 psi. The unit features liquid-filled construction, which is beneficial for systems experiencing vibration or pressure surges. It utilizes copper alloy wetted parts and includes a standard 1/4-inch male NPT bottom mount connection. With a stated accuracy of +/- 2/1/2%, it provides a reliable visual reference for hydraulic or industrial fluid lines. Its refillable nature allows for maintenance, and the compact dial size makes it suitable for integrated machine panels where space is a factor but high-pressure monitoring is critical.
Best for: High-pressure hydraulic systems requiring vibration damping.
Check on AmazonHighlights
- 0-3000 psi pressure range
- Liquid-filled for vibration resistance
- Refillable industrial design
- Standard 1/4" NPT bottom mount
Keep in mind
- Copper alloy parts may not suit corrosive media
- Accuracy class is standard industrial grade

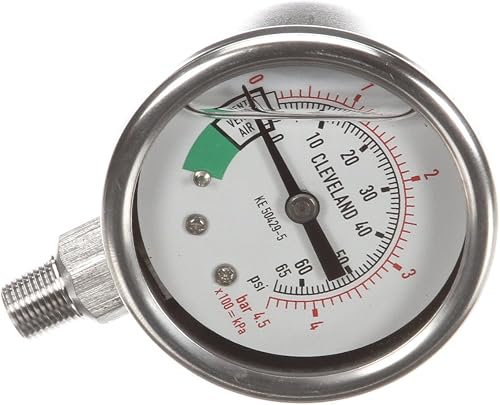

2. KE50429-5 Bottom Mount Pressure Gauge, 9" Height, 6" Width, 5" Length
The KE50429-5 is a bottom-mount pressure gauge characterized by its larger physical footprint, measuring 9 inches in height, 6 inches in width, and 5 inches in length. This specific configuration is designed for installations where a larger display area is required for readability at a distance. As a bottom-mount model, it is compatible with standard vertical piping or panel-mount configurations. The dimensions suggest a robust build intended for stationary monitoring stations. While specific pressure ranges are not provided in the identification, the form factor indicates a focus on visibility and structural mounting stability within an industrial workshop or facility environment.
Best for: Systems requiring high-visibility, large-format pressure monitoring.
Check on AmazonHighlights
- Large 9" x 6" x 5" form factor
- Standard bottom mount configuration
- Designed for stationary industrial use
- High-visibility physical footprint
Keep in mind
- Specific pressure range is not disclosed
- Large size may be difficult to mount in tight spaces
3. 232.54 2.5 Industrial Stainless Steel Gauge, 0 to 15 psi
This 232.54 industrial gauge features a 2.5-inch dial and is engineered for lower pressure applications, specifically covering a range of 0 to 15 psi. Built with stainless steel, this gauge is intended for environments where material durability and resistance to harsh conditions are necessary. The 232.54 series is commonly selected for its robust construction, which helps maintain integrity over time. It is a suitable choice for pneumatic systems, gas monitoring, or low-pressure liquid lines where a copper alloy might not be appropriate. The stainless steel housing provides a professional appearance and added protection against external environmental factors in workshop or laboratory settings.
Best for: Low-pressure monitoring requiring stainless steel durability.
Check on AmazonHighlights
- 0 to 15 psi pressure range
- Durable stainless steel construction
- Compact 2.5-inch dial size
- Industrial-grade build quality
Keep in mind
- Limited to low-pressure applications
- Specific connection type not fully detailed
4. 52639762 111.11 1.5 100PSI/BAR 1/8 L ST CHR NI-PLTD
The 111.11 series gauge is a compact 1.5-inch instrument designed for tight-space installations. It features a dual-scale display covering 100 psi and the equivalent bar measurement. The gauge utilizes a 1/8-inch connection, making it compatible with smaller pneumatic tools, compressors, or compact equipment. Its exterior is nickel-plated for improved aesthetics and surface protection. Given its small dial size and lower-pressure rating, this gauge is ideal for end-use monitoring on portable tools or small-scale machinery where space is at a premium and a quick, clear reading is required during operation.
Best for: Compact pneumatic tools and small-scale compressor systems.
Check on AmazonHighlights
- 1.5-inch compact dial
- 100 PSI/BAR dual-scale
- 1/8-inch connection size
- Nickel-plated finish
Keep in mind
- Small dial may be hard to read from a distance
- Not suitable for high-pressure industrial plumbing
5. Wika 332.54 4 4" Test Gauge, 30 to 0" Hg, 316 SS
The Wika 332.54 is a 4-inch test gauge designed specifically for vacuum monitoring, with a range of 30 to 0 inches of mercury (Hg). Constructed with 316 stainless steel wetted parts, it offers high compatibility with various media, including those that might be corrosive. The 4-inch dial size is optimized for high-precision readings, which is a hallmark of test-grade instrumentation. This model is well-suited for laboratory settings, HVAC vacuum testing, or any industrial process requiring precise negative pressure measurement. The use of high-grade stainless steel ensures that the internal components remain protected during demanding testing cycles.
Best for: High-precision vacuum testing and negative pressure monitoring.
Check on AmazonHighlights
- 30 to 0" Hg vacuum range
- 4-inch dial for precise reading
- 316 stainless steel wetted parts
- Test-grade accuracy and construction
Keep in mind
- Designed strictly for vacuum, not positive pressure
- Larger footprint requires more mounting space
How to choose
Pressure Range Requirements
Selecting the correct pressure gauge begins with identifying the specific operating range for your application. Wika offers a diverse selection ranging from low-pressure vacuum gauges like the 30 to 0 inch Hg test gauge to high-pressure units capable of handling up to 3000 psi. Always match the gauge’s scale to your system’s maximum pressure to ensure accurate readings and prevent mechanical damage. Whether you are monitoring low-pressure gas lines or heavy-duty hydraulic equipment, verifying the psi or bar range is the most critical step in choosing a reliable instrument for your workshop or industrial setup.
Dial Size and Visibility
The physical size of the dial, ranging from 1.5 inches to 4 inches in the provided selection, directly impacts readability. Smaller dials, such as the 1.5-inch 111.11 model, are ideal for compact installations or crowded panels where space is limited. Conversely, larger 4-inch gauges offer improved visibility from a distance, which is beneficial for monitoring complex machinery. Consider the mounting environment when selecting the dial diameter; ensure there is sufficient clearance for the gauge body and that the display remains easily accessible for routine inspections during your daily workshop operations.
Wetted Parts and Material Compatibility
Wetted parts are the internal components that come into direct contact with the process media. For standard applications, copper alloy wetted parts are commonly used, as seen in the 9692105 industrial gauge. However, for corrosive or specialized environments, stainless steel—such as the 316 SS used in the 332.54 test gauge—provides superior resistance to degradation. Always review the material specifications against the fluids or gases running through your system to prevent leaks or premature failure, ensuring the longevity of your hardware and the integrity of your pressurized systems.
Mounting Configuration
Pressure gauges are typically configured for bottom mount or back mount orientations. The bottom mount style is a standard choice for direct mounting onto pipes or process lines. When selecting your gauge, verify that your existing piping allows for the chosen orientation to avoid unnecessary adapters or stress on the connection. The 1/4-inch male NPT connection is a common industry standard, though some compact models may utilize 1/8-inch connections. Aligning the connection size and mounting orientation with your hardware ensures a secure, leak-free installation that is stable under operational pressure.
Build Quality and Durability
Industrial gauges are manufactured with specific materials to withstand different operational demands. Options include liquid-refillable housings, which help dampen vibrations and reduce wear on internal mechanisms, making them suitable for high-vibration machinery. Others feature chrome or nickel-plated finishes for enhanced durability in various industrial settings. When choosing, consider the environment where the gauge will reside. A gauge designed for industrial use will provide more consistent performance over time compared to general-purpose alternatives. Always prioritize models that match the environmental exposure levels of your specific workshop or industrial application to maintain measurement accuracy.
Frequently asked questions
What is the difference between a test gauge and a standard industrial gauge?
A test gauge, such as the Wika 332.54, is typically engineered for high-precision calibration and diagnostic tasks, often featuring stainless steel construction for durability. In contrast, standard industrial gauges are designed for continuous monitoring of systems. While both provide accurate pressure readings, test gauges are often used to verify the accuracy of other instruments or for critical pressure testing, whereas industrial gauges are built for the daily rigors of equipment operation and system oversight.
Can I use a liquid-refillable gauge in high-vibration areas?
Yes, liquid-refillable gauges are specifically designed to address the challenges of high-vibration environments. The internal liquid fill helps to dampen the movement of the needle, which protects the internal mechanical components from excessive wear and makes the gauge easier to read. By reducing pointer oscillation, these gauges provide more stable and reliable pressure readings when installed on compressors, pumps, or other machinery that generates significant mechanical vibration during normal operation.
How do I choose the correct NPT connection size?
Choosing the correct NPT connection depends entirely on the existing port size of your piping or equipment. Most industrial gauges utilize a 1/4-inch male NPT connection, which is a standard size for many hydraulic and pneumatic systems. However, some smaller-diameter gauges, such as the 1.5-inch 111.11 model, may utilize a 1/8-inch connection. Always consult the technical specifications of your equipment to ensure the gauge thread size matches your system’s port to ensure a secure, leak-proof seal.
What are wetted parts and why do they matter?
Wetted parts are the internal components of the pressure gauge that physically touch the process media, such as the fluid or gas being measured. These parts must be chemically compatible with your media to prevent corrosion, degradation, or contamination. For example, stainless steel wetted parts are often selected for their resistance to aggressive substances, while copper alloy parts are standard for non-corrosive air or water applications. Always verify material compatibility to ensure safety and long-term gauge functionality.
What does a 0-3000 psi range mean for my application?
The 0-3000 psi range indicates the total measurement capability of the gauge. This specific model is designed to display pressures from zero up to a maximum of 3000 pounds per square inch. When selecting your gauge, ensure that the maximum operating pressure of your system falls within this range. Selecting a gauge with a range significantly higher than your maximum working pressure may result in poor resolution, while exceeding the gauge's maximum range can lead to permanent damage.
Bottom line
For users requiring a robust, high-pressure solution, the 9692105 Industrial Pressure Gauge stands out as the most reliable choice. With its 0-3000 psi range, liquid-refillable design, and copper alloy wetted parts, it is built to endure demanding industrial environments. The 2-1/2 inch dial provides a balanced view that is large enough for easy reading yet compact enough for various mounting configurations. Its perfect 5.0-star rating underscores its consistency in performance. For those dealing with specific vacuum or low-pressure needs, the Wika 332.54 4-inch test gauge offers professional-grade precision with 316 stainless steel components, making it the superior option for critical testing, calibration, and high-stakes monitoring where material compatibility and accuracy are the absolute top priorities.
Deciding between these gauges requires matching your system's specific pressure requirements with the appropriate construction materials. Start by determining if your application demands a broad high-pressure range, like the 3000 psi model, or a precise low-pressure or vacuum reading. Once the range is established, verify that the wetted parts—whether stainless steel or copper alloy—are compatible with the fluids or gases in your system. Finally, consider the physical size of the dial and the mounting orientation. Choose a larger 4-inch dial for distant visibility and a liquid-filled model if your equipment experiences heavy vibrations, ensuring the gauge remains stable and accurate throughout its service life.
