Top Mechanical Fuel Level Gauges: Comparison of Tank Monitoring Solutions
Choosing the right mechanical fuel gauge requires balancing your specific tank configuration with the intended application, whether for marine, automotive, or agricultural use. Mechanical gauges offer a reliable, direct method for monitoring fluid levels without relying on complex electronic sensors. From universal float-based designs intended for diverse vehicle types to specialized gauges engineered for inboard diesel engines or vintage dashboard aesthetics, the market provides various mounting styles and precision levels. Understanding the compatibility of your tank opening—such as 5-hole designs or 2-inch NPT fittings—is essential for ensuring a secure, leak-resistant installation. This guide outlines the core functional differences between these mechanical options to help you identify the appropriate monitoring tool for your specific fuel management needs.
Selecting a fuel gauge involves evaluating both the physical mounting requirements and the operating environment of your equipment. While some models are designed for broad versatility across yachts and farm vehicles, others are tailored for specific engine types or historical dashboard styles. Factors such as operating temperature ranges and construction seals are critical for maintaining accuracy over time. By comparing the mounting interfaces and intended use cases of these mechanical indicators, you can select a gauge that fits your tank's physical specifications and operational demands, ensuring consistent fuel level visibility without the need for sophisticated electrical integration.
1. Universal Mechanical Fuel Tank Cap Gauge with High Precision Display and Float, Gas Tank Level Meter for Yachts Cars Trucks Farm Vehicles, Easy Install 5 - Hole Design (350mm)
This universal mechanical gauge utilizes a 5-hole design, providing a standardized mounting pattern suitable for various fuel tanks found in yachts, cars, trucks, and farm vehicles. It features a float-based mechanism intended for direct fluid level measurement. The 350mm length suggests it is designed for tanks of a specific depth, requiring users to verify their tank dimensions before installation to ensure the float operates without obstruction. By focusing on a straightforward mechanical display, it serves as a direct indicator of fuel volume. The construction prioritizes ease of installation, making it a viable option for those looking to replace or add a mechanical level meter to existing hardware that supports the 5-hole configuration.
Best for: General purpose mechanical monitoring in vehicles with 5-hole tank openings.
Check on AmazonHighlights
- Universal 5-hole mounting design
- Includes internal float mechanism
- Designed for diverse vehicle applications
- 350mm length specification
Keep in mind
- Requires specific 5-hole tank compatibility
- Accuracy may depend on precise tank depth matching
2. Sierra International 80150P Heavy Duty Fuel Gauge for Inboard & Diesel Engines, 2"
Engineered for durability, this Sierra International heavy-duty gauge is specifically intended for inboard and diesel engine applications. It features a 2-inch diameter face, fitting standard dashboard cutouts common in maritime and industrial machinery. As a robust mechanical component, it is built to withstand the demanding conditions often associated with diesel-powered equipment. The design emphasizes longevity and clear readability, which is critical for operators who need reliable fuel status updates during engine operation. Given its heavy-duty classification, this unit is geared toward professional or frequent-use environments where equipment longevity is a primary concern. It provides a focused solution for users who require a gauge matched to the specific demands of inboard engine fuel systems.
Best for: Inboard and diesel engine monitoring in maritime or industrial settings.
Check on AmazonHighlights
- Heavy-duty construction for durability
- Standard 2-inch gauge diameter
- Optimized for diesel engine systems
- High user rating for reliability
Keep in mind
- Limited to specific engine types
- Requires standard 2-inch mounting space
3. Afriso Mechanical Float Operated Tank Contents Gauge | for 2" NPT tank openings
The Afriso mechanical gauge is designed for direct integration with 2-inch NPT tank openings. This float-operated system provides a mechanical readout of tank contents, making it a practical choice for storage tanks or specific equipment setups that utilize standard pipe threads. The design relies on the vertical movement of a float to translate fuel levels to the gauge display. Because it uses an NPT fitting, the installation process is relatively standardized for tanks equipped with compatible ports. This gauge is well-suited for users who prefer a non-electronic, mechanical approach to inventory tracking. Its construction is intended to withstand the rigors of regular use, providing a clear visual representation of fluid levels without requiring external power sources or complex wiring.
Best for: Tanks featuring 2-inch NPT threaded openings.
Check on AmazonHighlights
- Direct 2-inch NPT mounting
- Float-operated mechanical movement
- No electrical power required
- Standardized thread compatibility
Keep in mind
- Requires 2-inch NPT port specifically
- Limited flexibility in mounting locations

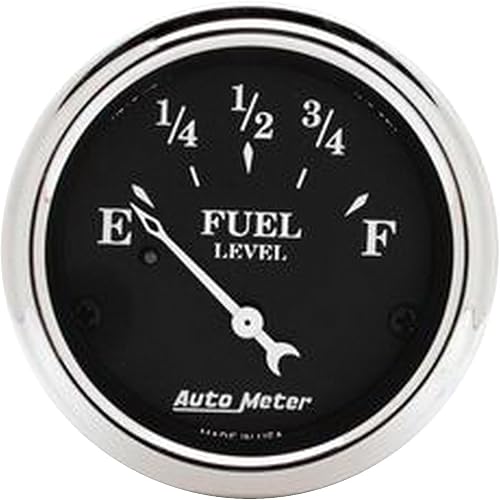

4. AUTO METER 1717 Old TYME Black Fuel Level Gauge
The Auto Meter 1717 Old Tyme gauge offers a distinct aesthetic appeal, styled to mimic vintage dashboard instrumentation. This fuel level indicator is designed for users who are performing restorations or seeking a classic look for their vehicle's interior. Beyond its appearance, it provides functional fuel level monitoring consistent with the brand's reputation for gauge accuracy. It is a dedicated mechanical-style unit intended to integrate seamlessly into a dashboard layout. The high rating suggests that users are satisfied with both its visual impact and its performance in tracking fuel levels. It serves as an ideal choice for automotive enthusiasts who do not want to sacrifice modern utility for the sake of maintaining a period-correct vehicle interior.
Best for: Classic car restorations and vintage-style dashboard upgrades.
Check on AmazonHighlights
- Authentic vintage aesthetic design
- High user satisfaction rating
- Clear fuel level display
- Designed for dashboard integration
Keep in mind
- Primarily aesthetic focus may not suit industrial tanks
- Installation requires compatible dashboard space
5. Fuel Tank Cap Gauge, High Precision Mechanical Gas Level Indicator with Float, Sealed Design for Yachts Cars Trucks Farm Vehicles ATVs, 40 to 85°C Operating Range (350mm)
This high-precision mechanical gauge is built with a sealed design, making it suitable for a variety of environments, including yachts, trucks, and farm equipment. It features a specified operating range of 40 to 85°C, indicating it can handle the temperature fluctuations common in engine compartments or outdoor storage tanks. The 350mm length is intended for tanks requiring this specific reach, and the float-based system provides a constant visual reference for fuel levels. The sealed construction is a notable feature, potentially offering better protection against the elements or fuel vapors compared to unsealed alternatives. It serves as a versatile, durable option for those needing an accurate, mechanical level indicator across a wide range of motorized or stationary fuel-holding applications.
Best for: Applications requiring temperature resistance and sealed gauge construction.
Check on AmazonHighlights
- Wide 40 to 85°C operating range
- Sealed design for environmental protection
- Compatible with diverse vehicles and tanks
- High-precision mechanical float mechanism
Keep in mind
- 350mm length must match tank depth
- Requires specific mounting environment for best sealing
How to choose
Compatibility and Mounting
When selecting a mechanical fuel level gauge, the mounting configuration is the primary consideration. Some units, like the Afriso Float Operated gauge, are specifically designed for 2-inch NPT tank openings. Others utilize a 5-hole mounting pattern, which is common for universal fuel tank cap gauges used on farm vehicles, trucks, and yachts. Always verify your tank’s existing port type, whether it is a threaded NPT fitting or a flange-style bolt pattern, to ensure a proper seal and mechanical fit. Incompatible mounting hardware will prevent the float from operating correctly or cause hazardous fuel leaks, making this the most critical technical specification to confirm before purchase.
Gauge Diameter and Instrumentation
The physical size of the gauge face is important for dashboard integration or direct-tank readability. Options such as the Sierra International 80150P and the Auto Meter 1717 feature a 2-inch diameter, which is a standard size for automotive and marine instrument clusters. These gauges are designed for inboard and diesel engine monitoring, often requiring integration into your existing electrical or mechanical dashboard setup. Conversely, universal cap-integrated gauges offer a direct top-down view, eliminating the need for a separate gauge housing. Choose based on whether you need a dashboard-mounted display or a direct-read unit integrated into the tank cap itself.
Operating Environment
Consider the specific environment where the equipment will operate. Some mechanical gauges, such as the 350mm fuel tank cap gauge, explicitly list an operating temperature range of 40 to 85 degrees Celsius. This is vital for heavy-duty applications like ATVs, farm vehicles, or yachts, where external temperatures and engine heat can fluctuate significantly. A sealed design is essential for these conditions to prevent debris or moisture from entering the tank. Always check if the manufacturer specifies environmental ratings, as these ensure the gauge remains functional and accurate under the thermal stress of sustained outdoor use or engine heat.
Precision and Mechanism
Mechanical fuel gauges rely on float-operated mechanisms to determine liquid levels. The precision of these readings depends on the float’s ability to track the surface of the fuel accurately. Universal cap gauges often emphasize high-precision displays for immediate, clear feedback on fuel levels. For inboard and diesel engines, professional-grade gauges like the Sierra International 80150P are engineered for durability and consistent performance in demanding maritime or industrial settings. Evaluate whether your priority is a simple, high-visibility mechanical float for field equipment or a highly reliable, heavy-duty gauge designed for the specific performance requirements of an inboard engine system.
Application-Specific Design
The intended use case dictates the form factor of the fuel gauge. If you are servicing a yacht, truck, or farm vehicle, a universal cap-style gauge simplifies the installation by combining the meter and the cap into a single assembly. For users managing inboard or diesel engines, a dedicated gauge like the Auto Meter 1717 provides a classic aesthetic while integrating with the engine's monitoring system. Ensure the product is specifically rated for your fuel type and tank design. Using a gauge designed for a 2-inch NPT opening on a flange-mount tank will not work, so prioritize the mechanical interface above all else.
Frequently asked questions
Can I use a 2-inch NPT gauge on a 5-hole tank?
No, these mounting systems are not interchangeable. A 2-inch NPT gauge requires a threaded port, while a 5-hole gauge requires a specific bolt pattern to secure the flange. Attempting to force one into the other will result in an improper seal, which is unsafe for fuel storage. You must match the gauge mounting style exactly to the existing port on your fuel tank to ensure a secure, leak-free installation.
What does a 350mm measurement indicate for a fuel gauge?
The 350mm measurement refers to the length of the float arm or the depth capacity of the gauge. This dimension is crucial to match your tank's depth; if the float arm is too long, it will hit the bottom of the tank, and if it is too short, it will provide inaccurate readings. Always measure your tank depth before purchasing a universal cap gauge to ensure the float mechanism operates across the full range.
Are these mechanical gauges compatible with both diesel and gasoline?
Compatibility varies by model. For instance, the Sierra International 80150P is specifically noted for inboard and diesel engine use. Always check the product specifications for the fuel compatibility rating. Using a gauge not rated for your specific fuel type can lead to material degradation of the float or internal seals, potentially causing the device to fail or create a significant safety hazard in your fuel system.
Do I need to wire these mechanical gauges to my battery?
Mechanical gauges that are integrated into tank caps, such as the Universal Mechanical Fuel Tank Cap Gauge, generally operate without electrical wiring. They rely on a purely mechanical linkage between the float and the display. However, dashboard-mounted gauges like those from Auto Meter or Sierra International often require an electrical connection to function within your vehicle's instrument cluster. Check the product documentation to confirm if your specific model requires an electrical power source for the display.
What is the benefit of a sealed design in a fuel gauge?
A sealed design, such as those found on high-precision mechanical gas level indicators, prevents outside contaminants like dirt, dust, and moisture from entering your fuel tank. In rugged environments like farms or off-road settings, keeping the fuel clean is essential for engine health. Additionally, a sealed gauge ensures the internal float mechanism remains protected, which helps maintain measurement accuracy and longevity even when the equipment is exposed to harsh weather conditions.
Bottom line
For users needing a reliable dashboard-mounted solution, the Auto Meter 1717 Old TYME Black Fuel Level Gauge and the Sierra International 80150P are the strongest choices. These units excel in inboard and diesel applications where precision and durability are paramount. The Sierra International model is specifically built for heavy-duty marine and industrial use, offering a proven, robust performance for those who prioritize engine monitoring. Meanwhile, the Auto Meter 1717 provides a classic aesthetic suitable for automotive restoration or custom builds. Both gauges offer a 5.0-star rating, reflecting high user satisfaction regarding their build quality and reliable integration into existing instrumentation systems, making them top-tier choices for professional and enthusiast mechanics alike.
Deciding on the right gauge comes down to your tank's specific mounting interface and your intended application. If you require a direct-read gauge for a farm vehicle or yacht, prioritize the universal 5-hole cap-style gauges, which offer a simple, non-electrical installation. If your equipment features a 2-inch NPT port, the Afriso float-operated gauge is the appropriate fit. For dashboard-based monitoring, select between the 2-inch standard gauges based on your preferred design and engine compatibility. Always verify your tank's depth and mounting hardware first, as these mechanical constraints are the most frequent causes of installation failure. Matching the gauge exactly to your tank's physical specifications is the only way to ensure safe, accurate fuel level monitoring.
