Top Metric and Threaded Oil Level Sight Glasses for Workshop Equipment
Maintaining proper fluid levels in air compressors, lathes, and hydraulic tanks is essential for extending the service life of workshop machinery. Oil sight glasses allow operators to monitor internal levels quickly without opening sealed systems, preventing damage from low lubrication. Selecting the correct replacement involves identifying the specific thread type, whether it is metric, NPT, or BSP, and choosing a durable material such as brass, aluminum alloy, or stainless steel. Because thread compatibility is critical for a leak-free seal, understanding the exact sizing requirements for your specific pump or tank connection is the first step in ensuring a reliable and secure installation for your workshop equipment.
This guide reviews various sight glass options, ranging from bulk packs of aluminum and stainless steel fittings to specialized brass units with specific metric threading. Each option serves different industrial maintenance needs, from general air compressor upkeep to precision lathe machine monitoring. When selecting a sight glass, consider the environment of your workshop and the chemical compatibility of the fluid being monitored. While some kits offer versatility through multiple sizes, other selections focus on specific, heavy-duty applications. Reviewing the thread specifications and material construction will help you choose a compatible component that maintains the integrity of your machinery's pressurized or reservoir-based systems.
1. 5 Pcs Oil Sight Glass, 1/4 1/2 3/4 3/8 1'' Male Threaded Aluminum Alloy Sight Glass Oil Liquid Level Gauge Oil Indicator Window Hydraulic Tank Sight Glass for Replacement Air Compressor Fittings
This five-piece set provides a versatile range of sizes, including 1/4, 1/2, 3/4, 3/8, and 1-inch male threaded connections. Constructed from aluminum alloy, these sight glasses are designed for air compressor fittings and hydraulic tank applications. By including multiple standard sizes in one kit, this product is well-suited for workshops that manage a variety of machinery and require immediate replacements for different equipment models. The aluminum construction offers a balance between durability and ease of installation. With a high customer rating of 4.9 out of 5 stars, this set is a reliable choice for mechanics or maintenance technicians who need a comprehensive stock of common sight glass sizes on hand to address leaks or damaged indicators across multiple units without needing to source individual parts separately.
Best for: Workshops managing multiple air compressors with varying port sizes.
Check on AmazonHighlights
- Includes five distinct common thread sizes
- Durable aluminum alloy construction
- Suitable for hydraulic tanks and compressors
- High user satisfaction rating
Keep in mind
- May contain sizes not needed for every machine
- Aluminum may be less corrosion-resistant than stainless steel
2. 3/4 NPT Air compressor Oil Sight Glass, Male Hex Head Compresssor Oil Sight Glass, Heavy Duty Solid Brass Oil Sight Glass Liquid Level Gauge Oil Indicator Window For Air Compressor Gearbox Tank
Designed specifically for heavy-duty applications, this 3/4 NPT air compressor oil sight glass features a solid brass construction. The unit includes a male hex head, which simplifies the tightening process during installation or replacement, reducing the risk of slipping with standard hand tools. Its build is intended for use in pressurized environments like gearboxes, tanks, and compressor systems where a robust seal is necessary. With a 4.6 out of 5-star rating, this sight glass is a preferred option for users looking for a sturdy, single-purpose component that prioritizes material strength. The brass body offers consistent performance in industrial settings, providing a clear window for monitoring fluid levels while withstanding the vibration and pressure common in heavy-duty machinery operations.
Best for: Heavy-duty air compressor and gearbox maintenance.
Check on AmazonHighlights
- Sturdy solid brass construction
- Convenient male hex head design
- Standard 3/4 NPT threading
- Rated for industrial tank usage
Keep in mind
- Limited to 3/4 NPT applications
- Single unit might not suit those needing multiple sizes

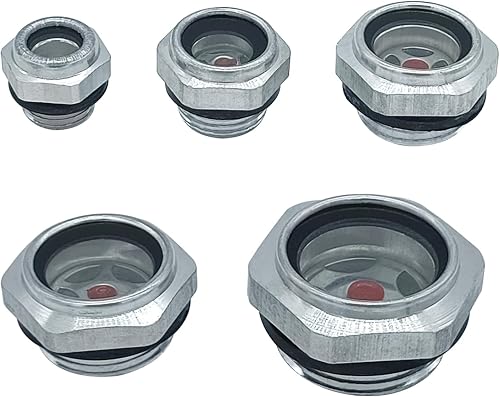

3. 5 Pack Oil Sight Glass Stainless Steel Threaded Liquid Level Indicator | Threaded sight glass monitors liquid level, fits hydraulic tanks, pumps and air compressor equipment connections
This five-pack of stainless steel oil sight glasses offers a durable solution for monitoring liquid levels in hydraulic tanks, pumps, and air compressor equipment. Stainless steel is often selected for its resistance to corrosion, making this set a practical choice for environments where moisture or harsh chemicals might compromise other materials. The threaded design ensures a secure fit for various equipment connections. With a 4.4 out of 5-star rating, these indicators are well-regarded for their reliability in maintaining visibility of fluid levels. The inclusion of five units per pack makes this an efficient purchase for preventative maintenance programs, allowing for batch replacements across similar equipment lines. The stainless steel build provides a professional appearance and long-term durability for demanding shop environments.
Best for: Preventative maintenance on hydraulic and compressor fleets.
Check on AmazonHighlights
- Corrosion-resistant stainless steel
- Five-pack bulk value
- Fits pumps and hydraulic systems
- Secure threaded connection
Keep in mind
- May require specific thread matching
- Bulk pack may exceed individual hobbyist needs
4. Brass Oil Level Sight Glass Window 1/4" 3/8" 1/2" - 2" BSP M10/12/14/16/20-60 Metric Male Brass Oil Level Sight Glass Window Use in Air Compressor Lathe Machine(M12x1.25mm)
This brass oil level sight glass window is engineered for precision, specifically featuring an M12x1.25mm metric thread. It is designed for use in air compressors and lathe machines where metric specifications are standard. The brass construction ensures a balance between durability and ease of sealing against the machine housing. Because this model focuses on a specific metric thread, it is an essential component for international or specialized machinery that does not utilize NPT or BSP standards. The clear glass window allows for accurate monitoring of oil levels to prevent dry running or overfilling. It serves as a dedicated replacement part for technicians dealing with specific metric-threaded ports on industrial equipment, offering a direct fit for the cited M12x1.25mm requirement.
Best for: Lathe machines and compressors with M12x1.25mm ports.
Check on AmazonHighlights
- Precision M12x1.25mm metric threading
- Durable brass body
- Designed for lathe machine use
- Clear window for oil level monitoring
Keep in mind
- Highly specific thread size
- Requires exact measurement of existing port
5. Brass Oil Level Sight Glass Window 1/4" 3/8" 1/2" - 2" BSP M10/12/14/16/20-60 Metric Male Brass Oil Level Sight Glass Window Use in Air Compressor Lathe Machine(M14x1.5mm)
Similar to the other brass sight glasses in this series, this unit is specifically threaded to an M14x1.5mm metric size. It is intended for use in air compressors and lathe machines that require this particular metric standard. The brass build provides a reliable, heat-resistant housing for the sight window, ensuring the indicator remains effective even during extended machine operation. This component is ideal for maintenance tasks where the original sight glass has clouded or cracked, necessitating a precise metric-threaded replacement to maintain the machine's lubrication monitoring system. By providing a clear view of the oil level, this part helps protect critical mechanical components from failure caused by inadequate lubrication, provided the M14x1.5mm specification matches the equipment's current port configuration.
Best for: Equipment maintenance requiring M14x1.5mm metric threads.
Check on AmazonHighlights
- Specific M14x1.5mm metric threading
- Robust brass construction
- Engineered for air compressors and lathes
- Clear oil level visibility
Keep in mind
- Requires exact thread matching
- No provided rating for user feedback
How to choose
Material Composition
Oil sight glasses are primarily constructed from aluminum alloy, solid brass, or stainless steel. Aluminum alloy options are often sold in multi-packs, providing a lightweight solution for air compressor fittings. Solid brass models are frequently utilized for their durability in demanding environments like lathe machines and gearboxes. Stainless steel variants offer an alternative for those seeking specific material properties for hydraulic tanks or pump connections. Each material influences the overall longevity and chemical resistance of the gauge when exposed to various oils and fluids. Select a material that aligns with the environmental conditions of your specific machinery to ensure reliable performance and structural integrity during operation.
Thread Type and Compatibility
Proper thread identification is essential for a secure, leak-free installation. You will encounter various thread standards including NPT (National Pipe Taper), BSP (British Standard Pipe), and specific metric dimensions. For instance, some brass models explicitly list metric sizing such as M12x1.25mm or M14x1.5mm, which are critical for precision equipment like lathe machines. Conversely, products labeled with NPT sizing are standard for many air compressor applications. Always verify the existing port specifications on your hydraulic tank or compressor before purchasing to ensure the sight glass threads match correctly. Mismatched threads can cause cross-threading or permanent damage to the machine's housing during installation.
Size Range and Versatility
The range of available sizes dictates the versatility of the sight glass for different hardware configurations. Some kits offer a broad spectrum, including 1/4 inch, 1/2 inch, 3/4 inch, 3/8 inch, and 1 inch male threaded options, which allows for equipment standardization across a workshop. Other products are specialized for specific metric threads ranging from M10 to M60. If you manage multiple types of machinery, such as air compressors and pumps, a multi-pack kit provides a convenient inventory of parts. Specialized metric sight glasses are better suited for specific industrial machinery where standardized NPT or BSP sizing may not be applicable.
Application Suitability
These sight glasses serve a variety of industrial and mechanical functions, including monitoring liquid levels in air compressors, hydraulic tanks, gearboxes, and lathe machines. When choosing a sight glass, consider the equipment's vibration levels and pressure requirements. Heavy-duty solid brass indicators are often highlighted for their robustness in stationary equipment like gearboxes. For general maintenance and replacement needs on air compressors, aluminum alloy and stainless steel threaded options are common choices. Reviewing the product name for specific application mentions, such as pump or compressor compatibility, helps narrow down which gauge is designed to handle the specific operational environment of your machine.
Quantity and Replacement Value
Purchasing strategy often depends on whether you require a single specialized unit or a bulk set for maintenance. Several listings offer 5-pack configurations, which are ideal for workshops needing to replace multiple indicators simultaneously or maintaining an inventory of common sizes. Buying in packs can be a cost-effective strategy for standard compressor fittings. If your requirement is highly specific, such as a metric M14x1.5mm brass window for a precise lathe, single-unit listings are more appropriate. Evaluate your immediate maintenance needs against the long-term utility of having spare parts on hand to determine if a multi-pack or a single precision-engineered component is the better investment.
Frequently asked questions
Are these sight glasses compatible with all air compressors?
Compatibility depends entirely on the thread size and type of your compressor's port. While many products are designed for air compressors, you must match the specific thread, such as 3/4 NPT or a specific metric dimension, to your existing housing. Always verify the thread standard and size mentioned in the product description against your compressor's manual to ensure a proper fit, as there is no universal size that fits every compressor model.
What is the difference between NPT and metric threads?
NPT (National Pipe Taper) threads are a common US standard for pipe fittings, often used in air compressors and hydraulic systems. Metric threads, such as M12x1.25mm or M14x1.5mm, follow international standards based on millimeters for diameter and thread pitch. These two systems are not interchangeable. Using the wrong thread type will prevent a secure seal and can cause significant damage to the threads of your machinery, so identifying your specific requirement is critical.
Which material is best for high-vibration machinery?
Solid brass is frequently cited for its heavy-duty construction, making it a common choice for machinery that experiences significant vibration, such as lathe machines or gearboxes. While aluminum and stainless steel are also suitable for various tanks and compressors, brass is often sought for its structural robustness in industrial settings. Always choose the material that meets the durability expectations of your specific equipment's operating environment to ensure the sight glass remains secure.
Can I use these to replace a broken oil indicator on a pump?
Yes, many of these sight glasses are designed for use with pumps, hydraulic tanks, and air compressors. To ensure a successful replacement, you must confirm that the thread size and material of the replacement sight glass match the original part's specifications. Check the product name for compatibility details and ensure the thread type—whether BSP, NPT, or metric—aligns with the connection point on your pump to prevent leaks.
Do these sight glasses come with installation instructions?
The provided product information does not specify the inclusion of installation instructions. These components are generally intended as replacement parts for existing mechanical systems. If you are unsure about the installation process, it is recommended to consult the maintenance manual for your specific machine. Ensure that the threads are clean and free of debris before threading the new sight glass into place to ensure a proper seal and avoid damaging the port.
Bottom line
For users needing a versatile solution for air compressor maintenance, the 5 Pcs Aluminum Alloy Oil Sight Glass set (B0G3H3J8BZ) stands out as a strong choice due to its inclusion of multiple common thread sizes (1/4 to 1 inch). This kit offers excellent value for workshops managing a variety of compressor fittings. For those requiring heavy-duty performance, the 3/4 NPT Solid Brass Oil Sight Glass (B09DPP2XCR) is a reliable option for gearboxes and tanks, while the Stainless Steel 5-pack (B0CLGCC9BM) provides a durable alternative for hydraulic and pump systems. These products offer clear specifications for users looking to replace standard indicators with high-rated, application-specific hardware designed for consistent fluid level monitoring.
Deciding between these options requires a precise match of thread specifications and material needs. If your equipment requires a precise metric fit, such as M12 or M14, look toward the specialized brass sight glasses (B0GM43XNZ3 or B0GPVV97DT) which are explicitly sized for lathe machines and precision tools. If your needs are centered on standard NPT air compressor maintenance, the aluminum or brass NPT models are the most efficient choices. Prioritize the thread type (NPT vs. Metric) and the material's ability to withstand your machine’s specific operating environment. Checking your equipment's manual for the exact thread diameter and pitch is the most important step before finalizing your selection.
