Top NMEA 2000 Fuel Monitoring and Integration Solutions for Marine Networks
Building an efficient marine electronics network requires reliable components that ensure seamless communication between sensors and displays. NMEA 2000 technology allows for the integration of fuel, navigation, and power data across various marine hardware platforms. When managing fuel levels and flow, selecting the right interface hardware is essential for maintaining accurate real-time data. Whether you are upgrading a legacy analog system to modern digital standards or expanding an existing network, understanding the specific role of each adapter and gauge is crucial for system integrity. This guide highlights key components, from power cabling to specialized converters, designed to help you build a robust and responsive monitoring system for your vessel's fuel and navigation needs.
The selection of NMEA 2000 equipment often depends on your specific network architecture and the type of sensor data you need to process. Integrating components like fuel flow monitors or analog-to-digital converters requires careful attention to voltage compatibility and connector standards. By choosing components compatible with major brands such as Garmin, Lowrance, and Navico, you ensure broader interoperability. This overview focuses on the technical specifications and primary functions of available NMEA 2000 hardware. By examining these options, boat owners can better determine which devices are necessary to achieve precise fuel monitoring and reliable network connectivity, ensuring your marine electronics function as a cohesive, high-performance system on the water.
1. NMEA 2000 Tee Power Cable 3.3ft for Lowrance B&G Navico Garmin Networks | NMEA2000 tee power cable with fuse for Lowrance,B&G,Navico,Garmin marine networks.Reliable,marine-grade,3.3ft length.
This NMEA 2000 tee power cable serves as a fundamental component for establishing or extending a marine network. Measuring 3.3 feet in length, the cable is engineered for use with major marine network systems, including Lowrance, B&G, Navico, and Garmin. The inclusion of an integrated fuse provides an additional layer of protection for the network, which is a critical consideration for marine-grade electrical installations. By providing a reliable power injection point, this cable supports the stable operation of connected sensors and displays. Its construction is designated as marine-grade, reflecting its suitability for the specific environmental demands found on yachts and other vessels. This cable is essential for users who need a standardized, plug-and-play solution for powering their backbone network efficiently.
Best for: Powering and protecting NMEA 2000 backbone networks.
Check on AmazonHighlights
- Includes integrated fuse protection
- 3.3-foot cable length
- Compatible with Garmin, Lowrance, B&G, and Navico
- Designed for marine-grade reliability
Keep in mind
- Limited to 3.3 feet, which may not suit all boat layouts
- Requires existing network tee infrastructure

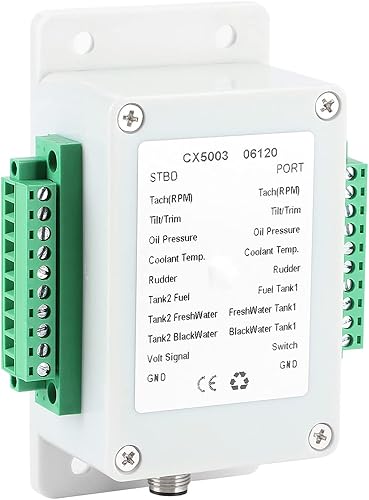

2. Analog To Nmea 2000 Converter,Nmea 2000 Converter,nmea 2000 adapter cx5003 nmea 2000 converter ShipYacht Parts 9‑32V DC Converter Box Convert Sensor Singal to NMEA2000 IP67 for Boat Yacht
The CX5003 adapter is designed to bridge the gap between legacy analog sensors and modern digital displays by converting analog signals to NMEA 2000 format. This converter box is built for versatility, supporting a wide operating voltage range from 9V to 32V DC, making it suitable for a variety of electrical systems found on yachts and boats. Featuring an IP67 rating, the unit offers protection against dust and water ingress, which is vital for hardware mounted in marine engine rooms or near fluid reservoirs. By facilitating the conversion of sensor signals, this device allows boat owners to maintain existing analog hardware while benefiting from the advanced data visualization capabilities of NMEA 2000-compliant displays. It serves as a practical solution for those looking to modernize their vessel's instrumentation without replacing all sensors.
Best for: Converting legacy analog sensor data to digital network output.
Check on AmazonHighlights
- Wide 9-32V DC operating range
- IP67 water and dust resistance
- Enables digital integration for analog sensors
- Designed for ship and yacht applications
Keep in mind
- Lower user rating suggests potential configuration complexity
- Installation requires careful wiring of analog inputs
3. NMEA 2000 & J1939, KUS USA Water Level Gauge, 12V/24V, 2", 52mm, IP67 (Black)
This KUS USA water level gauge is a dedicated instrument for monitoring liquid levels, compatible with both NMEA 2000 and J1939 communication protocols. The unit is designed to fit a standard 2-inch (52mm) dashboard cutout, providing a clean, professional aesthetic in a black finish. Built for the harsh marine environment, the gauge features an IP67 rating, ensuring durability against water exposure. It operates on both 12V and 24V power systems, offering flexibility for different vessel power configurations. By supporting dual protocols, this gauge provides a reliable visual reference for fluid levels, ensuring that operators have consistent data on their tanks. Its compact size makes it an ideal choice for consoles where panel space is at a premium, while its robust construction aims to withstand long-term operational use.
Best for: Visual monitoring of water levels on NMEA 2000 or J1939 networks.
Check on AmazonHighlights
- Dual protocol support (NMEA 2000 & J1939)
- Standard 2-inch (52mm) mounting size
- IP67-rated water protection
- Compatible with 12V and 24V systems
Keep in mind
- May require specific sender compatibility
- Limited to visual gauge display rather than multi-function data

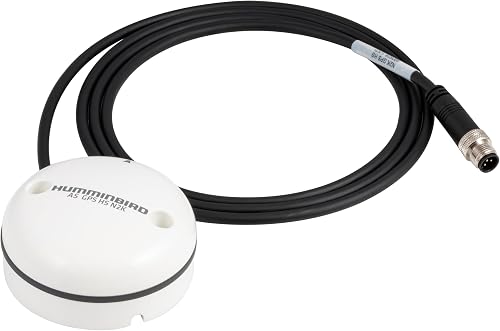

4. Humminbird NMEA 2000 GPS Heading Sensor Marine Navigation Accessory
The Humminbird NMEA 2000 GPS Heading Sensor is a specialized accessory intended to enhance the navigation and positional accuracy of a vessel. By connecting directly to an NMEA 2000 network, this sensor provides critical heading and GPS location data, which is essential for advanced chartplotter features, such as map orientation and radar overlay alignment. With a high customer rating, this sensor is recognized for its role in improving the precision of marine navigation systems. It is designed to work seamlessly within a broader Humminbird ecosystem or other NMEA 2000-compliant setups, ensuring that boaters receive reliable, real-time positional intelligence. This accessory is a valuable addition for users looking to maximize the performance of their navigation suite and ensure accurate heading information while underway.
Best for: Improving navigation accuracy and heading data on NMEA 2000 networks.
Check on AmazonHighlights
- High user satisfaction rating
- Provides precise GPS and heading data
- Seamless NMEA 2000 network integration
- Essential for advanced chartplotter functionality
Keep in mind
- Requires clear mounting path for GPS signal
- Specific to navigation rather than fuel monitoring
5. Maretron Fuel Flow Monitor, NMEA 2000, New Condition, FFM100-01
The Maretron FFM100-01 is a dedicated fuel flow monitor that operates on the NMEA 2000 protocol, providing precise measurements of fuel consumption for marine engines. By monitoring the flow rate of fuel, this device allows users to track their engine's efficiency and total fuel usage in real time. As a specialized component, it integrates directly into an existing NMEA 2000 backbone, allowing the data to be displayed on any compatible multi-function display on the network. This monitor is engineered to provide accurate, actionable fuel data, which is vital for long-range cruising and effective engine management. Its design focuses on delivering high-fidelity data to help boaters optimize their fuel economy and monitor engine health through precise flow rate tracking.
Best for: Accurate, real-time fuel consumption and engine efficiency tracking.
Check on AmazonHighlights
- NMEA 2000 compliant for broad network compatibility
- Specialized for fuel flow measurement
- Enables real-time fuel efficiency monitoring
- Integrates with standard multi-function displays
Keep in mind
- Requires compatible flow sensors to function
- Lacks specific consumer performance reviews
How to choose
Compatibility and Integration
When selecting an NMEA 2000 fuel monitoring solution, confirm that your chosen hardware integrates with existing marine networks. Devices like the ShipYacht CX5003 converter are designed to bridge analog sensor signals into the NMEA 2000 digital format. Conversely, specialized equipment such as the Maretron FFM100-01 is built specifically for fuel flow monitoring within the NMEA 2000 framework. Always verify if your current setup requires a simple analog-to-digital converter or a dedicated monitoring module to ensure the system recognizes your fuel data correctly across your Garmin, Navico, Lowrance, or B&G displays.
Power and Connectivity
A stable power supply is essential for NMEA 2000 networks. Products like the 3.3ft NMEA 2000 Tee Power Cable provide the necessary connection point and integrated fuse protection for marine networks. When installing converters or sensors, verify that the unit supports your vessel's voltage requirements, such as the 9-32V DC range found in the ShipYacht adapter. Proper cable lengths and tee configurations are vital for maintaining signal integrity across the backbone. Ensure all connections are marine-grade to resist the harsh environmental conditions typically encountered on boats and yachts.
Environmental Durability
Marine electronics must withstand exposure to moisture and vibration. Look for IP67-rated components, which indicate significant protection against dust and water ingress. The KUS USA water level gauge and the CX5003 converter specifically highlight this IP67 rating, making them suitable for exposed helm or cockpit environments. While focusing on fuel monitoring, remember that hardware durability directly impacts the longevity of your network. Prioritize components built with robust materials to ensure your fuel level and flow data remain accurate and accessible during long-term operation on the water.
Sensor vs. Monitor Distinction
Differentiate between a sensor, a gauge, and a monitor based on your specific goal. A gauge, such as the KUS USA model, provides a direct visual readout for level monitoring at a specific mounting location. A converter, like the CX5003, is designed to translate existing analog sensor data into a digital format for display on a multi-function screen. A fuel flow monitor, such as the Maretron FFM100-01, focuses on measuring the rate of fuel consumption. Identifying your primary need—whether it is simple level reporting or complex flow analysis—is critical for selecting the correct product.
Network Accessory Requirements
Building an effective NMEA 2000 network requires more than just the primary sensor. You may need additional navigation accessories, such as the Humminbird GPS Heading Sensor, to supplement your vessel's data collection capabilities. When planning your system, account for the space and cabling required for tees, power drops, and backbone terminators. By checking the requirements of each module, you can avoid incomplete installations. Ensure that all peripheral sensors and converters are compatible with the broader marine network standards established by your primary chartplotter or display manufacturer.
Frequently asked questions
Do I need a converter to see my fuel levels on a digital display?
If you are using traditional analog fuel senders, you likely need a device like the CX5003 converter. It translates analog sensor signals into the NMEA 2000 digital language, allowing that data to be visualized on modern, compatible marine displays. Without this conversion, the digital network cannot interpret the raw electrical resistance provided by standard analog fuel tank senders.
Is the KUS USA gauge compatible with NMEA 2000 networks?
Yes, the KUS USA water level gauge is specifically designed for use with NMEA 2000 and J1939 networks. It is built to operate within 12V or 24V systems and features a 52mm diameter, making it suitable for standard dashboard cutouts. Its IP67 rating ensures it is protected against water ingress, which is a critical feature for gauges installed in marine environments.
What is the purpose of the 3.3ft NMEA 2000 Tee Power Cable?
This cable acts as an essential connection point to inject power into your NMEA 2000 backbone. It includes a built-in fuse for safety and is compatible with major marine electronics manufacturers like Garmin, Lowrance, and B&G. Proper power injection is necessary to maintain signal transmission for all connected devices, including fuel sensors and navigation accessories, across the entire network.
Can the Maretron FFM100-01 measure fuel level in the tank?
No, the Maretron FFM100-01 is a fuel flow monitor, which is designed to track fuel consumption rates rather than the volume remaining in the tank. If your goal is to monitor the actual fuel level, you would typically use a tank sender integrated with a converter or a dedicated NMEA 2000-compatible level gauge.
Are IP67 ratings important for marine fuel monitoring equipment?
Yes, an IP67 rating is highly significant for marine equipment. It indicates that the device is protected against the effects of temporary immersion in water and is effectively sealed against dust. Since fuel sensors, gauges, and converters are often mounted in areas exposed to moisture, vibration, and salt air, this rating helps ensure the hardware remains functional and reliable over time.
Bottom line
For those seeking a comprehensive fuel monitoring solution, the choice depends on your specific data requirements. If your goal is to integrate existing analog hardware, the ShipYacht CX5003 is the strongest fit, as it acts as a bridge to convert analog sensor signals into a digital NMEA 2000 format compatible with major chartplotters. For users specifically interested in monitoring consumption rates, the Maretron FFM100-01 provides specialized fuel flow data. If you prefer a dedicated visual readout, the KUS USA 52mm gauge offers a reliable, IP67-rated solution. Regardless of the sensor chosen, pairing these components with the NMEA 2000 Tee Power Cable ensures your network backbone receives the consistent, fused power necessary for accurate data transmission.
Deciding between these products requires identifying whether you need to monitor fuel volume or fuel flow. Choose a converter if you want to display existing tank level data on a digital screen. Select a dedicated gauge if you prefer a standalone, at-a-glance readout at the helm. If fuel consumption efficiency is your priority, opt for a fuel flow monitor. Always verify the voltage requirements of your boat and ensure your chosen device is IP67-rated to withstand the marine environment. Finally, confirm that your backbone includes the necessary power injection and T-connectors to support all new additions to your marine network.
