Top Sight Glass Options for Industrial and Sanitary Fluid Monitoring
Selecting the proper sight glass is essential for maintaining visibility in hydraulic tanks, air compressors, and sanitary processing lines. Whether you are monitoring oil levels in heavy-duty machinery or observing flow rates in a food-grade pipe system, the construction material and connection type dictate performance. Stainless steel remains a preferred choice for its durability, while borosilicate glass provides the necessary clarity for high-precision monitoring. This guide covers a range of sight glass components, including specialized float ball gauges and essential maintenance accessories like FKM seal kits. By evaluating the specific requirements of your equipment, you can ensure a secure, leak-free installation that provides reliable visual feedback during operation.
When maintaining fluid systems, identifying the correct gauge or seal is the first step toward effective equipment management. Options vary from NPT-threaded heavy-duty gauges for gearboxes to sanitary tri-clamp fittings designed for flow monitoring. For routine maintenance, having the right seal kit on hand is critical to preventing downtime. This comparison outlines five distinct products available for workshop and industrial applications. Each item serves a specific function, ranging from direct level measurement to flow observation. Reviewing these components helps you match the right hardware to your specific tank or pipe diameter, ensuring that your monitoring solutions meet the rigorous demands of your workshop or industrial environment.
1. 3/4'' NPT Stainless Steel Oil Sight Glass with Float Ball, Air compressor Oil Sight Glass, Male Hex Head Heavy Duty Level Gauge for Air Compressor/Gearbox/Hydraulic Tanks | 304 Stainless Steel, High Clarity Borosilicate
This heavy-duty gauge features a 3/4-inch NPT connection and is constructed from 304 stainless steel. It is designed for use in air compressors, hydraulic tanks, and gearboxes. The unit incorporates a float ball mechanism to provide clear visual indication of fluid levels. The sight glass is made from high-clarity borosilicate, which is intended to withstand industrial environments. The male hex head design allows for standard installation tools, making it a functional choice for replacing or upgrading existing level gauges on machinery requiring durable, metal-bodied monitoring components.
Best for: Air compressor and hydraulic tank level monitoring
Check on AmazonHighlights
- 304 stainless steel construction
- High-clarity borosilicate glass
- 3/4-inch NPT male hex head
- Integrated float ball indicator
Keep in mind
- May require specific thread sealant for a leak-proof fit
- Limited to 3/4-inch NPT port sizes
2. in-Line Sight Glass with Tri Clamp End, Sanitary Flow Sight Glass Stainless Steel 2 Inch Tri Clamp Type (Flow Pipe OD 51mm)
Designed for sanitary applications, this in-line sight glass features a 2-inch tri-clamp connection. It is engineered to monitor fluid flow within a pipe system that has an outer diameter of 51mm. The stainless steel construction aligns with the requirements of sanitary environments, offering a clear view of the process stream. This component is suitable for setups where quick-disconnect sanitary fittings are required for inspection or cleaning. The design focuses on integrating seamlessly into standard tri-clamp plumbing configurations, providing a durable solution for observing liquid movement without obstructing the flow path.
Best for: Sanitary fluid flow observation
Check on AmazonHighlights
- Standard 2-inch tri-clamp end
- Stainless steel build
- Compatible with 51mm pipe OD
- Designed for sanitary environments
Keep in mind
- Requires compatible tri-clamp gaskets and clamps
- May not be suitable for high-pressure hydraulic applications
3. Sight Glasses Seal Kits with FKM Material, Pack of 2 (2 Inch Sight Glasses Seal Kits)
This package contains a set of two seal kits specifically designed for 2-inch sight glasses. The seals are manufactured using FKM material, which is generally recognized for its chemical and heat resistance properties. These kits are intended as replacement components for maintaining the integrity of sight glass assemblies. By replacing worn seals, users can help prevent leaks and maintain the vacuum or pressure seal of their monitoring equipment. The kit is tailored for standard 2-inch dimensions, making it a necessary maintenance item for those already operating sight glasses of this specific size.
Best for: Preventative maintenance on 2-inch sight glass assemblies
Check on AmazonHighlights
- FKM material construction
- Pack of two seals
- Designed for 2-inch sight glasses
- Essential for leak prevention
Keep in mind
- Compatibility limited to 2-inch sizing
- Installation requires disassembly of existing sight glass

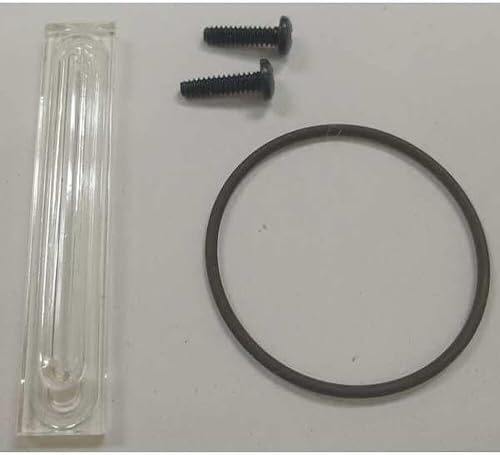

4. Glass, Sight Kit
This kit is listed as a sight glass component, providing a replacement solution for equipment requiring specific visual monitoring hardware. While the product details are minimal, it is categorized as a sight kit, intended for applications where the original glass component requires replacement. Users should verify the dimensions and threading of their existing equipment to ensure this kit aligns with their specific housing. It serves as a utilitarian part for workshop maintenance, allowing for the restoration of visual fluid monitoring when the original glass has become clouded, scratched, or damaged through standard operation.
Best for: General sight glass replacement
Check on AmazonHighlights
- Dedicated sight glass kit
- Replacement-focused design
- Standard workshop utility
- Direct installation component
Keep in mind
- Lack of detailed specifications in the listing
- Compatibility with specific machine models is not explicitly stated
5. Supplying Demand
The Supplying Demand sight glass is presented as a component for workshop and maintenance needs. With a perfect rating, it focuses on providing a reliable visual interface for fluid monitoring. As a replacement or upgrade part, it is designed to integrate into existing systems where visibility is required. The product is intended for users who need a straightforward solution for monitoring fluid levels or conditions in various workshop or industrial machines. Its design emphasizes ease of installation and functional clarity, helping to maintain equipment visibility without complex modifications to existing plumbing or tank ports.
Best for: Routine equipment maintenance and visibility upgrades
Check on AmazonHighlights
- High user-rated reliability
- Designed for easy integration
- Clear visual monitoring
- Standardized maintenance component
Keep in mind
- Specific material details not provided
- Requires verification of mounting specifications before purchase
How to choose
Material Composition
When selecting a sight glass, material integrity is paramount for durability. The 3/4'' NPT model features 304 stainless steel construction paired with high-clarity borosilicate glass, offering robust resistance for air compressor and hydraulic tank applications. Ensure the metal housing aligns with your system's chemical and pressure requirements to prevent premature degradation. Stainless steel remains a preferred choice for its resistance to corrosion in industrial workshop environments. Always verify that the glass component provides the necessary transparency for your specific fluid monitoring needs, as material quality directly impacts the visibility of oil levels or flow rates during routine equipment maintenance tasks.
Connection Types
Compatibility with existing plumbing is dictated by the connection style. The 3/4'' NPT model utilizes a standard male hex head for direct mounting into threaded ports on gearboxes or compressors. Conversely, the sanitary flow sight glass requires a 2-inch tri-clamp connection, commonly found in applications requiring frequent disassembly or sanitary standards. Before purchasing, confirm the connection type—whether NPT threads or sanitary clamps—matches your current hardware configuration. Mismatched fittings will prevent a secure seal and compromise the integrity of the sight glass installation. Always measure your port size accurately to ensure a precise, leak-free fit for your specific fluid system.
Functional Design
Sight glasses serve distinct roles depending on their design. The 3/4'' NPT version includes a float ball, which assists in clearly identifying fluid levels within opaque tanks or compressors. In contrast, in-line sight glasses like the 2-inch tri-clamp model are engineered to monitor flow conditions within a pipe run. Identify whether your primary goal is static level measurement or active flow observation. Selecting a design that incorporates a float ball can significantly improve readability in dark or recessed tank areas, whereas flow-through designs are optimized for verifying the presence and movement of process fluids through a line.
Seal Compatibility
The longevity of any sight glass assembly depends heavily on the quality of its seals. FKM material seal kits are available specifically for 2-inch sight glasses, providing a necessary replacement option for maintaining a secure, leak-proof connection over time. Because fluids can react with different elastomers, verifying that your seal material is compatible with the oils or chemicals passing through the system is a critical maintenance step. Regularly replacing worn gaskets prevents seepage and keeps the assembly performing at its intended capacity. Always keep compatible seal kits on hand to minimize downtime during scheduled equipment inspections or routine fluid maintenance cycles.
Sizing Requirements
Accurate sizing prevents installation errors and ensures a proper fit. The NPT model specifies a 3/4-inch connection, while the sanitary options are sized for a 2-inch tri-clamp with a 51mm outer diameter flow pipe. These measurements are fixed and non-adjustable. When upgrading or replacing existing sight glasses, consult your equipment’s technical specifications to confirm the exact port size. A 2-inch sanitary sight glass will not function in a 3/4-inch threaded port without significant adaptation, which is generally discouraged for pressure-rated systems. Focus on standard sizing metrics provided by the manufacturer to ensure your chosen component integrates seamlessly with your industrial or workshop machinery.
Frequently asked questions
Can I use an NPT sight glass for sanitary flow applications?
No, NPT sight glasses and sanitary tri-clamp sight glasses are designed for fundamentally different connection types. The 3/4'' NPT model is intended for threaded mounting into compressors or tanks, while the 2-inch tri-clamp glass is built for sanitary pipe flow monitoring. These components are not interchangeable, as their mounting interfaces are structurally distinct. Always select the connection type that matches your existing plumbing infrastructure to ensure a secure, pressure-rated seal and proper equipment functionality.
Why would I choose a sight glass with a float ball?
A float ball is included in specific models, such as the 3/4'' NPT stainless steel sight glass, to significantly enhance visibility. In applications where the fluid might be difficult to see or the tank environment is dim, the float ball rises with the fluid level, providing a high-contrast indicator of the tank's contents. This feature simplifies the process of checking oil levels in gearboxes or compressors, allowing for quicker and more accurate maintenance assessments without needing to peer closely into the sight glass.
Are FKM seals compatible with all types of oils?
FKM is a high-performance synthetic rubber known for excellent chemical resistance, but compatibility depends on the specific fluid in your system. While FKM is generally suitable for many industrial oils and chemicals, you should always cross-reference your specific fluid type with the material's chemical compatibility chart. Using the correct seal material, such as these 2-inch FKM kits, is essential for preventing leaks and ensuring the long-term integrity of your sight glass assembly under varied operating temperatures and pressures.
What is the purpose of a 2-inch tri-clamp sight glass?
A 2-inch tri-clamp sight glass is designed for in-line flow monitoring within a pipe system. By installing this unit into a 51mm outer diameter flow pipe, you can visually inspect the state, clarity, or presence of a fluid as it moves through the line. This is commonly used in sanitary or industrial processes where verifying flow conditions is required. It is not designed for static tank level monitoring, which is the primary application for threaded NPT-style sight glasses.
How do I know which sight glass size I need?
To determine the correct size, you must measure your existing port or pipe diameter. For threaded applications, identify the NPT size of the mounting port, such as the 3/4-inch standard. For sanitary systems, measure the outer diameter of the pipe, such as the 51mm required for the 2-inch tri-clamp glass. Consult your equipment's manual or specification sheet to confirm the exact connection requirements, as sight glasses are precision components that require an exact match to function safely and effectively.
Bottom line
The 3/4'' NPT Stainless Steel Oil Sight Glass stands out as the most versatile choice for workshop and industrial maintenance, particularly for those managing air compressors, gearboxes, or hydraulic tanks. Its combination of 304 stainless steel and high-clarity borosilicate glass ensures a durable, pressure-resistant build. The addition of an integrated float ball is a significant functional advantage, as it provides clear, high-contrast level monitoring that standard glass-only models lack. For users needing to verify levels in static tanks, this unit offers the most reliable visual feedback. It is a robust, purpose-built tool that simplifies routine fluid inspections while maintaining structural integrity in demanding equipment environments.
Deciding between these options requires identifying your specific application: static tank level monitoring versus in-line flow observation. If you are maintaining a compressor or gearbox, the 3/4'' NPT model with a float ball is the correct choice due to its threaded mounting and level-sensing design. If your task involves monitoring fluids within a process pipe, the 2-inch tri-clamp sanitary flow sight glass is required. Always check your port connection type—threaded vs. tri-clamp—before purchasing, as these components are not cross-compatible. Finally, ensure you have the appropriate FKM seal kits on hand if you are maintaining 2-inch sanitary systems to ensure a long-lasting, leak-free installation.
