Top Oil and Liquid Level Gauges for Workshop and Tank Management
Selecting the correct liquid level or thickness gauge requires matching the specific mount type, material compatibility, and measurement range to your equipment. Whether you are managing heating fuel storage for a 275-gallon tank or monitoring hydraulic oil levels in machinery, the market offers a range of mechanical and digital solutions. Tools vary significantly in their installation requirements, such as NPT threading or screw-mount configurations, and their ability to function across different fluids like water or oil. This guide evaluates five distinct gauging options based on their intended use cases, helping you identify the most suitable instrument for your workshop, shipping, or industrial fluid management needs.
Understanding the technical specifications of your gauging equipment ensures long-term maintenance success and operational safety. While some tools provide direct mechanical visual feedback through sight glasses or L-shaped indicators, others utilize digital technology for thickness measurements on metallic surfaces. When choosing between these instruments, consider the environment where the tool will reside, as some are designed for high-pressure hydraulic systems, while others are optimized for vertical fuel tank depths. By reviewing the specific thread sizes, mounting styles, and measurement capabilities of these products, you can select a reliable tool that meets your project requirements without needing to replace components prematurely due to compatibility issues.
1. Oil Tank Gauge Fuel Oil Tank Level Gauge 275&330 Gallon Vertical Fuel Tank | Heating Fuel Oil Tank Gauge for Scully Signal Corp's Scul-Tel&Intelli-Tank Depth from 42" to 44",1-1/2" and 2"Male NPT Thread
This fuel oil tank gauge is engineered specifically for vertical heating fuel tanks with capacities of 275 or 330 gallons. It is designed to accommodate depths ranging from 42 to 44 inches. The unit features universal compatibility with 1-1/2 inch and 2-inch male NPT threads, allowing for integration with Scully Signal Corp’s Scul-Tel and Intelli-Tank systems. This mechanical tool provides a reliable method for monitoring fuel levels in standard residential heating setups, ensuring that users can keep track of their fuel supply without manual dipping. Its construction is focused on the specific requirements of heating oil infrastructure, making it a specialized component for HVAC and home maintenance applications where vertical tank accuracy is required.
Best for: Vertical heating fuel tank monitoring
Check on AmazonHighlights
- Fits 275 and 330-gallon tanks
- Supports 42-inch to 44-inch depths
- 1-1/2 and 2-inch male NPT threading
- Compatible with Scul-Tel systems
Keep in mind
- Limited to specific tank sizes
- Restricted to vertical heating tanks

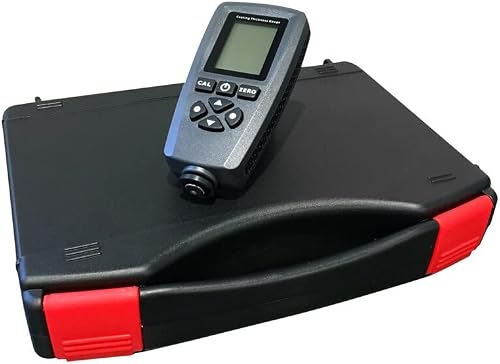

2. Prismatic Powders Coating Thickness Gauge - Digital Mil Thickness Meter for Powder Coating & Paint - Auto Detection on Steel and Aluminum (Fe/NFe) - High-Precision LCD Backlight Display - SE-421
The Prismatic Powders SE-421 is a digital coating thickness gauge designed to measure paint and powder coating layers. It features auto-detection capabilities that function on both steel and aluminum surfaces, covering ferrous (Fe) and non-ferrous (NFe) metals. The device is equipped with a high-precision LCD screen that includes a backlight, facilitating clear readings in varying light conditions. This tool is intended for professionals or hobbyists who need to verify the thickness of applied coatings to ensure quality control or consistent finish standards. Because it relies on digital sensing technology, it offers a more technical approach to surface measurement compared to traditional mechanical liquid gauges, providing precise mil thickness data for industrial coating applications.
Best for: Measuring powder coat or paint thickness
Check on AmazonHighlights
- Auto-detects steel and aluminum
- High-precision digital readout
- Backlit LCD display
- Measures Fe and NFe substrates
Keep in mind
- Requires battery power to operate
- Electronic components may be sensitive
3. Othmro XYW-76 Liquid Level Gauge, Acrylic Flowmeter for Oil Water | Clear Plexiglass Tube for Oil, Water, Machinery, Power, Metallurgy, Shipping, Construction, 1Pc
The Othmro XYW-76 is a versatile liquid level gauge featuring a clear plexiglass tube designed for visual monitoring of fluids. This flowmeter is suitable for a wide range of environments, including oil, water, machinery, power systems, metallurgy, shipping, and construction. Its transparent design allows for quick observation of fluid levels, which is essential for preventive maintenance in industrial equipment. By providing a clear window into the system, it helps operators maintain optimal fluid levels and monitor flow status effectively. The acrylic construction is intended for visibility and durability in standard operational conditions, offering a straightforward, mechanical solution for checking liquid states in diverse mechanical setups across multiple heavy-duty industries.
Best for: Visual liquid monitoring in industrial machinery
Check on AmazonHighlights
- Clear plexiglass viewing tube
- Compatible with oil and water
- Multipurpose industrial application
- Easy-to-read visual indicator
Keep in mind
- Acrylic may be prone to scratching
- Visual-only monitoring
4. Oil Level Sight Gauge, Transparent Accurate Display Measurement Tool for Hydraulic Systems Alloy Glass Mechanical Screw Mount LS 3 4.5 x 1.6in 1 Pack
This oil level sight gauge is a compact mechanical measurement tool designed for hydraulic systems. It features a transparent display that allows for accurate, real-time monitoring of oil levels within a tank or reservoir. The unit uses a mechanical screw mount for secure installation and is built from alloy and glass components, providing a robust construction for industrial environments. Measuring 4.5 by 1.6 inches, it is specifically sized to fit into tight spaces where precision monitoring is necessary. As a mechanical sight glass, it is designed for environments where electrical sensors might not be preferred, offering a reliable, low-maintenance way to keep hydraulic systems operating at the correct fluid capacity.
Best for: Hydraulic system oil level monitoring
Check on AmazonHighlights
- Durable alloy and glass construction
- Screw mount for secure installation
- Accurate transparent display
- Compact 4.5 x 1.6-inch footprint
Keep in mind
- Fixed size may not fit all ports
- Requires direct line of sight
5. L-Shape Brass Oil Liquid Level Indicator 1/4"-1/2", Dual Window for Precise Monitoring, 80-500mm Lengths,(125MM*1/4 INCH)
The L-Shape Brass Oil Liquid Level Indicator provides a reliable method for monitoring fluid levels through a dual-window design. This indicator is constructed from brass, offering durability and corrosion resistance for long-term use. It is available in various lengths, ranging from 80mm to 500mm, with the specific model listed featuring a 125mm length and a 1/4-inch fitting. The dual-window configuration allows for precise monitoring from multiple angles, which is useful in complex machinery layouts where visibility is often restricted. This mechanical indicator is designed for consistent performance in monitoring liquids, ensuring that fluid levels remain within the desired range during machine operation, thereby assisting in the prevention of mechanical failure due to low oil or liquid levels.
Best for: Precise monitoring in restricted spaces
Check on AmazonHighlights
- Durable brass construction
- Dual-window design for visibility
- 1/4-inch fitting size
- Available in multiple length options
Keep in mind
- Requires specific pipe thread matching
- Limited to mechanical visual inspection
How to choose
Mounting Configuration
Select a gauge based on the specific port size and orientation required by your tank or hydraulic system. Options range from standard screw-mount designs, such as the Oil Level Sight Gauge, to specialized NPT threaded units like the Oil Tank Gauge for 275 and 330-gallon vertical tanks. Ensure the thread size, such as 1-1/2 inch or 2-inch NPT, matches your existing hardware to prevent leaks and ensure a secure fit. L-shaped indicators provide flexibility for specific clearance needs, while direct-mount sight gauges are better suited for mechanical systems where space is limited and a direct visual check of fluid levels is necessary.
Material Compatibility
Choose materials designed for the specific environment of your application. The Othmro XYW-76 utilizes a clear plexiglass tube, which is suitable for water and oil monitoring in various industrial sectors including power, metallurgy, and construction. For high-pressure or hydraulic environments, metal-cased units like the alloy glass Oil Level Sight Gauge offer increased durability. When dealing with fuel storage, verify that the gauge is compatible with heating fuel, as seen in the Scully Signal-compatible tank gauge. Always confirm that the housing materials are resistant to the specific liquid being measured to maintain long-term structural integrity and clear visibility.
Measurement Precision and Range
Assess the required depth or length of the indicator relative to your tank size. Indicators like the L-Shape Brass Oil Liquid Level Indicator offer a range of lengths from 80mm to 500mm, allowing for precise customization based on the container depth. For standardized heating tanks, specific gauges are calibrated for depths between 42 and 44 inches. If you require absolute precision for hydraulic systems, look for models featuring dual-window displays or transparent, accurate display measurement tools. Proper alignment between the gauge length and tank capacity is essential for obtaining consistent, reliable readings during daily equipment operation or routine fluid management.
Visibility and Monitoring
Visual monitoring is a critical feature for oil level gauges. Mechanical sight gauges provide a direct look at fluid levels through a transparent window, which is ideal for hydraulic machinery. Some models, such as the L-Shape Brass indicator, feature dual windows to enhance monitoring clarity from different angles. For larger fuel tanks, gauges that integrate with existing signal systems, such as the Scul-Tel or Intelli-Tank, provide a more automated approach to depth monitoring. Prioritize designs that offer high contrast or clear sight lines, ensuring that your operators can quickly identify fluid levels without needing to disassemble or bypass any machinery components.
Distinguishing Between Gauge Types
Distinguish between fluid level indicators and thickness meters to ensure you purchase the correct tool for your project. While the keyword focuses on prismatic oil level gauges, products like the Prismatic Powders Coating Thickness Gauge serve an entirely different purpose, measuring paint or powder coating thickness on steel and aluminum. Never confuse a thickness meter with a liquid level indicator. Always verify the product name to ensure it is intended for measuring volumes of oil or water rather than surface coatings. Focus on fluid-specific indicators like sight glasses, L-shaped brass tubes, or tank-specific depth gauges to meet your liquid monitoring requirements.
Frequently asked questions
Can I use the Prismatic Powders Coating Thickness Gauge to measure oil levels?
No. The Prismatic Powders Coating Thickness Gauge is a digital mil thickness meter designed specifically for measuring the thickness of powder coatings and paint on steel and aluminum surfaces. It is not an oil level gauge and lacks the mechanical design necessary to measure liquid depths or volumes in tanks or hydraulic systems. For oil level monitoring, select a dedicated fluid sight gauge or a tank-specific depth indicator that is compatible with your vessel's dimensions and thread type.
What is the benefit of a dual-window oil level indicator?
A dual-window oil level indicator, such as the L-Shape Brass Oil Liquid Level Indicator, provides enhanced visibility by allowing operators to monitor fluid levels from multiple angles. This design is particularly useful in tight workshop environments or complex machinery setups where a single-window gauge might be obstructed. By offering two vantage points, these indicators help ensure that fluid levels remain within safe operating parameters, reducing the risk of equipment damage due to unexpected fluid depletion or overfilling.
Are all oil level gauges compatible with 2-inch NPT threads?
No, compatibility varies by product. For example, the Oil Tank Gauge for 275 and 330-gallon vertical fuel tanks is explicitly designed for 1-1/2 inch and 2-inch Male NPT threads. Conversely, other models like the L-Shape Brass indicator specify different connection sizes, such as 1/4 inch or 1/2 inch. Always verify the thread specifications of your tank or machine port against the gauge's product description before purchase to ensure a correct and leak-free installation.
What does an alloy glass mechanical screw mount gauge offer?
An alloy glass mechanical screw mount gauge, such as the Oil Level Sight Gauge, provides a robust and transparent solution for monitoring hydraulic systems. The alloy construction offers durability against environmental factors, while the glass window allows for a clear, accurate display of fluid levels. These are typically designed for direct mechanical mounting, making them a suitable choice for hydraulic equipment where a reliable, fixed monitoring point is required to track fluid consumption and maintenance intervals.
What should I look for when replacing a gauge on a 275-gallon fuel tank?
When replacing a gauge on a 275-gallon fuel tank, focus on gauges explicitly rated for that capacity and the vertical orientation of your tank. Ensure the unit is compatible with the depth of your specific tank, typically between 42 and 44 inches. Check for compatibility with existing signal systems if you currently use Scully Signal Corp's Scul-Tel or Intelli-Tank devices. Always confirm the NPT thread size to ensure the gauge fits the existing port on your fuel storage unit.
Bottom line
For those seeking a reliable oil level gauge, the Oil Level Sight Gauge (BC24X9NJ9) stands out as the strongest choice for mechanical and hydraulic applications. Its alloy construction and glass viewing window provide a professional-grade, accurate display that is built for durability. While the L-Shape Brass Oil Liquid Level Indicator (BGJDLWCSC) offers excellent versatility with its range of lengths and dual-window monitoring, the Oil Level Sight Gauge is superior for users prioritizing a simple, permanent screw-mount solution. For large-scale storage, the Oil Tank Gauge (BFCBKHGSN) is the definitive choice for 275 and 330-gallon tanks, offering specialized compatibility with NPT threading and existing fuel monitoring systems, making it the most effective tool for heating oil management.
Deciding on the right gauge requires matching the tool to your specific hardware. If your goal is monitoring a static hydraulic system, prioritize mechanical sight gauges for their simplicity and clarity. If you are managing fuel for a home or commercial heating system, choose a tank-specific gauge designed for the depth of your vessel. Always ignore products like the Prismatic Powders Coating Thickness Gauge, which share keywords but serve entirely different diagnostic purposes. By verifying your port size, thread type, and the total depth of your tank, you can select a gauge that ensures long-term, accurate liquid level monitoring without compatibility issues.
