Top Rochester Liquid Level Gauges and Industrial Fluid Monitoring Tools
Selecting the right liquid level gauge depends on your specific tank depth, fluid type, and pressure requirements. Whether you are managing fuel oil, hydraulic systems, or chemical storage, choosing hardware that matches your existing port sizes and temperature tolerances is essential for operational safety. Our selection includes specialized Rochester series gauges for direct reading and remote monitoring, alongside durable alternatives for varied industrial applications. This guide breaks down the technical specifications for each model, highlighting compatibility with common series, pressure ratings, and mounting configurations to help you identify the correct component for your workshop or fleet maintenance needs.
Reliable fluid monitoring prevents equipment damage and ensures consistent supply management in industrial environments. From the versatile adjustable depth of the 6580 series to the robust construction of the 8680 direct dial gauge, these tools cater to professional maintenance and installation. We have organized these options based on their technical specifications, including thread sizes, pressure tolerances, and material compatibility. Use these summaries to align your requirements with the specific features of each gauge, ensuring a proper fit for your tank configuration and fluid specifications while adhering to the manufacturer's operational guidelines for temperature and PSI limits.
1. Lenz T-LLG-5 Fluid Level Gauge & Thermometer, 6.1" Tall, 1/2-13 UNC Thread | Nitrile Seal, 212 F Max Temp, 44 Max PSI, Transparent Polymide Resin, Petroleum-based Fluids, Gasoline, Diesel, Solvents
This fluid level gauge and thermometer provides a transparent view of tank contents, standing 6.1 inches tall. It utilizes a 1/2-13 UNC thread and features a nitrile seal to maintain integrity. Designed for versatility, it is compatible with petroleum-based fluids, gasoline, diesel, and various solvents. Users can operate this unit in environments with a maximum temperature of 212 degrees Fahrenheit and a maximum pressure of 44 PSI. The body is constructed from transparent polymide resin, offering visibility for quick manual inspections. It serves as a dual-purpose tool, allowing for simultaneous monitoring of both fluid levels and temperature, making it a practical choice for smaller tank systems requiring integrated environmental feedback.
Best for: Monitoring petroleum-based fluids and temperature in compact tanks.
Check on AmazonHighlights
- Integrated fluid level and thermometer
- Supports gasoline, diesel, and solvents
- 44 PSI maximum pressure rating
- Transparent polymide resin construction
Keep in mind
- Limited to 6.1-inch height requirements
- Requires 1/2-13 UNC threading

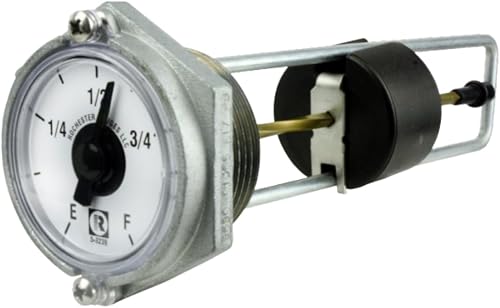

2. Rochester 8680-01032 Sr. Spiral Liquid Level Gauge | 1-1/2" MNPT | 23-1/2" Length | 0-25 PSIG | Top Read Direct Dial | UL Listed | for Fuel Oil Hydraulic Tanks
The 8680-01032 Sr. Spiral gauge is engineered for fuel oil and hydraulic tanks, featuring a 23.5-inch length. It utilizes a 1-1/2 inch MNPT connection for secure mounting. This model provides a top-read direct dial for immediate visibility of tank contents. It is rated for pressures up to 25 PSIG and carries a UL listing, indicating it meets specific safety standards for its intended use. This gauge is designed for users who need a direct reading mechanism on larger storage vessels. Its spiral design is optimized for consistent performance in standard fuel and hydraulic applications, providing a straightforward approach to liquid level monitoring without the need for additional electrical sensors or complex interfaces.
Best for: Direct visual monitoring of fuel oil and hydraulic tanks.
Check on AmazonHighlights
- UL listed for safety compliance
- 1-1/2 inch MNPT mounting
- 23.5-inch length for deeper tanks
- Top-read direct dial interface
Keep in mind
- Limited to 25 PSIG pressure rating
- Fixed length may not fit all tank sizes
3. 5AWLS03239 Sr. Direct-Reading Dial | 2 5/16" | Replaces 5844S01793 5002S00062 5141S00062 | Fits 6500 8600 Series Gauges
This direct-reading dial component is designed to replace specific existing gauges, including models 5844S01793, 5002S00062, and 5141S00062. It is manufactured with a 2 5/16-inch diameter, specifically intended to fit within the Rochester 6500 and 8600 series gauge families. This unit acts as a component replacement rather than a complete gauge assembly, focusing on restoring the visual reading capability of your existing hardware. It is an essential part for maintenance technicians performing repairs on these specific series. By replacing the dial assembly, users can restore the clarity and accuracy of their current liquid level monitoring system without replacing the entire tank-mounted float mechanism or the associated flange hardware.
Best for: Repairing existing Rochester 6500 and 8600 series gauges.
Check on AmazonHighlights
- Direct-reading dial replacement
- Compatible with 6500 and 8600 series
- 2 5/16-inch diameter
- Replaces multiple legacy part numbers
Keep in mind
- Not a complete gauge assembly
- Compatibility limited to specific series
4. 6580 Series Flat Dial Vertical Fuel or Oil Level Gauge Adjustable 6" to 36" Tank Depth W/ 240-30 ohm TwinSite.
The 6580 series is a vertical-mount fuel or oil gauge offering significant installation flexibility. It features an adjustable design that accommodates tank depths ranging from 6 to 36 inches. This unit includes a 240-30 ohm TwinSite transmitter, which enables remote monitoring capabilities by sending level data to a compatible receiver. This makes it suitable for applications where direct visual access to the tank top is difficult or inconvenient. The flat dial design ensures a low-profile installation, while the TwinSite technology integrates well with standard electrical monitoring systems. It is a highly adaptable solution for users who need to monitor varying tank sizes while maintaining the option for remote data readout.
Best for: Applications requiring adjustable depth and remote monitoring.
Check on AmazonHighlights
- Adjustable for 6 to 36-inch tank depths
- Includes 240-30 ohm TwinSite transmitter
- Vertical mounting configuration
- Suitable for fuel or oil levels
Keep in mind
- Requires electrical compatibility for TwinSite
- More complex setup than direct-dial gauges
5. Frank W. Murphy EL150K1 Liquid Level Gauge Swichgage-Float 15700116 Alumi Coated
The Frank W. Murphy EL150K1 is a liquid level gauge Swichgage designed with a float mechanism for critical level monitoring. It features an aluminum-coated construction for durability in various environments. As a Swichgage, it is intended to provide both visual monitoring and switching capabilities, allowing for automated response or alarm triggers when fluid levels reach specific thresholds. This level of functionality makes it a robust choice for industrial equipment where constant monitoring and automatic shut-off or alarm features are required for safety and protection. Its design emphasizes reliability and integration into broader safety systems, ensuring that tank levels remain within safe operating parameters during continuous use in demanding field conditions.
Best for: Automated alarm or trigger systems in industrial tanks.
Check on AmazonHighlights
- Float-based Swichgage functionality
- Durable aluminum-coated exterior
- Dual-purpose level monitoring and switching
- High-reliability design
Keep in mind
- Requires integration with electrical systems
- Specific switching threshold may need calibration
How to choose
Mounting and Connection
When selecting a Rochester Magnetel or similar liquid level gauge, prioritize the connection type and sizing. Options range from the 1-1/2" MNPT found on the Rochester 8680-01032 to the 1/2-13 UNC thread on the Lenz T-LLG-5. Compatibility with your specific tank port is critical to ensuring a leak-free seal. Always cross-reference the thread specification and port diameter against your existing equipment before purchase to avoid installation issues.
Tank Depth Compatibility
Your gauge must correspond to the physical depth of your tank. While the Rochester 8680-01032 provides a fixed 23-1/2" length, the 6580 Series offers an adjustable range from 6" to 36" for vertical fuel or oil tanks. Choosing an adjustable model provides flexibility for varying tank sizes, whereas fixed-length gauges are designed for specific depth requirements. Ensure the float mechanism has sufficient clearance to move freely throughout the vertical range of the tank.
Pressure and Temperature Ratings
Review the operational limits of your gauge to match the environment of the stored fluid. The Lenz T-LLG-5 is rated for up to 212°F and 44 PSI, while the Rochester 8680-01032 is specified for 0-25 PSIG. These ratings are vital for safety and longevity, especially when dealing with petroleum-based fluids, gasoline, or diesel. Operating outside these parameters can lead to seal failure or mechanical damage to the gauge components.
Material and Fluid Compatibility
Ensure the construction materials of the gauge are compatible with the medium being monitored. The Lenz T-LLG-5 utilizes transparent polyamide resin and nitrile seals, specifically suited for petroleum-based fluids, diesel, and solvents. In contrast, the Murphy EL150K1 features an aluminum-coated finish. Always verify that the seals and housing materials will not degrade when exposed to the specific chemical properties of your fuel or hydraulic oil to prevent leaks and maintain accurate readings.
Monitoring and Readout Style
Consider whether you require a direct-reading dial or an electrical output for remote monitoring. The Rochester 6580 Series includes a 240-30 ohm TwinSite sender for electrical integration, while the 8680-01032 features a top-read direct dial. If you need replacement parts for existing systems, components like the 5AWLS03239 direct-reading dial are designed to fit specific 6500 and 8600 series gauges. Matching the readout style to your control system ensures seamless integration into your existing tank management setup.
Frequently asked questions
Can I use the Lenz T-LLG-5 for high-pressure hydraulic tanks?
The Lenz T-LLG-5 is rated for a maximum pressure of 44 PSI. If your hydraulic tank operates within this limit, it is suitable for use with petroleum-based fluids. However, if your system exceeds this pressure rating, you must seek a gauge specifically designed for higher pressure environments to avoid potential seal failure or catastrophic equipment damage. Always verify your specific system pressure requirements before installation.
Does the Rochester 6580 Series fit all tank depths?
The Rochester 6580 Series is designed as an adjustable unit capable of fitting tank depths between 6 inches and 36 inches. This adjustability makes it a versatile option for various vertical fuel or oil tanks. It is important to confirm that your tank falls within this specific range before purchase, as tanks shallower than 6 inches or deeper than 36 inches will require a different gauge configuration.
How do I know if the 5AWLS03239 dial will fit my gauge?
The 5AWLS03239 direct-reading dial is specifically engineered to fit the 6500 and 8600 series Rochester gauges. It is also designed as a replacement for part numbers 5844S01793, 5002S00062, and 5141S00062. To ensure compatibility, check the model number of your current gauge assembly. If your gauge belongs to the 6500 or 8600 series, this component should be compatible with your existing equipment.
Is the Rochester 8680-01032 suitable for diesel fuel?
The Rochester 8680-01032 is explicitly intended for use with fuel oil and hydraulic tanks. Given its application for these types of fluids, it is generally compatible with petroleum-based products like diesel. However, you should always consult the specific technical documentation provided by the manufacturer regarding chemical compatibility before introducing it to your fuel system to ensure the internal components and seals remain durable over time.
What is the primary difference between the Murphy EL150K1 and the Rochester gauges?
The Murphy EL150K1 is a float-based Swichgage featuring an aluminum-coated construction, while the Rochester options, such as the 8680-01032 and 6580 series, are specialized liquid level gauges that often include spiral mechanisms or TwinSite electrical senders. The choice between them depends on whether you require a simple float-activated switch for monitoring or a dial-based system for continuous level measurement. Select the unit that aligns with your specific monitoring and automation requirements.
Bottom line
For users needing a robust solution for fuel oil or hydraulic tank monitoring, the Rochester 8680-01032 Sr. Spiral Liquid Level Gauge stands out as the most reliable choice. Its UL-listed status and 0-25 PSIG rating provide a secure, standardized option for industrial applications. When paired with the 6580 series for adjustable-depth requirements or the 5AWLS03239 dial for maintenance, Rochester provides a comprehensive ecosystem for tank management. While the Murphy EL150K1 offers specialized float-switch functionality and the Lenz T-LLG-5 serves as an excellent, compact option for fluid level and temperature monitoring, the Rochester series remains the industry standard for direct-reading accuracy in fuel and hydraulic storage environments.
Deciding between these gauges requires evaluating your tank's physical specifications and your monitoring needs. If you have a standard vertical tank, the adjustable 6580 series is your best fit. For fixed-depth industrial tanks requiring high-pressure ratings, the 8680-01032 is superior. If your project involves simple fluid observation for smaller reservoirs, the Lenz T-LLG-5 is the most practical and cost-effective selection. Always verify that your chosen model matches your tank's port thread, depth, and the specific chemical nature of the fluid being stored to ensure optimal performance and long-term gauge integrity.
