Top Industrial Liquid Level Indicators and Gauges for Workshop Monitoring
Monitoring fluid levels in industrial tanks requires reliable instrumentation tailored to specific environmental and mechanical needs. Whether you are managing hydraulic reservoirs, farm fuel storage, or specialized pressure vessels, selecting the correct gauge ensures both operational efficiency and equipment safety. Our selection features various technologies, ranging from direct-reading hydraulic gauges with integrated thermometers to sophisticated electronic pressure transmitters capable of remote monitoring. Understanding the mounting requirements, material compatibility, and signal outputs of these components is essential for integrating them into your existing workshop or industrial fluid systems.
Selecting the right level indicator depends on your specific system requirements, such as mounting centers, pressure ranges, and desired feedback types. Some applications prioritize simple visual verification, while others require electronic integration via 4-20mA signals or RS-485 protocols. From stainless steel magnetic gauges for corrosive environments to adjustable liquid level sensors for cylindrical tanks, these devices offer diverse solutions for fluid management. Reviewing the technical specifications for each unit helps clarify which model aligns with your tank configuration and monitoring needs, ensuring a proper fit for your industrial equipment setup.
1. T-550-5 Hydraulic Tank Level Gauge with Temperature Display - 5-Inch Mounting - Dual Function Fluid Level Indicator and Thermometer, 200°F Max, Industrial Grade Polyamide Construction | 5" Mounting Centers, Max 212 F, Vi
This hydraulic tank level gauge serves as a dual-function instrument, providing both fluid level monitoring and temperature tracking. It features 5-inch mounting centers and is constructed from industrial-grade polyamide. The unit is designed to operate in temperatures up to 212°F, with a maximum display range reaching 200°F. By combining a thermometer with a level indicator, this tool simplifies tank diagnostics by eliminating the need for separate temperature monitoring equipment. Its robust construction is tailored for hydraulic systems where monitoring thermal fluctuations alongside fluid volume is necessary for maintaining system integrity and preventing overheating during operation.
Best for: Hydraulic systems requiring thermal and level monitoring.
Check on AmazonHighlights
- Dual-function level and temperature display
- 5-inch mounting centers
- Industrial-grade polyamide build
- Rated for temperatures up to 212°F
Keep in mind
- Limited to 5-inch mounting specifications
- May not be suitable for highly corrosive chemical tanks

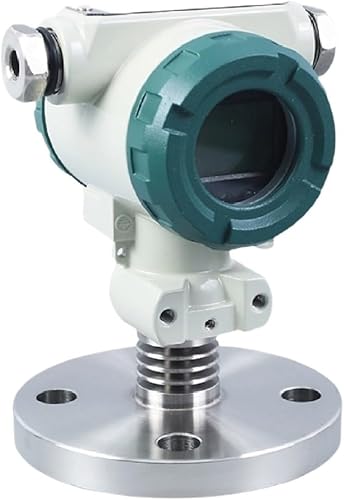

2. 4-20mA RS-485 Display Flat Diaphragm Flange Mount Level Sensor HTP-450F Anti-Corrosion Explosion-Proof Pressure Transmitter(4-20mA-DN25,0-1.6mpa)
This flat diaphragm flange mount level sensor is an explosion-proof pressure transmitter engineered for demanding industrial environments. It utilizes 4-20mA and RS-485 output signals, allowing for integration into automated data collection or control systems. Designed with anti-corrosion properties, it is suitable for specialized fluid management where material durability is critical. The unit features a DN25 connection and is calibrated for a pressure range of 0 to 1.6 MPa. Its explosion-proof rating suggests it is intended for hazardous zones where electrical equipment must meet strict safety standards to prevent ignition, providing a high-tech solution for accurate, remote-accessible pressure and level measurements.
Best for: Hazardous industrial environments requiring remote digital monitoring.
Check on AmazonHighlights
- Explosion-proof construction
- Supports 4-20mA and RS-485 communication
- Anti-corrosion design
- 0-1.6 MPa pressure range
Keep in mind
- Requires technical knowledge for digital signal integration
- Flange mount may not fit standard threaded tank ports
3. 5640S02543P Sr. TwinSite Dial | 240-30 Ohms | Potted Lead Wires | Fits 8600 8200 6500 Series Fixed-Length Gauges | Replaces 5ANYS02543
The 5640S02543P Sr. TwinSite dial is a replacement component designed for specific fixed-length gauge series, including the 8600, 8200, and 6500 models. It provides a 240-30 Ohm resistance signal, facilitating reliable level data transmission. The unit comes equipped with potted lead wires to ensure secure electrical connections and durability within the gauge assembly. As a direct replacement part, it serves as a maintenance solution for users who need to restore or upgrade the signaling capabilities of their existing tank gauges. By matching the specific resistance output of the original hardware, it maintains system compatibility without requiring extensive recalibration of the monitoring equipment.
Best for: Repairing compatible 8600, 8200, and 6500 series gauges.
Check on AmazonHighlights
- 240-30 Ohm resistance output
- Includes potted lead wires
- Fits multiple fixed-length gauge series
- Replaces part number 5ANYS02543
Keep in mind
- Compatibility restricted to specific gauge models
- Not a standalone indicator; requires existing gauge hardware
4. UHZ Magnetic Level Gauge with Remote Transmission 4-20mA, Magnetic Switch, Float Level Indicator, and Stainless Steel Switch.
This magnetic level gauge is designed for high-end monitoring, featuring both remote 4-20mA transmission and a magnetic switch. The inclusion of a stainless steel switch underscores its durability, making it a viable choice for applications requiring resistance to harsh conditions. The system utilizes a float-based mechanism to provide accurate level tracking, which is then transmitted remotely for centralized management. By offering both local visual indication and remote signal capabilities, this gauge supports diverse monitoring setups, from manual oversight to automated process control. Its stainless steel construction is particularly relevant for installations where environmental exposure or chemical compatibility is a primary concern for the operator.
Best for: Automated systems requiring both local and remote level data.
Check on AmazonHighlights
- 4-20mA remote transmission
- Integrated magnetic switch
- Stainless steel construction
- Float-based level sensing
Keep in mind
- May involve a more complex installation process
- Higher cost of entry compared to basic mechanical gauges
5. 7183-00027F Adjustable Fuel, Oil, Liquid Level Gauge for Cylindrical Farm Tanks, 1 ½” MPT X up to 48” Float Length
The 7183-00027F is an adjustable gauge designed for cylindrical farm tanks, accommodating float lengths of up to 48 inches. It features a 1 ½” MPT connection, making it compatible with standard tank fittings found in agricultural or rural settings. This gauge is intended for monitoring various liquids, including fuel and oil. Its adjustable nature provides flexibility for tanks of varying diameters, allowing users to calibrate the float length to their specific vessel depth. Given its 4.6-star rating, it is a well-regarded tool for those needing a durable and adaptable mechanical solution for large-capacity storage tanks where electronic monitoring is not required.
Best for: Adjustable level monitoring for cylindrical farm tanks.
Check on AmazonHighlights
- Fits up to 48-inch float lengths
- 1 ½” MPT threaded connection
- Suitable for fuel, oil, and liquid storage
- Highly rated for reliability
Keep in mind
- Lacks remote electronic signaling features
- Limited to cylindrical tank applications
How to choose
Mounting Configuration
Select a gauge based on your specific tank interface requirements. Options include 5-inch mounting centers for industrial polyamide units, flange-mounted sensors for corrosion-resistant needs, and 1 ½” MPT connections for cylindrical farm tanks. Ensure the mounting type aligns with your existing tank port dimensions to maintain a secure, leak-free seal. Fixed-length gauges may require specific series compatibility, such as the 8600 or 8200 series, whereas adjustable models offer flexibility for varying tank depths up to 48 inches. Always verify your tank’s mounting hardware specifications before selecting a replacement or new installation to ensure mechanical compatibility and proper sensor orientation within the fluid environment.
Signal Transmission
Modern level indicators often incorporate remote transmission capabilities for centralized monitoring. Look for units featuring 4-20mA outputs or RS-485 interfaces if you require integration with automated control systems or remote data logging. Magnetic level gauges with remote transmission provide real-time feedback, which is essential for industrial process management. In contrast, simple visual indicators like the T-550-5 provide direct local readings without electronic transmission. Evaluate your system's infrastructure to determine if you need an analog signal transmitter or a basic visual dial, ensuring the chosen output protocol matches your existing PLC or monitoring hardware to facilitate seamless communication and accurate level tracking.
Environmental Durability
The operating environment dictates the material and safety specifications required for your gauge. Industrial-grade polyamide construction is suitable for general hydraulic applications with temperature limits reaching up to 212°F. For harsher conditions, prioritize explosion-proof transmitters or units featuring stainless steel switches to resist corrosion and handle volatile substances. If your application involves high heat or pressurized fluids, verify the maximum temperature and pressure ratings, such as the 0-1.6mpa capacity found in specialized pressure transmitters. Assessing the chemical compatibility of the gauge materials with your stored fluid is critical for long-term reliability and preventing premature component failure in demanding industrial or agricultural settings.
Display and Monitoring
Determine whether you need an analog visual display, an electronic readout, or both. The T-550-5 includes a dual-function thermometer, providing secondary data alongside fluid levels. Other models like the Sr. TwinSite Dial utilize a 240-30 Ohm resistance range for specific gauge series, while magnetic level gauges offer float-based indicators. If your operation requires rapid visual assessment, a physical dial or magnetic float is often the most efficient choice. For automated facilities, prioritize electronic sensors that provide continuous data transmission. Consider whether you need specialized features like temperature displays or explosion-proof housings to meet specific safety standards and operational requirements for your liquid storage system.
Application Versatility
Liquid level gauges are designed for diverse tanks, ranging from farm storage to industrial hydraulic reservoirs. Adjustable gauges, such as the 7183-00027F, are ideal for cylindrical tanks requiring custom float lengths up to 48 inches. Conversely, specialized sensors like the HTP-450F are built for specific mounting and pressure parameters. When choosing, match the gauge’s intended application—whether it is fuel, oil, or hydraulic fluid—with its structural design. Fixed-length gauges offer stability for standardized tanks, while adjustable units provide versatility for non-standard or varying tank sizes. Always check the fluid compatibility and tank geometry to ensure the selected gauge fits the specific physical constraints of your storage container.
Frequently asked questions
What is the primary difference between a T-550-5 and a magnetic level gauge?
The T-550-5 is an industrial-grade polyamide gauge that provides a direct visual readout of fluid levels and temperature, utilizing a 5-inch mounting configuration. In contrast, a magnetic level gauge is a more complex instrument designed for remote transmission, often featuring 4-20mA outputs and stainless steel switches. While the T-550-5 is optimized for local visual monitoring of hydraulic tanks, the magnetic gauge is better suited for automated systems requiring continuous electronic data feedback and remote monitoring capabilities.
Can I use the 7183-00027F gauge on any tank size?
The 7183-00027F is designed for cylindrical farm tanks and features an adjustable float length that can be set up to 48 inches. It utilizes a 1 ½” MPT connection. While it offers versatility for varying depths within that range, it is specifically engineered for cylindrical tanks. You should verify that your tank’s port size matches the 1 ½” MPT specification and that the tank geometry is compatible with the adjustable float mechanism before installation.
What does the 240-30 Ohms specification indicate for the 5640S02543P?
The 240-30 Ohms rating refers to the electrical resistance range of the Sr. TwinSite Dial. This specification is critical for ensuring compatibility with the electrical systems of specific gauge series, such as the 8600, 8200, and 6500 series. This component is designed as a replacement for the 5ANYS02543 and relies on this specific resistance range to communicate accurate level data to the connected monitoring equipment. Ensure your existing gauge series matches these requirements before purchasing.
Are these gauges suitable for high-pressure environments?
Suitability depends on the specific product model. For example, the HTP-450F pressure transmitter is rated for 0-1.6mpa, making it suitable for applications requiring pressure-specific monitoring. Conversely, the T-550-5 is built for hydraulic tanks with a maximum temperature of 212°F but does not list a specific high-pressure rating. Always review the technical specifications provided for each model regarding maximum pressure and temperature to ensure the device is safe for your particular hydraulic or pneumatic system.
What is the purpose of the 4-20mA output on the HTP-450F and UHZ gauges?
The 4-20mA output is an industry-standard analog signal used for remote level transmission. It allows the sensor to communicate real-time level data to a PLC, controller, or remote monitoring station. By providing a continuous signal, these sensors enable automated process management and oversight. If your operation requires integration with a central control system or remote data logging, selecting a model with 4-20mA output capabilities is essential for maintaining accurate, real-time visibility of your tank levels.
Bottom line
When selecting a level indicator, the best fit depends on whether you prioritize local visual verification or automated remote data transmission. For standard hydraulic reservoirs, the T-550-5 Hydraulic Tank Level Gauge is a reliable choice due to its dual-function temperature display and industrial-grade construction. If your requirements involve large-scale industrial storage or hazardous environments, the UHZ Magnetic Level Gauge with remote 4-20mA transmission or the explosion-proof HTP-450F transmitter provides the necessary integration for sophisticated monitoring systems. For agricultural or cylindrical tank applications, the 7183-00027F offers the required flexibility with its adjustable float length, while the 5640S02543P serves as a necessary replacement component for established gauge series, ensuring continued compatibility with existing electrical infrastructure.
Deciding on the right indicator requires matching the device’s mounting and signal protocols to your existing setup. Start by confirming the physical mounting interface, such as the 5-inch centers or 1 ½” MPT threads, to ensure a proper fit. Next, evaluate if you need simple visual readings or electronic data transmission; choose 4-20mA or RS-485 models for automation, and mechanical dials for basic local oversight. Finally, verify the material compatibility and safety ratings, such as temperature limits or explosion-proof certifications, to ensure the gauge can withstand your specific fluid environment. Following these criteria ensures that your chosen level indicator provides accurate readings while maintaining system integrity.
