Top SDS Max 4-Cutter and Core Drilling Solutions for Masonry Projects
Selecting the right drilling accessory for heavy-duty masonry requires matching your tool's shank type to the specific material density and hole diameter needed. SDS Max systems are engineered for high-impact performance in concrete and block, providing the necessary torque and durability for professional-grade results. Whether you are boring small-diameter holes for anchors or drilling large-scale cores for plumbing and electrical lines, the current market offers various carbide-tipped bits and adapter-inclusive kits. This comparison highlights key technical specifications for SDS Max compatible gear, focusing on drilling depth, cutter geometry, and the versatility offered by multi-shank adapter sets to ensure your workshop is equipped for demanding drilling environments.
When evaluating drilling hardware, consider the core construction and compatibility features. Products featuring 4-cutter carbide tips are designed for consistent material removal in reinforced concrete, while dry core bits with multiple shank adapters offer flexibility for users who switch between SDS Max, SDS Plus, and standard hex tools. Understanding the intended drilling depth and material compatibility—ranging from brick and stucco to rebar-reinforced concrete—is essential for project success. The following notes detail specific options, helping you identify which tools provide the necessary reach and structural integrity for your next masonry installation or demolition task.
1. 4" Dry Core Drill Bit, 5/8"-11 Thread, with 3 Adapters Included: SDS Plus, SDS Max and 1/2" Hex Shank - 9.5" Drilling Depth Core Bits for Brick, Block, Concrete, Stucco and Masonry(102mm)
This 4-inch dry core drill bit is designed for masonry tasks requiring a 9.5-inch drilling depth. It features a 5/8-inch-11 thread connection and includes three distinct adapters to accommodate SDS Plus, SDS Max, and 1/2-inch hex shank tools. This versatility allows the bit to function across various power tool platforms, making it a flexible choice for general contractors working with brick, block, concrete, and stucco. The inclusion of multiple shank options simplifies the transition between different rotary hammer setups. With a 4.0 out of 5-star rating, this bit provides a comprehensive solution for users who need to perform large-diameter drilling without the need to purchase separate specialized bits for every tool in their inventory.
Best for: Contractors needing multi-tool compatibility for large-diameter drilling.
Check on AmazonHighlights
- Includes SDS Plus, SDS Max, and 1/2-inch hex adapters
- 9.5-inch drilling depth capacity
- Standard 5/8-inch-11 thread design
- Rated for brick, block, and concrete
Keep in mind
- Requires manual adapter configuration
- Limited to 4-inch diameter applications
2. Diablo Rebar Demon SDS-Max 4-Cutter Carbide-Tipped Hammer Drill Bit
The Diablo Rebar Demon is a specialized SDS-Max 4-cutter carbide-tipped hammer drill bit. Built for high-performance masonry work, this bit is engineered to handle the challenges of drilling through concrete, specifically when encountering rebar. The 4-cutter carbide tip design is intended to improve drilling efficiency and durability compared to standard two-cutter alternatives. Holding a 5.0 out of 5-star rating, this product represents a focused solution for users who prioritize precision and resistance against impact damage when working with reinforced concrete. Its design is optimized for the SDS-Max platform, ensuring a secure fit for high-torque rotary hammer applications where reliability in dense materials is the primary concern for the operator.
Best for: Heavy-duty drilling in reinforced concrete.
Check on AmazonHighlights
- 4-cutter carbide tip geometry
- Optimized for SDS-Max hammer drills
- Engineered for rebar contact
- High user satisfaction rating
Keep in mind
- Lacks adapter versatility for other shank types
- Single-purpose design for specific masonry tasks
3. Milwaukee Electric - SDS MAX 4CT MX4 1-3/8 X 24 X 29
The Milwaukee Electric MX4 is an SDS-Max 4-cutter bit measuring 1-3/8 inches in diameter with a 24-inch drilling length and a 29-inch total length. This bit is designed for deep-hole applications where reach and material removal are critical. As part of the MX4 line, the 4-cutter head configuration is tailored for consistent performance in concrete. The extended length makes this an ideal choice for drilling through thick walls or deep foundation segments. While specific performance metrics are not provided, the bit’s dimensions suggest it is built for professional-grade masonry work that demands both diameter precision and significant depth. It serves as a robust option for users already integrated into the SDS-Max ecosystem.
Best for: Deep-hole drilling in thick concrete walls.
Check on AmazonHighlights
- 1-3/8 inch diameter
- 24-inch drilling capacity
- 29-inch total tool length
- 4-cutter head design
Keep in mind
- No provided user rating data
- Length may be excessive for smaller projects

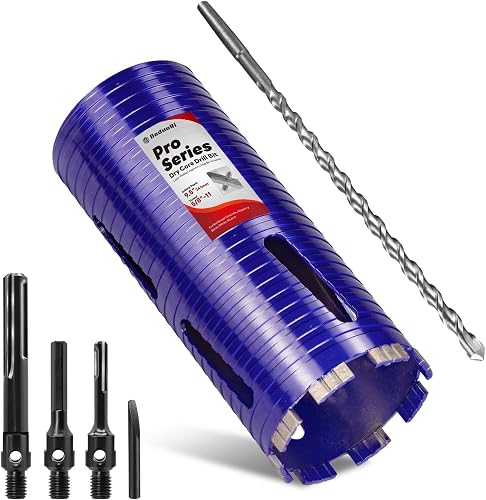

4. 4" Pro Dry Core Drill Bit with Pilot Bit & 3 Adapters (SDS Plus/SDS Max/1/2 Hex), Upgraded Blade Core Bits for Concrete with Rebar, Masonry, Brick, Mortar - 9.5" Depth, 5/8"-11 Thread
This 4-inch Pro Dry Core Drill Bit is designed for heavy-duty masonry, featuring an upgraded blade core and a pilot bit for increased stability. It includes three adapters—SDS Plus, SDS Max, and 1/2-inch hex—offering wide compatibility across different drill types. With a 9.5-inch drilling depth and a 5/8-inch-11 thread, it is suited for concrete, rebar, brick, mortar, and masonry. The addition of a pilot bit distinguishes this model from standard core bits, potentially aiding in hole alignment. Currently holding a 3.6 out of 5-star rating, this tool is positioned for users who need a comprehensive kit to tackle varied materials while maintaining the ability to swap between common drill shanks.
Best for: Users needing a complete kit including a pilot bit for alignment.
Check on AmazonHighlights
- Includes pilot bit for stabilization
- Compatible with SDS Plus, SDS Max, and 1/2-inch hex
- 9.5-inch drilling depth
- Designed for rebar and mortar
Keep in mind
- Mixed user rating compared to other options
- Pilot bit requires extra steps for removal
5. TGFTGF 4-1/2" Concrete Hole Saw Kit, Tungsten Carbide Masonry Hole Saw Kit with 9-27/32" SDS Plus Bit Shank Drill Bit Sets for Concrete, Brick, Stone, Cement, Tile, Wall Drilling
The TGFTGF 4-1/2 inch Concrete Hole Saw Kit provides a tungsten carbide masonry hole saw paired with a 9-27/32 inch SDS Plus shank drill bit. This kit is intended for drilling into concrete, brick, stone, cement, tile, and wall surfaces. It is designed for applications where a larger 4-1/2 inch diameter opening is required. The inclusion of the SDS Plus bit indicates a focus on medium-duty rotary hammer use. With a 4.0 out of 5-star rating, this kit offers a specialized size for users who need to create precise, large-diameter holes in various masonry materials. It is a practical addition for installers who need to accommodate larger pipes or conduits during construction or renovation projects.
Best for: Large-diameter masonry hole cutting for conduits and pipes.
Check on AmazonHighlights
- 4-1/2 inch hole saw diameter
- Includes 9-27/32 inch SDS Plus shank
- Tungsten carbide masonry construction
- Suitable for stone, tile, and cement
Keep in mind
- Limited to SDS Plus shank compatibility
- Diameter may be too large for standard hammer drills
How to choose
Bit Geometry and Cutting Ability
When selecting an SDS-Max tool, consider the cutting design. Products like the Diablo Rebar Demon feature a 4-cutter carbide-tipped head, which is specifically engineered for hammer drilling applications. This design is optimized for performance when encountering reinforced concrete. In contrast, hollow core bits are designed for creating large diameter holes rather than standard drilling. Ensure your bit geometry matches your specific task, whether it is standard masonry penetration or boring through dense materials containing rebar. Always verify the cutter configuration to ensure it aligns with the hardness of the material you intend to drill, as carbide-tipped heads offer superior longevity in abrasive environments like brick, block, and concrete.
Adapter Versatility
Many core drill bit kits, such as those including 5/8-11 threaded connections, provide greater utility by including multiple shank adapters. If you own both SDS-Max and SDS-Plus rotary hammers, look for kits that bundle SDS-Plus, SDS-Max, and 1/2-inch hex shanks. This allows a single core bit to be utilized across different tool platforms without needing separate accessories. These adapters are particularly useful for contractors who move between different power tool systems on a job site. By choosing a kit with inclusive shanks, you maximize the versatility of your core drill bit investment while ensuring compatibility with your current inventory of cordless or corded hammer drills.
Drilling Depth Requirements
Your project scope dictates the required length of your SDS-Max accessory. Core bits like those measuring 9.5 inches in drilling depth are suitable for standard masonry and stucco work, providing enough clearance for block and concrete walls. For deeper applications, such as the Milwaukee SDS MAX 4CT, which reaches 29 inches in total length with a 24-inch drilling depth, ensure your drill has the necessary torque and support to maintain stability. Always check the specific drilling depth of the bit against the thickness of the material to prevent the shank from bottoming out or failing to penetrate the entire surface depth required for your anchors or conduit.
Material Compatibility
Not all SDS-Max accessories are created equal regarding material density. Some bits are rated for brick, block, and stucco, while others are specifically marketed as upgraded versions capable of cutting through concrete with rebar. If your work environment involves reinforced concrete, prioritize bits explicitly labeled for rebar resistance, like the Diablo Rebar Demon or specialized upgraded core bits. Using a bit not designed for steel reinforcement can lead to premature wear or tip damage. Confirm the product description explicitly mentions rebar or steel if your drilling site includes structural concrete, as this is essential for both tool safety and project success.
Diameter and Hole Sizing
The diameter of the bit is a primary factor in tool selection. Options range from standard 1-3/8 inch hammer drill bits to 4-inch or 4-1/2-inch hole saw kits. Larger diameter core bits require significantly more power and stability from your SDS-Max rotary hammer. When selecting a larger bit, ensure your hammer drill is rated for the specific diameter to prevent motor strain. Smaller bits are ideal for mounting hardware, while the larger core bits are necessary for plumbing or electrical conduit installation. Always match the bit diameter to the requirements of your fasteners or conduit to avoid over-drilling and compromising the structural integrity of the masonry wall.
Frequently asked questions
Can I use an SDS-Max core bit on an SDS-Plus drill?
Yes, provided you purchase a kit that includes an SDS-Plus adapter. Several 4-inch dry core drill bit kits currently available come bundled with three specific adapters: SDS-Plus, SDS-Max, and a 1/2-inch hex shank. These adapters allow you to switch between different tool chucks easily. However, ensure that your SDS-Plus drill has sufficient power to handle the diameter of the core bit you are using, as larger bits place a higher load on smaller hammer drills.
Are these bits suitable for drilling through rebar?
Some, but not all, are designed for this purpose. The Diablo Rebar Demon is specifically a 4-cutter carbide-tipped bit engineered for hammer drilling applications involving rebar. Additionally, some upgraded 4-inch pro dry core bits are marketed for concrete that contains rebar. Always review the specific product description to confirm rebar compatibility before purchasing, as using a standard masonry bit on steel reinforcement can cause immediate tip damage and failure of the tool.
What is the difference between a core bit and a standard SDS-Max bit?
A standard SDS-Max bit, such as the Milwaukee 4CT or Diablo Rebar Demon, is a solid-style drill bit used primarily for drilling holes for anchors or through-holes. A core bit, such as the 4-inch or 4-1/2-inch options, is a hollow cylinder designed to cut a circular groove, allowing you to remove a large diameter plug of material. Use solid bits for smaller holes and core bits for larger diameter openings required for pipes or conduit.
Do I need a pilot bit for concrete core drilling?
Yes, many core drill bit kits include a pilot bit as part of the assembly. The pilot bit helps center the core bit on your mark and prevents the heavy cutting edge from 'walking' or wandering across the concrete surface when you begin the hole. For large diameter bits like the 4-inch or 4-1/2-inch masonry saws, using the provided pilot bit is essential for maintaining accuracy and control during the initial stages of the drilling process.
What does the 5/8-11 thread refer to on these bits?
The 5/8-11 thread is a standard industrial connection size used for mounting accessories to power tools. In the context of these core bits, it is the thread type where the shank adapter (SDS-Max, SDS-Plus, or hex) attaches to the core bit body. This universal threading allows you to unscrew one adapter and attach another, making the core bit compatible with various drill types without needing to buy multiple bits for different tool systems.
Bottom line
For professionals requiring high-performance drilling in dense materials, the Diablo Rebar Demon SDS-Max 4-Cutter is the standout choice. Its 5.0-star rating reflects its specialized design for handling reinforced concrete, making it the most reliable option for users facing structural steel. For those needing diameter versatility, the 4-inch Dry Core Drill Bit kits that include triple-shank adapters (SDS-Max, SDS-Plus, and 1/2-inch hex) offer the best value. These kits provide the flexibility to switch between different hammer drill platforms seamlessly. While the Milwaukee SDS MAX 4CT is a robust option for deep-reach applications, the Diablo and the multi-adapter kits cover the widest range of essential masonry tasks with proven user satisfaction.
Deciding between these options depends primarily on your specific diameter needs and material composition. If you are installing anchors or conduit, a solid bit like the Milwaukee 4CT or Diablo Rebar Demon is your best path. If your work involves large-diameter holes for plumbing or HVAC, choose a 4-inch or 4-1/2-inch core bit kit. Always verify that your chosen bit is rated for rebar if you are working on modern structural concrete. Finally, prioritize kits with multiple adapters if you frequently switch between different hammer drill models to ensure your equipment remains as versatile as the job site demands.
