Best Sight Gauge Float Level Indicators for Air Compressors and Tanks
Maintaining proper fluid levels is critical for the longevity and performance of air compressors, hydraulic tanks, and gearboxes. Sight gauge float level indicators provide a visual window into internal liquid levels, allowing operators to monitor system status without disassembly. These components range from simple glass plugs to heavy-duty assemblies featuring integrated float balls for enhanced visibility. Choosing the correct indicator requires matching the specific NPT thread size of your equipment to the material construction of the gauge, such as stainless steel or brass. Whether you require a standard replacement part or a robust industrial-grade monitor, these indicators help ensure your machinery remains properly lubricated and within safe operating parameters.
Selecting the appropriate sight glass involves considering your specific fluid environment and mounting requirements. Some models feature built-in thermometers for additional monitoring, while others prioritize durability through 304 stainless steel construction. It is essential to verify the thread type, such as 1/2-inch or 1-1/2-inch NPT, to ensure a secure, leak-free fit for your tank or compressor. Float balls within these gauges provide a high-contrast visual cue to make level checking straightforward. By reviewing the material compatibility and pressure ratings of these components, you can effectively maintain your workshop equipment and prevent costly mechanical failures due to improper oil or fluid levels.
1. Boltigen Air Compressor Sight Glass, 1/2'' NPT Stainless Steel Oil Sight Glass with Float Ball, Tank Oil Level Sight Window Indicator, Clear Liquid Sight Plug, Perfect Replacement for Air Compressor
This 1/2-inch NPT sight glass is constructed from stainless steel, providing a durable solution for monitoring oil levels in air compressor tanks. It utilizes an integrated float ball to create a clear visual indicator, making it easier to see the fluid level through the sight window. Designed as a direct replacement component, it simplifies the process of upgrading or repairing standard compressor sight windows. The stainless steel build offers resistance against common workshop environments, and the clear plug design ensures that the internal float can be seen from various angles. This unit is specifically tailored for those seeking a reliable, standard-sized replacement that fits common compressor port threads.
Best for: standard air compressor oil level monitoring
Check on AmazonHighlights
- 1/2-inch NPT thread size
- Durable stainless steel construction
- Integrated float ball for visibility
- Designed for direct replacement
Keep in mind
- Limited compatibility outside of 1/2-inch NPT ports
- May not be suitable for high-pressure industrial hydraulic systems
2. Lenz T-LLG-5 Fluid Level Gauge & Thermometer, 6.1" Tall, 1/2-13 UNC Thread | Nitrile Seal, 212 F Max Temp, 44 Max PSI, Transparent Polymide Resin, Petroleum-based Fluids, Gasoline, Diesel, Solvents
The Lenz T-LLG-5 offers a more complex approach to fluid management by combining a level gauge with an integrated thermometer. Featuring a 6.1-inch tall transparent polyamide resin body, this unit is rated for a maximum temperature of 212 degrees Fahrenheit and a maximum pressure of 44 PSI. It utilizes a 1/2-13 UNC thread, distinguishing it from standard NPT-threaded compressor plugs. This gauge is compatible with a wide range of fluids, including petroleum-based oils, diesel, gasoline, and various solvents, making it a versatile choice for hydraulic tanks or specialized machinery. The inclusion of nitrile seals helps maintain a secure connection, ensuring that fluid remains contained even when subjected to diverse chemical environments.
Best for: hydraulic fluid monitoring with temperature tracking
Check on AmazonHighlights
- Integrated thermometer functionality
- 6.1-inch tall viewing window
- Compatible with diesel, gasoline, and solvents
- Includes reliable nitrile seals
Keep in mind
- Requires 1/2-13 UNC threading rather than common NPT
- Pressure rating limited to 44 PSI
3. .500" Dia Green Gauge Glass Float Balls (6-Pack)
These .500-inch diameter green gauge glass float balls are sold in a convenient 6-pack, serving as essential replacement components for existing sight gauge assemblies. They are designed to provide high-contrast visibility within a clear sight glass, helping operators quickly identify fluid levels from a distance. Because these are specific replacement parts, they are ideal for workshops that already possess compatible sight glass housings but require new or spare float elements. The green color is selected to stand out against various fluid types, ensuring that the level indicator remains functional even if the internal oil or liquid has become discolored over time. These are strictly functional components meant for maintenance and repair kits.
Best for: replacing worn or lost sight glass float balls
Check on AmazonHighlights
- High-visibility green color
- .500-inch diameter for standard gauges
- 6-pack quantity for inventory
- Universal fit for compatible housings
Keep in mind
- Does not include the sight glass housing
- Specific diameter may not fit all gauge models
4. 1.5" NPT Sight Glass for Air Compressor with Red Monitor Float Ball | 1-1/2" Heavy-Duty 304 Stainless Steel Liquids Gauge Male Hex Head Oil Indicator Hydraulic Tank Window for Clear Level Viewing
Engineered for heavy-duty applications, this 1.5-inch NPT sight glass is built from 304 stainless steel to withstand demanding industrial environments. It features a red monitor float ball that provides a distinct visual indicator against the clear sight window, allowing for rapid level checks on large hydraulic tanks or air compressors. The male hex head design facilitates easy installation or removal using standard workshop tools. By utilizing high-grade stainless steel, this indicator is intended for long-term use where durability and corrosion resistance are prioritized. Its larger 1-1/2-inch thread size makes it suitable for heavy-duty equipment that requires a larger viewing aperture to accurately monitor internal liquid volumes during operation.
Best for: large-scale hydraulic tank and heavy-duty compressor monitoring
Check on AmazonHighlights
- Robust 304 stainless steel construction
- Large 1.5-inch NPT thread size
- High-contrast red float ball
- Hex head for easy installation
Keep in mind
- Too large for standard small-scale compressor ports
- Requires significant clearance for installation

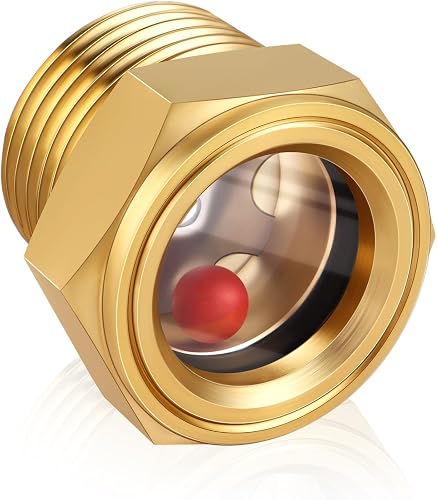

5. Boltigen Air compressor Oil Sight Glass with Float Ball, 1/2'' NPT Hex Head Oil Sight Glass, Brass Bulls Eye Sight Glass Liquid Level Gauge Oil Indicator Window for Air Compressor Gearbox Tank
This Boltigen oil sight glass features a classic brass bulls-eye design, offering a traditional yet effective way to monitor oil levels in gearboxes and air compressors. The 1/2-inch NPT hex head allows for straightforward installation, while the internal float ball ensures that the oil level is clearly visible through the glass window. Brass construction provides a balance of strength and corrosion resistance, making it suitable for standard workshop air compressor maintenance. This indicator is specifically designed to provide a clear, reliable window into the internal fluid status, helping to prevent equipment damage by alerting users to low oil conditions before they lead to mechanical failure or overheating during operation.
Best for: gearbox and compressor oil level monitoring
Check on AmazonHighlights
- Classic brass bulls-eye construction
- Standard 1/2-inch NPT hex head
- Internal float for level indication
- Simple, effective design for maintenance
Keep in mind
- Brass may be softer than stainless steel alternatives
- Limited to 1/2-inch port applications
How to choose
Thread Size Compatibility
The primary requirement for any sight gauge float level indicator is matching the NPT or UNC thread size to your existing tank or gearbox port. Options range from standard 1/2-inch NPT fittings found on many Boltigen air compressor models to larger 1-1/2-inch NPT sizes for heavy-duty applications. Always verify the specific thread pitch and diameter of your equipment port before purchase to ensure a secure, leak-free installation. Mismatched threads can lead to compromised seals or the inability to install the component entirely, so consult your equipment manual or perform a precise measurement of the current port threading.
Material Durability
Construction materials dictate how a sight glass handles pressure, temperature, and chemical exposure. Stainless steel, such as the 304 grade used in heavy-duty indicators, offers high resistance to corrosion and physical impact, making it ideal for harsh industrial environments. For applications involving specific chemical compatibility, consider units made from transparent polyamide resin, which can accommodate petroleum-based fluids, gasoline, diesel, and solvents. Brass options are also available for specific gearbox or air compressor setups, providing a reliable alternative for standard liquid level monitoring. Evaluate the environment the gauge will occupy to ensure the selected material withstands the operating conditions.
Float Ball Visibility
The float ball serves as the visual indicator for liquid levels, making its visibility crucial for quick monitoring. Some indicators feature red monitor float balls, which provide high contrast against the oil or fluid, while others offer green options. These float balls are designed to sit within the sight glass, rising and falling with the fluid level. If you are replacing a worn component, ensure the ball diameter matches your existing sight glass housing. Replacement packs are available for specific diameters, such as .500-inch, allowing you to maintain existing gauge hardware without replacing the entire assembly.
Temperature and Pressure Ratings
Operating limits are critical for maintaining safety and equipment integrity. Fluid level gauges, such as the Lenz T-LLG-5, specify clear maximum temperature and pressure thresholds, in this case, 212 degrees Fahrenheit and 44 PSI. Exceeding these limits can result in seal failure or glass degradation. When selecting a sight gauge, check the manufacturer's provided technical specifications to ensure the unit is rated for your equipment's specific operating environment. Avoid using standard gauges in high-pressure hydraulic systems unless the product explicitly states it meets those requirements, as pressure spikes can cause catastrophic failure of the sight window.
Seal Integrity
The seal is the most vital component for preventing leaks in a sight gauge assembly. Many units utilize nitrile seals, which are effective for maintaining a tight fit with various fuels and oils. The quality and type of seal used in the gauge housing determine the unit's longevity and performance under pressure. Always inspect the connection point for signs of wear or degradation. When installing a new indicator, ensure the seal is properly seated to prevent fluid loss, which is essential for both environmental safety and the continued operation of air compressors, tanks, and hydraulic systems.
Frequently asked questions
Can I replace just the float ball in my existing sight glass?
Yes, provided the replacement float ball matches the diameter required by your specific gauge housing. For example, .500-inch diameter green gauge glass float balls are available for compatible units. Before ordering, measure the interior diameter of your current sight glass or refer to the original manufacturer specifications to ensure the replacement ball will move freely within the chamber without binding or obstructing the view of the fluid level.
What is the difference between brass and stainless steel sight glasses?
The primary difference lies in material durability and chemical compatibility. Stainless steel sight glasses, such as those made from 304 grade, are typically built for heavy-duty applications, offering high resistance to rust and physical stress. Brass sight glasses are often used in air compressor and gearbox applications where a standard, reliable material is sufficient. Both materials serve the same functional purpose, but stainless steel is generally preferred for harsher environments where corrosion resistance is a priority.
Are these sight gauges compatible with all types of fluids?
Compatibility depends on the material of the sight window and the seals. Indicators made from transparent polyamide resin, like the Lenz T-LLG-5, are specifically rated for petroleum-based fluids, gasoline, diesel, and solvents. Always check the product description to ensure the gauge is rated for the specific liquid you are monitoring. Using a gauge with incompatible materials can cause the sight window to cloud, crack, or degrade over time, leading to potential leaks.
How do I ensure I select the correct NPT size for my tank?
To ensure a correct fit, measure the diameter of the port on your tank or compressor. A 1/2-inch NPT fitting is common for many air compressor sight glasses, while larger industrial applications might require a 1-1/2-inch NPT size. If you are unsure, consult your equipment's service manual or technical documentation. Using the wrong thread size will prevent the gauge from sealing properly, which can cause dangerous leaks and loss of internal pressure during operation.
Do these sight gauges include thermometers?
Some models, such as the Lenz T-LLG-5, are designed as combination fluid level gauges and thermometers, providing dual-function monitoring in a single unit. However, many standard sight glasses, such as the Boltigen 1/2-inch NPT models, are designed strictly for visual liquid level indication using a float ball. Review the specific product features to confirm if temperature monitoring is included, as most basic oil sight windows focus exclusively on fluid level visibility.
Bottom line
For users requiring a robust, heavy-duty solution, the 1.5-inch NPT 304 stainless steel sight glass stands out for its durability and clear visibility, featuring a high-contrast red monitor float ball. This unit is ideal for large hydraulic tanks and industrial compressors where a wider viewing window is necessary for maintenance. For standard compressor or gearbox maintenance, the Boltigen 1/2-inch NPT options—available in both stainless steel and brass—offer reliable, plug-and-play functionality. If your needs are specialized, such as monitoring fuel or solvents, the Lenz T-LLG-5 provides essential compatibility with petroleum-based liquids and includes a thermometer for comprehensive system monitoring, making it a versatile choice for complex fluid management systems.
Deciding on the right gauge requires balancing your equipment's port size, operating pressure, and the specific fluid being monitored. Start by identifying the required NPT thread size and material. If your environment involves harsh chemicals or fuels, prioritize polyamide resin units with compatible seals. For air compressors and standard gearboxes, stainless steel or brass units with clear float balls are typically sufficient. Always cross-reference the maximum pressure and temperature ratings of your chosen gauge against your equipment's specifications to ensure safety. When only the float ball is damaged, purchasing a specific replacement set is the most efficient and cost-effective way to restore functionality without replacing the entire assembly.
