Top Transparent Tubular Level Gauges for Industrial and Tank Monitoring
Selecting the right transparent tubular level gauge is essential for accurate fluid monitoring in boilers, process vessels, and fuel tanks. These components are designed to withstand specific environmental demands, ranging from high-temperature industrial heating to standard chemical processing. When choosing between materials like borosilicate glass, polyamide resin, or quartz, it is vital to match the tube's thermal resistance, pressure threshold, and chemical compatibility with your specific application. Whether you require bulk quantities for large-scale maintenance or specialized dimensions for furnace monitoring, understanding the physical specifications of each gauge tube ensures operational safety and prevents premature failure within your fluid management systems.
Our guide compares five distinct tubular gauge options based on their material composition, dimensions, and intended use cases. We have highlighted key features such as high-temperature resistance, chemical compatibility, and structural integrity. By analyzing the physical properties of these components—such as wall thickness and thread specifications—you can better align your requirements with the appropriate hardware. While some options provide bulk volume for frequent replacements, others offer precise, integrated measurement capabilities like built-in thermometers. Review the following notes to identify the best gauge solution for your specific vessel or furnace requirements.
1. Zight Borosilicate Glass Standard Wall Transparent Level Gauge Tube. High-Temperature, Chemical-Resistant Sight Glass Tube for Boilers, Tanks, Process Vessels - 6 pack (0.625, 5/8, Inches, 48, Inches)
These standard wall borosilicate glass tubes are engineered for environments involving boilers, tanks, and process vessels. Measuring 0.625 inches (5/8 inch) in diameter and 48 inches in length, this six-pack provides a significant supply for extended maintenance cycles. Borosilicate glass is selected for its high-temperature and chemical-resistant properties, making it a reliable choice for industrial applications where standard glass might degrade under thermal stress or chemical exposure. The transparent nature of the material ensures clear visibility of liquid levels, which is critical for safety in pressurized or heated environments. By purchasing in a multi-pack, users can maintain a consistent inventory of replacement tubes to minimize downtime during scheduled inspections or unexpected maintenance events in their liquid management systems.
Best for: Boiler and process vessel maintenance requiring multiple 48-inch replacements.
Check on AmazonHighlights
- High-temperature resistant borosilicate glass
- Chemical-resistant material composition
- Standard wall thickness for general use
- Generous 48-inch length per tube
Keep in mind
- May lack the impact resistance of heavy-wall alternatives
- Requires careful handling due to the fragile nature of long glass tubes
2. Lenz T-LLG-5 Fluid Level Gauge & Thermometer, 6.1" Tall, 1/2-13 UNC Thread | Nitrile Seal, 212 F Max Temp, 44 Max PSI, Transparent Polymide Resin, Petroleum-based Fluids, Gasoline, Diesel, Solvents
The Lenz T-LLG-5 is a compact, integrated fluid level gauge designed for versatility in monitoring petroleum-based fluids, diesel, gasoline, and solvents. Standing 6.1 inches tall, this unit features a 1/2-13 UNC thread for installation and is constructed from transparent polyamide resin. A notable feature is the built-in thermometer, which allows for simultaneous monitoring of fluid temperature and volume. With a maximum temperature rating of 212°F and a maximum pressure threshold of 44 PSI, it is suited for moderate industrial or mechanical applications. The inclusion of nitrile seals enhances its compatibility with various fuels and common industrial solvents, ensuring a secure fit and reduced risk of leaks. This unit is a practical solution for those needing a pre-assembled gauge that combines measurement and temperature sensing in one compact footprint.
Best for: Applications requiring combined temperature and level monitoring in small tanks.
Check on AmazonHighlights
- Integrated thermometer for dual-purpose monitoring
- Compatible with diesel, gasoline, and solvents
- Nitrile seals for improved leak resistance
- Compact 6.1-inch height for tight spaces
Keep in mind
- Limited to 44 PSI maximum operating pressure
- Not suitable for high-heat applications exceeding 212°F

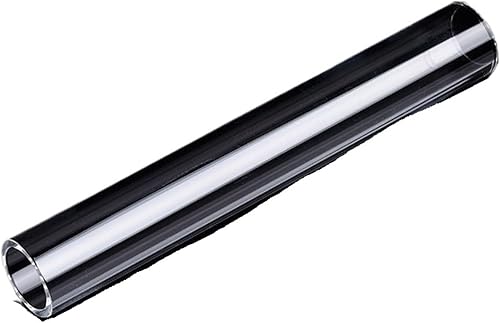

3. High Transparent Quartz Tube & Light Guide Rod Temp Heating Pipe | Tubular Medium Frequency Furnace Liquid Level Gauge(25x2x21x600mm)
Designed for specialized industrial environments, this high-transparent quartz tube serves as a level gauge for medium-frequency furnaces. The tube features specific dimensions of 25mm outer diameter, 21mm inner diameter, and a length of 600mm. Quartz is utilized here for its superior thermal properties and clarity, which are essential for monitoring liquid levels within high-heat furnace systems. The product functions as both a liquid level gauge and a light guide rod, highlighting its utility in complex heating pipe configurations. Because it is built for a medium-frequency furnace, it is engineered to maintain structural integrity under conditions that might compromise standard glass tubes. Its design prioritizes visibility and heat management, making it a technical choice for furnace maintenance and repair technicians who need precise, heat-hardened components for liquid level oversight.
Best for: Medium-frequency furnace liquid level monitoring.
Check on AmazonHighlights
- High-clarity quartz for heat resistance
- Dual-function as gauge and light guide
- Specific 600mm length for furnace pipes
- High-temperature thermal stability
Keep in mind
- Specific dimensions may limit compatibility to furnace equipment
- Quartz material may be more brittle than tempered alternatives
4. Zight Borosilicate Glass Heavy Wall Transparent Level Gauge Tube. High-Temperature, Chemical-Resistant Sight Glass Tube for Boilers, Tanks, Process Vessels - 12 Pack (0.625, 5/8, Inches, 48, Inches)
This 12-pack of heavy wall borosilicate glass level gauge tubes is designed for high-volume maintenance needs in boilers and process vessels. Each tube measures 0.625 inches (5/8 inch) in diameter and 48 inches in length. The 'heavy wall' specification suggests an increased focus on durability and pressure resistance compared to standard wall variants. Borosilicate glass remains the industry standard for these applications due to its inherent resistance to chemical corrosion and extreme temperature fluctuations. Providing 12 units in a single package is advantageous for large-scale operations or facilities that prioritize keeping a large reserve of replacement glass on hand. These tubes offer clear visibility for monitoring liquid levels, essential for maintaining safety and efficiency within pressurized systems where the integrity of the sight glass is paramount.
Best for: Industrial facilities requiring a large stock of durable, heavy-wall gauge tubes.
Check on AmazonHighlights
- Heavy wall construction for increased durability
- 12-pack bulk quantity for large-scale maintenance
- High-temperature borosilicate glass material
- Standard 5/8-inch diameter for common fittings
Keep in mind
- High shipping and storage requirements for 48-inch glass tubes
- Potential for breakage if not installed with proper alignment
5. Zight Borosilicate Glass Heavy Wall Red Line Level Gauge Tube. High-Temperature, Chemical-Resistant Sight Glass Tube for Boilers, Tanks, Process Vessels - 12 pack (0.625, 5/8, Inches, 10.75, Inches)
These Zight heavy wall red line level gauge tubes are designed to enhance visibility when monitoring liquid levels in boilers and process vessels. The red line feature is an intentional design choice to provide a distinct visual indicator, making it easier to read fluid levels from a distance or in low-light conditions. Each tube is 0.625 inches (5/8 inch) in diameter and 10.75 inches in length, coming in a 12-pack for convenient replacement. Like other borosilicate options, these are high-temperature and chemical-resistant, ensuring they hold up against the harsh conditions found in industrial tanks and vessels. The shorter length makes them easier to manage during installation compared to longer tubes, while the heavy wall construction adds a level of structural robustness suitable for pressurized environments.
Best for: Applications where high-visibility red-line readings are preferred.
Check on AmazonHighlights
- Red line design for improved level visibility
- Heavy wall borosilicate glass construction
- Chemical and high-temperature resistant
- 12-pack provides ample replacement inventory
Keep in mind
- 10.75-inch length restricts use to specific vessel sizes
- Red line may become obscured if fluid is heavily opaque
How to choose
Material Composition
Transparent level gauges are manufactured from distinct materials suited for specific environments. Borosilicate glass is favored for its chemical resistance and high-temperature tolerance, making it ideal for boilers and process vessels. Conversely, transparent polyamide resin offers a lightweight alternative for fluid level monitoring in systems involving petroleum-based fluids, diesel, or solvents. When selecting a gauge, verify the material's compatibility with your specific liquid media and pressure requirements to ensure structural integrity. Quartz tubes provide an additional option for specialized high-temperature heating pipes and furnace applications, offering transparency alongside unique thermal properties required for extreme industrial heating environments.
Dimensional Specifications
Precision in measurement is vital when selecting a tubular gauge. Available options range from compact units, such as 6.1-inch or 10.75-inch lengths, to substantial 48-inch tubes designed for larger tanks. Outside diameters typically measure around 0.625 inches or 5/8 inches for standard borosilicate glass variants, while specific industrial quartz tubes may feature custom dimensions like 25x2x21x600mm. Always match the tube length and diameter to your existing equipment mounts or replacement needs. Using the incorrect size can lead to improper sealing or mechanical failure, so confirm the thread size, such as the 1/2-13 UNC thread, before finalizing your purchase.
Temperature and Pressure Ratings
Operational limits are critical for safety and performance. Some gauges, like the polyamide resin model, specify a maximum operating temperature of 212 degrees Fahrenheit and a pressure threshold of 44 PSI. Borosilicate glass is generally recognized for its high-temperature resistance, making it a standard choice for boiler applications. When dealing with process vessels or furnaces, verify that the tube's thermal rating aligns with your system's maximum output. Operating outside these defined parameters can cause the material to weaken, crack, or fail, compromising the safety of your tank or furnace system.
Visibility Features
The primary function of a level gauge is readability. Standard transparent borosilicate glass tubes provide a clear view of liquid levels. For enhanced visibility, some models incorporate a red line design, which helps users quickly identify the fluid level within the tube. For specialized furnace applications, light guide rods are integrated into quartz tubes to facilitate monitoring in low-light or complex industrial settings. Consider the lighting conditions of your workspace and the clarity of the fluid being measured when choosing between a standard transparent tube and a high-visibility, red-lined variant.
Quantity and Maintenance Needs
Consider the scale of your maintenance project when purchasing gauge tubes. Products are available in various quantities, ranging from single units for targeted replacements to 6-pack or 12-pack sets for larger facility upgrades or recurring maintenance cycles. Buying in bulk can be cost-effective if you manage multiple boilers, tanks, or process vessels that require periodic tube replacement. Evaluate the fragility of the material; glass tubes may require more frequent replacement than industrial-grade resins. Ensure you have an adequate supply on hand to minimize downtime when a gauge reaches the end of its functional lifespan.
Frequently asked questions
Which material is best for high-temperature boiler applications?
Borosilicate glass is the preferred material for boiler applications due to its high-temperature resistance and chemical-resistant properties. These tubes are specifically designed to withstand the conditions found in boilers, tanks, and process vessels. When selecting these, ensure the wall thickness—standard or heavy—meets your specific pressure requirements to maintain a safe and reliable seal within your system.
Can I use these gauges with diesel or petroleum-based fluids?
Yes, specific gauges like the Lenz T-LLG-5 are constructed from transparent polyamide resin, which is compatible with petroleum-based fluids, diesel, gasoline, and various solvents. This material is designed to resist degradation when exposed to these chemicals. Always check the specific compatibility of the tube material with your fluid type before installation, as some glass or plastic materials may react poorly to certain chemical compositions.
How do I determine the correct gauge length?
The correct length is determined by the dimensions of your existing mounting hardware or the depth of the tank you are monitoring. Options range from short 6.1-inch or 10.75-inch units for compact systems to 48-inch tubes for larger vessels. Measure your current mounting span or the required sight range carefully. It is essential to choose a tube that matches your specific hardware to ensure a proper, leak-free fit.
What is the benefit of a red line level gauge tube?
A red line level gauge tube is designed to improve visibility. The inclusion of a red line makes it significantly easier for an operator to identify the exact fluid level within the tube at a glance. This feature is particularly useful in environments where the fluid is clear or where lighting conditions may make standard transparent tubes difficult to read quickly during routine inspections.
Do these gauge tubes come with integrated seals?
Some models, such as the Lenz T-LLG-5, include specific components like nitrile seals to ensure a leak-proof connection to your equipment. However, not all listed gauge tubes explicitly include seals in their product descriptions. Always review the included components of your selected model. If seals are not provided, you may need to source compatible gaskets or O-rings separately to ensure a secure installation.
Bottom line
For industrial environments requiring robust performance, the Zight Borosilicate Glass series stands out as the most reliable choice. The heavy-wall 12-pack options provide superior durability for high-pressure and high-temperature scenarios, such as boilers and process vessels. The inclusion of red-line variants further enhances the utility of these borosilicate tubes, allowing for clearer monitoring in demanding conditions. For systems utilizing petroleum-based fluids, the Lenz T-LLG-5 is the superior fit, offering specific compatibility with diesel and solvents while incorporating a temperature-rated nitrile seal. These products represent the most effective solutions for distinct industrial needs, prioritizing material integrity and visibility for long-term operational success in diverse liquid-level monitoring applications.
Deciding between these options requires a focus on fluid chemistry and environmental hazards. Select borosilicate glass for high-heat, high-pressure industrial vessels where chemical resistance is paramount. Choose polyamide resin alternatives specifically when your system involves gasoline, diesel, or solvents that could compromise glass seals or require specific resin compatibility. Always verify the physical dimensions, including tube diameter and length, against your current hardware specifications before ordering. If your application involves high-frequency furnaces, look specifically for quartz-based tubes designed to handle those unique thermal demands. Prioritizing material compatibility over price will ensure the longevity and safety of your gauge installation.
