Top VDO and Veratron Fuel Level Gauges for Marine and Automotive Systems

Affiliate disclosure: ToolzAdvisor may earn a commission from qualifying Amazon purchases. It does not change your price or our editorial criteria.

Choosing the correct fuel level gauge requires matching the specific resistance range of your existing fuel sender to the display unit. Whether you are outfitting a marine vessel or a classic automotive dashboard, selecting compatible hardware is essential for accurate readings. This guide examines a variety of gauges and sensors, ranging from multi-function cockpit displays to dedicated single-station level indicators. Understanding the electrical requirements—such as the 3-180 Ohm or 240-33 Ohm standards—will ensure your fuel system performs reliably. By reviewing the physical dimensions and compatibility specs provided, you can identify the equipment that aligns with your specific installation needs and dashboard configuration.

When upgrading or replacing instrumentation, consider both the mounting diameter and the aesthetic finish of your chosen gauge. The options presented here include 52mm standard sizes and integrated 4-in-1 cockpit units designed to save space in crowded instrument panels. Each product serves a distinct purpose, from the 226-801-015-001G sensor kit designed for marine environments to the specialized Vision and ViewLine series. Carefully verify the Ohm range of your current fuel sender before purchase, as mismatched resistance values will lead to incorrect fuel level reporting. These components offer various dial colors and bezel styles to maintain a professional look while monitoring critical fluid levels.

How this guide was prepared: We compared the supplied product information, feature sets, ratings, and likely use cases. This is an editorial comparison and not a claim of hands-on or laboratory testing.
Best Overall
226-801-015-001G Marine Fuel Level Sensor Single Station W/Seal Kit 432-12/24v - 3-180 Ohm - 150-160mm Length

1. 226-801-015-001G Marine Fuel Level Sensor Single Station W/Seal Kit 432-12/24v - 3-180 Ohm - 150-160mm Length

★ 5.0 out of 5 stars

This marine-grade fuel level sensor is designed for single-station setups and includes a necessary seal kit. It operates on a 12/24V electrical system and features a 3-180 Ohm resistance range, which is a standard configuration for many marine fuel monitoring applications. The unit is specified for a length of 150-160mm, making it suitable for fuel tanks requiring this specific depth range. As a component that is frequently submerged or exposed to marine conditions, the inclusion of a seal kit is a practical addition for installation integrity. With a perfect 5.0-star rating, this sensor is a reliable choice for those needing to replace or install a compatible level-sensing unit in a marine environment.

Best for: Marine vessels needing a 150-160mm depth sensor.

Check on Amazon

Highlights

  • Includes essential seal kit
  • Supports 12/24V systems
  • Standard 3-180 Ohm range
  • Rated 5.0 stars

Keep in mind

  • Length is fixed to 150-160mm
  • Limited to single-station use
Best Value
110-15800 Cockpit Marine 4 in 1 Gauge with Oil Pressure, Water Temperature, Fuel Level and Voltmeter - White

2. 110-15800 Cockpit Marine 4 in 1 Gauge with Oil Pressure, Water Temperature, Fuel Level and Voltmeter - White

★ 3.8 out of 5 stars

The 110-15800 Cockpit Marine gauge is a space-saving 4-in-1 solution that consolidates oil pressure, water temperature, fuel level, and voltmeter readings into a single display. This white-dial unit is designed for marine environments where dashboard real estate is often limited, allowing users to monitor four critical engine parameters simultaneously. While it offers high functionality, it holds a 3.8-star rating, suggesting that users should verify compatibility with their specific engine sensors to ensure accurate readings for each of the four functions. It serves as an effective way to simplify an instrument panel without sacrificing the ability to keep track of essential engine health data during operation.

Best for: Consolidating four engine gauges into one display.

Check on Amazon

Highlights

  • Four-in-one functionality
  • Clean white dial aesthetic
  • Optimizes dashboard space
  • Marine-grade construction

Keep in mind

  • Requires multiple sensor inputs
  • Lower rating compared to single-function units
Best Heavy Duty
Veratron 52MM (2-1/16") ViewLine Fuel Level Gauge 0-1/1-3 to 180 OHM - Black Dial & Round Bezel

3. Veratron 52MM (2-1/16") ViewLine Fuel Level Gauge 0-1/1-3 to 180 OHM - Black Dial & Round Bezel

The Veratron ViewLine fuel level gauge features a 52mm (2-1/16 inch) diameter, making it a standard size for most aftermarket dashboard cutouts. It is designed with a black dial and a round bezel to provide a classic, readable appearance. This unit supports a 3-180 Ohm resistance range, ensuring compatibility with common fuel senders that adhere to this specification. The ViewLine series is engineered for clear visibility, and the 52mm form factor allows for straightforward integration into existing console configurations. Because this model does not currently have a public star rating, users should confirm that their existing fuel sender matches the 3-180 Ohm requirement to ensure the gauge displays fuel levels correctly.

Best for: Standard 52mm gauge hole installations.

Check on Amazon

Highlights

  • Classic black dial finish
  • Standard 52mm diameter
  • 3-180 Ohm resistance
  • Round bezel design

Keep in mind

  • No provided user rating
  • Requires specific 3-180 Ohm sender
Best Ergonomic
301105 Vision Style Fuel Level Gauge 2 1/18" Diameter for Select US Senders, 240-33 Ohms

4. 301105 Vision Style Fuel Level Gauge 2 1/18" Diameter for Select US Senders, 240-33 Ohms

★ 3.9 out of 5 stars

This Vision-style fuel level gauge is designed with a 2-1/16 inch diameter, fitting common mounting holes for instrumentation. It is specifically calibrated for select US senders with a 240-33 Ohm range, which distinguishes it from metric or European-standard gauges. With a 3.9-star rating, it is a recognized option for those working on older or specific domestic marine and automotive electrical systems. The gauge is intended for users who have confirmed their sender operates within the 240-33 Ohm range; using a gauge with the wrong resistance will prevent accurate fuel level indication. It provides a reliable display for systems that utilize this specific, well-established US resistance standard.

Best for: Systems using a 240-33 Ohm US-standard sender.

Check on Amazon

Highlights

  • 240-33 Ohm calibration
  • Standard 2-1/16 inch size
  • Vision-style design
  • Commonly used in US systems

Keep in mind

  • Not compatible with 3-180 Ohm senders
  • Moderate 3.9-star rating
Best for Pros

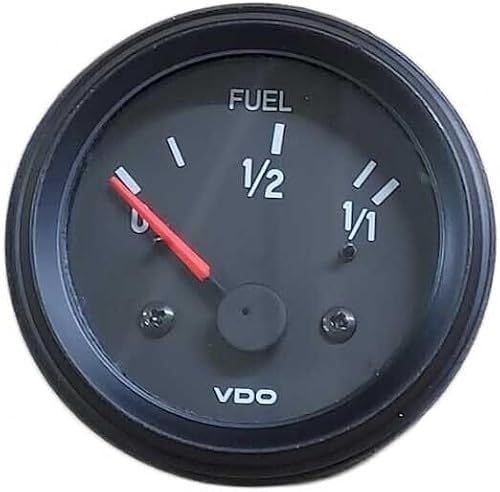

Gauge Fuel Level Genuine Cockpit International 301-93700, 2"/52mm

5. Gauge Fuel Level Genuine Cockpit International 301-93700, 2"/52mm

The Genuine Cockpit International 301-93700 is a dedicated fuel level gauge featuring a 2-inch or 52mm diameter. This size is the industry standard for most automotive and marine dashboard instrument clusters, ensuring it can be swapped into existing locations with ease. As a genuine Cockpit International product, it is built to meet the specifications required for accurate fuel level monitoring. While specific resistance range details are not explicitly stated in the provided record, it is designed for standard instrumentation mounting. Users should verify the electrical compatibility with their current fuel sender before installation to ensure the gauge sweep aligns with their tank's sensor output.

Best for: Direct replacement in 52mm dashboard holes.

Check on Amazon

Highlights

  • Standard 2-inch/52mm size
  • Genuine Cockpit International
  • Designed for clear reading
  • Fits standard console cutouts

Keep in mind

  • Resistance range not specified
  • No user rating available
Buying guide

How to choose

Resistance Compatibility

Matching your fuel level gauge to the correct sender resistance is critical for accurate readings. The VDO and Veratron options support various standards, such as the 3-180 Ohm range found in the 226-801-015-001G Marine Fuel Level Sensor, or the 240-33 Ohm range required for the 301105 Vision Style gauge. Always verify that your existing fuel sender matches the specific Ohm range of the gauge you intend to install to prevent erroneous data or complete signal failure. Mismatched resistance values will prevent the needle from accurately reflecting the fuel level in your tank, rendering the gauge ineffective for monitoring fuel levels during operation.

Gauge Diameter and Mounting

Most standard marine and automotive fuel gauges require a specific dashboard cutout size. Many VDO models, such as the 301-93700 and the Veratron ViewLine, feature a 2-inch or 52mm diameter, which is the industry standard for cockpit instrument panels. Before purchasing, confirm the available space in your console or dashboard. If you are replacing an existing unit, measure the current hole diameter to ensure a flush fit. Some larger multi-function units may require different mounting configurations compared to single-purpose gauges, so check the product specifications for exact housing dimensions and bezel requirements.

Multi-Function vs. Single Function

Decide whether you need a dedicated fuel level gauge or a multi-function instrument. The Cockpit Marine 4-in-1 gauge, model 110-15800, consolidates fuel level, oil pressure, water temperature, and voltmeter readings into a single unit. This is ideal for space-constrained dashboards where mounting four individual gauges is not feasible. Conversely, single-function gauges like the 301-93700 or the Veratron ViewLine are better suited for modular setups where you prefer individual monitoring of specific engine parameters. Consider the layout of your current instrument panel and the specific data points you need to prioritize for your vessel or vehicle's operational safety.

Voltage Compatibility

Electrical systems vary between marine and automotive applications, often utilizing either 12V or 24V power. The 226-801-015-001G sensor is designed to accommodate both 12V and 24V systems, providing versatility for different electrical architectures. When selecting a gauge, verify that the unit is rated for your vehicle's specific voltage. Installing a gauge incompatible with your system's voltage can lead to damage or inaccurate performance. Always consult the product technical data to ensure that both your fuel level sensor and your dashboard gauge are rated for the same electrical range to maintain system integrity and reliable monitoring.

Aesthetic and Dial Design

Instrument gauges contribute significantly to the visual appearance of a cockpit or dashboard. Options like the Veratron ViewLine offer a black dial with a round bezel, providing a clean, modern aesthetic. Alternatively, the 110-15800 Cockpit Marine gauge features a white face, which may be preferred for specific interior themes or improved visibility in certain lighting conditions. Beyond the color, consider the series style, such as the Vision Style 301105, which offers a consistent look if you are matching other instruments in your cluster. Choose a design that complements your existing instrumentation while ensuring the dial markings remain legible under all operating conditions.

Common questions

Frequently asked questions

How do I ensure my fuel gauge is compatible with my current sender?

Compatibility is determined by the Ohm range. You must match the gauge's Ohm range to your specific fuel sender. For example, if your sender operates at 240-33 Ohms, you must use a gauge like the 301105 Vision Style that supports that exact range. Using an incompatible range will lead to incorrect fuel level reporting, such as the needle never reaching full or empty, or moving in reverse. Check your sender specifications before purchasing a gauge.

Can I use the 110-15800 4-in-1 gauge if I only need a fuel level reading?

While the 110-15800 4-in-1 gauge does include a fuel level indicator, it is designed to provide multiple data points, including oil pressure, water temperature, and voltage. If you only require a fuel level reading, a single-function gauge like the 301-93700 or the Veratron 52MM ViewLine would be more cost-effective and simpler to install. A 4-in-1 gauge requires additional connections for the other sensors, which would be unnecessary if you only intend to monitor fuel levels.

Does the 226-801-015-001G sensor come with everything needed for installation?

The 226-801-015-001G Marine Fuel Level Sensor includes a seal kit, which is essential for ensuring a leak-proof installation in your fuel tank. However, this product is the sensor itself, not the display gauge. You will still need to ensure you have a compatible 3-180 Ohm fuel level gauge to receive and display the signal from this sensor. Always verify the tank depth compatibility, as this specific sensor is designed for a 150-160mm length.

What is the standard mounting diameter for these VDO fuel gauges?

Most of the individual VDO and Veratron fuel gauges listed, such as the 301-93700 and the Veratron ViewLine, feature a standard 2-inch or 52mm diameter. This size is the industry standard for most marine and automotive dashboard instrument clusters. When replacing an old gauge, you should expect this size to fit standard existing dashboard cutouts. Always double-check your specific console measurements to ensure the housing depth and bezel width will fit your particular layout.

Are these gauges suitable for both 12V and 24V electrical systems?

Product compatibility varies by model. For instance, the 226-801-015-001G sensor explicitly supports 12V and 24V systems. When selecting a gauge, you must confirm that the specific model is rated for your system's voltage. Some gauges are designed for specific voltages, while others may be dual-voltage. Review the individual product specifications for each gauge to ensure it matches the electrical requirements of your vessel or vehicle to avoid potential damage to the instrument.

Verdict

Bottom line

For those seeking a specialized, high-quality solution, the Veratron 52MM ViewLine Fuel Level Gauge stands out as a robust option for those requiring a 0-180 Ohm range in a standard 52mm footprint. If your project demands a multi-parameter display to save space, the 110-15800 Cockpit Marine 4-in-1 Gauge is the strongest fit, effectively consolidating essential engine data into a single unit. For users working with specific US-standard 240-33 Ohm senders, the 301105 Vision Style gauge provides the necessary compatibility. Each of these options serves a distinct purpose, whether you prioritize the simplicity of a dedicated gauge or the space-saving benefits of a multi-function instrument panel.

Deciding between these fuel gauges depends primarily on your existing hardware and dashboard configuration. First, identify the Ohm range of your current fuel sender to ensure electrical compatibility. Next, measure your dashboard cutout to confirm if a 2-inch (52mm) gauge will fit properly. Finally, assess whether your setup requires a single-function gauge for modularity or a 4-in-1 unit to manage limited mounting space. By aligning the technical resistance specifications and the physical mounting requirements with your current vessel or vehicle setup, you can select the most efficient and reliable instrumentation for your specific needs.
