Top Yellow Jacket and Liquid-Filled Pressure Gauges for HVAC Professionals
Selecting the right pressure gauges requires balancing precision with application-specific requirements. Whether you are maintaining residential HVAC systems or working with high-pressure industrial equipment, the tool's construction dictates its reliability. Liquid-filled gauges provide dampened movement to reduce needle vibration, while specialized kits offer targeted measurement ranges for specific diagnostic tasks. This guide examines a variety of options, ranging from comprehensive manifold sets designed for common refrigerants like R-22 and R-410A to single-purpose gauges built for durability. We focus on the core specifications provided for each unit, including dial sizes, mounting types, and pressure ratings, to help you determine which equipment aligns with your professional diagnostic needs.
When evaluating professional-grade tools, consider the wetted parts and housing materials that contribute to long-term performance. Stainless steel cases and brass fittings are standard for ensuring integrity in harsh workshop environments. For technicians frequently monitoring low-pressure gas or high-pressure liquid lines, the distinction between a dual-scale gauge and a dedicated HVAC manifold is critical. While some tools prioritize versatility through multi-refrigerant compatibility, others excel in niche pressure ranges. By reviewing these specific product features, you can make an informed decision based on the technical requirements of your current projects and the specific pressure limits necessary for safe and accurate system testing.
1. 2026 Upgrade 42004 Test and Charging Manifold for R-22/404A/410A, 60" Hoses | HVAC Manifold Set with 3-1/8" (80 mm) Dual Gauges, 1/4" Standard Flare Fitting, HVAC Color-Coded Gauges Set, 2-Valve
This 2-valve HVAC manifold set is designed for working with R-22, 404A, and 410A refrigerants. It features 3-1/8 inch (80 mm) dual gauges, providing a clear visual interface for technicians during testing and charging processes. The kit includes 60-inch hoses and utilizes 1/4 inch standard flare fittings, which are common across many residential and commercial HVAC applications. By consolidating the gauges and hoses into a single set, this product aims to provide a ready-to-use solution for standard refrigeration cycle diagnostics. The inclusion of color-coded gauges helps in distinguishing between high and low-pressure sides, potentially reducing errors during system maintenance. It serves as a comprehensive diagnostic tool for those operating within the specified refrigerant parameters.
Best for: HVAC technicians performing standard refrigerant charging or testing.
Check on AmazonHighlights
- Includes 60-inch hoses
- Supports R-22, 404A, and 410A
- 80 mm dual gauges for visibility
- Standard 1/4 inch flare fittings
Keep in mind
- Limited to the specified refrigerant types
- May require additional adapters for non-standard systems

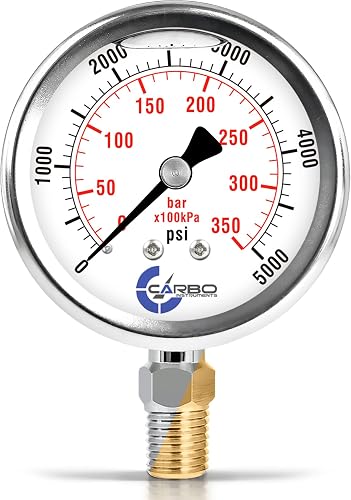

2. 5000 PSI Glycerin Liquid Filled Pressure Gauge, 2.5" Dial, 1/4 NPT Lower Mount, 304 Stainless Steel Case, Brass Wetted Parts, Dual Scale PSI/Bar - ASME B40.1 Grade A
Engineered for durability, this 2.5-inch dial pressure gauge features a 304 stainless steel case and brass wetted parts. It is rated for up to 5000 PSI, making it suitable for high-pressure monitoring applications. The gauge utilizes glycerin filling, which helps dampen vibration and pulsations for more stable needle readings. It is designed with a 1/4 inch NPT lower mount, allowing for straightforward installation in various setups. The dual-scale display provides readings in both PSI and Bar, offering versatility for different technical standards. Furthermore, it adheres to the ASME B40.1 Grade A standard, which speaks to its design for general-purpose pressure measurement. This unit is a robust choice for workshops requiring a reliable, high-pressure visual indicator.
Best for: High-pressure hydraulic or industrial monitoring.
Check on AmazonHighlights
- 5000 PSI pressure rating
- Glycerin-filled for vibration dampening
- Durable 304 stainless steel case
- Dual-scale PSI and Bar display
Keep in mind
- Not intended for low-pressure HVAC gas measurements
- Mounting is restricted to 1/4 inch NPT
3. Yellow Jacket Yellow Jacket 78060 Complete Test Kit, 0-35" W.C
The Yellow Jacket 78060 is a complete test kit specifically calibrated for a range of 0-35 inches of water column (W.C.). This specialized tool is intended for precision measurement in low-pressure applications, which is essential for tasks like verifying gas manifold pressures or checking for leaks in low-pressure systems. As a dedicated Yellow Jacket product, it is built to meet the requirements of professionals who need accurate readings within this specific, narrow range. The kit includes the necessary components for testing, ensuring that users have a self-contained solution for sensitive pressure diagnostics. Its high rating reflects its utility for those requiring fine-tuned measurement capabilities that standard high-pressure gauges cannot provide.
Best for: Gas pressure testing and low-pressure system diagnostics.
Check on AmazonHighlights
- 0-35 inch W.C. range
- Yellow Jacket brand reliability
- Complete kit configuration
- Designed for low-pressure precision
Keep in mind
- Inapplicable for high-pressure hydraulic work
- Range is limited to low-pressure applications
4. Yellow Jacket Gauge, 3 1/8In Dia, Low Side, Blue, 350 psi
This Yellow Jacket low-side gauge features a 3-1/8 inch diameter face, designed for clarity and ease of reading. It is specifically calibrated for the low side of HVAC systems, with a maximum pressure rating of 350 PSI. The blue color coding is standard for low-side identification, helping to prevent confusion during complex system setups. As a standalone gauge, it allows technicians to replace or upgrade existing manifold components without purchasing an entire manifold set. The 3-1/8 inch size is intended to offer a balance between readability and compact form factor, making it a functional addition to a professional toolkit for managing refrigerant pressure within the specified limits.
Best for: Replacing or upgrading HVAC manifold low-side gauges.
Check on AmazonHighlights
- 3-1/8 inch diameter dial
- 350 PSI low-side rating
- Blue color-coded for identification
- Yellow Jacket professional quality
Keep in mind
- Does not include the manifold body
- Limited to low-side pressure applications
5. MEANLIN MEASURE
The MEANLIN MEASURE gauge represents a specialized option in the category of measurement tools. While specific technical dimensions and pressure ranges are not detailed in the available summary, its high user rating suggests consistent performance in its intended application. It is generally categorized alongside other measurement equipment used for precise monitoring in workshop or field environments. Users looking for this specific brand and model should verify the connection type and pressure threshold to ensure it aligns with their existing equipment requirements. Given its status as a highly-rated item, it is likely used by professionals requiring reliable data feedback in their daily operations, though users should consult the physical product markings for exact specifications.
Best for: General workshop measurement and monitoring.
Check on AmazonHighlights
- Highly-rated performance
- Professional measurement utility
- Compatible with various workshop setups
- Reliable feedback for diagnostics
Keep in mind
- Technical specifications are not fully detailed
- May require verification of fitting size before purchase
How to choose
Gauge Diameter and Readability
When selecting pressure gauges, consider the dial size for clear visibility in various lighting conditions. Units like the Yellow Jacket 3 1/8-inch low-side gauge provide a larger display surface, which can aid in reading precise pressure increments. Smaller 2.5-inch gauges, such as the glycerin-filled 5000 PSI model, are compact for tight spaces but may require closer inspection. Always match the dial size to your specific workspace constraints to ensure you can monitor readings effectively without compromising safety or accuracy during HVAC system maintenance.
Liquid-Filled vs. Dry Gauges
Liquid-filled gauges, such as the 5000 PSI model featuring a glycerin fill, are designed to dampen vibrations and pulsations. This internal liquid helps stabilize the needle, leading to more accurate readings in environments where mechanical vibration is present. While dry gauges are standard on many manifold sets, liquid-filled options provide increased durability and longevity for the internal components. If your work involves frequent pressure fluctuations or high-vibration equipment, prioritizing a liquid-filled design can prevent needle jitter and mechanical wear over the lifespan of the tool.
Pressure Range Compatibility
Verify that the gauge's pressure range aligns with your specific application requirements. For HVAC tasks involving R-22, 404A, or 410A refrigerants, manifold sets like the 2026 Upgrade 42004 provide dual gauges suited for standard system pressures. Conversely, specialized tasks like testing gas pressures may require instruments calibrated for lower ranges, such as the Yellow Jacket 78060 complete test kit, which handles 0-35 inches of water column. Always confirm that your chosen gauge is rated for the maximum pressure you expect to encounter to avoid damaging the internal mechanism.
Construction and Material Quality
Material composition dictates the durability of your pressure gauges. Look for 304 stainless steel cases, which offer resistance to corrosion and environmental factors. For wetted parts—the internal components that come into direct contact with the media—brass is a common choice for its balance of performance and compatibility with many refrigerants. Ensure that the gauges you select, such as the ASME B40.1 Grade A rated models, meet recognized standards for precision. High-quality construction materials help protect the tool from external damage and internal degradation during regular use in demanding workshop or field settings.
System-Specific Connectivity
Check the fitting types and hose lengths before purchasing a manifold or individual gauge. The 2026 Upgrade 42004 includes 60-inch hoses and standard 1/4-inch flare fittings, facilitating direct connection to common HVAC service ports. If you are replacing an individual gauge, verify the mount type, such as the 1/4-inch NPT lower mount found on the 5000 PSI glycerin model. Ensuring your fittings match your existing infrastructure prevents the need for additional adapters, which can introduce potential leak points into your testing setup.
Frequently asked questions
Why choose a liquid-filled gauge over a dry one?
Liquid-filled gauges, such as the 5000 PSI glycerin model, are primarily chosen to dampen needle vibration and pointer flutter. The internal liquid absorbs mechanical shocks and vibrations from the equipment being tested, resulting in a steady, easy-to-read needle. This added stability protects the internal movement from excessive wear, which can extend the gauge's service life in high-vibration HVAC or industrial settings.
What does the ASME B40.1 Grade A rating mean?
The ASME B40.1 Grade A rating refers to a specific standard for pressure gauge accuracy. This designation confirms that the gauge meets rigorous testing criteria for precision and performance. When a gauge carries this rating, users can expect a higher level of reliability in its measurements, which is essential for critical tasks like verifying refrigerant pressure or system integrity in professional HVAC environments.
Can I use the Yellow Jacket 78060 for high-pressure refrigerant testing?
No, the Yellow Jacket 78060 complete test kit is designed specifically for low-pressure applications, with a range of 0-35 inches of water column. It is not intended for the high-pressure refrigerant cycles encountered in HVAC manifold sets, which often require gauges rated for hundreds of PSI. Always verify that your gauge's maximum pressure rating exceeds the operating pressure of the system you are servicing.
Does the 2026 Upgrade 42004 manifold set work with R-410A?
Yes, the 2026 Upgrade 42004 manifold set is specifically listed as compatible with R-22, 404A, and 410A refrigerants. This set includes 60-inch hoses and dual 3-1/8 inch gauges, making it a comprehensive tool for technicians working on systems that utilize these specific refrigerants. Always ensure your manifold set is rated for the specific pressure and chemical properties of the refrigerant currently in the system.
Are the gauges in the manifold sets color-coded?
Yes, HVAC manifold sets like the 2026 Upgrade 42004 feature color-coded gauges to help technicians distinguish between the high-side and low-side pressures during operation. This standard industry practice minimizes errors when connecting the manifold to the system service ports. The blue gauge typically represents the low-pressure side, while other colors are used to identify the high-pressure side, simplifying the setup process for complex HVAC maintenance tasks.
Bottom line
The 2026 Upgrade 42004 manifold set emerges as the strongest fit for HVAC professionals requiring a comprehensive, ready-to-use solution for R-22, 404A, and 410A systems. With its 3-1/8 inch color-coded gauges and 60-inch hoses, it provides the necessary reach and readability for standard service tasks. For those prioritizing durability under vibration, the 5000 PSI glycerin-filled gauge offers superior stability due to its liquid-dampened internals. Conversely, the Yellow Jacket 78060 is the definitive choice for specialized low-pressure monitoring, specifically calibrated for 0-35 inches of water column. By selecting based on the specific pressure range and fluid compatibility, users can ensure their tools provide both the precision and the longevity required for demanding field or workshop operations.
Deciding between these tools depends primarily on your specific application needs. If you are performing standard HVAC charging and testing, a complete manifold set like the 2026 Upgrade 42004 provides the best value and connectivity. If you face persistent needle vibration, choose a liquid-filled gauge to protect the internal mechanics. For specialized gas line or low-pressure testing, the Yellow Jacket 78060 remains the appropriate instrument. Always match the gauge's PSI or water column rating to your system’s operating requirements and verify the fitting types—such as 1/4-inch NPT or standard flare—to ensure seamless integration into your existing toolkit without needing extra adapters.
