Essential Kreg Tools and Guides for Building and Installing Cabinet Doors
Building cabinet doors requires precision, especially when it comes to joinery, hardware placement, and final installation. Utilizing specialized jigs can significantly reduce the margin for error, ensuring that your cabinet doors hang straight and operate smoothly. Whether you are working with thin stock for drawer fronts or installing heavy-duty pulls on large doors, selecting the right equipment is critical for achieving professional results in your home workshop. This guide explores a range of Kreg tools designed to simplify the cabinet-making process, from creating strong pocket-hole joints to ensuring consistent hinge alignment, helping you move from the initial design phase to a perfectly finished installation with greater efficiency and accuracy.
When tackling cabinet projects, having the right reference materials is as important as having the right hardware. Incorporating a dedicated guide alongside your jig setup provides a roadmap for joinery and construction techniques. By combining instructional resources with specific tools for hole drilling and door mounting, you can standardize your workflow across multiple projects. This collection of tools and resources focuses on modularity, repeatability, and ease of adjustment, making them suitable for both frameless and face-frame cabinetry. Understanding the specific capabilities of each jig allows you to select the appropriate equipment for your material thickness and hardware configuration, ensuring each cabinet door you build is structurally sound and aesthetically consistent.
1. Cabinet Hardware Jig - Portable Straight Hole Drilling - Precision Drilling Without a Press - Moveable Edge Guide for Accurate Positioning - for Knobs & Small Pulls - KHI-Pull | Portable Straight Hole Drilling, Precision
This portable hardware jig is designed for precision drilling without the need for a drill press. It features a moveable edge guide that facilitates accurate positioning, making it particularly useful for installing knobs and small pulls. By providing a stable template for drilling, this tool helps prevent the misalignment often associated with manual measuring. Its compact design is tailored for smaller hardware, allowing users to achieve consistent hole placement across multiple cabinet doors. The jig is built to assist in tasks that require high repeatability, ensuring that each knob or pull is centered and level. It serves as a practical solution for those looking to upgrade existing cabinetry or finish new builds without relying on complex, stationary machinery to achieve professional-grade hardware placement.
Best for: Installing knobs and small pulls on cabinet doors.
Check on AmazonHighlights
- Moveable edge guide for accuracy
- Eliminates need for a drill press
- Portable design for field work
- Ideal for small hardware sizes
Keep in mind
- Limited to smaller hardware dimensions
- May lack the capacity for oversized pulls

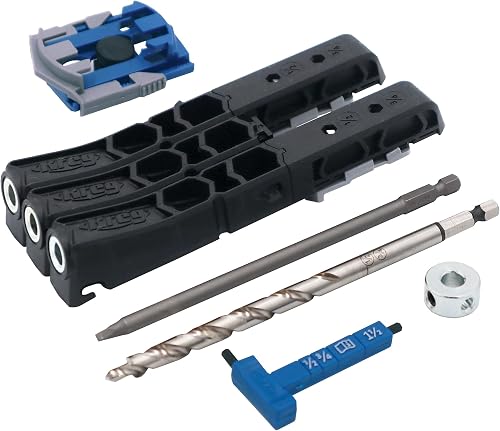

2. KPHJ230 - Kreg Pocket-Hole Jig Micro - Micro Jig for Thin Stock, Cabinets, Drawers & Repairs - 33% Smaller Holes - Create Micro Pocket Hole - For 1/2? & 3/4? Thick Materials | Micro Jig for Thin Stock, Cabinets, Drawers
The KPHJ230 Micro Pocket-Hole Jig is engineered specifically for thinner stock, making it a vital component for building cabinet doors, drawers, and performing delicate repairs. This model produces pocket holes that are 33% smaller than standard versions, which is highly advantageous when working with 1/2-inch and 3/4-inch thick materials. By minimizing the size of the hole, it allows for cleaner joinery on smaller components where larger holes might be unsightly or compromise structural integrity. This jig is a focused tool for woodworkers who prioritize refined aesthetics in their cabinetry. Its design simplifies the assembly of thin-profile doors, providing a reliable method for creating strong, concealed joints that maintain the sleek appearance of modern custom cabinetry.
Best for: Joinery on 1/2-inch and 3/4-inch thick cabinet materials.
Check on AmazonHighlights
- 33% smaller hole footprint
- Optimized for thin stock
- Versatile for repairs and drawers
- High user rating of 4.8 stars
Keep in mind
- Restricted to thinner material thicknesses
- Requires specific micro-sized screws
3. Cabinet Hardware Jig Pro XL - Flexible Large or Compact Hardware Mounting - Convertible Bar System - Repeatable Stops & Modular Design - KHI-PULLPROXL | Flexible Large or Compact Hardware Mounting, Convertible Bar System
The Cabinet Hardware Jig Pro XL offers a versatile, convertible bar system that adapts to both large and compact hardware mounting requirements. Its modular design includes repeatable stops, which are essential for maintaining consistency when installing hardware across a series of cabinet doors. This XL version is intended for users who need flexibility in their setup, allowing for easy transitions between different pull sizes or handle configurations. The ability to adjust the jig for various mounting patterns makes it a robust choice for complex cabinet projects where hardware styles might vary. By utilizing a modular framework, this tool reduces the time spent on repetitive measuring, ensuring that every hole is drilled in the exact same position relative to the door edge.
Best for: Large or varied hardware mounting configurations.
Check on AmazonHighlights
- Modular, convertible bar system
- Integrated repeatable stops
- Flexible for compact and large pulls
- Designed for consistent hole spacing
Keep in mind
- Larger footprint may be cumbersome for small tasks
- Requires assembly of modular components
4. Cabinet Building Made Simple: A Practical Guide to Cabinet Making Featuring Woodworking Tools, Materials, Joinery, Construction, Installation, Finishing, Troubleshooting & 12 Modern Cabinet Projects
This practical guide serves as a comprehensive resource for the cabinet-making process, covering essential topics from initial material selection to final finishing. It provides instruction on various joinery techniques and construction methods, making it a valuable companion for those using Kreg jigs and other workshop tools. The book includes 12 modern cabinet projects, offering readers a way to apply theoretical knowledge to real-world builds. It also addresses troubleshooting and installation, which are often the most challenging aspects for DIY cabinet makers. By detailing the integration of specific woodworking tools into the construction flow, this guide helps users navigate the complexities of building custom cabinets, ensuring they understand the 'why' behind the 'how' for each step of the project.
Best for: Beginners and intermediate builders looking for project blueprints.
Check on AmazonHighlights
- Includes 12 modern project plans
- Covers joinery and finishing
- Includes troubleshooting sections
- Comprehensive construction guide
Keep in mind
- Lacks hands-on physical utility
- Specific projects may not match all aesthetic tastes
5. Cabinet Door Mounting & Installation Jig, Cabinet Door Jig, KHI-CDIJ | For Frameless or Face-Frame Cabinet Doors, Easily Adjustable, Attaches Hinges with Consistent Alignment and Even Spacing
The KHI-CDIJ Cabinet Door Mounting & Installation Jig is designed to simplify the often-frustrating task of attaching hinges to cabinet doors. This tool is compatible with both frameless and face-frame cabinetry, offering a versatile solution for varied workshop setups. It is specifically engineered to ensure consistent alignment and even spacing, which are crucial for doors that hang level and close without rubbing. By holding the hinge in place during the installation process, the jig reduces the need for manual stabilization, allowing for a more efficient workflow. Its adjustable nature makes it a reliable aid for achieving professional results during the final assembly stage of cabinet door construction, helping to ensure that every door is mounted with precision.
Best for: Consistent hinge alignment and door installation.
Check on AmazonHighlights
- Works with frameless and face-frame
- Ensures even spacing and alignment
- Easily adjustable settings
- Highly rated at 4.6 stars
Keep in mind
- Limited to hinge installation tasks
- May not fit non-standard hinge types
How to choose
Pocket-Hole Joinery for Framework
When building cabinet doors, the structural integrity of the frame relies on strong joinery. The Kreg Pocket-Hole Jig Micro (KPHJ230) is designed specifically for thin stock, such as 1/2-inch and 3/4-inch material. Its ability to create micro pocket holes that are 33% smaller than standard versions makes it an ideal choice for delicate cabinet door frames where larger screws might compromise the wood or be visible. Utilizing this jig ensures precise, hidden connections that maintain the aesthetic of your finished door while providing the necessary structural support for long-term durability in kitchen or furniture applications.
Hardware Placement Precision
Installing handles and knobs requires exact measurement to ensure symmetry across all cabinet doors. The Cabinet Hardware Jig (KHI-Pull) provides a portable solution for straight-hole drilling without needing a drill press. Its movable edge guide allows for consistent positioning of knobs and small pulls on door faces. For larger projects or varied hardware sizes, the Cabinet Hardware Jig Pro XL offers a convertible bar system. This modular design features repeatable stops, ensuring that every hole is placed identically across multiple doors, which is critical for a professional appearance in a custom cabinet build.
Streamlined Door Installation
Once the cabinet doors are constructed and finished, mounting them accurately is the final hurdle. The Cabinet Door Mounting & Installation Jig (KHI-CDIJ) simplifies this process by providing consistent alignment and even spacing. Whether you are working with frameless or face-frame cabinets, this adjustable tool assists in attaching hinges securely. By holding the door in the correct position during installation, the jig reduces the frustration of manual alignment, ensuring that doors hang level and operate smoothly without binding against the cabinet box or adjacent doors.
Comprehensive Project Guidance
For those new to the process, having a structured reference is invaluable. 'Cabinet Building Made Simple' serves as a practical guide covering the entire lifecycle of a cabinet project. It includes information on woodworking tools, specific materials, joinery techniques, and construction methods. With 12 modern cabinet projects included, this resource helps bridge the gap between owning individual jigs and executing a complete build. It also covers installation, finishing, and troubleshooting, providing a roadmap that complements the mechanical precision offered by Kreg’s specialized hardware and pocket-hole jigs throughout the assembly process.
Selecting the Right Jig for Thin Materials
Working with cabinet doors often involves thinner wood stock compared to general cabinetry framing. Using standard pocket-hole jigs on thin material can lead to screws blowing out the sides or unsightly large holes. The Kreg Pocket-Hole Jig Micro is engineered specifically to address these challenges. By opting for a tool that creates smaller, more refined holes, you preserve the integrity of thinner door rails and stiles. Selecting equipment that matches your material thickness is essential for achieving a high-quality, professional result that hides the joinery effectively while ensuring the door remains sturdy.
Frequently asked questions
Can I use the KPHJ230 for standard cabinet doors?
Yes, the KPHJ230 Kreg Pocket-Hole Jig Micro is designed to work with 1/2-inch and 3/4-inch thick materials. Since these thicknesses are standard for most cabinet door rails and stiles, this jig is well-suited for your project. It creates pocket holes that are 33% smaller than standard ones, which helps keep the joinery discreet when working with the thinner stock typically found in high-quality cabinet door construction.
Which jig should I use for installing handles on large doors?
For larger cabinet doors or projects requiring versatile hardware mounting, the Cabinet Hardware Jig Pro XL (KHI-PULLPROXL) is the appropriate choice. Its convertible bar system and modular design allow for flexible setups that accommodate both large and compact hardware. The inclusion of repeatable stops ensures that your hole placement remains consistent across every door, which is essential for maintaining a uniform look across your entire cabinetry installation.
Is the Cabinet Door Mounting Jig compatible with all hinges?
The KHI-CDIJ Cabinet Door Mounting & Installation Jig is designed to be easily adjustable to accommodate both frameless and face-frame cabinet styles. It focuses on providing consistent alignment and even spacing for hinges. While it aids in the physical mounting process, always verify that your specific hinge type is compatible with the jig's adjustment range to ensure the best possible results during your door installation phase.
How do I ensure my handles are perfectly straight?
To ensure handles are mounted straight, use a dedicated hardware jig like the KHI-Pull. This tool provides portable, straight-hole drilling capabilities without the need for a drill press. By utilizing the movable edge guide for accurate positioning, you can ensure that knobs and pulls are aligned correctly on the door surface. This removes the guesswork from manual measuring and prevents the misalignment that often occurs when marking holes by hand.
Does the cabinet building guide cover finishing techniques?
Yes, 'Cabinet Building Made Simple' includes detailed information on finishing your projects. Beyond the actual construction and joinery, the guide covers the essential steps for completing your cabinets, including how to finish, troubleshoot, and install them. It provides a comprehensive overview of the entire build process, featuring 12 modern projects that allow you to apply the techniques and tool usage learned throughout the book to real-world cabinet building scenarios.
Bottom line
For the builder seeking a professional finish, the combination of the Kreg Pocket-Hole Jig Micro (KPHJ230) and the Cabinet Door Mounting & Installation Jig (KHI-CDIJ) represents the strongest fit. The micro jig ensures that thin cabinet stock is joined with precision, using smaller, more discreet holes that preserve the wood's integrity. Once the frame is assembled, the KHI-CDIJ provides the necessary support for consistent hinge alignment, ensuring the doors hang perfectly. When combined with the Cabinet Hardware Jig Pro XL for accurate handle placement, these tools create a streamlined workflow that covers the critical phases of door construction, from structural assembly to the final hardware installation and mounting.
Deciding which tool to prioritize depends on your current stage in the cabinet-making process. If you are starting from scratch, the 'Cabinet Building Made Simple' guide is the best starting point to understand the workflow. If your primary challenge is structural joinery on thin doors, the KPHJ230 is the essential choice. For those already at the installation phase, the KHI-CDIJ will save the most time and frustration. Finally, if you are struggling with aesthetic consistency, the KHI-Pull or KHI-PULLPROXL will solve your hardware alignment issues. Assess whether your current bottleneck is in the assembly, mounting, or finishing phase to choose the most impactful tool.
