Top DeWalt Spline Shank Rotary Hammer Bits and Adapter Options

Affiliate disclosure: ToolzAdvisor may earn a commission from qualifying Amazon purchases. It does not change your price or our editorial criteria.

When selecting drill bits for heavy-duty masonry work, understanding shank compatibility is critical for performance and safety. DeWalt spline shank bits are engineered for specific rotary hammer interfaces, providing a secure connection for demanding drilling tasks in concrete, stone, and brick. This selection includes specialized 4-cutter designs that optimize material removal and hole accuracy. Whether you are tackling large-scale professional projects or residential masonry repairs, choosing the correct length and cutter configuration is essential for efficiency. This guide evaluates various spline-compatible options and adapters currently available to help you identify the hardware that aligns with your existing power tool setup and specific project needs.

The market for masonry drilling accessories includes both dedicated spline bits and conversion adapters designed to bridge the gap between different hammer shank standards. While specialized spline bits offer direct compatibility for high-torque applications, adapters allow for greater tool versatility in mixed-tool environments. It is important to note that different bits vary in cutter geometry, which impacts how they handle reinforced concrete or aggregate. By reviewing the specific dimensions and design features of the products listed below, you can better determine which components provide the necessary reach and durability for your workshop requirements.

How this guide was prepared: We compared the supplied product information, feature sets, ratings, and likely use cases. This is an editorial comparison and not a claim of hands-on or laboratory testing.
Best Overall
17-Piece SDS Plus Rotary Hammer Drill Bits and Chisel Set, YG8C Carbide Tips, SDS Plus Bits, Masonry Drill Bit Set for Concrete, Brick and Stone, with Storage Case, Ideal Tool for DIY, Home

1. 17-Piece SDS Plus Rotary Hammer Drill Bits and Chisel Set, YG8C Carbide Tips, SDS Plus Bits, Masonry Drill Bit Set for Concrete, Brick and Stone, with Storage Case, Ideal Tool for DIY, Home

★ 4.7 out of 5 stars

This 17-piece set provides a comprehensive collection of SDS Plus rotary hammer drill bits and chisels. It features YG8C carbide tips, which are designed for masonry applications including concrete, brick, and stone. The set includes a storage case, making it a convenient option for home use or DIY projects where a variety of bit sizes and chisel shapes are required. By offering a multi-piece configuration, this set allows users to transition between drilling and chipping without needing to source individual components separately. The inclusion of SDS Plus bits indicates compatibility with rotary hammers that utilize this specific shank standard, making it a versatile addition to a home tool kit.

Best for: DIYers and homeowners needing a versatile variety of masonry bits.

Check on Amazon

Highlights

  • 17-piece assortment of bits and chisels
  • Durable YG8C carbide tip construction
  • Includes a dedicated storage case
  • Suitable for concrete, brick, and stone

Keep in mind

  • May not be suitable for heavy-duty professional spline hammers
  • Limited information regarding specific bit size ranges
Best Value
Spline to SDS-Max Adapter for Rotary Hammers | Converts Spline Shank to SDS-Max, Universal Fit for All Spline Hammers, Durable CR-MO Steel Construction

2. Spline to SDS-Max Adapter for Rotary Hammers | Converts Spline Shank to SDS-Max, Universal Fit for All Spline Hammers, Durable CR-MO Steel Construction

★ 1.0 out of 5 stars

This adapter is designed to convert a Spline shank interface to an SDS-Max shank, offering a universal fit for spline-compatible rotary hammers. Constructed from CR-MO steel, the unit aims to provide durability during operation. This component is intended for users who need to utilize SDS-Max accessories on a hammer equipped with a Spline chuck. While the product is marketed as a universal solution for spline hammers, it is important to verify the exact compatibility of your specific power tool before use. As an adapter, it acts as an intermediary component, which may impact the total length and transmission of force from the tool to the bit during high-impact drilling tasks.

Best for: Users needing to use SDS-Max accessories on a Spline hammer.

Check on Amazon

Highlights

  • Converts Spline shank to SDS-Max
  • Durable CR-MO steel construction
  • Universal fit for Spline hammers
  • Expands accessory compatibility

Keep in mind

  • Currently holds a low user rating
  • Potential for performance loss compared to direct-fit bits
Best Premium
DW5733 1-3/4-Inch by 17-Inch by 22-Inch 2 Cutter Spline Shank Rotary Hammer Bit

3. DW5733 1-3/4-Inch by 17-Inch by 22-Inch 2 Cutter Spline Shank Rotary Hammer Bit

★ 5.0 out of 5 stars

The DW5733 is a 2-cutter spline shank rotary hammer bit measuring 1-3/4 inches by 17 inches by 22 inches. This bit is specifically engineered for use with spline-compatible rotary hammers, providing a robust connection for drilling large-diameter holes in masonry. The 2-cutter design is focused on efficient material penetration, making it suitable for tasks where consistent diameter and depth are required. Its substantial length allows for deep hole drilling, which is often necessary for anchoring or structural masonry work. As a spline shank accessory, it is built to withstand the torque generated by high-performance rotary hammers, ensuring that the bit remains securely seated during intensive operation.

Best for: Deep, large-diameter drilling in masonry materials.

Check on Amazon

Highlights

  • Spline shank for secure engagement
  • 1-3/4-inch diameter for large holes
  • 22-inch total length for deep drilling
  • 2-cutter design for material removal

Keep in mind

  • Limited to specific spline-only tool chucks
  • Large diameter requires high-power hammer support
Best Compact

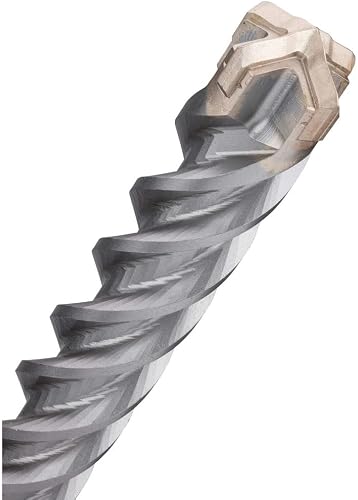

*DEWALT DW5750 3/4X31X36 4CUT SPLINE SHK

4. *DEWALT DW5750 3/4X31X36 4CUT SPLINE SHK

★ 5.0 out of 5 stars

The DW5750 is a 4-cutter spline shank rotary hammer bit with dimensions of 3/4 inch by 31 inches by 36 inches. The 4-cutter design is a key feature, intended to improve hole roundness and drilling speed by distributing the impact force more evenly across the masonry surface. This long-reach bit is suited for deep-hole applications where precision is paramount. The spline shank ensures that the bit remains locked into the rotary hammer, preventing slippage under heavy load. Given its 36-inch length, this bit is an ideal choice for contractors or professionals who need to drill through thick concrete walls or foundations where standard-length bits fall short.

Best for: Deep drilling in concrete requiring high precision.

Check on Amazon

Highlights

  • 4-cutter design for increased accuracy
  • 36-inch overall length for deep access
  • Spline shank compatibility
  • Optimized for concrete drilling

Keep in mind

  • Extended length may increase vibration risk
  • Requires significant clearance for operation
Best for Pros
*DEWALT DW5748 3/4X17X22 4 CUTTER SPLINE

5. *DEWALT DW5748 3/4X17X22 4 CUTTER SPLINE

★ 4.2 out of 5 stars

The DW5748 is a 3/4-inch by 17-inch by 22-inch 4-cutter spline shank bit. Similar to other 4-cutter models, this bit utilizes a multi-edge tip geometry to enhance the efficiency of material pulverization during drilling. The 4-cutter configuration is often preferred for applications involving reinforced concrete, as it helps the bit navigate through aggregate more effectively than a standard 2-cutter design. With a 22-inch length, it provides a balance between reach and stability, making it a reliable choice for standard masonry drilling tasks. The spline shank interface confirms its compatibility with industrial-grade rotary hammers, providing a secure, high-torque connection for consistent performance on the job site.

Best for: Standard-depth drilling in reinforced concrete.

Check on Amazon

Highlights

  • 4-cutter tip for improved drilling efficiency
  • Spline shank for high-torque stability
  • 3/4-inch diameter standard sizing
  • 22-inch length for general masonry tasks

Keep in mind

  • May experience higher wear in extreme aggregate
  • Dependent on spline chuck availability
Buying guide

How to choose

Shank Compatibility

When selecting bits for your hammer drill, verify the shank type. The DEWALT DW5733 and DW5748 feature spline shanks designed for specific rotary hammer interfaces. Avoid confusing these with SDS-Plus or SDS-Max systems. While adapters like the Spline to SDS-Max unit exist, ensure your tool’s drive system matches the bit shank directly for the most secure connection. Using the incorrect shank type can result in improper fitment or operational failure. Always confirm your tool's drive configuration against the bit’s specifications before purchase to ensure compatibility and safe, efficient drilling performance in masonry, concrete, or stone materials.

Cutter Configuration

The geometry of the cutting head significantly impacts drilling efficiency. DEWALT offers 4-cutter spline bits, such as the DW5750 and DW5748, which are engineered for consistent performance. These are distinct from the 2-cutter design found on the DW5733. A 4-cutter head often helps in maintaining a rounder hole profile and navigating through tough concrete more effectively than a standard 2-cutter bit. Consider the density of the material you are drilling; harder aggregate or reinforced concrete may benefit from the specialized geometry of a 4-cutter bit to reduce binding and improve material removal during the drilling process.

Length Requirements

Spline hammer bits come in various lengths to suit different application depths. The DW5733 provides an 18-inch working length with a 22-inch total length, while the DW5750 offers an extended 31-inch working length within a 36-inch total span. Select a bit length based on the depth of the holes required for your anchors or conduit runs. Using a bit that is significantly longer than necessary can increase vibration and decrease stability, whereas a bit that is too short will prevent you from reaching the required depth. Match your bit length precisely to the project’s borehole requirements.

Diameter Precision

Bit diameter must be matched to the specific anchor or fastener being installed. The DEWALT spline options include specific diameters like the 3/4-inch sizing found on the DW5750 and DW5748, or the 1-3/4-inch size of the DW5733. Ensure the diameter aligns with the manufacturer’s recommendations for your chosen fasteners to avoid loose fits or installation difficulties. Precision in diameter selection is critical for the structural integrity of the connection. Refer to your fastener specifications to determine the exact hole diameter required, then select the corresponding spline bit to ensure a proper, secure fit during installation.

Material Suitability

Spline shank bits are designed for heavy-duty applications in hard masonry materials. These bits are appropriate for drilling into concrete, brick, and stone. When comparing sets like the 17-piece SDS-Plus collection, note that those utilize YG8C carbide tips for masonry work. However, for high-torque spline hammers, the dedicated DEWALT spline bits are constructed to withstand the rigors of heavy-duty concrete drilling. Always ensure the bit material and design are rated for the specific substrate you intend to penetrate. Using masonry-rated bits on non-masonry surfaces or vice versa can result in premature bit wear or damage to the power tool.

Common questions

Frequently asked questions

Can I use an SDS-Max bit in a spline hammer drill?

No, you cannot use an SDS-Max bit directly in a spline hammer drill because the shank profiles are incompatible. While a Spline to SDS-Max adapter is available to facilitate certain transitions, it is designed to convert a spline shank interface to accept SDS-Max tools. Always check your specific hammer drill's chuck type. Attempting to force an incompatible bit into a chuck can damage the tool’s drive mechanism and prevent the hammer function from operating correctly during use.

What is the difference between a 2-cutter and 4-cutter bit?

The primary difference lies in the head geometry and material removal capability. The DEWALT DW5733 uses a 2-cutter design, which is a standard configuration for many drilling tasks. In contrast, the DW5750 and DW5748 feature a 4-cutter design. The extra cutters are engineered to provide more consistent performance and better hole geometry, especially when drilling through dense or reinforced concrete. Choosing between them depends on the specific demands of your project and the hardness of the masonry material.

Are these DEWALT bits compatible with SDS-Plus drills?

No, these specific DEWALT spline bits are not compatible with SDS-Plus drills. SDS-Plus and spline are distinct shank systems with different dimensions and locking mechanisms. If your drill requires SDS-Plus bits, you should look for sets specifically labeled for that system, such as the 17-piece SDS-Plus rotary hammer drill bit set. Using a spline bit in an SDS-Plus chuck is physically impossible and could cause damage to the drill if forced improperly.

How do I choose the correct length for my drill bit?

To choose the correct bit length, measure the depth of the hole you need to drill for your specific anchor or application. You must ensure the bit's working length is sufficient to reach the required depth while accounting for the chuck interface. For example, the DW5733 offers a 17-inch working length, while the DW5750 offers 31 inches. Select a length that allows for the necessary penetration without excessive length that could lead to unnecessary vibration or instability during operation.

Are these bits suitable for drilling through metal?

No, these bits are designed specifically for masonry applications, including concrete, brick, and stone. They feature carbide-tipped or hardened steel designs optimized for masonry substrates. Attempting to use these hammer drill bits on metal will result in ineffective drilling and likely damage the carbide tips or the cutting edges of the bit. For metal drilling, you should use specialized high-speed steel or cobalt drill bits designed for metalworking, as they possess the necessary geometry to shear through metallic materials.

Verdict

Bottom line

For users requiring heavy-duty performance in concrete and masonry, the DEWALT DW5750 and DW5733 stand out as the top choices. The DW5750, with its 3/4-inch diameter and 31-inch working length, is ideal for deep-bore applications, while the DW5733 provides a robust 1-3/4-inch diameter for larger holes. Both bits carry a 5.0-star rating, reflecting high user satisfaction regarding their reliability and cutting capability. These spline-shank bits are purpose-built for the high-torque demands of rotary hammers, offering a superior alternative to basic bit sets. When paired with a compatible spline-drive hammer, these DEWALT options provide the durability and precision necessary for professional-grade masonry work, effectively outperforming general-purpose kits in demanding, high-intensity construction or renovation environments.

Deciding between these options requires prioritizing your specific borehole diameter and depth requirements. Start by confirming your tool’s drive system; if you possess a spline-shank hammer, prioritize the DEWALT DW57 series bits for their proven 4-cutter or 2-cutter configurations. If your project demands significant depth, the 36-inch total length of the DW5750 is the most practical selection. Conversely, for projects requiring wider hole diameters, the 1-3/4-inch DW5733 is the appropriate choice. Avoid the Spline to SDS-Max adapter if you have the option to use a direct-fit bit, as direct connections provide better stability and tool longevity. Always match the bit diameter exactly to your fastener specifications to ensure a secure installation.
