Top 5/16-Inch Tap and Drill Bit Combinations for Precise Threading
Selecting the correct drill bit for a 5/16 tap is critical for achieving clean, professional threads in metalworking and fabrication projects. Whether you are working with fine or coarse thread counts, using a pre-matched kit ensures the hole diameter is perfectly sized for your tap, reducing the risk of snapping tools or creating loose connections. Our comparison highlights various options ranging from heat-treated fractional sets to titanium-coated high-speed steel alternatives. By reviewing these specific combinations, you can identify the set that matches your thread pitch requirements and material hardness needs, ensuring your workshop is equipped with the necessary components to complete accurate, reliable drilling and tapping operations without unnecessary guesswork.
When evaluating these tools, consider the specific thread-per-inch requirements of your application, as 5/16 taps come in both fine and coarse varieties. The following selections include specialized combo packs that pair the tap with its corresponding drill bit, simplifying the setup process for both hobbyists and professionals. We have curated these options based on material composition, such as M2 high-speed steel and heat-treated alloys, to help you understand the durability and performance characteristics of each set. Review the features below to determine which kit provides the necessary specifications and compatibility for your specific threading tasks and tool inventory requirements.
1. Century Drill & Tool 94506 Fractional Tap & Drill Combo Pack, 5/16-24 NF | Drill: Staight Tap: .23" shank, Fractional Tap & Drill Combo Pack has, Heat treated and tempered for file hard
This fractional combo pack is specifically designed for 5/16-24 NF (National Fine) threading applications. It features a drill bit and a straight tap paired together, which simplifies the process of finding the correct pilot hole size for fine-thread bolts. The components are manufactured using a heat-treated and tempered process, resulting in a file-hard finish intended for durability during metalworking tasks. The tap is designed with a .23-inch shank. By providing the drill and tap in a single package, this kit reduces the likelihood of selecting an incorrectly sized bit for your tapping operation. It is a straightforward solution for those needing to create fine 5/16-24 threads in standard workshop materials.
Best for: 5/16-24 NF fine thread applications
Check on AmazonHighlights
- Includes both drill and tap
- Heat-treated and tempered construction
- Designed for 5/16-24 NF threading
- Features a .23-inch tap shank
Keep in mind
- Limited to fine thread pitch only
- May not be suitable for heavy-duty industrial use
2. 5/16-18 Ti-Coated Tap and F Drill Bit Set | 5/16"-18 Thread Tap and 6.5mm Drill Set, Made of M2 HSS With a Titanium Coating, Significantly Improving Wear Resistance
This set is tailored for 5/16-18 coarse thread applications, pairing a tap with a 6.5mm drill bit. The tools are constructed from M2 high-speed steel, a material commonly chosen for its balance of toughness and heat resistance. A significant feature of this kit is the titanium coating applied to the surfaces, which is intended to improve wear resistance during operation. This coating helps maintain the sharpness of the cutting edges over repeated uses. By bundling the 6.5mm bit with the 5/16-18 tap, the set provides a complete solution for coarse-threaded fasteners, ensuring the hole is drilled to the correct tolerance for the tap to cut effectively.
Best for: 5/16-18 coarse thread threading
Check on AmazonHighlights
- Constructed from M2 high-speed steel
- Titanium coating for wear resistance
- Includes a 6.5mm drill bit
- Engineered for 5/16-18 threads
Keep in mind
- Titanium coating may wear off over time
- Specific to 18 TPI coarse threads

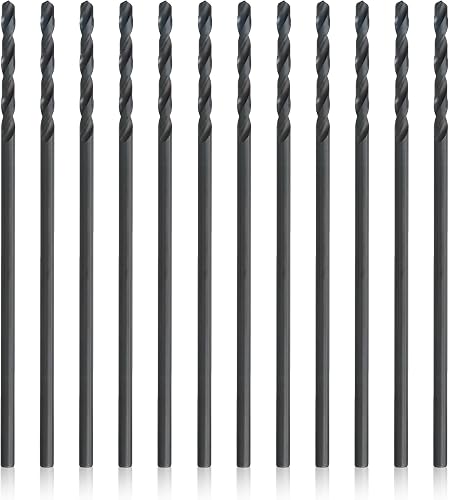

3. Drill America - DWDA/CX63/16 3/16" x 6" High Speed Steel Aircraft Extension Drill Bit (Pack of 12), DWDA/C Series
This package contains 12 individual 3/16-inch drill bits, each measuring 6 inches in length. These are classified as aircraft extension drill bits, belonging to the DWDA/C series. Because of their extended length, they are particularly useful for reaching into deep or restricted areas where standard-length bits cannot access. These bits are composed of high-speed steel, suitable for drilling through various metals. While this product does not include a tap, it serves as a specialized tool for creating pilot holes. Users should note the specific diameter and length when planning their project, as these are intended for reaching specific depths rather than general-purpose, shallow-hole drilling tasks.
Best for: Deep-reach drilling in restricted spaces
Check on AmazonHighlights
- 12-piece pack of drill bits
- 6-inch extended length
- High-speed steel construction
- Aircraft-grade DWDA/C series
Keep in mind
- Does not include a threading tap
- Longer bits can be prone to deflection
4. TOGU 5/8" (16mm) High Speed Steel Drill Bit Spiral Screw Thread Taps Countersink,5 Packs
This set includes five 5/8-inch (16mm) high-speed steel drill bits combined with spiral screw thread taps and countersink functionality. The design integrates multiple functions into the tooling, allowing for drilling and threading operations using a single set. The bits are constructed from high-speed steel, providing the hardness necessary for cutting through standard materials. The spiral flute design on the taps is intended to facilitate chip evacuation during the threading process, which can help prevent clogging. This pack is intended for users who need 5/8-inch sizing for their specific mechanical or assembly needs, offering a versatile approach to hole preparation and thread creation in one package.
Best for: 5/8-inch diameter threading and drilling
Check on AmazonHighlights
- Five-pack configuration
- High-speed steel material
- Spiral tap design for chip control
- Integrated countersink capability
Keep in mind
- Large 5/8-inch size is not for 5/16 projects
- Requires careful alignment for multi-function tools
5. Drill America POU5/8-11 5/8"-11 Tap and 17/32" Drill Bit Kit, POU Series
The Drill America POU5/8-11 kit is a professional-grade pairing consisting of a 5/8-inch-11 tap and a matching 17/32-inch drill bit. This kit is part of the POU series, designed for users who require a specific thread size for larger diameter fasteners. By providing the 17/32-inch bit, the kit ensures the hole is pre-drilled to the correct diameter for the 5/8-11 tap, minimizing the risk of a poor thread fit. This combination is intended for standard threading applications where accuracy and compatibility between the drill and tap are essential. The inclusion of the exact required drill size makes this a convenient, pre-matched option for those working with 5/8-11 coarse threads.
Best for: 5/8-11 coarse threading projects
Check on AmazonHighlights
- Includes matching 17/32-inch drill bit
- Part of the POU series
- Specifically for 5/8-11 threading
- Ensures correct pilot hole tolerance
Keep in mind
- Not compatible with 5/16 threading
- Requires a sturdy drill press for best results
How to choose
Thread Pitch Compatibility
When selecting a drill bit for a 5/16 tap, verify the specific thread count required for your application. The Century Drill & Tool 94506 is designed for 5/16-24 NF (National Fine) threads, while the 5/16-18 Ti-Coated set is engineered for 5/16-18 (Coarse) threading. Using an incorrect tap size or pitch will lead to structural failure of the threaded hole. Always confirm whether your project hardware requires fine or coarse threading before selecting your combo pack to ensure the pilot hole and tap match the intended fastener specifications precisely.
Material and Coating
Durability is determined by the composition of the drill bit and tap. The 5/16-18 Ti-Coated set utilizes M2 High Speed Steel (HSS) with a titanium coating, which is specified to improve wear resistance during operation. In contrast, the Century Drill & Tool 94506 is heat-treated and tempered to achieve a file-hard finish. Selecting a coated bit can be advantageous for extending the life of the tool when working with harder metals, whereas heat-treated HSS provides reliable, standard performance for general drilling and tapping tasks in a workshop environment.
Combo Kit Convenience
Purchasing a tap and drill combo pack simplifies the process of matching the correct pilot hole size to the tap. The Century 94506 and the 5/16-18 Ti-Coated set both provide the necessary drill bit alongside the corresponding tap. This eliminates the guesswork of calculating the appropriate pilot drill size, reducing the risk of errors during the drilling phase. These integrated kits are ideal for users who need a ready-to-use solution for 5/16 threading without sourcing individual components separately from different manufacturers or series.
Size Accuracy and Standardization
Precision is paramount when tapping threads. Kits such as the 5/16-18 Ti-Coated set include a specific 6.5mm drill bit, while other kits like the Drill America POU5/8-11 provide a 17/32" bit for larger 5/8-11 applications. Always verify the included drill bit size against the tap's requirements to ensure proper thread engagement. Using a bit that is too large will result in shallow, weak threads, while a bit that is too small increases the risk of tap breakage due to excessive torque and material resistance during the threading process.
Specialized Application Requirements
Consider the scope of your work when choosing between general-purpose sets and specialized tools. While the Century and 5/16-18 sets are tailored for 5/16 threading, other products like the Drill America DWDA/CX63/16 provide aircraft extension bits for hard-to-reach areas, and the TOGU 5/8" set is intended for larger diameter work. Only select tools specifically labeled for 5/16-inch diameters to ensure the pilot hole diameter is correct for the tap. Mismatched tools will not produce a functional thread, regardless of the quality or the material of the drill bit.
Frequently asked questions
Does a 5/16 tap kit include the drill bit?
Yes, several kits are available that bundle both the tap and the matching drill bit. For example, the Century Drill & Tool 94506 and the 5/16-18 Ti-Coated set both include the necessary drill bit to create the correct pilot hole for a 5/16 tap. This combo approach removes the need to purchase components separately, ensuring that the drill bit diameter is perfectly calibrated for the specific thread pitch of the included tap.
What is the difference between 5/16-18 and 5/16-24 taps?
The difference lies in the thread pitch, which refers to the number of threads per inch. A 5/16-18 tap creates coarse threads, while a 5/16-24 tap creates fine threads. It is essential to select the kit that matches your fastener requirements. The 5/16-18 Ti-Coated set is designed for coarse threading, whereas the Century Drill & Tool 94506 is specifically intended for 5/16-24 NF applications. Using the wrong pitch will prevent your fasteners from threading correctly.
Why use titanium-coated drill bits?
Titanium-coated drill bits, such as those found in the 5/16-18 Ti-Coated set, are made of M2 HSS and coated to significantly improve wear resistance. This coating helps the bit maintain its sharpness and integrity over repeated uses, especially when drilling into harder materials. While heat-treated options like the Century 94506 are also durable and file-hard, titanium coatings offer an additional layer of protection against the friction and heat generated during the drilling process.
Can I use any drill bit for a 5/16 tap?
No, you must use a drill bit that creates a hole of the correct diameter for the tap to cut threads properly. Using an arbitrarily sized bit will lead to either loose, weak threads or a high risk of the tap breaking inside the hole due to excessive resistance. Always use the drill bit provided in a matched combo kit, such as the 5/16-18 Ti-Coated set or the Century 94506, to ensure the pilot hole is sized correctly.
Are these tap sets suitable for all materials?
The suitability depends on the material composition of the bit and tap. Products like the 5/16-18 Ti-Coated set and the Century 94506 are made from HSS or heat-treated steel, which are standard for general drilling and tapping. However, you should always consult the specific technical recommendations for your workpiece material. Avoid using tools on materials harder than the tool's rating, as this can cause premature dulling or tool failure regardless of the specific brand or coating used.
Bottom line
For those requiring a 5/16 tap, the selection between the Century Drill & Tool 94506 and the 5/16-18 Ti-Coated set depends entirely on your thread pitch requirements. The Century 94506 is the superior choice for 5/16-24 NF (National Fine) projects, featuring a heat-treated, file-hard construction designed for durability. Conversely, the 5/16-18 Ti-Coated set is the optimal fit for 5/16-18 (Coarse) applications. This kit utilizes M2 High Speed Steel with a titanium coating to improve wear resistance, making it a reliable option for frequent use. Both products provide the essential convenience of a combined drill and tap set, ensuring the pilot hole is precisely sized to prevent tap breakage during the threading process.
Deciding which product to purchase is a straightforward process based on your project specifications. First, identify whether your hardware requires 18 (coarse) or 24 (fine) threads per inch. If you need 5/16-24, the Century Drill & Tool 94506 is your designated solution. If you require 5/16-18, the Ti-Coated set is the appropriate choice. Disregard other products like the Drill America POU5/8-11 or the TOGU 5/8" set, as these are sized for 5/8-inch applications and will not function for 5/16-inch work. Always prioritize the matching of thread pitch and hole diameter to ensure successful, safe tapping results in your workshop.
