Essential Components for CNC Plasma Cutting and Automated Metal Fabrication
Building an effective CNC plasma cutting station requires a synergy between a reliable power source, precise torch movement, and durable consumables. Whether you are upgrading an existing automated table or assembling a new system, selecting components that integrate well is critical for consistent results. High-performance plasma cutters designed for CNC use prioritize electrical stability to minimize interference, while specialized accessories like anti-collision mounts and circle guides provide the mechanical control necessary for accurate cuts. From heavy-duty blowback units to essential nozzle replacements, these tools support both automated production and manual precision work for metalworkers looking to improve their workshop output.
The following selection highlights core equipment and accessories currently available for plasma cutting applications. This includes versatile power units capable of 110V/220V operation, specialized torch clamps for automated tables, and consumable kits for standard cutting torches. When choosing hardware, consider your specific power requirements and the mechanical constraints of your cutting table. These products offer a range of solutions for plate cutting, gouging, and stencil tracking, ensuring that your cutting station is equipped for diverse project demands while maintaining the necessary safety features for workshop operation.
1. YESWELDER CUT-65DS PLUS Plasma Cutter, 4-in-1 Non-HF Pilot Arc, 110/220V | Plate Cutting, Grid Cutting, Gouging, and Marking Versatility, ETL Certified, IP21 Rating, Overload and Overheat Protection
The YESWELDER CUT-65DS PLUS serves as a versatile plasma cutter featuring 4-in-1 functionality, which includes plate cutting, grid cutting, gouging, and marking. This unit operates on both 110V and 220V power supplies, offering flexibility for different workshop electrical setups. It utilizes a Non-HF Pilot Arc design to reduce electrical interference. Safety and durability are addressed through an ETL certification, an IP21 rating, and built-in protection against overload and overheating. This machine is suitable for users who require a multi-purpose tool capable of handling various metal processing tasks beyond standard cutting. Its design emphasizes adaptability in operation, making it a functional choice for hobbyists or professionals who need to switch between gouging and marking without changing equipment.
Best for: Users needing a versatile multi-function plasma cutter for shop tasks
Check on AmazonHighlights
- 4-in-1 cutting and marking modes
- Dual voltage 110/220V compatibility
- Integrated overload and overheat protection
- ETL certified with IP21 rating
Keep in mind
- Non-HF Pilot Arc may differ from standard high-frequency start experiences
- Performance in heavy industrial production settings remains unverified
2. Circinus Roller Guide, Cutting Torch Roller, Plasma Cutter Torch Circle Cutting Roller, Circle Guide Compass Wheel, Torch Round Cutting Roller Magnetic Wheel Cutter Rule for P80
The Circinus Roller Guide is a specialized accessory designed to improve the precision of circle cutting with a plasma torch. It features a magnetic wheel and a compass-style guide mechanism, which helps maintain a consistent distance and path while maneuvering the torch. This tool is specifically intended for use with P80 torch systems. By providing a stable rolling base, it assists in achieving cleaner, more uniform circular cuts that are difficult to manage freehand. The magnetic wheel feature aids in securing the guide to the metal surface during operation, potentially reducing operator fatigue and improving the accuracy of circular cuts in various metal fabrication projects.
Best for: Manual circle cutting requiring consistent torch positioning
Check on AmazonHighlights
- Magnetic wheel for surface stability
- Designed for P80 torch systems
- Compass-style circular cutting guide
- Assists in maintaining consistent torch distance
Keep in mind
- Limited compatibility outside of P80 torch heads
- Relies on manual stability rather than CNC automation
3. LTP6300DCNC 63A CNC Drag-Cut Blowback Plasma Cutter 110V/220V | Effortless tracking on automated tables or stencils | Slices 3/4-inch steel cleanly with zero electrical noise
The LTP6300DCNC is a 63A plasma cutter specifically engineered for automated tables and stencil tracking. It features drag-cut and blowback technologies, which allow for clean, efficient slicing through 3/4-inch steel. A primary focus of this unit is the reduction of electrical noise, which is essential for maintaining signal integrity when integrated with CNC control systems. It is compatible with both 110V and 220V power inputs, providing installation flexibility. This unit is built to track effortlessly along automated paths, making it a suitable choice for fabricators focusing on CNC-driven projects where precision and noise mitigation are high priorities for consistent, repeatable results.
Best for: CNC automated table integration and stencil tracking
Check on AmazonHighlights
- 63A output for 3/4-inch steel cutting
- Blowback start minimizes electrical noise
- Optimized for automated CNC tables
- Dual voltage 110/220V input
Keep in mind
- Performance may be dependent on compatible CNC table software
- Heavy-duty output requires appropriate electrical circuit capacity

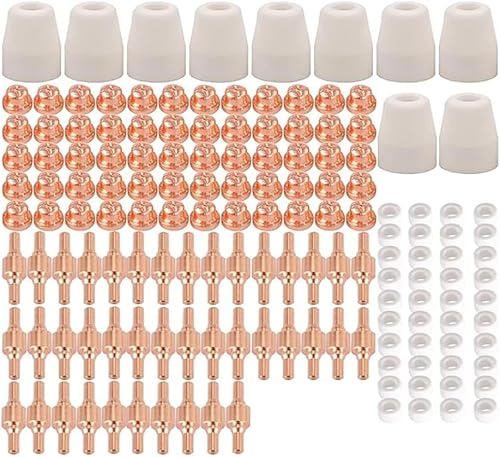

4. plasma cutter accessories 150PCS PT-31 Air Plasma Cutting Nozzle Electrode Consumables for CUT-40 CUT-50D CT-312
This 150-piece accessory kit provides a comprehensive supply of PT-31 air plasma cutting nozzles and electrodes. These consumables are essential for maintaining the performance of compatible plasma cutters, including models like the CUT-40, CUT-50D, and CT-312. Regular replacement of nozzles and electrodes is necessary to ensure consistent arc quality and cutting precision. By stocking a large volume of these wear parts, users can reduce downtime during extended projects. This kit serves as a practical maintenance solution for those utilizing PT-31 torch systems, ensuring that the torch remains in optimal working condition for daily fabrication tasks.
Best for: Maintenance and replacement parts for PT-31 torches
Check on AmazonHighlights
- 150-piece comprehensive consumable set
- Includes both nozzles and electrodes
- Compatible with CUT-40, CUT-50D, and CT-312
- Supports ongoing torch maintenance
Keep in mind
- Specific compatibility limited to PT-31 torch types
- Quality of consumables compared to OEM parts is unknown
5. Plasma Torch Clamp, CNC Plasma Cutter Holder, Plasma Anti Collision Fixture for CNC Plasma and Flame Cutting
The Plasma Torch Clamp is a dedicated holder designed for CNC plasma and flame cutting tables. It features an anti-collision fixture mechanism, which is intended to protect the torch head in the event of an accidental collision with the workpiece or table components. This component is essential for CNC setups where automated movement poses a risk to the torch assembly. By securely clamping the torch and providing a safety breakaway or dampening feature, it helps prevent equipment damage and maintains alignment during long cutting sessions. This holder provides a necessary physical interface between the CNC gantry and the plasma torch, ensuring the torch is positioned securely for accurate cutting operations.
Best for: Protecting plasma torches on CNC cutting tables
Check on AmazonHighlights
- Integrated anti-collision safety fixture
- Designed for CNC plasma and flame cutters
- Secure torch mounting mechanism
- Helps prevent damage from accidental collisions
Keep in mind
- Requires mechanical assembly onto existing gantry
- Compatibility with all torch diameters is not explicitly detailed
How to choose
CNC Compatibility
When selecting equipment for CNC plasma rotary tube cutting, prioritize units designed for automated integration. The LTP6300DCNC 63A CNC Drag-Cut Plasma Cutter is specifically engineered for tracking on automated tables, providing the necessary signal handling for CNC environments. Unlike standard manual cutters, these models focus on maintaining consistent arc stability during machine-led movements. Ensure your chosen cutter supports CNC connectivity to avoid issues with electrical interference, which can disrupt table control systems. Dedicated CNC units facilitate the precise, repeatable motion required for cutting complex patterns on tubes, making them a foundational component for any automated cutting setup.
Torch Mounting and Alignment
Proper torch orientation is critical for rotary tube cutting, where the torch must remain perpendicular to the curved surface. Using a dedicated Plasma Torch Clamp, such as the CNC Plasma Cutter Holder, ensures the torch is rigidly secured to the gantry. These holders often include anti-collision features to protect the torch head if it contacts the workpiece. A stable, adjustable clamp allows for fine-tuning the torch angle, which is essential for achieving clean edges on round tubing. Without secure mounting, the vibration and movement of a rotary axis can cause torch drift, leading to inaccurate cuts and poor joint fitment.
Voltage and Power Flexibility
Versatility in power input is a significant advantage for workshop adaptability. Both the YESWELDER CUT-65DS PLUS and the LTP6300DCNC offer dual-voltage capability, supporting both 110V and 220V power sources. This flexibility allows users to operate equipment in various shop environments without requiring dedicated high-voltage circuits in every location. For CNC rotary applications, consistent power delivery is vital to maintain a steady pilot arc, especially when cutting through varying thicknesses of steel. Assessing your facility's electrical capacity ensures that your plasma cutter receives the stable voltage required for continuous operation during long rotary cutting cycles.
Consumables Management
High-volume cutting, particularly on tubes where pierces may occur frequently, consumes nozzles and electrodes rapidly. Stocking compatible consumables like the 150PCS PT-31 Air Plasma Cutting Nozzle Electrode set is necessary for maintaining downtime efficiency. CNC cutting requires precision-cut consumables to ensure the plasma stream remains focused; worn tips lead to increased kerf width and slag buildup. Check that your specific torch model, such as those compatible with PT-31 or P80 standards, has a reliable supply chain for replacement parts. Keeping an organized inventory of electrodes and nozzles prevents project delays and ensures consistent cut quality across every tube batch.
Auxiliary Guidance Systems
While CNC tables handle primary motion, auxiliary tools assist in specific manual or semi-automated tasks. A Circinus Roller Guide or torch circle cutting roller is useful for secondary operations where a CNC table might not be accessible or for manual adjustments on larger tubes. These guides help maintain a consistent standoff distance from the metal surface, which is essential for preventing erratic arcs. While primarily for manual torch work, understanding how these guides stabilize the cutting head provides insight into the importance of standoff height. For automated systems, prioritize rigid, motorized height control over manual wheel guides to ensure professional-grade results.
Frequently asked questions
Can I use a standard manual plasma cutter for CNC rotary tube cutting?
While some manual plasma cutters may be adapted, they often lack the specialized shielding against electrical noise that dedicated CNC units like the LTP6300DCNC provide. CNC-ready machines are specifically designed to interface with automated tables and rotary axes without disrupting control signals. Using a non-CNC model may result in inconsistent arc performance or interference with the table's software, making dedicated CNC equipment a more reliable choice for achieving high-precision cuts on round tubing.
What is the benefit of a plasma torch anti-collision fixture?
An anti-collision fixture, such as the Plasma Torch Clamp, is designed to protect your cutting torch from damage. In rotary tube cutting, the torch may occasionally come into contact with the workpiece due to slight material irregularities or programming errors. The fixture acts as a break-away or protective mechanism, preventing bent torch bodies or damaged nozzles. This is a critical investment for protecting your equipment during automated operations where the torch is moving along complex, curved paths.
How do I choose the right consumables for my plasma cutter?
Always select consumables that are explicitly compatible with your specific torch model, such as the PT-31 consumables for relevant cutters. Using the correct nozzle and electrode size is vital for maintaining the plasma arc quality. For CNC applications, look for high-precision consumables that ensure a concentrated arc. Regularly replacing these parts prevents poor cut quality, excessive slag, and potential damage to the torch head, ensuring your rotary cutting remains accurate and efficient over time.
Is 110V power enough for CNC plasma cutting?
Many CNC plasma cutters, including the YESWELDER CUT-65DS PLUS and LTP6300DCNC, offer 110V/220V dual-voltage capability. While 110V is convenient, it may limit the maximum thickness of steel you can cut cleanly. For thicker tubes, 220V is generally recommended to provide the necessary amperage for a consistent, powerful arc. Verify the input power requirements of your specific CNC table and the thickness of the material you intend to cut before finalizing your power configuration setup.
Why is arc stability important for rotary tube cutting?
Arc stability is paramount because rotary tube cutting involves continuous, precise movement around a curved surface. If the arc fluctuates, the kerf width will vary, leading to uneven edges and poor joint fitment. Dedicated CNC plasma cutters are engineered to minimize electrical noise and maintain a steady pilot arc. Pairing a stable power source with a rigid torch holder ensures the arc remains consistent, resulting in clean, professional-grade cuts that require minimal post-processing or grinding.
Bottom line
For those transitioning into CNC plasma rotary tube cutting, the LTP6300DCNC 63A CNC Drag-Cut Plasma Cutter stands out as the most capable fit. Unlike general-purpose cutters, this unit is specifically engineered for automated table integration, featuring blowback technology and reduced electrical noise, which is essential for maintaining consistent control when operating a rotary axis. When paired with a dedicated Plasma Torch Clamp with anti-collision features, it creates a robust setup for slicing through steel with high precision. This combination minimizes the common pitfalls of automated cutting, such as signal interference and torch damage, providing a reliable foundation for complex tube fabrication tasks where repeatable, clean edges are required.
When deciding on your equipment, prioritize the specific demands of your CNC table over manual versatility. If your primary goal is tube cutting, focus on units that offer dedicated CNC interface ports and protection against electrical interference. Ensure your chosen torch clamp allows for precise standoff alignment, as this is critical for clean cuts on curved surfaces. Finally, always maintain an ample supply of model-specific consumables to ensure consistent performance. By selecting equipment designed for automation rather than manual use, you will achieve higher accuracy and reduce the frequency of project interruptions during your rotary cutting operations.
