Essential SKILSAW Model 77 Maintenance and Replacement Parts Guide
Maintaining a classic worm drive circular saw requires reliable components to ensure consistent performance on the job site. Whether you are looking to replace worn-out internal hardware or seeking a lightweight tool upgrade, selecting the correct parts is vital for tool longevity. This guide reviews essential maintenance items and the current magnesium model, focusing on components compatible with the legendary Model 77 series. From electrical connections to gear lubrication, these parts are designed to support the heavy-duty nature of professional framing and construction tasks. Understanding which components suit your specific saw variant helps keep your equipment running smoothly and safely during demanding cutting applications.
The SKILSAW Model 77 remains a staple in carpentry due to its robust worm drive design. Proper upkeep involves regular attention to the motor brushes, trigger switches, and internal gear lubrication. By utilizing parts specified for these heavy-duty tools, you can extend the service life of your equipment significantly. This selection includes everything from high-performance lubricants to replacement power cords, ensuring your saw maintains its torque and precision. Whether you are performing a routine overhaul or replacing a damaged part, the following list highlights the necessary components to keep your circular saw operating at its peak potential for years of reliable service.
1. 95104L for SKILSAW Saw Replacement Cord with SPT77WM SPT78W SPT70WM SPT70V SPT55 Circular Saw Heavy Duty Durable Power Cord for SKIL Saw Worm Drive Saw Power Tools M77 77 Parts
This heavy-duty replacement power cord is engineered for compatibility with a wide range of worm drive saws, including the SPT77WM, SPT78W, SPT70WM, SPT70V, and SPT55 models. Designed as a direct replacement for M77 and 77 series parts, this cord is built to withstand the rigorous demands of professional worksites where tools are subjected to constant movement and heavy usage. Its durable construction aims to provide a reliable electrical connection, reducing the risk of power interruptions during critical cuts. By replacing a frayed or damaged cord, you can restore safe operation to your circular saw, ensuring that the tool receives the necessary power to maintain its torque and performance standards during demanding framing or construction projects.
Best for: Restoring power functionality to damaged worm drive saws.
Check on AmazonHighlights
- Compatible with multiple SPT series models
- Designed for heavy-duty durability
- Direct replacement for M77 and 77 parts
- Supports reliable power delivery
Keep in mind
- May require electrical knowledge for installation
- Compatibility limited to specific saw models

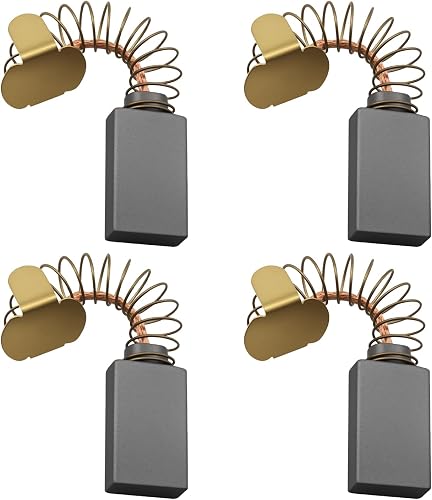

2. 1619x01351 2610320391 1619x07410 Carbon Brushes Replacement Compatible With Skil Hd77 - S77 Cir Saw,1619x08020 1619x07410 Motor Brush For Skil Saw - 4 Pack
These carbon brushes serve as essential maintenance components for Skil HD77 and S77 circular saws. The 4-pack kit includes replacements for part numbers 1619x01351, 2610320391, 1619x07410, and 1619x08020. Carbon brushes are critical for the electrical conductivity of the saw's motor; as these brushes wear down over time due to friction, replacing them is necessary to prevent motor sparking, loss of power, or complete saw failure. This kit provides a convenient solution for users looking to perform routine motor maintenance, ensuring that the armature maintains consistent contact. Keeping a set of these brushes on hand can help minimize downtime when your saw begins to show signs of motor fatigue or reduced performance during operation.
Best for: Routine motor maintenance and restoring electrical contact.
Check on AmazonHighlights
- Includes 4 replacement brushes
- Compatible with HD77 and S77 models
- Covers multiple part number references
- Essential for preventing motor power loss
Keep in mind
- Requires disassembly of the motor housing
- Brushes wear down at variable rates
3. Worm Drive Saw Lubricant, Black- 80111 | Gear Protection | Smooth Operation | Reduces Friction | High Performance | Maintenance Formula | OEM Quality
Proper gear lubrication is vital for the longevity and smooth operation of any worm drive saw. This black maintenance formula is designed to reduce friction within the gear housing, which is critical for maintaining the high-performance standards of professional power tools. By using an OEM-quality lubricant, users can help protect internal components from excessive heat and wear, ensuring the saw operates efficiently over long periods of use. Regular application of this gear protection formula helps maintain the torque and mechanical output required for heavy-duty cutting tasks. It is a straightforward maintenance necessity for any workshop, providing the lubrication needed to prevent premature degradation of the gears and to ensure the saw continues to perform reliably under load.
Best for: Preventative maintenance for worm drive gear systems.
Check on AmazonHighlights
- Reduces internal friction
- OEM-quality formula
- Protects gear longevity
- Essential for smooth operation
Keep in mind
- Requires periodic re-application
- Must be used with specific gear housing access
4. Magnesium Lightweight Worm Drive Circular Saw - 7 1/4in. 15 Amp, Model Number SPT77WML-22
The SPT77WML-22 is a 7 1/4-inch circular saw featuring a magnesium construction designed to be lightweight without sacrificing the durability expected of a worm drive tool. Equipped with a 15-amp motor, this model is built for high-torque applications, making it a suitable choice for framing and heavy-duty cutting. The magnesium components help reduce the overall tool weight, which can assist in decreasing user fatigue during extended periods of operation on the job site. This model maintains the classic worm drive configuration, known for its power and precision in professional settings. It provides a modern, lighter-weight alternative for those who rely on the traditional performance of the Model 77 but require a more maneuverable tool for daily construction projects.
Best for: Professional framing and heavy-duty cutting tasks.
Check on AmazonHighlights
- Lightweight magnesium construction
- Powerful 15-amp motor
- Standard 7 1/4-inch blade capacity
- Classic worm drive configuration
Keep in mind
- Lighter weight may feel different than older steel models
- Requires standard power cord maintenance
5. Trigger Type Skil Saw Switch SW77 for HD77 or HD77M
This trigger-type switch, identified as model SW77, is a specific replacement part designed for the Skil HD77 and HD77M circular saws. The trigger switch is a primary control component that governs the power flow to the motor. Over time, the internal contacts of a trigger switch can degrade, leading to intermittent tool operation or an inability to turn the saw on or off reliably. Replacing a faulty switch is a standard repair that restores control and safety to the operator. This component is built to match the specifications of the HD77 series, ensuring a proper fit and function. It serves as a necessary replacement for technicians or users performing repairs on saws that have experienced control issues due to heavy wear.
Best for: Repairing faulty power triggers on HD77 series saws.
Check on AmazonHighlights
- Designed for HD77 and HD77M models
- Trigger-type activation
- Restores power control
- Direct fit replacement
Keep in mind
- Installation requires opening the handle assembly
- Electrical wiring precision is mandatory
How to choose
Model Selection
When choosing a Skilsaw model 77, prioritize the specific model number to ensure component compatibility. The SPT77WML-22 is a prominent magnesium lightweight worm drive circular saw. Other legacy models, such as the HD77 and S77, require specialized internal parts like specific carbon brushes or trigger switches. Always verify your current tool's model designation against the parts list before purchasing replacements to ensure a proper fit. Matching the exact model ensures the mechanical integrity of the worm drive system and maintains the tool's intended performance specifications during heavy-duty cutting tasks on the job site.
Power Cord Integrity
The power cord is a critical connection point for high-torque tools like the SPT77WM, SPT78W, and SPT70WM. Over time, heavy-duty usage can lead to frayed or damaged wiring. Replacement cords, such as the 95104L, are designed to restore electrical connectivity to these specific worm drive saws. When selecting a replacement, confirm it is rated for the high-amperage demands of a 15-amp motor. A robust, durable cord ensures consistent power delivery, which is essential for maintaining the cutting efficiency and safety of your circular saw during demanding construction projects.
Motor Maintenance
Regular motor maintenance is essential for extending the service life of Skil HD77 and S77 models. Carbon brushes, such as the 1619x01351 or 1619x08020, eventually wear down and require replacement to maintain electrical conduction within the motor housing. Purchasing these in multi-packs, such as the 4-pack option, allows for proactive maintenance. Monitoring your saw’s performance for signs of power loss or inconsistent operation can help identify when it is time to install fresh brushes, ensuring the motor continues to operate at peak efficiency.
Lubrication Requirements
Worm drive saws rely on specialized gear lubrication to function correctly. Using OEM-quality lubricants, such as the 80111 formula, is necessary to reduce friction between the internal gears. Proper lubrication promotes smooth operation and protects the gear train from premature wear. Because worm drive saws generate significant heat and stress during operation, applying the correct maintenance formula is a vital step in preserving the tool's internal components. Regular lubrication cycles help keep the drivetrain running quietly and efficiently, preventing the gear binding that can occur with improper or neglected maintenance.
Electrical Component Reliability
The trigger switch is the primary interface for operating your saw. Models like the HD77 and HD77M use specific trigger-type switches, such as the SW77, to manage power engagement. If a saw fails to start or experiences intermittent power, the switch is often the culprit. Replacing a faulty switch with an exact-match component restores reliable control. When sourcing electrical parts, focus on compatibility with your specific model number to ensure the trigger assembly fits the handle housing correctly and functions safely according to the original design specifications.
Frequently asked questions
How do I know which carbon brushes fit my Skil saw?
To identify the correct carbon brushes, you must match the part numbers specifically listed for your Skil model, such as the HD77 or S77. Reference the manufacturer's part numbers like 1619x01351 or 1619x07410. Using these specific identifiers ensures the brushes are the correct size and conductivity for your motor. Never guess based on appearance alone, as different Skil models require unique brush dimensions and spring configurations for proper operation.
Is the SPT77WML-22 a lightweight option?
Yes, the SPT77WML-22 is marketed as a magnesium lightweight worm drive circular saw. It features a 15-amp motor, which provides standard power while utilizing magnesium components to reduce the overall weight of the tool. This design is intended for users who need the torque and performance of a traditional worm drive saw but prefer a more manageable weight for extended periods of cutting work on the job site.
Why is gear lubricant important for a worm drive saw?
Worm drive saws utilize a specific gear arrangement that requires consistent lubrication to operate smoothly. Using a high-performance formula, such as the 80111 lubricant, is essential to reduce friction and heat buildup between the gears. Proper lubrication protects the internal gear teeth from excessive wear, ensuring the longevity of the drive system and maintaining the smooth, high-torque performance expected from a professional-grade saw.
Can I use the same power cord for different Skilsaw models?
Not necessarily. While some replacement cords, such as the 95104L, are compatible with a range of models like the SPT77WM, SPT78W, and SPT70WM, you must verify that your specific model number is listed as compatible. Using an incompatible cord can lead to improper fitment, electrical hazards, or failure to deliver the required amperage to the motor. Always check the product description to confirm your saw model is explicitly supported.
What are the signs that my Skil saw switch needs replacing?
If your Skil HD77 or HD77M saw fails to turn on when the trigger is pulled, or if the saw operates intermittently, the trigger switch may be worn or damaged. The SW77 trigger-type switch is the specific replacement part for these models. If testing confirms the power supply and cord are functional, replacing the switch is the standard procedure for restoring reliable power engagement and tool operation.
Bottom line
The SPT77WML-22 Magnesium Lightweight Worm Drive Circular Saw stands out as the primary tool choice for those seeking a modern, high-performance cutting solution. Its 15-amp motor delivers the necessary power for heavy-duty applications, while the magnesium construction offers a distinct advantage for portability. To keep this or legacy models like the HD77 in peak condition, users should rely on model-specific maintenance components. Whether it is replacing a worn 95104L power cord, installing fresh 1619x01351 carbon brushes, or applying 80111 gear lubricant, these parts are essential for maintaining the tool's original performance standards. Investing in these OEM-quality replacement parts ensures your saw remains reliable, safe, and efficient for long-term construction projects.
Deciding which items to purchase depends entirely on the specific status of your current tool. First, identify your saw's model number, such as HD77 or SPT77WML-22, to confirm part compatibility. If you are experiencing performance drops, prioritize motor brushes or trigger switches. If the saw has been in storage or shows signs of stiff operation, a fresh application of worm drive lubricant is the best starting point. For those dealing with frayed or intermittent power, replacing the cord with the correct model-specific unit is a priority. Always prioritize parts explicitly labeled for your model to ensure a precise, safe, and functional repair.
