Top-Rated Thread Cutting Die Heads and Tap Kits for Workshop Projects
Selecting the right equipment for thread cutting depends heavily on the specific material diameter and thread type required for your project. Whether you are performing routine maintenance on existing fasteners or creating new threads on metal piping, the tool selection ranges from versatile master sets to specialized, single-purpose die heads. For general shop versatility, comprehensive sets provide a wide array of sizes for both SAE and metric applications. Conversely, heavy-duty pipe work often demands dedicated, industrial-grade die heads designed for high-torque environments. Understanding the distinction between fractional external dies and specific pipe threading attachments is essential for achieving precise, clean results while maintaining the integrity of your hardware.
This guide evaluates several prominent threading solutions available on the market, focusing on functionality and user-reported satisfaction. We examine professional-grade manual die heads, ratcheting pipe threaders, and fractional dies intended for specific thread restoration or creation. When choosing between these options, consider the frequency of use and the required thread pitch. While master sets offer broad utility for varied automotive or mechanical tasks, specialized components provide the reliability needed for plumbing and structural pipe installations. By matching the tool's specifications to your specific thread pitch and pipe size, you can ensure accurate results and avoid the common pitfalls associated with improper thread engagement.
1. 60-Pc Master Tap and Die Set - Include SAE Inch Size #4 to 1/2” and Metric Size M3 to M12, Coarse and Fine Threads | Essential Threading Rethreading Tool Kit with Complete Accessories and Storage Case
This 60-piece master set serves as a comprehensive resource for users needing to handle both SAE and metric threading requirements. The kit covers a broad spectrum of sizes, ranging from #4 to 1/2-inch for inch-based threads and M3 to M12 for metric applications. By including both coarse and fine thread options, the set provides the necessary versatility for a wide variety of mechanical tasks, including rethreading damaged bolts or creating new internal and external threads from scratch. The inclusion of complete accessories and a dedicated storage case helps keep the various taps and dies organized, which is particularly beneficial for workshop environments where component loss can be a frequent issue. With a solid 4.5-star rating, it stands out as an essential starter or supplementary kit for those requiring broad, multi-purpose threading capabilities in a single, convenient package.
Best for: DIYers and mechanics needing broad SAE and metric thread coverage.
Check on AmazonHighlights
- Covers SAE sizes #4 to 1/2-inch.
- Includes metric sizes M3 to M12.
- Features both coarse and fine threads.
- Supplied with a dedicated storage case.
Keep in mind
- May lack the industrial durability of dedicated single-purpose heads.
- Individual components may be less robust than specialized professional tooling.
2. HFS(R Pipe Threading Tool Ratchet Pipe Threader Dies Ratcheting Pipe Threading Tool Kit Replacement 1-1/2" for Professional Cutting & Pipe Threaders
Designed for professionals, this ratcheting pipe threading tool kit provides a 1-1/2 inch replacement die head for standard pipe threading applications. The ratcheting mechanism is intended to simplify the cutting process, allowing for easier operation in tighter spaces where a full rotation of a standard handle might be obstructed. As a dedicated pipe threading solution, it focuses on the specific requirements of professional cutting tasks. Its 4.3-star rating reflects its utility in plumbing or mechanical scenarios where consistent pipe threading is required. By focusing on a specific size, this tool aims to provide a reliable, dedicated solution for technicians who frequently work with 1-1/2 inch pipe diameters and require a tool that prioritizes mechanical advantage during the cutting stroke.
Best for: Professional plumbers or contractors working with 1-1/2 inch piping.
Check on AmazonHighlights
- Ratcheting action eases cutting effort.
- Dedicated 1-1/2 inch pipe threader.
- Designed for professional pipe cutting.
- Includes essential replacement die head.
Keep in mind
- Limited to a specific pipe diameter.
- May require additional accessories not included for full operation.
3. RIDGID 37405 Model 12-R Hand Threader Die Head, Alloy Right-Handed NPT Die Head for Nominal Pipe Size of 1-1/4-Inches,Red,Small
The Model 12-R hand threader die head is a precision component engineered for 1-1/4 inch nominal pipe size applications. This alloy, right-handed NPT (National Pipe Taper) die head is built for compatibility with standard 12-R threading systems. Its design prioritizes durability and precision, making it a staple for professionals who need reliable, clean NPT threads on a consistent basis. With a 4.5-star rating, it is recognized for its specialized construction and ability to handle standard pipe threading tasks effectively. The unit is easily identifiable by its red color and compact form factor, ensuring it integrates seamlessly into existing RIDGID tool setups. This die head is a focused tool, intended for users who have standardized their workshop around 12-R equipment and require high-performance threading for specific pipe installations.
Best for: Users of RIDGID 12-R systems needing 1-1/4 inch NPT threads.
Check on AmazonHighlights
- Engineered for 1-1/4 inch nominal pipe.
- Right-handed NPT configuration.
- Compatible with 12-R threading systems.
- Durable alloy construction.
Keep in mind
- Restricted to a single pipe size and thread type.
- Requires compatible 12-R handle assembly.

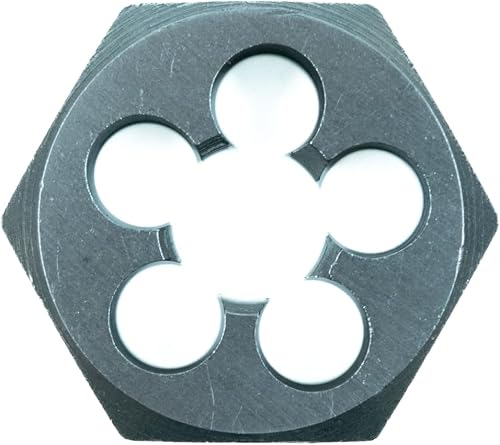

4. Century Drill & Tool 98213 Fractional Die, 5/8-11 NC | 1-7/16" across flats, external thread cutting, thread restoration
This fractional die from Century Drill & Tool is a specialized cutting tool designed for 5/8-11 NC (National Coarse) threads. Measuring 1-7/16 inches across the flats, it is specifically intended for external thread cutting and the restoration of damaged threads on bolts or rods. The 4.6-star rating suggests a high level of user satisfaction regarding its cutting performance and dimensional accuracy. Because it is a single-purpose tool, it is best suited for workshop environments where specific fastener sizes are frequently encountered or when precise thread repair is necessary to salvage expensive hardware. Its design focuses on the necessary hardness and geometry to provide a clean cut, making it a reliable choice for mechanics or fabricators who need to maintain, repair, or create specific coarse-thread external connections.
Best for: Thread restoration and external cutting of 5/8-11 NC fasteners.
Check on AmazonHighlights
- Precise 5/8-11 NC thread specification.
- Standard 1-7/16-inch across flats measurement.
- Ideal for thread restoration tasks.
- Robust design for external cutting.
Keep in mind
- Limited to one specific thread size and pitch.
- Requires a compatible die handle for operation.
5. Ridgid 37475 Manual Threading/Pipe and Bolt Die Heads Complete W/Dies - 12R 3/8 HS NPT DI HD COM
This RIDGID 12-R manual die head set is a complete package that includes the necessary dies for 3/8-inch HS (High Speed) NPT threading. Holding a perfect 5.0-star rating, this unit is highly regarded for its performance in manual pipe threading applications. As part of the 12-R series, it is designed for compatibility with established RIDGID hand threader systems, providing a reliable and proven method for creating clean, professional-grade pipe threads. The inclusion of the dies within the head assembly ensures that the user is ready to begin threading immediately upon installation. This tool is particularly well-suited for professionals who demand high-speed performance and consistent thread quality in a manual, portable package, and who rely on the ecosystem of the 12-R series for their plumbing and industrial threading requirements.
Best for: Professionals requiring high-speed manual 3/8-inch NPT pipe threading.
Check on AmazonHighlights
- Includes complete 3/8-inch NPT dies.
- High-speed steel construction.
- Fully compatible with 12-R systems.
- Proven performance for manual threading.
Keep in mind
- High cost relative to single-component replacements.
- Requires a compatible 12-R handle for use.
How to choose
Threading Application
Identify whether your project requires threading bolts or pipes. Bolt threading typically involves smaller SAE or metric sizes, such as those found in the 60-piece master tap and die set. Conversely, pipe threading requires dedicated die heads like the RIDGID 12-R series or HFS ratcheting kits. Choosing the wrong tool type can result in incompatible thread pitches and diameters, making it essential to match your specific hardware requirements to the tool's intended use case. Always verify if the die is designed for external thread cutting or restoration of damaged threads before beginning your project.
Material and Compatibility
Ensure the die head or threading set is compatible with the material you are working on. Products like the Century Drill & Tool 5/8-11 NC fractional die are engineered for specific thread counts and diameters. For professional pipe work, look for NPT (National Pipe Taper) designation to ensure a proper seal. Review the product specifications for details on whether the dies are high-speed steel or alloy, as these materials influence the durability and longevity of the cutting edges when used on various metals during the threading process.
Mechanism and Operation
Consider the mechanical advantage needed for your threading tasks. Manual die heads, such as the RIDGID 37475, require a compatible handle or ratcheting system to generate the necessary torque for manual operation. In contrast, kits like the HFS ratcheting pipe threader are designed to provide leverage for heavy-duty pipe work. If you are working in tight spaces or on long pipe runs, a ratcheting mechanism is often more efficient than a fixed-head design. Verify that your chosen die head fits the drive size of your existing threading equipment.
Thread Standards
Confirm the thread standard required for your assembly. The 60-piece master tap and die set covers a wide spectrum of SAE inch sizes and metric sizes, providing versatility for general shop maintenance. Specialized items like the RIDGID 12-R die head are explicitly labeled for NPT pipe standards. Using a die that does not match the required thread pitch or standard will lead to stripped fasteners or leaking pipe connections. Always confirm the thread count per inch or the millimeter pitch matches the specifications of your hardware or plumbing components.
Set Completeness and Storage
Evaluate whether you need a single replacement head or a comprehensive kit. Professional users maintaining a fleet of equipment may prefer the RIDGID 12-R individual die heads to replace worn components. DIY enthusiasts or general workshops may benefit from the 60-piece master set, which includes essential accessories and a dedicated storage case to keep taps and dies organized. Proper storage prevents damage to the cutting teeth, ensuring that your tools remain sharp and accurate for future use. Assess your current inventory to determine if you need a specialized die or a full set.
Frequently asked questions
What is the difference between the RIDGID 12-R and a standard fractional die?
The RIDGID 12-R is a specialized hand threader die head designed specifically for NPT pipe threading. It is a robust, professional-grade component intended for use with compatible pipe threading handles. In contrast, a fractional die like the Century Drill & Tool 98213 is designed for external bolt threading and thread restoration. These tools serve different mechanical purposes, so you must select the one that matches your specific task of either pipe assembly or bolt fastening.
Can I use the 60-piece master set for pipe threading?
No, the 60-piece master tap and die set is intended for SAE inch and metric threading applications, such as bolts and machine screws. It does not contain the specialized NPT dies required for plumbing pipe threads. If your project involves pipe threading, you should look for dedicated tools like the HFS ratcheting pipe threader or the RIDGID 12-R series die heads, which are specifically engineered to cut the tapered threads necessary for secure pipe connections.
How do I know which RIDGID 12-R size to choose?
You should select the RIDGID 12-R die head size based on the nominal pipe size you intend to thread. For example, the RIDGID 37405 model is specifically for 1-1/4-inch nominal pipe, while the 37475 model is for 3/8-inch pipe. Always check the specific nominal pipe size requirement of your plumbing project. Using the incorrect size will prevent the die from engaging properly with the pipe, leading to ineffective cutting and potential damage to the pipe end.
Is a ratcheting tool necessary for threading pipes?
A ratcheting tool, such as the HFS pipe threader kit, is highly beneficial for professional pipe threading. The ratcheting mechanism allows for easier operation in confined spaces where a full rotation of a standard handle might be impossible. It provides the necessary leverage to cut threads into metal pipes more efficiently than a fixed-head manual tool. If you are performing frequent pipe threading, the ratcheting feature is a significant advantage for both speed and ergonomic comfort.
What does the NC designation mean on the Century Drill & Tool die?
The NC designation stands for National Coarse, which indicates the thread pitch standard of the die. In the case of the Century Drill & Tool 98213, the 5/8-11 NC specification means it is designed for a 5/8-inch diameter bolt with 11 threads per inch. It is important to match the NC or NF (National Fine) designation of your die to the hardware you are working on to ensure the threads are cut to the correct specifications.
Bottom line
For professional-grade plumbing, the RIDGID 12-R series stands out as the most reliable choice. With its high rating and specific NPT threading capabilities, it is the industry standard for those requiring precision when cutting threads on pipes. For users needing versatility across various automotive or general mechanical tasks, the 60-piece master tap and die set offers the best value, covering a wide range of SAE and metric sizes in one package. If your focus is heavy-duty pipe work, the HFS ratcheting kit provides the necessary mechanical leverage. Each of these tools serves a distinct purpose, ensuring that whether you are repairing a bolt or installing pipe, you have the correct equipment for the job.
Deciding which tool to purchase depends on the nature of your threading needs. If you are working on plumbing installations, prioritize the RIDGID 12-R die heads for their NPT accuracy. For general workshop maintenance involving fasteners, opt for the comprehensive 60-piece master set. If your project requires cutting external threads on specific bolt sizes, a dedicated fractional die is the most efficient solution. Always verify the nominal size and thread pitch of your hardware before making a final selection to ensure compatibility. By identifying the specific material and thread standard required, you can choose the tool that ensures a secure, high-quality thread every time.
