Top Sight Glass Level Indicators for Industrial Fluid Monitoring
Selecting the right sight glass level indicator is essential for maintaining optimal fluid levels in industrial machinery, lathes, and sumps. These tools provide critical visual confirmation of oil or liquid volumes, preventing equipment damage caused by low lubrication or overflows. Whether you require a specialized thermometer-integrated gauge for petroleum-based fluids or a durable brass assembly for high-pressure environments, the market offers various configurations. When choosing, consider the mounting thread type, pressure rating, and material compatibility to ensure a secure fit for your specific application. Our comparison breaks down the technical specifications of available indicators to help you match the correct component to your workshop or factory equipment needs.
The variety of available sight glasses ranges from specialized resin units with built-in temperature monitoring to rugged brass options designed for diverse mounting threads. Each model serves a distinct purpose, from monitoring diesel and solvents to managing oil levels in mechanical sumps. Before purchasing, it is important to confirm the mounting dimensions and fluid compatibility to ensure the hardware meets your system requirements. By carefully reviewing the thread sizes and material construction provided in these product specifications, you can select a reliable indicator that minimizes maintenance downtime and improves the operational visibility of your fluid-handling systems.
1. Lenz T-LLG-5 Fluid Level Gauge & Thermometer, 6.1" Tall, 1/2-13 UNC Thread | Nitrile Seal, 212 F Max Temp, 44 Max PSI, Transparent Polymide Resin, Petroleum-based Fluids, Gasoline, Diesel, Solvents
This 6.1-inch tall fluid level gauge serves a dual purpose by incorporating a thermometer, allowing operators to monitor both volume and temperature. Constructed from transparent polyamide resin, it is engineered for use with petroleum-based fluids, gasoline, diesel, and various solvents. The unit features a 1/2-13 UNC thread and utilizes nitrile seals to maintain integrity. It is rated for a maximum temperature of 212 degrees Fahrenheit and a maximum pressure of 44 PSI. The combination of fluid level monitoring and thermal data makes this a versatile choice for tanks or reservoirs where heat management is a concern. With a 4.6-star rating, it is a well-regarded option for those needing an integrated solution that is clearly visible under typical workshop conditions.
Best for: Monitoring petroleum-based fluids and temperature in reservoirs.
Check on AmazonHighlights
- Integrated thermometer functionality
- Compatible with diesel and gasoline
- 6.1-inch total gauge height
- Durable polyamide resin construction
Keep in mind
- Limited to 44 PSI maximum pressure
- Requires specific 1/2-13 UNC threading
2. 1/4"" 3/8"" 1/2"" BSP Male Thread L-Shape Brass Oil Liquid Level Indicator Sight Glass Gauge - Two Window 1PC(Two Window 1/4"",125mm)
This two-window L-shape brass oil level indicator offers a robust solution for tracking liquid volume. Designed with a 1/4-inch BSP male thread, this gauge is built to withstand industrial environments where durability is prioritized. The L-shape design allows for flexible mounting orientations, which can be advantageous in confined spaces or complex machine layouts. Given its 5.0-star rating, this component is recognized for its reliability in visual monitoring. The brass construction offers a high degree of structural integrity, making it suitable for standard sump or gearbox applications. The clear sight windows allow for quick status checks, helping to ensure that fluid levels remain within the intended range during operation, thereby supporting the long-term health of your mechanical equipment.
Best for: Durable two-window monitoring in tight machine spaces.
Check on AmazonHighlights
- Rugged brass construction
- Versatile L-shape configuration
- Standard 1/4-inch BSP threading
- Clear dual-window visibility
Keep in mind
- Specific to 1/4-inch BSP threads
- May require careful clearance for L-shape mounting

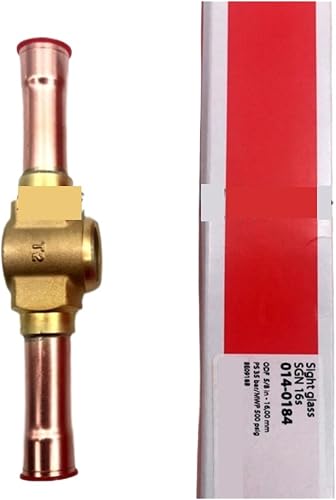

3. Sight Glass SGN16S 014-0184 ODF 5/8in Level Indicator Sight Glass
The SGN16S level indicator is a specialized sight glass featuring an ODF 5/8-inch connection. Designed for specific fluid monitoring applications, this unit is built for integration into systems requiring a 5/8-inch interface. While detailed performance metrics such as pressure or temperature limits are not specified, its design follows standard industrial sight glass profiles intended for clear liquid observation. This component is suitable for technicians who need a direct replacement or a new installation point for a 5/8-inch ODF setup. Its construction is focused on providing a reliable portal for viewing internal fluid dynamics. Users should verify that the system pressure and fluid type are compatible with this model before installation to ensure the unit performs as expected in the intended environment.
Best for: Systems requiring a 5/8-inch ODF connection interface.
Check on AmazonHighlights
- Standardized 5/8-inch ODF sizing
- Designed for clear fluid observation
- Compact industrial form factor
- Easy integration into compatible lines
Keep in mind
- Lack of detailed pressure or temperature ratings
- Limited to 5/8-inch ODF specifications
4. Sight Glass A18117 Welded 16mm 5/8" Level Indicator Sight Glass
The A18117 model is a welded 16mm sight glass indicator with a 5/8-inch connection, designed for permanent installation in fluid systems. The welded construction suggests a focus on creating a secure, leak-resistant connection point for monitoring fluid levels. This indicator is tailored for applications where a fixed, robust mounting is preferred over threaded alternatives. By providing a clear view of the interior, it allows for consistent monitoring of oil or other process fluids. It is particularly well-suited for industrial machinery or tanks where a 16mm/5/8-inch opening is standard. As a fixed-installation component, it offers a stable and reliable method for maintaining visibility over internal fluid volumes without the potential for loosening that can sometimes occur with threaded fittings.
Best for: Permanent, leak-resistant mounting in fluid systems.
Check on AmazonHighlights
- Welded construction for security
- 16mm and 5/8-inch sizing
- Fixed mounting for stability
- Clear fluid volume observation
Keep in mind
- Not removable or adjustable once welded
- Requires professional installation capability
5. Brass Oil Level Indicator - 2PC Sight Glass for Lathes & Sumps - M10 M12 M16 1/4" 3/8" 1/2" BSP - 80mm 100mm 150mm 200mm(100mmx1/2")
This brass oil level indicator is designed as a two-piece set, making it a flexible choice for maintaining lathes and sumps. It supports a wide variety of mounting options, including M10, M12, M16, and 1/4-inch to 1/2-inch BSP threads, with length options ranging from 80mm to 200mm. This versatility ensures that it can be adapted to many different machine models and sump sizes. The brass material provides the necessary durability for workshop environments, resisting the wear and tear common in heavy-duty machinery. By offering multiple sizes and threading options, this set serves as a comprehensive solution for those managing a fleet of different machines or needing a reliable replacement part that can be tailored to various installation requirements.
Best for: Versatile replacement needs across multiple machine types.
Check on AmazonHighlights
- Multiple thread types (M10, M12, M16, BSP)
- Range of lengths from 80mm to 200mm
- Durable brass material
- Useful for diverse sump applications
Keep in mind
- Requires precise selection of size and thread
- Performance data not explicitly provided
How to choose
Material Compatibility
When selecting a sight glass level indicator, verify the material compatibility with your specific fluids. The Lenz T-LLG-5 utilizes transparent polyamide resin, which is suitable for petroleum-based fluids, diesel, gasoline, and various solvents. In contrast, other models like the L-Shape and general Brass Oil Level Indicators feature brass construction. Brass is a robust choice for metal lathes and sumps, but you must ensure the seal material matches the chemical profile of the liquid being monitored. Always cross-reference the sight glass housing and seal specifications against the fluid type to prevent degradation or leakage over time.
Thread Type and Size
Proper installation depends on matching the thread type and size to your existing port. Options range from the 1/2-13 UNC thread found on the Lenz T-LLG-5 to various BSP male threads available on brass indicators. Models such as the Brass Oil Level Indicator provide flexibility with M10, M12, M16, and multiple BSP options. Before purchasing, verify if your equipment requires a specific thread pitch or a standard pipe thread. Mismatched threads will prevent a secure, leak-free seal, rendering the gauge ineffective for monitoring fluid levels in pressurized or gravity-fed systems.
Temperature and Pressure Ratings
Operational limits are critical for safety and longevity. The Lenz T-LLG-5 is explicitly rated for temperatures up to 212 degrees Fahrenheit and a maximum pressure of 44 PSI. If your application involves high-heat environments or pressurized systems, you must confirm that the indicator can withstand those specific conditions. While some brass indicators are designed for simple sump or lathe oil monitoring, they may not be rated for high-pressure industrial environments. Always prioritize components that clearly list their maximum temperature and PSI thresholds to avoid catastrophic failure during operation.
Integrated Functionality
Some sight glass indicators offer more than basic level monitoring. The Lenz T-LLG-5, for example, includes an integrated thermometer, which is useful for tracking fluid temperature alongside the level. Other models, such as the L-Shape brass gauge, feature a two-window design, which can assist in visual verification from different angles. Consider whether your equipment maintenance routine would benefit from dual-purpose hardware. Combining level and temperature tracking into a single port can reduce the number of required penetrations in a reservoir or housing, simplifying your overall system design.
Form Factor and Mounting
The physical dimensions and mounting orientation dictate the visibility of the fluid level. Indicators are available in various lengths, such as the 6.1-inch Lenz model or the range of 80mm to 200mm brass gauges. Choose a length that corresponds to the depth of the reservoir you are monitoring to ensure the entire operating range is visible. Additionally, consider the mounting shape; straight indicators are standard, but L-shape configurations might be necessary for tight spaces or specific orientations where a straight gauge would be obscured or difficult to read during routine maintenance.
Frequently asked questions
Can I use the Lenz T-LLG-5 for water-based fluids?
The Lenz T-LLG-5 is specifically engineered for petroleum-based fluids, gasoline, diesel, and solvents. Its polyamide resin construction and nitrile seal are optimized for these chemical types. Because the product documentation does not explicitly list water compatibility, it is best to avoid using this specific model for water-based applications to prevent potential seal swelling or long-term degradation of the resin material. Always consult your fluid’s safety data sheet against these material specifications before installation.
Are brass sight glasses better than polyamide resin models?
The choice between brass and polyamide resin depends on your environment. Brass indicators, such as the 2PC Sight Glass for lathes, offer high durability and are often used in heavy-duty machinery. Polyamide resin models, like the Lenz T-LLG-5, offer the advantage of integrated features like thermometers and are specifically tested for compatibility with various fuels and solvents. Neither is universally better; the decision should be based on your specific pressure, temperature, and fluid chemical requirements.
How do I ensure the sight glass fits my lathe's sump?
To ensure a proper fit for your lathe or sump, first identify the thread size and type required by the port. The Brass Oil Level Indicator series offers a wide variety of options, including M10, M12, M16, and various BSP sizes. Measure your existing port carefully and compare it against the available options in the product catalog. Additionally, consider the length of the sight glass, as options ranging from 80mm to 200mm are available to match different sump depths.
What does ODF mean for the Sight Glass SGN16S?
ODF stands for 'Outside Diameter Fit,' which is a common designation in refrigeration and HVAC plumbing. The Sight Glass SGN16S 014-0184 is specified for use with 5/8-inch ODF piping. This indicates that the indicator is designed to be brazed or connected to tubing that has an outside diameter of 5/8 inch. Always verify your system’s piping dimensions to ensure the SGN16S fits correctly into your existing cooling or refrigerant circuit line.
Can I use the Sight Glass A18117 for high-pressure systems?
The Sight Glass A18117 is a welded 16mm 5/8-inch indicator. While it is designed for integration into specific fluid systems, the provided product information does not explicitly state a maximum PSI or temperature rating. For high-pressure applications, it is essential to verify that the component is rated for your system's specific operating pressure. If a rating is not clearly provided, it is safest to assume the component is intended for low-pressure or atmospheric monitoring applications.
Bottom line
For users prioritizing comprehensive monitoring in fuel and solvent applications, the Lenz T-LLG-5 stands out as the most capable choice. With its explicit 4.6-star rating, 44 PSI pressure limit, and integrated thermometer, it offers reliable performance for petroleum-based systems. Conversely, for mechanical workshops and lathe maintenance, the Brass Oil Level Indicator range is the superior fit. These brass units provide the structural integrity needed for metalworking environments and offer a broad array of thread sizes, including M10 through M16 and BSP, ensuring they can adapt to a variety of machine ports. Selecting based on these clear design strengths ensures you receive a component that aligns with your specific industrial or mechanical needs.
Deciding between these indicators requires checking three core metrics: fluid chemical compatibility, thread specifications, and system pressure. If you are working with fuels or require temperature monitoring, the Lenz T-LLG-5 is your best path. If you are outfitting industrial machinery or lathes, prioritize the brass options for their durability and versatile thread sizing. For HVAC or specialized plumbing, look for specific sizing like the 5/8-inch ODF designation found in the SGN16S model. By matching your hardware to these verified specifications, you eliminate guesswork and ensure a secure, long-lasting installation for your fluid level monitoring requirements.
